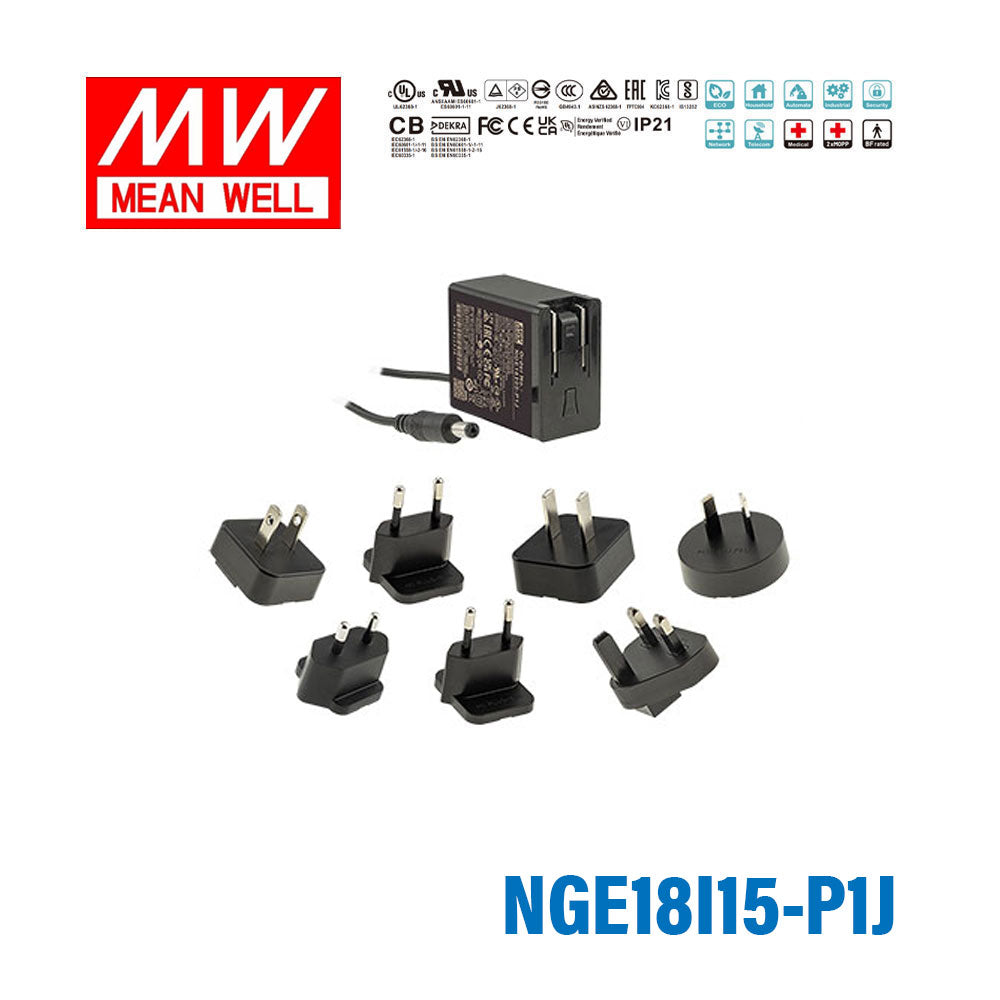

Mean Well NGE18I15-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE18I15 is a 18W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating18 Watt
-
Output Voltage15 Volt
-
Rated Current1.2 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.8 cm
-
Width2.8 cm
-
Height5.5 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE18I15-P1J?
The Mean Well NGE18I15-P1J is an 18W AC-DC wall-mounted adaptor with a 15V DC output and a rated current of 1.2A. It is designed as a compact external power supply for equipment that requires those output ratings.
What makes this adaptor suitable for international or multi-region use?
This model uses interchangeable AC plugs and supports universal AC input from 80 to 264VAC, with full-range input capability. That makes it a practical option for businesses deploying the same power adaptor across different regions, subject to the appropriate plug accessory and local approval requirements.
Is the NGE18I15-P1J intended for commercial and regulated equipment applications?
Yes. The product lists certifications across multiple application areas, including ITE 62368-1, medical 60601-1, household 60335-1, and industrial 61558-1/-2-16. This broad certification profile can make it relevant for OEM and B2B equipment projects that need a certified external power adaptor.
Can this adaptor be used in demanding temperature conditions?
The NGE18I15-P1J has a specified operating temperature range of -30C to +70C. That wide range makes it better suited than many standard indoor adaptors for environments with colder or hotter operating conditions, provided the overall system is designed within its limits.
What protection and safety features are included in this model?
This adaptor includes short circuit, overload, and over voltage protection. It is also a Class II power unit with no earth pin, passes LPS, and specifies extremely low leakage current below 100uA.
How energy efficient is the Mean Well NGE18I15-P1J?
This model meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. That helps reduce standby power draw in equipment that remains plugged in for long periods.
