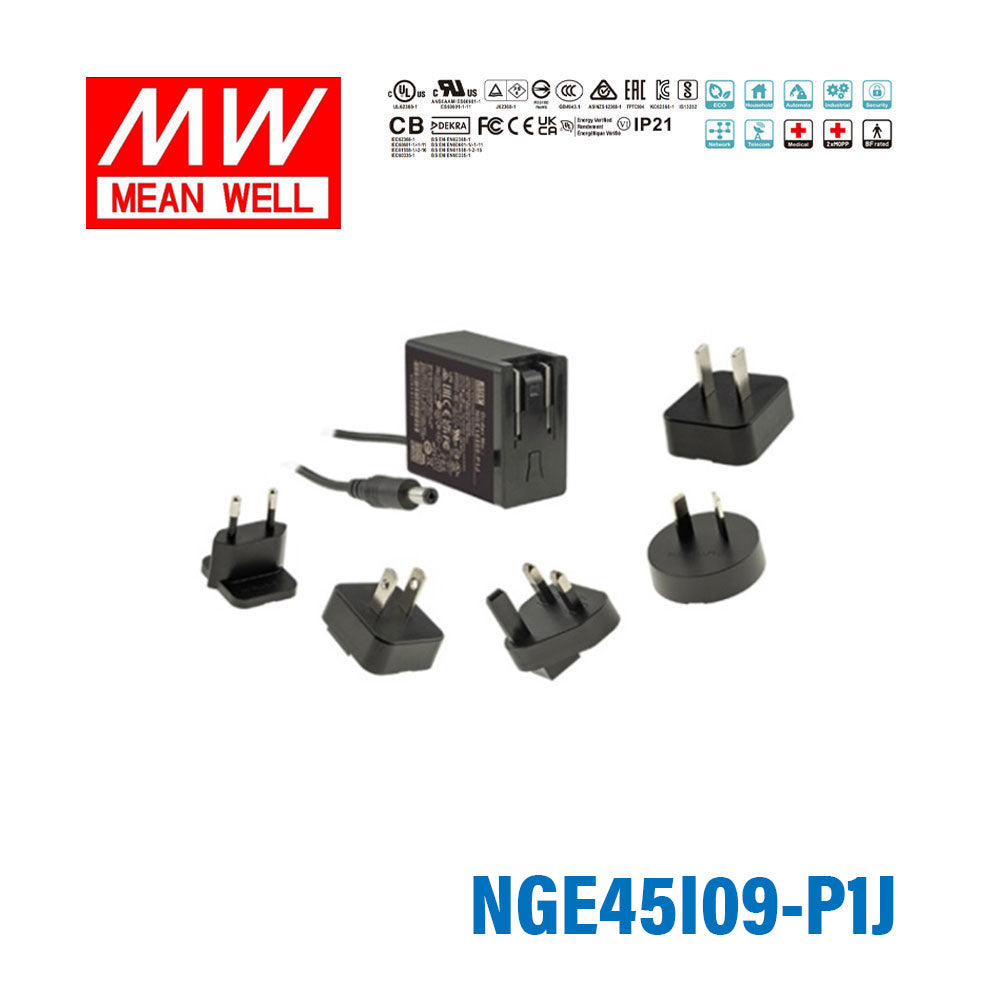

Mean Well NGE45I09-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE45I09 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating40.5 Watt
-
Output Voltage9 Volt
-
Rated Current4.5 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE45I09-P1J?
The Mean Well NGE45I09-P1J is a 40.5W AC-DC wall-mounted power adaptor with a 9V DC output and 4.5A rated current. It is designed as a fixed-output external power supply for equipment that requires this voltage and current rating.
What types of equipment is this 9V adaptor typically used for?
This model is suited to business and OEM applications that need a regulated 9V DC external power supply up to 4.5A. Typical use cases include ITE, medical, household, and industrial equipment where the product certifications and power level match system requirements.
Does the NGE45I09-P1J support international use?
Yes. It has a universal input range of 80 to 264VAC and features interchangeable AC plugs, making it suitable for multi-region deployment when the correct plug option is used. Its certification coverage also spans multiple regulatory fields and markets.
How energy efficient is the Mean Well NGE45I09-P1J?
This adaptor meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. That makes it a strong choice for applications where standby efficiency and reduced wasted power matter.
What protection features are built into this power adaptor?
The NGE45I09-P1J includes protection against short circuit, overload, and over voltage. It also passes LPS requirements and is a Class II power unit, which can be important for safety-focused commercial applications.
Can this adaptor be used in demanding temperature conditions?
Yes. The specified operating temperature range is -30°C to +70°C, which supports use in a wide range of indoor and equipment-enclosure environments. Buyers should still confirm the end product operates within its own thermal limits.
What certifications and compliance coverage does this model offer?
This model is certified across several standards including IEC 62368-1, IEC 60601-1/-1-11, IEC 60335-1, and IEC 61558-1/-2-16, along with approvals such as UL, CSA, DEKRA, PSE, BSMI, RCM, EAC, and CCC. That broad compliance profile makes it suitable for buyers sourcing for regulated and international product programs.
