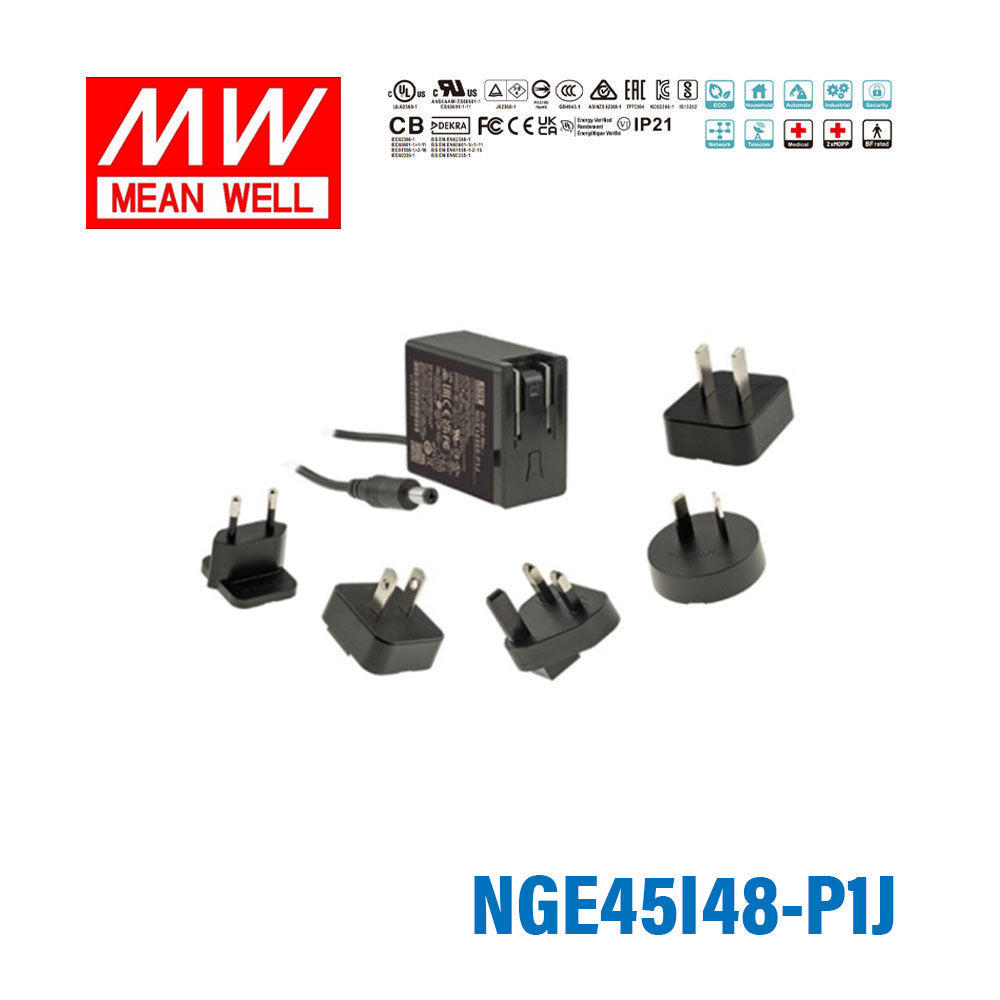

Mean Well NGE45I48-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE45I48 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating45.1 Watt
-
Output Voltage48 Volt
-
Rated Current0.94 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NGE45I48-P1J?
This model provides a regulated 48V DC output at up to 0.94A. Its maximum output power is 45.1W. That makes it suitable for equipment designed for a 48V DC power source within that current limit.
What kind of product is the NGE45I48-P1J?
The NGE45I48-P1J is an AC-DC wall-mounted green adaptor with interchangeable AC plug capability. It is a Class II external power supply, so it does not use an earth pin. The slim housing is designed for compact external power applications.
What protections are built into this power adaptor?
This model includes short circuit, overload, and over voltage protection. Mean Well also specifies LPS compliance for the series. These protections help support safer operation in equipment that matches the adaptor's rated output.
Can the NGE45I48-P1J be used in demanding temperature environments?
Yes, this adaptor is rated for operation from -30°C to +70°C. That wide working temperature range makes it a practical option for industrial and commercial environments where ambient conditions may vary. Buyers should still confirm the full application stays within the product's published limits.
What standards and certifications does the NGE45I48-P1J support?
Mean Well lists broad multi-field safety approvals for this model, including standards covering ITE, medical, household, and industrial applications. The published certifications include IEC62368-1, IEC60601-1/-1-11, IEC60335-1, and IEC61558-1/-2-16, along with regional approvals such as UL, CSA, PSE, BSMI, RCM, EAC, and CCC. This makes it a strong choice for OEM and B2B projects that need a globally certified external adaptor.
Is this adaptor energy efficient for low standby power applications?
Yes, the NGE45I48-P1J is rated to Energy Efficiency Level VI. Mean Well also specifies no-load power consumption below 0.075W. That is useful for applications where reducing standby energy use is important.
