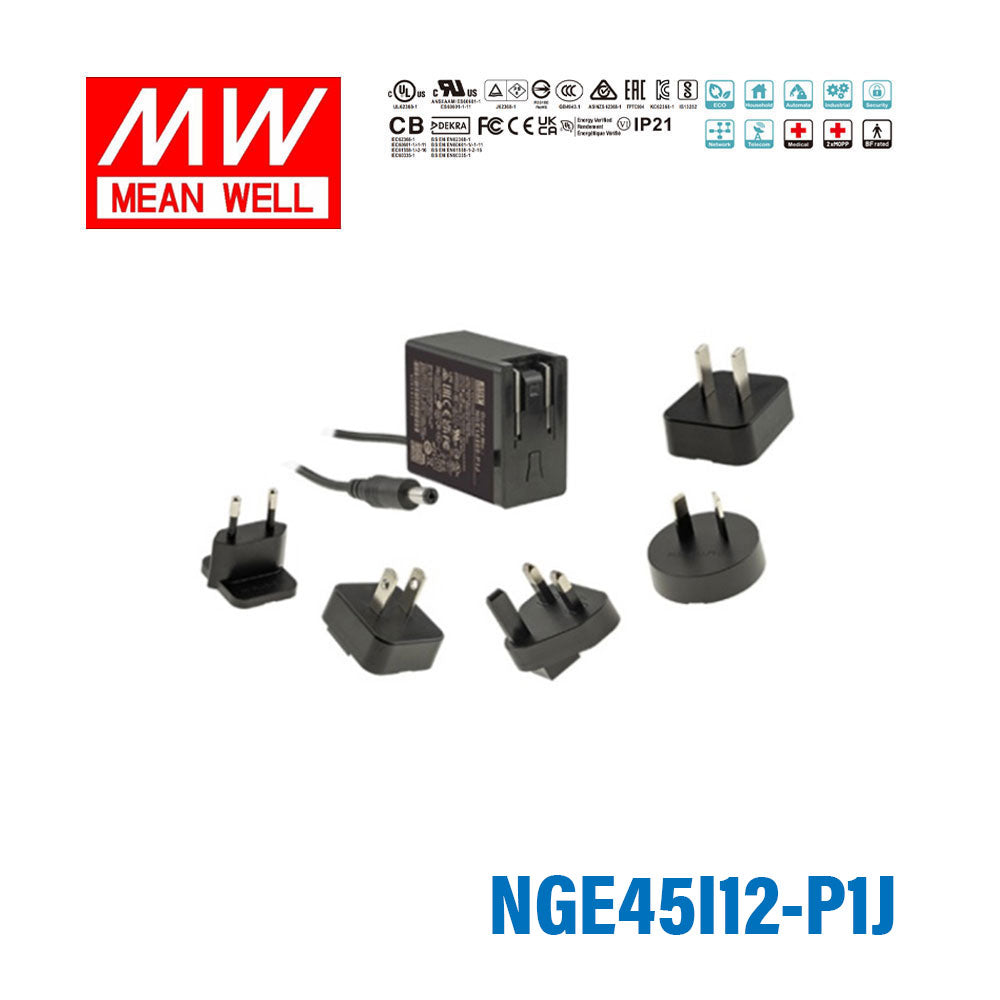

Mean Well NGE45I12-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE45I12 is a 45W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating45 Watt
-
Output Voltage12 Volt
-
Rated Current3.75 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE45I12-P1J?
This model is a 45W AC-DC wall-mounted adaptor with a regulated 12V DC output and a rated current of 3.75A. It is designed for applications that require a compact external power supply with consistent 12V performance.
What plug format does the NGE45I12-P1J use?
The NGE45I12-P1J is part of Mean Well's interchangeable-plug adaptor range. That design supports regional AC plug flexibility, which is useful for businesses sourcing equipment across different markets.
Is this adaptor suitable for commercial and regulated equipment applications?
Yes. The product is certified across multiple standards covering ITE, medical, household, and industrial categories, including IEC 62368-1 and IEC 60601-1. That makes it a strong option for OEM and B2B buyers who need a broadly approved external power supply.
Can the NGE45I12-P1J be used in demanding temperature conditions?
This adaptor has a specified operating temperature range of -30°C to +70°C. That wide range makes it better suited to harsher environments than many basic indoor-only desktop adaptors.
What protection features are included in this power adaptor?
The NGE45I12-P1J includes protection against short circuit, overload, and over voltage. These built-in safeguards help protect both the power supply and the powered equipment during abnormal operating conditions.
How energy efficient is the Mean Well NGE45I12-P1J?
This model meets Energy Efficiency Level VI and has very low no-load power consumption below 0.075W. That makes it a good fit for buyers looking to reduce standby power usage in deployed equipment.
