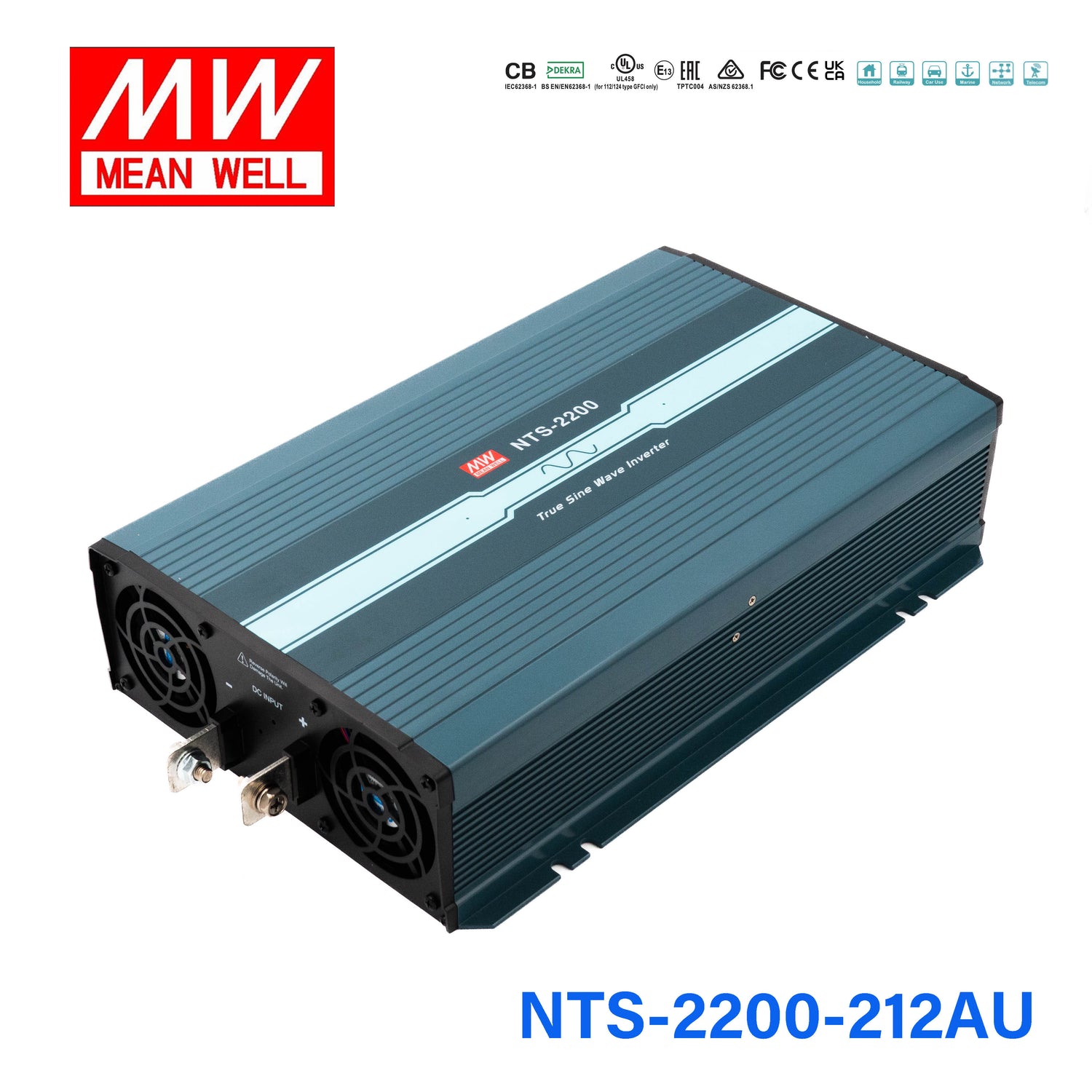

Mean Well NTS-2200-212AU True Sine Wave DC-AC Inverter 2200W 230V out 12V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU:

NTS-2200-212AU

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NTS-2200 is a 2200W Mean Well power converter (input range: 10~16.5Vdc).

Key Features

✓ Input voltage range: 10~16.5Vdc
✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
✓ Remote ON/OFF control
✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, UL62368-1, E13,EAC TP TC 004,AS/NZS 62368.1
✓ 3 years warranty

Frequently Asked Questions

What does the Mean Well NTS-2200-212AU do?

The NTS-2200-212AU is a true sine wave DC-AC inverter that converts 12V DC input power to 230V AC output. It is rated for 2200W continuous power and includes an AU socket, making it suitable for professional and commercial power conversion applications.

Is this inverter suitable for sensitive electronics?

Yes. This model provides a true sine wave output with total harmonic distortion below 3%, which is important for equipment that performs best on clean AC power. That makes it a better choice than modified sine wave inverters for many electronic loads.

What peak or surge capacity does this model support?

The NTS-2200-212AU supports surge power up to 4400W. This helps it handle short startup demands from compatible loads that briefly draw more than the continuous 2200W rating.

What battery types is the NTS-2200-212AU compatible with?

Mean Well specifies this inverter as suitable for both lead-acid and li-ion batteries. It also includes battery over-discharge protection with low voltage disconnect to help protect the input battery system.

Can this inverter be used in demanding environments?

Yes. It is designed for a wide operating temperature range up to +70C, with product data also listing low-temperature operation for challenging conditions. The unit also includes a temperature-controlled cooling fan and conformal coating for added durability.

What protection features are built into this inverter?

The NTS-2200-212AU includes protection for short circuit, overload, and over voltage conditions. It also provides low voltage disconnect protection to reduce the risk of battery over-discharge during operation.

Are remote control or communication options available for this model?

Yes. This inverter supports power on-off remote control, and compatible remote controller accessories such as IRC1, IRC2, and IRC3 are available separately. It also supports RS-232 communication with a separately ordered communication cable.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Waveform	Frequency
Mean Well NTS-2200-248AU True Sine Wave DC-AC Inverter 2200W 230V out 48V in with AU Socket	2200W	230V	True Sine Wave	50Hz	View
Mean Well NTS-2200-224AU True Sine Wave DC-AC Inverter 2200W 230V out 24V in with AU Socket	2200W	230V	True Sine Wave	50Hz	View
