Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

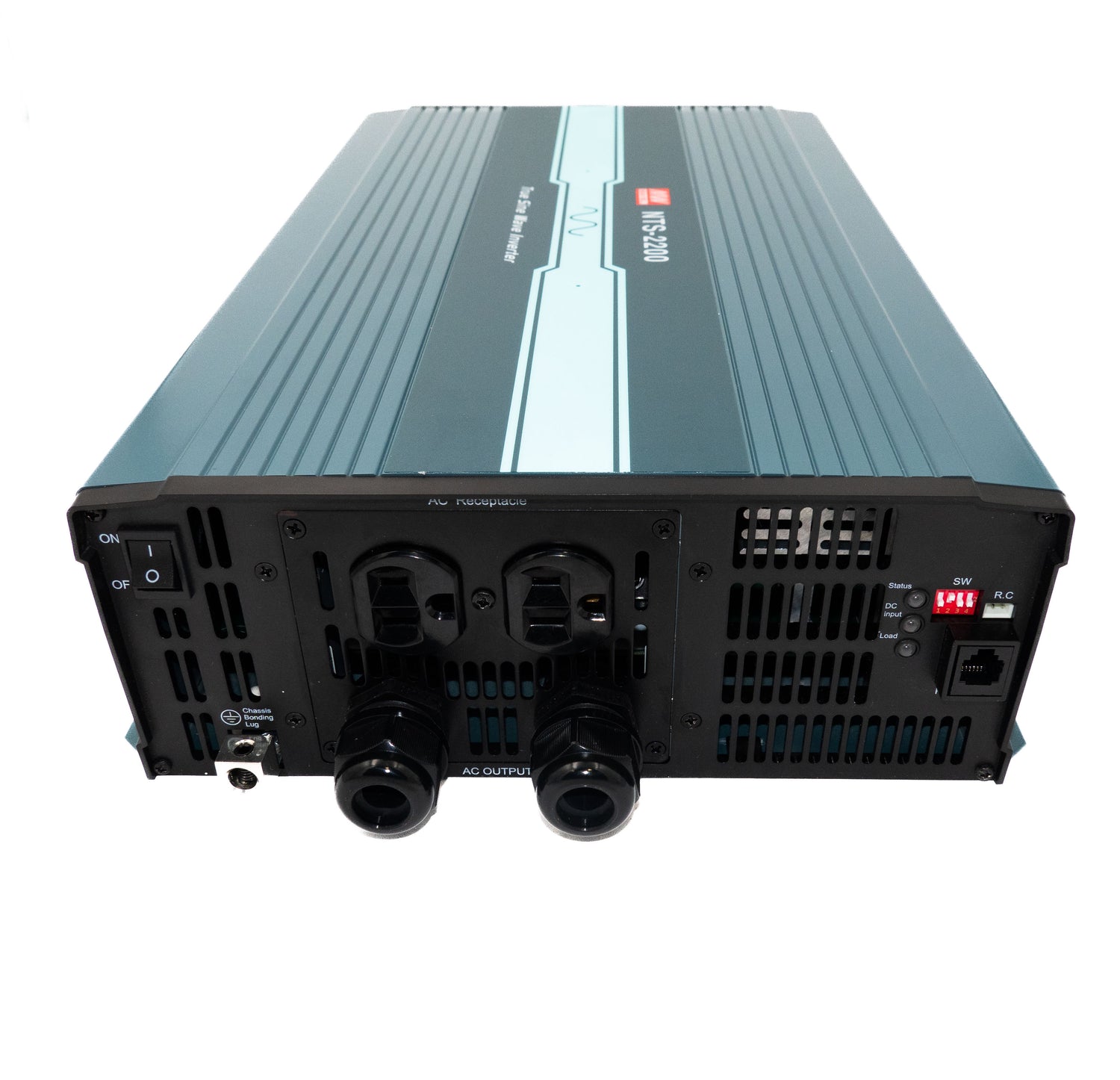

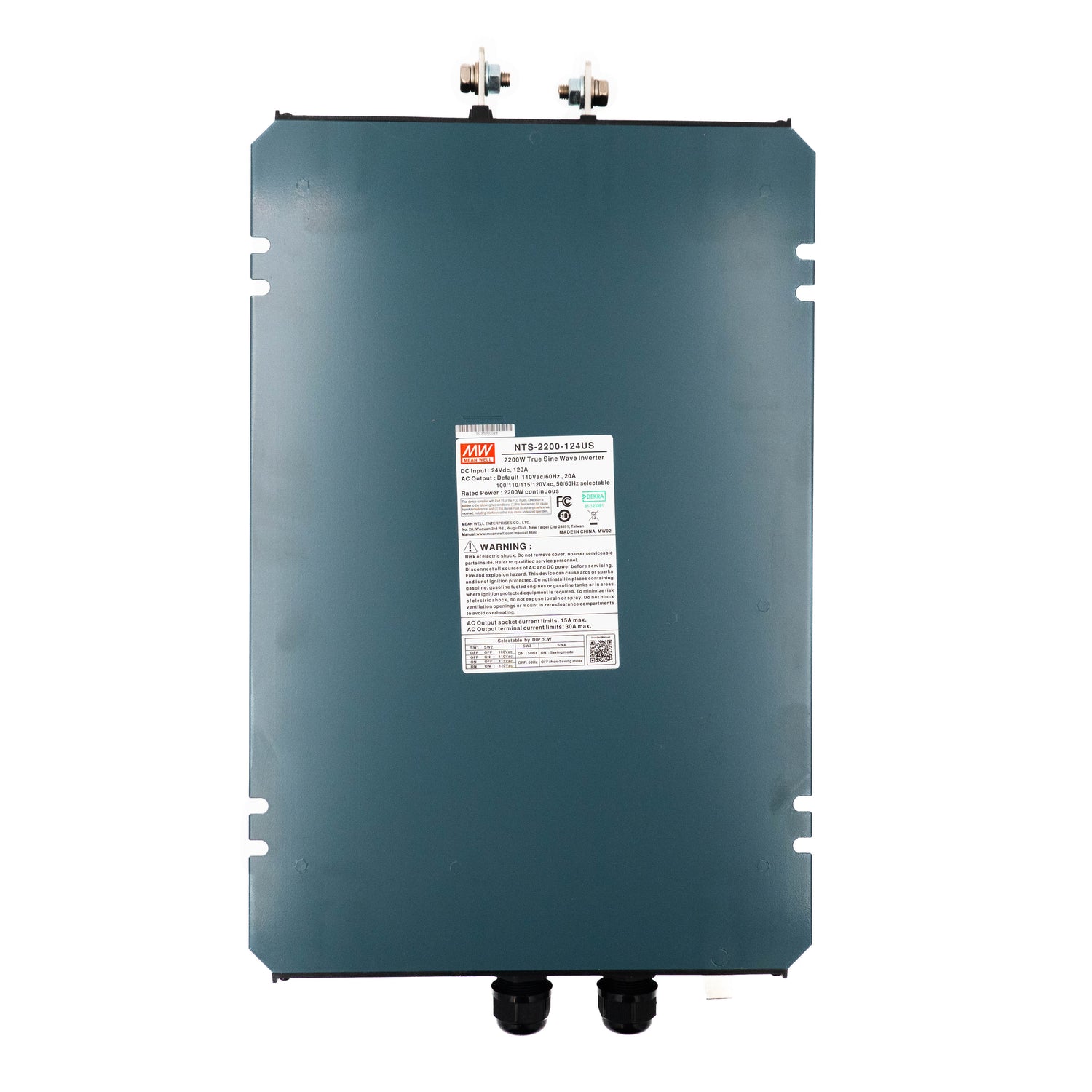

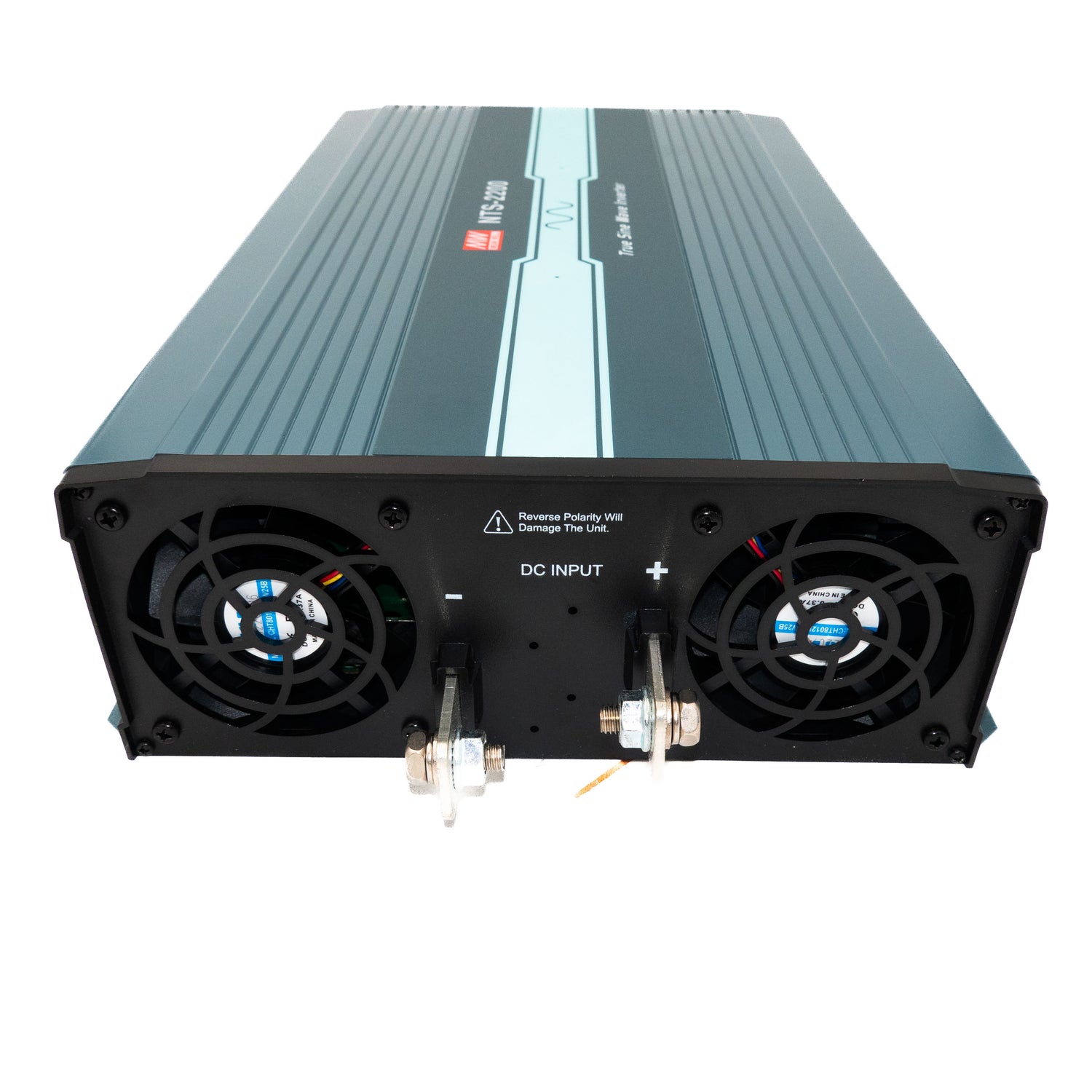

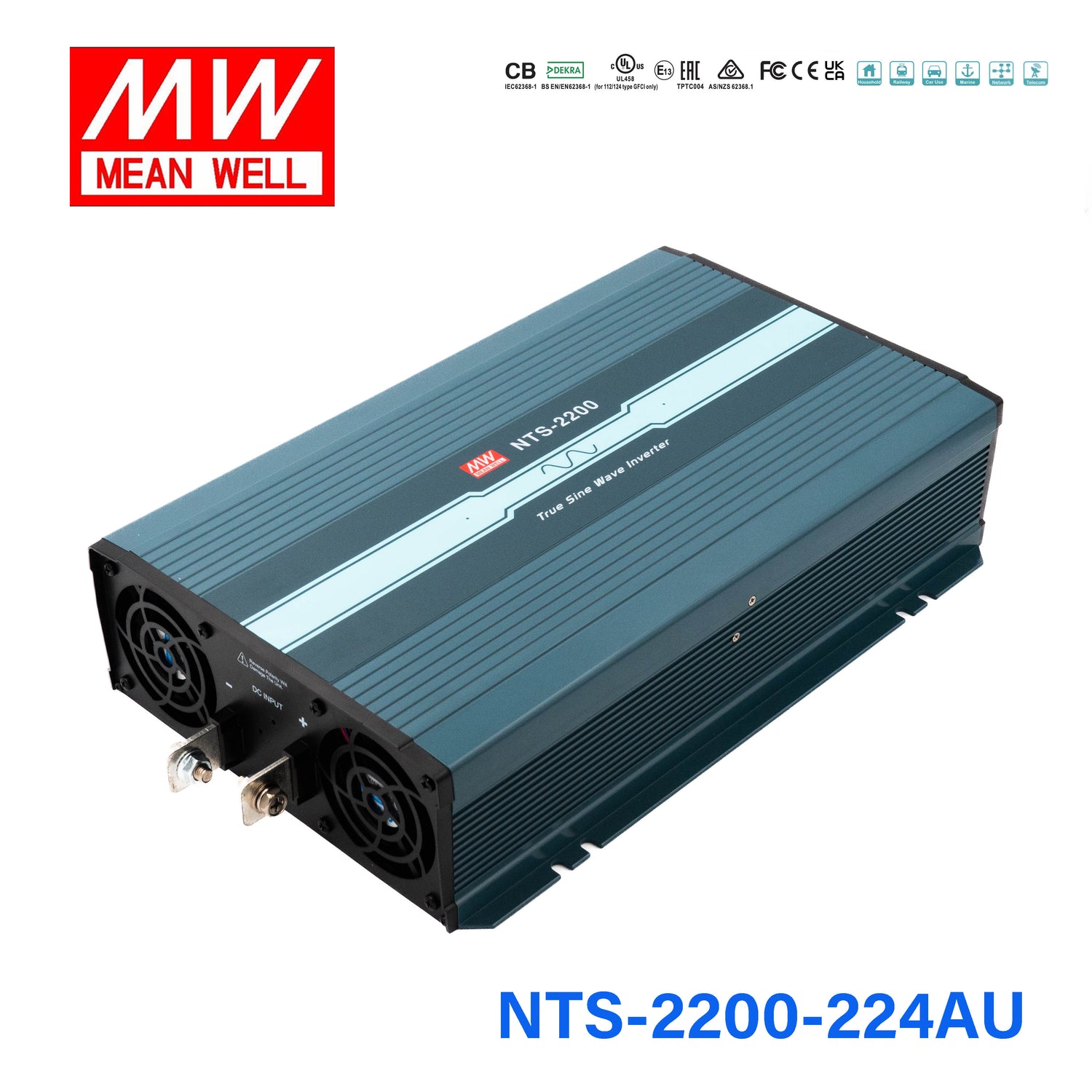

Mean Well NTS-2200-224AU True Sine Wave DC-AC Inverter 2200W 230V out 24V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU:

NTS-2200-224AU

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NTS-2200 is a 2200W Mean Well power converter (input range: 10~16.5Vdc).

Key Features

✓ Input voltage range: 10~16.5Vdc
✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
✓ Remote ON/OFF control
✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, UL62368-1, E13,EAC TP TC 004,AS/NZS 62368.1
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NTS-2200-224AU used for?

The NTS-2200-224AU is a 2200W true sine wave DC-AC inverter designed to convert 24V DC input power into 230V AC output. It is suited to professional and commercial applications where clean AC output is needed for sensitive equipment and higher-power loads.

Does this inverter produce true sine wave output?

Yes. The NTS-2200-224AU provides true sine wave output with total harmonic distortion below 3%, which makes it a better choice for equipment that requires cleaner AC power than modified sine wave alternatives.

What input and output voltage does this model support?

This model is designed for 24V DC input and provides 230V AC output. Its AC output voltage range is selectable by DIP switch, with options including 100/110/115/120VAC and 200/220/230/240VAC.

Can the NTS-2200-224AU handle startup surges?

Yes. It supports high surge power up to 4400W, which helps when powering loads that draw more power briefly during startup. Its overload behavior is also specified for short-duration loads above its rated output.

Is this inverter suitable for demanding environments?

Yes. The NTS-2200-224AU is built for a wide operating temperature range up to +70°C and includes conformal coating for added durability. It also uses a temperature-controlled cooling fan to help manage thermal performance.

What protection features are included in this inverter?

This model includes protection for short circuit, overload, and over voltage, plus battery over-discharge protection through low voltage disconnect. It also has overload temperature protection that shuts down output voltage until the unit is re-powered.

Is the NTS-2200-224AU compatible with different battery types?

Yes. Mean Well specifies this inverter as suitable for lead-acid or lithium-ion batteries. The model is built around a 24V DC input platform, so battery system compatibility should match that input requirement.

Does this model support remote control or monitoring accessories?

Yes. The NTS-2200-224AU supports power on-off remote control and is compatible with optional IRC1, IRC2, and IRC3 remote controllers sold separately. It also supports RS-232 communication with the separately ordered DS-RJ11-RS232 cable.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Waveform	Frequency
Mean Well NTS-2200-248AU True Sine Wave DC-AC Inverter 2200W 230V out 48V in with AU Socket	2200W	230V	True Sine Wave	50Hz	View
Mean Well NTS-2200-212AU True Sine Wave DC-AC Inverter 2200W 230V out 12V in with AU Socket	2200W	230V	True Sine Wave	50Hz	View
