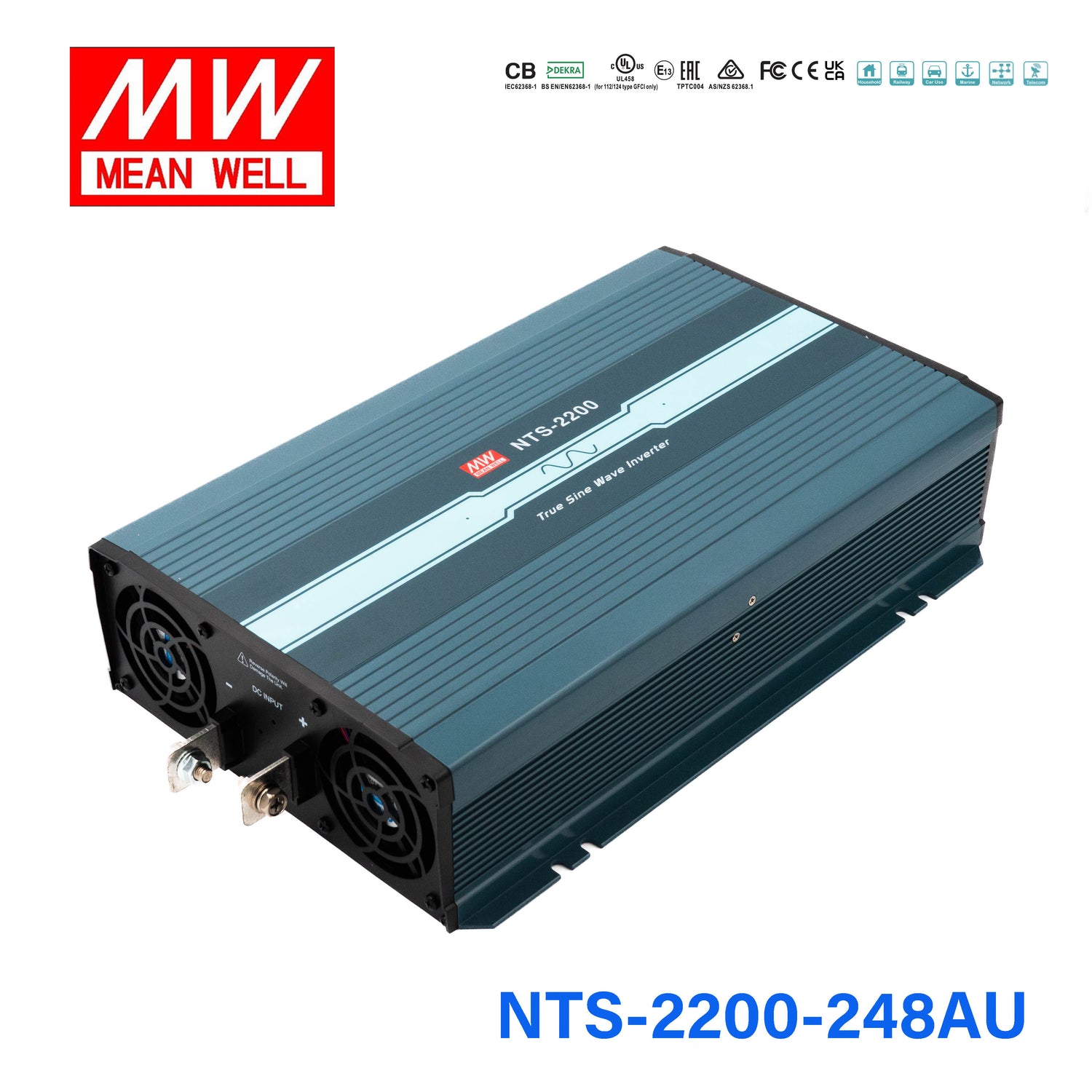

Mean Well NTS-2200-248AU True Sine Wave DC-AC Inverter 2200W 230V out 48V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU NTS-2200-248AU

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTS-2200-248AU is the model of this series: typical efficiency 93%.

NTS-2200 is a 2200W highly reliable off-grid true sine wave DC-AC power inverter. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 4400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTS-2200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

True sine wave output (THD<3%)
High surge power up to 4400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
No load dissipation <1.7W at standby saving mode
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections :
Input : Reverse polarity / DC. low alarm / DC low shutdown / Over voltage
Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller
(IRC1, IRC2, IRC3 accessory sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1 )
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTS-2200-248AUSpecifications from the official datasheet (2024-10-30 edition)

AC OUTPUT

RATED POWER(Continuous): 2200W
OVER RATED POWER(3 Min.): 2530W
PEAK POWER(10 Sec.): 3300W
SURGE POWER(30 Cycles): 4400W
AC VOLTAGE: Factory setting set at 230VAC 200 / 220 / 230 / 240Vac selectable by DIP S.W
FREQUENCY: Factory setting set at 50±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage

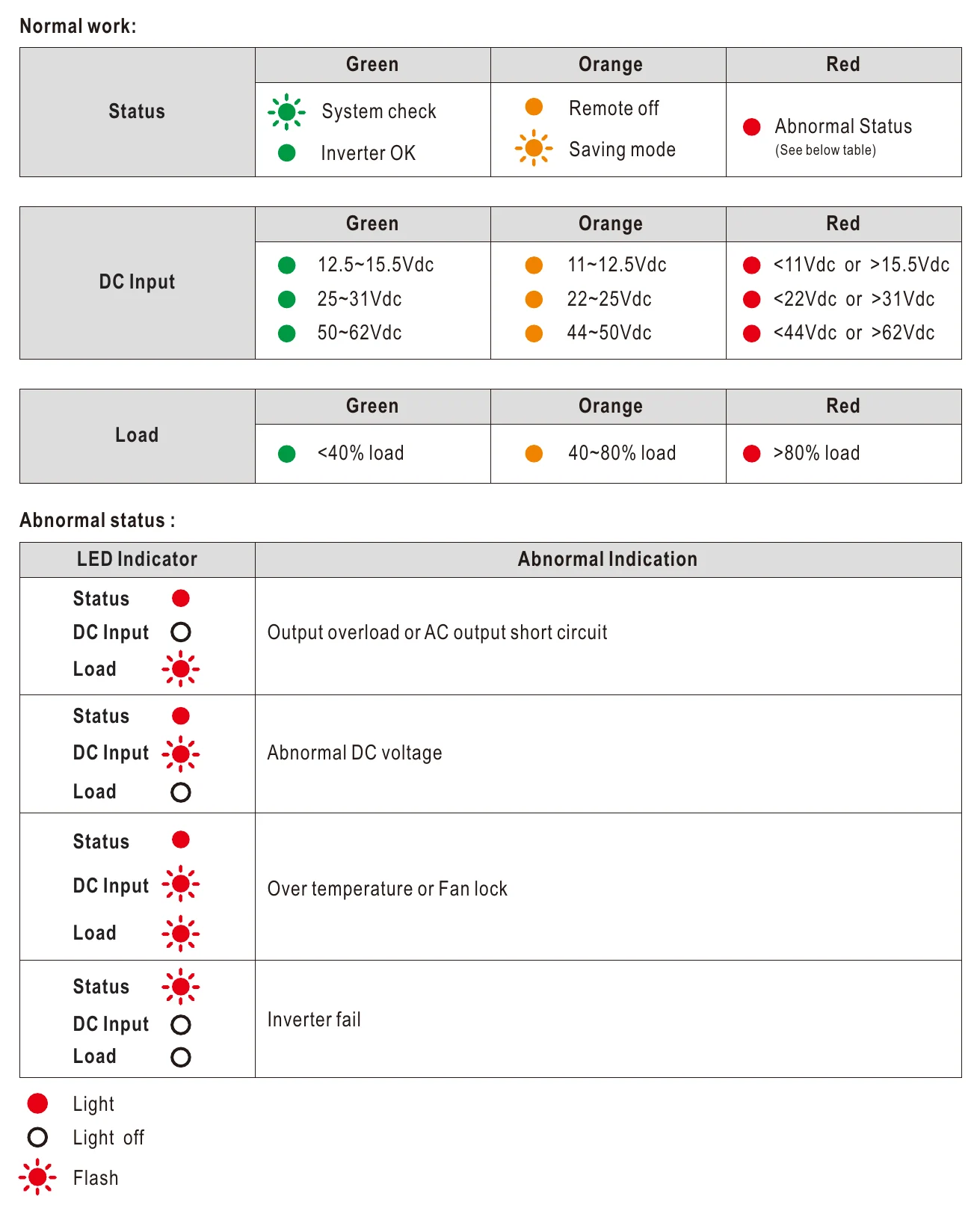

FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 48Vdc
VOLTAGE RANGE (Typ.): 40 ~ 66Vdc
DC CURRENT (Typ.): 60A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, auto detect AC output load≦10W will be changed to saving mode 1.7W
OFF MODE CURRENT DRAW: ≦2mA
EFFICIENCY (Typ.)^Note.1: 93%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 25A*4
LOW ALARM: 44±1Vdc
LOW SHUTDOWN: 40±1Vdc
LOW RESTART: 50±1Vdc
HIGH ALARM: 62±1Vdc
HIGH SHUTDOWN: 66±1Vdc
HIGH RESTART: 60±1Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: None
TB TYPE: None

FUNCTION

REMOTE CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
REMOTE ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to “Derating curve”)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, UL62368-1, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/EN61000-3-2
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55024, BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2, 3V/m
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only(expect for Type-UN)	Class A
Radiated	BS EN/EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Harmonic Current	BS EN/EN61000-3-2
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 364.7K hrs min. Telcordia TR/SR-332 (Bellcore) ; 34.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 420*270*98mm (L*W*H)
PACKING: 8.6Kg; 1pcs/ 10.4Kg/ 1.39CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 1650W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 25W, 212/224/248 for 55W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

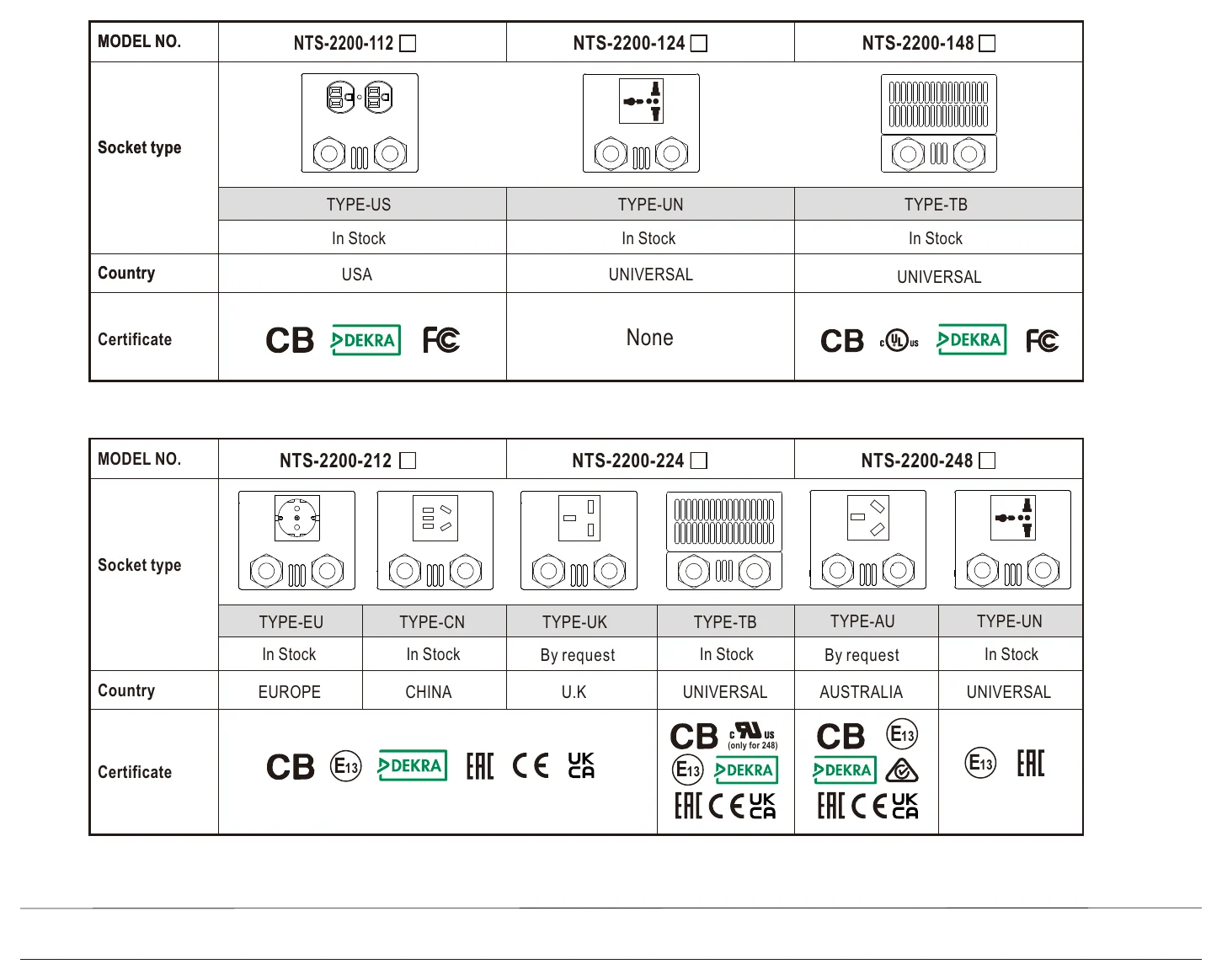

NTS-2200-248AU AC Output Socket — AC Output Socket

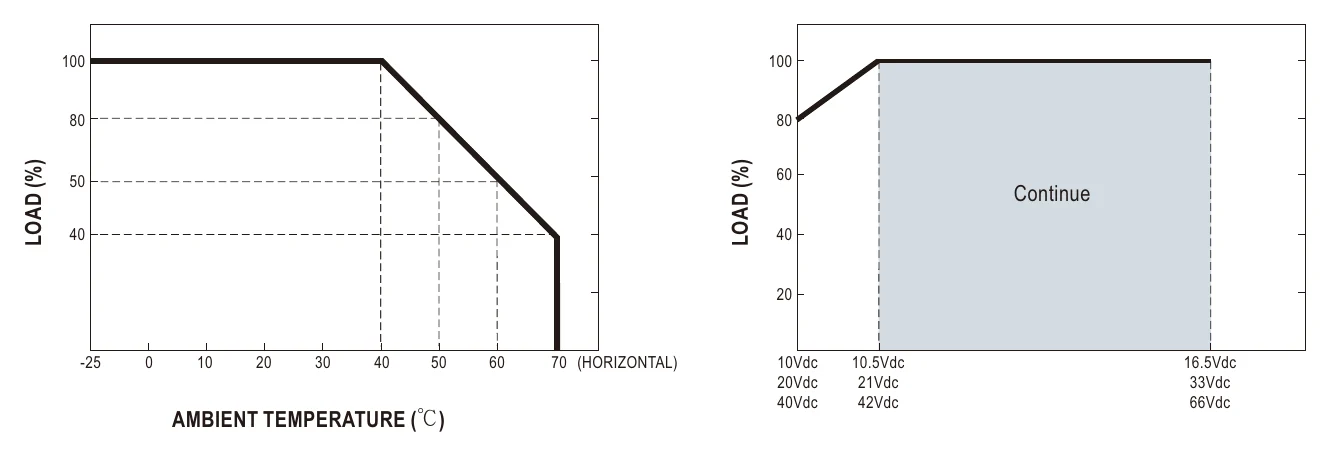

NTS-2200-248AU DERATING CURVE — DERATING CURVE

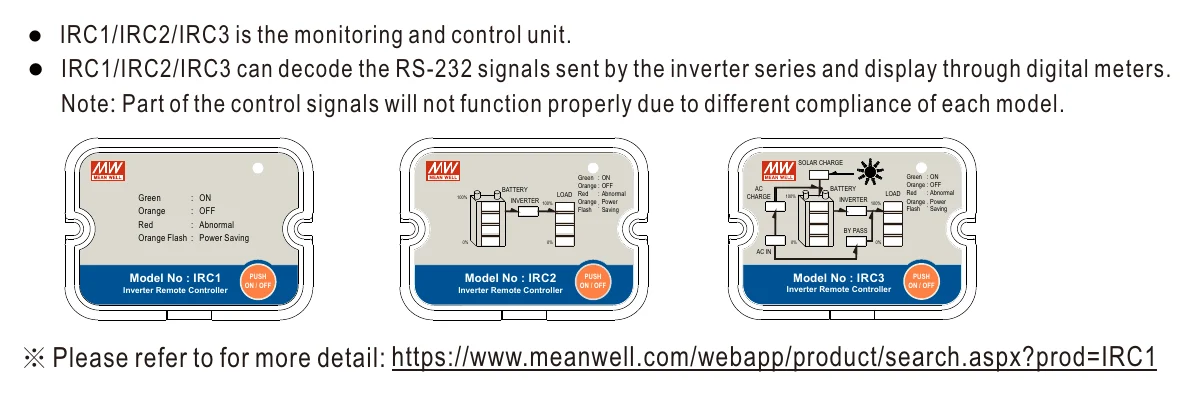

NTS-2200-248AU IRC1/2/3 Remote Controller (Accessory — IRC1/2/3 Remote Controller (Accessory

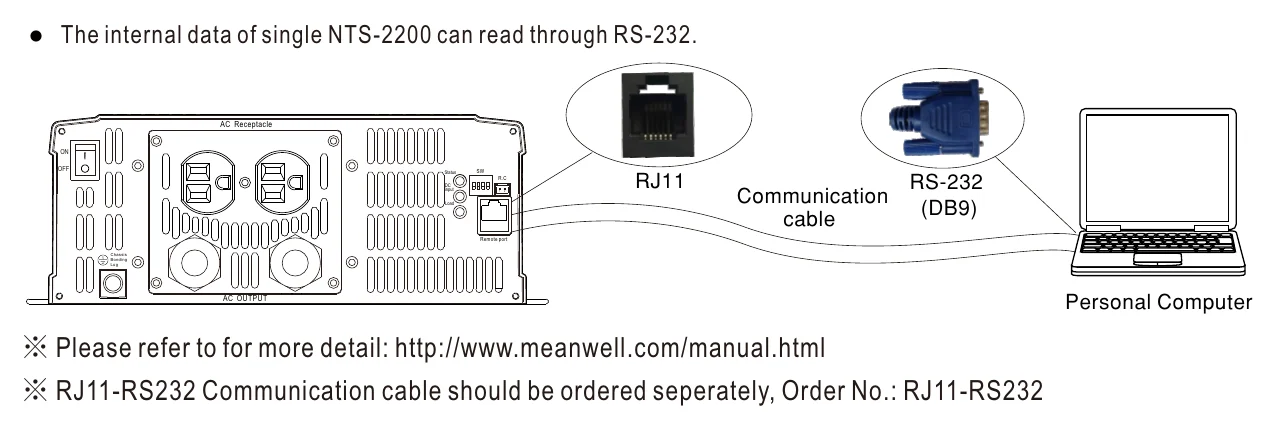

NTS-2200-248AU Support RS-232 Communication — Support RS-232 Communication

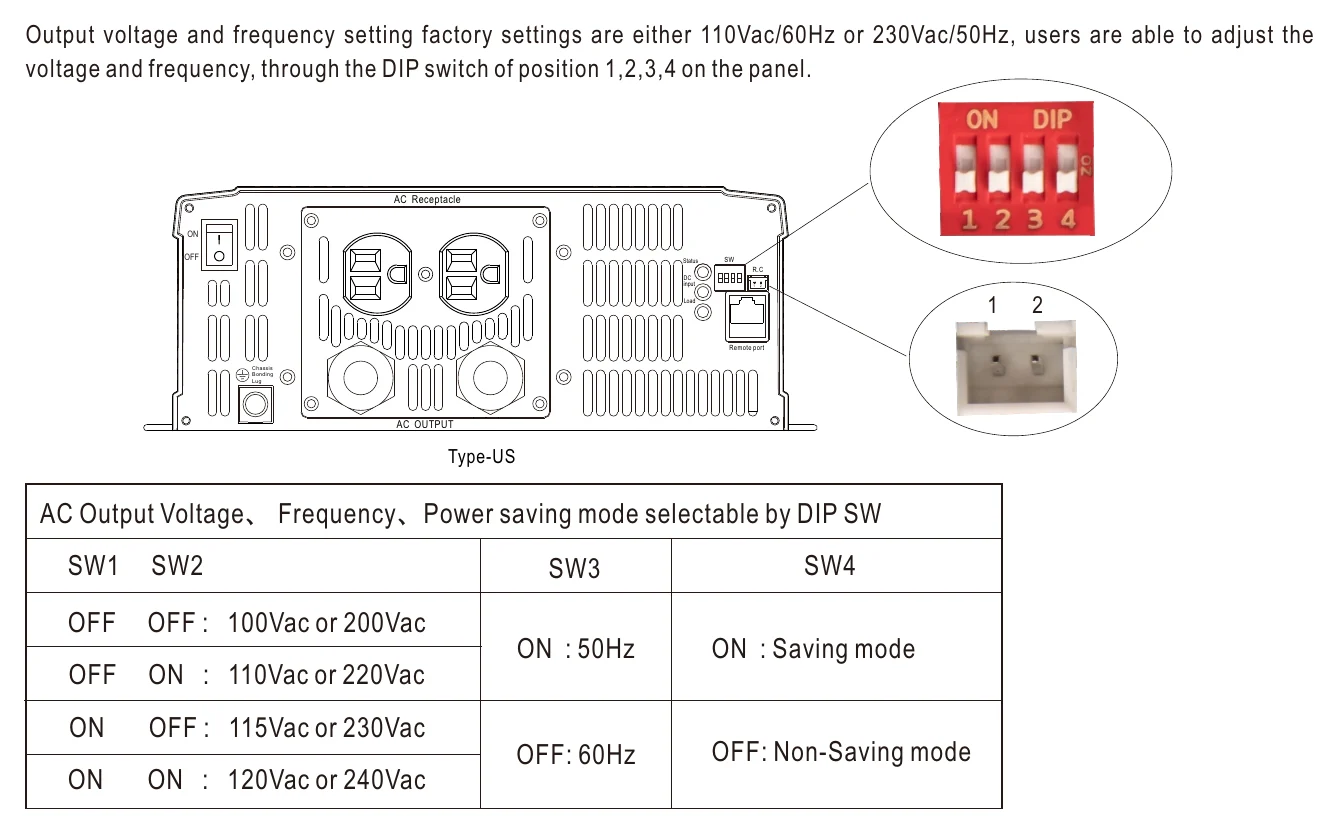

NTS-2200-248AU AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

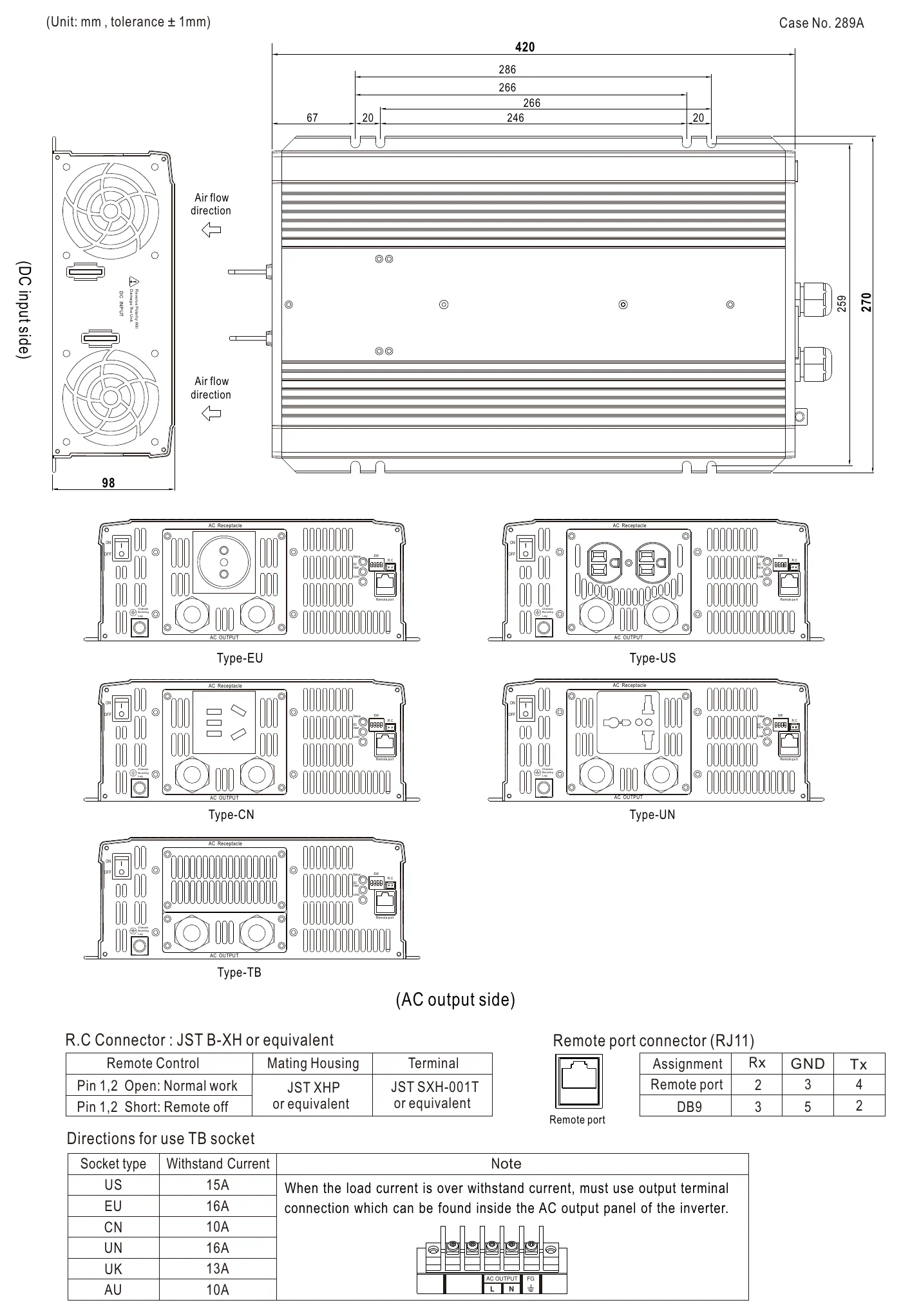

NTS-2200-248AU MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

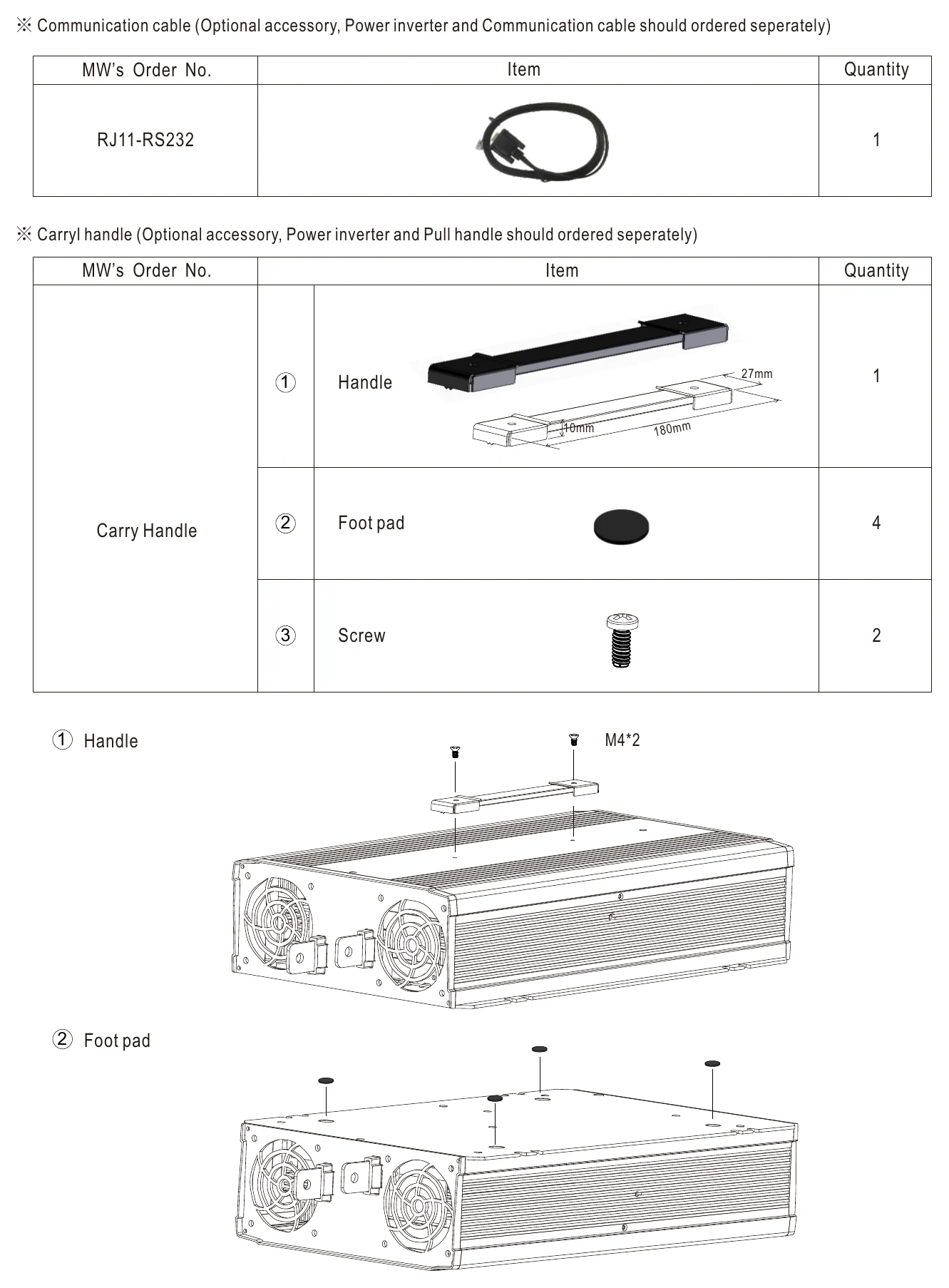

NTS-2200-248AU Accessory List — Accessory List

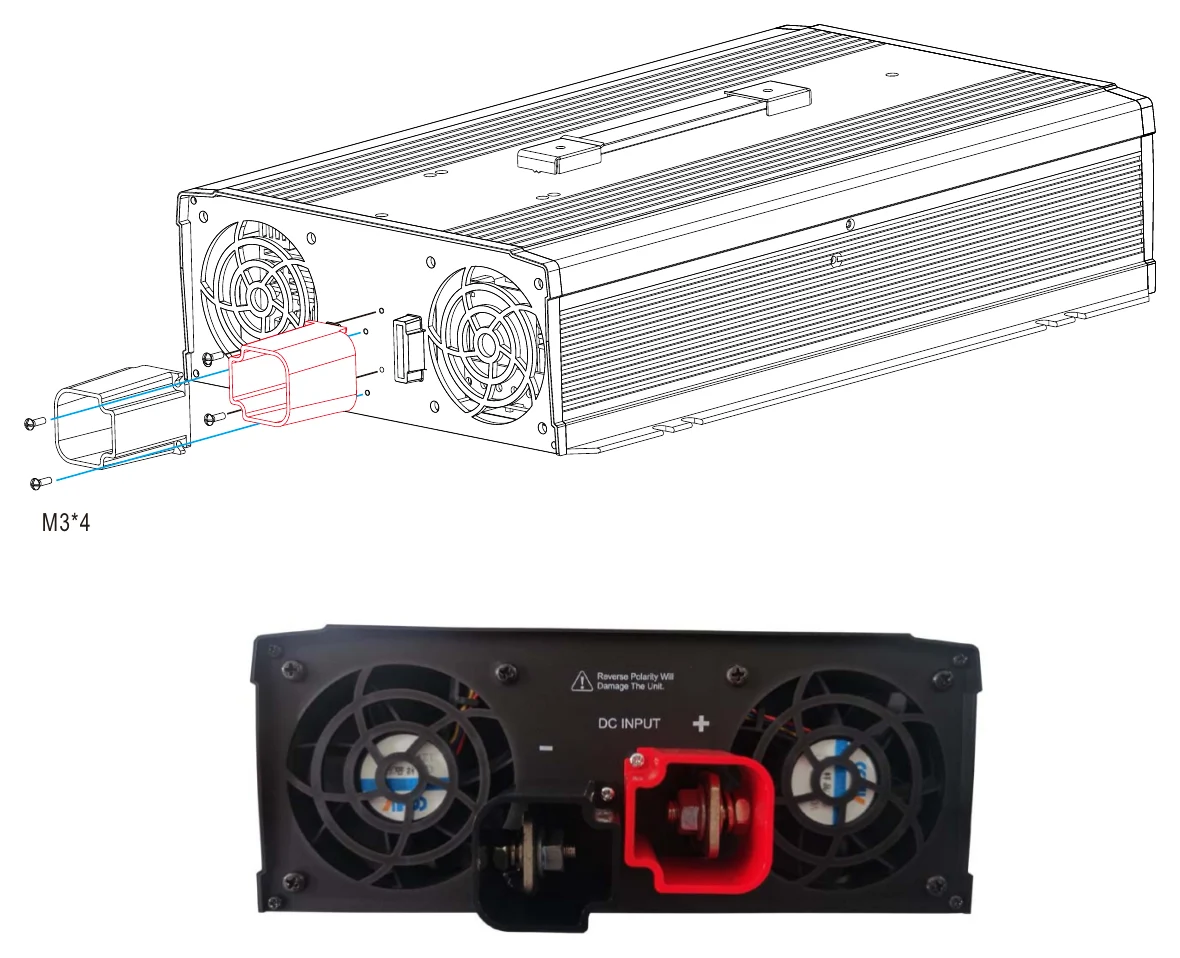

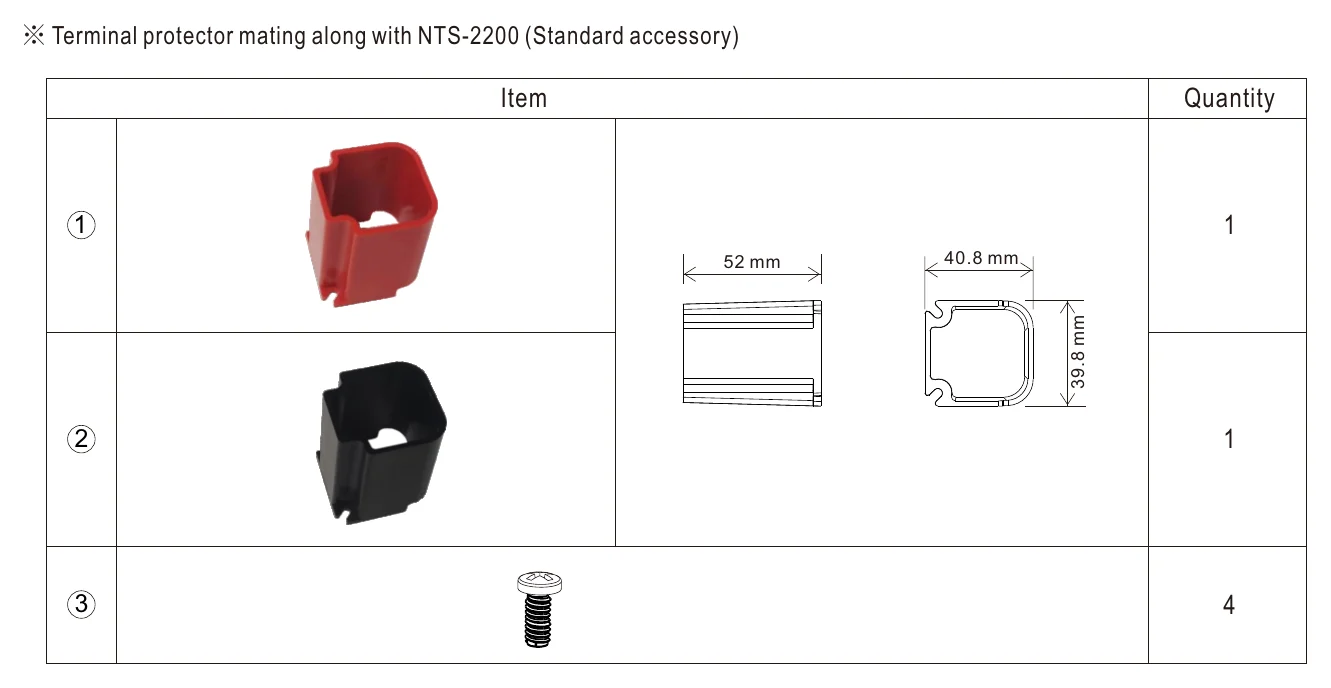

NTS-2200-248AU ※ Terminal protector mating along with NTS-2200… — ※ Terminal protector mating along with NTS-2200…

NTS-2200-248AU Illustration (page 8) — Illustration (page 8)

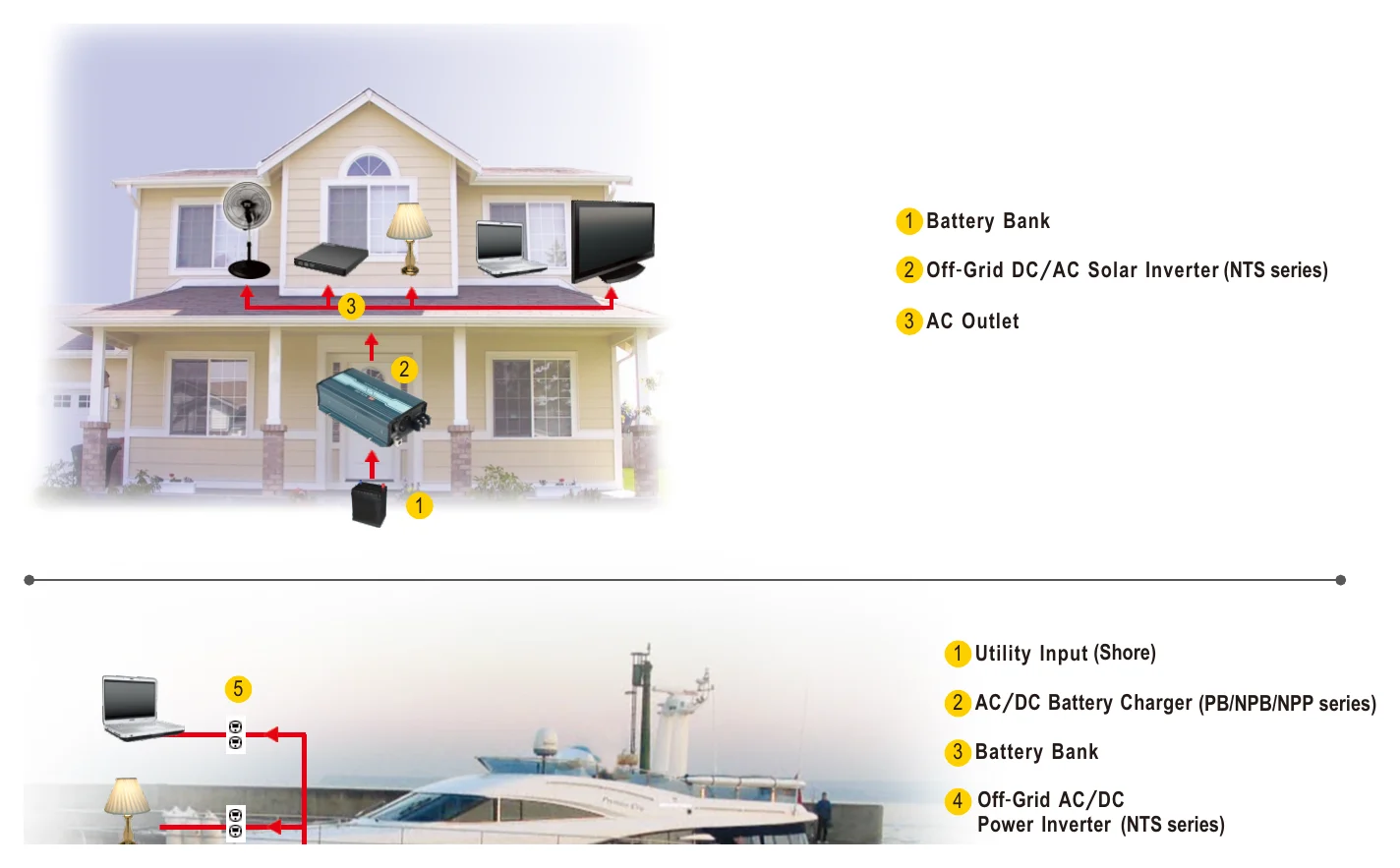

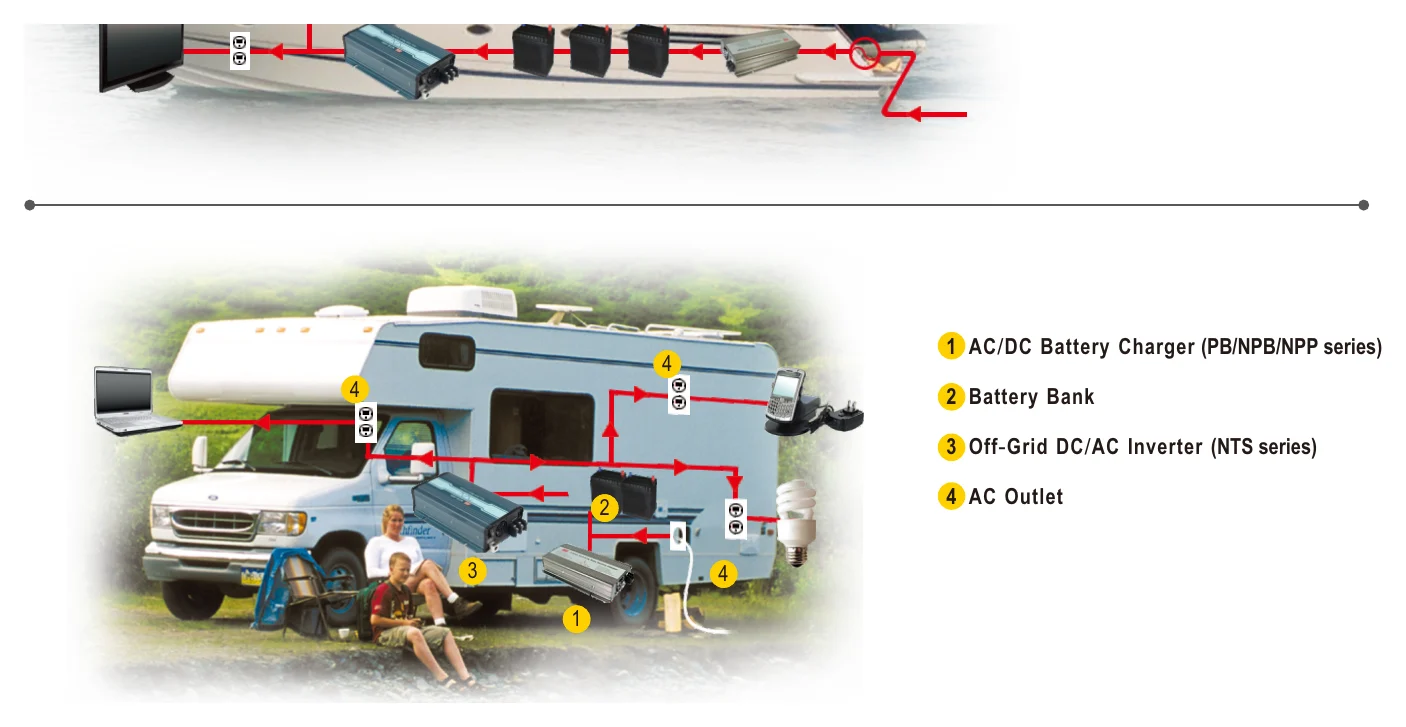

NTS-2200-248AU TYPICALTYPICAL APPLICATIONAPPLICATION — TYPICALTYPICAL APPLICATIONAPPLICATION

Typical applications

Downloads

Certificates6

Mean Well NTU-NTS-2200-3200- ICES Certificate PDF Download

Mean Well NTU-NTS-2200-3200-EMC Certificate PDF Download

Mean Well NTU-NTS-2200-3200-FCC Certificate PDF Download

Mean Well NTU-NTS-2200-3200-2xx-E13 Certificate PDF Download

Mean Well NTS-NTU-2200-3200-CB Certificate PDF Download

Mean Well NTS-NTU-2200-3200-DEKRA MarK Certificate PDF Download

Test reports1

Mean Well NTS-2200-248 Test Report PDF Download

FAQ

What does the Mean Well NTS-2200-248AU do?

The NTS-2200-248AU is a true sine wave DC-AC inverter that converts 48V DC input power to 230V AC output. It is rated for 2200W continuous output and is intended for applications that need clean AC power from a 48V battery-based system.

Is the output from this inverter suitable for sensitive equipment?

Yes. This model provides a true sine wave output with total harmonic distortion below 3%, which is a cleaner waveform than modified sine alternatives. That makes it a better fit for equipment that benefits from stable, utility-style AC power.

What are the input and output ratings of the NTS-2200-248AU?

This inverter is designed for 48V DC input and delivers 230V AC output for this AU-socket version. Its continuous power rating is 2200W, and it supports surge power up to 4400W.

Can this inverter handle temporary startup surges?

Yes. The NTS-2200-248AU supports surge power up to 4400W, which helps it cope with short-duration peak demand from connected equipment. It also includes overload protection, with defined overload behavior in the published specification.

What protection features are included in this inverter?

This model shuts down its output on output short circuit, overload and over temperature, recovering once it is re-powered. On the DC input it has low-voltage shutdown at 40±1Vdc, helping protect the connected battery system from excessive discharge, and high-voltage shutdown at 66±1Vdc.

What battery types is the NTS-2200-248AU compatible with?

Mean Well specifies this inverter as suitable for both lead-acid and lithium-ion battery systems. It is designed around a 48V DC input platform, so it is intended for applications using that nominal input voltage.

Is this inverter suitable for demanding environments?

It is specified for a working temperature range of -25°C to +70°C, with output derating at higher ambient temperatures per the published derating curve, and 20% to 90% RH non-condensing humidity. The unit is fan-cooled and is vibration-rated to 10–500Hz, 3G along the X, Y and Z axes.

What certifications and warranty does this model have?

The NTS-2200 series sheet lists CB IEC62368-1, EN62368-1, EAC TP TC 004 and AS/NZS 62368.1 approvals, and the 248 model meets EN55032 Class A emissions with EN55024/EN55035 immunity. UL458 applies only to the TB-socket versions of the 112/124/148 models. The spec sheet does not state a warranty period.
