Mean Well PM-05-5 Power Supply 5W 5V 1A
Log in to see priceOverview
PM-05-5 is the 5V output model of this series: rated current 1A, rated power 5W, typical efficiency 71%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Ultra-miniature size, light weight
- Cooling by free air convection
- Isolation classⅡ
- Medical safety approved (2 x MOPP between primary to secondary)
- No load power consumption<0.5W
- 100% full load burn-in test
- Fixed switching frequency at 67KHz
- High reliability
- Suitable for BF application with appropriate system consideration
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 1A
- CURRENT RANGE
- 0 ~ 1A
- RATED POWER
- 5W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 100ms/230VAC 24ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY (Typ.)
- 71%
- AC CURRENT (Typ.)
- 0.12A/115VAC 0.08A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 25A/115VAC 45A/230VAC
- LEAKAGE CURRENTNote.5
- Touch current < 80μ A/264VAC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.

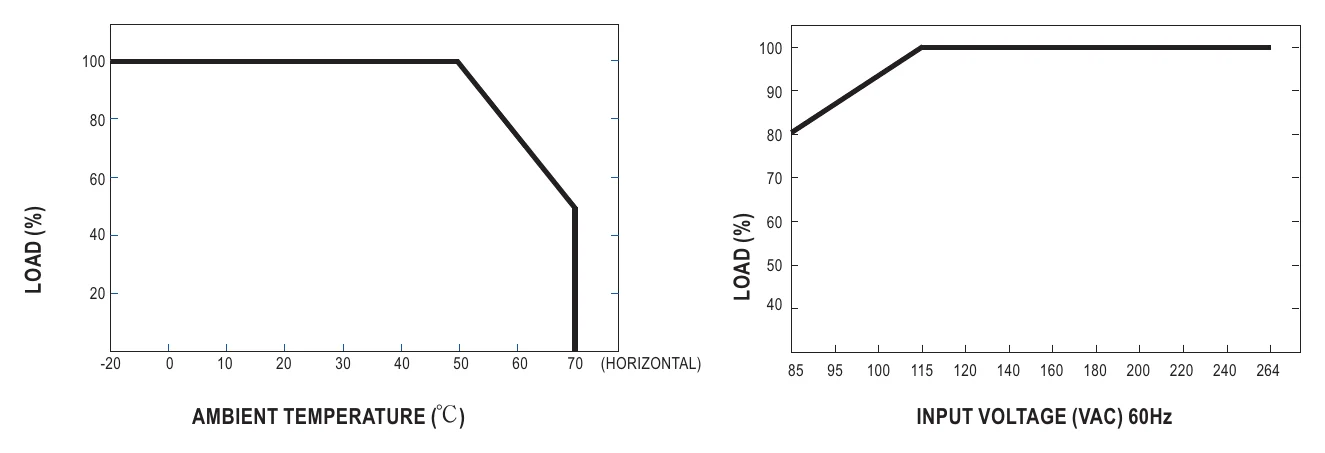

- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55011(CISPR11),EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020
OTHERS
- MTBF
- 1513.4Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 62.85*50*19.7mm (L*W*H)
- PACKING
- 0.079Kg; 120pcs/10.5Kg/0.94CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
- 5. Touch current was measured from primary input to DC output.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

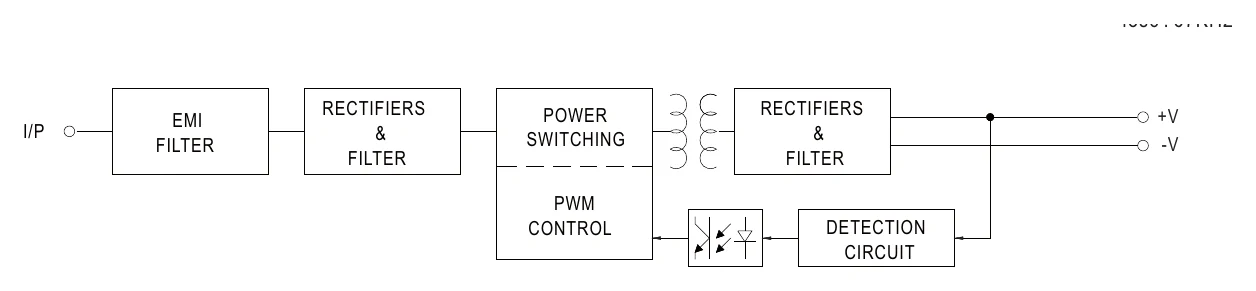

Technical drawings
Downloads
FAQ
Can I use the PM-05-5 to power a 5V embedded controller or USB-class industrial electronics?
Yes, if the equipment requires a regulated 5V constant-voltage input and stays within 1A output current. This supply provides up to 5W total, which suits many compact embedded and control boards.
Is the PM-05-5 suitable for a small 5V HMI, logic board, or communication module?
It can be a fit for small 5V logic, display, or communication hardware when the total load does not exceed 1A or 5W. Because it is a constant-voltage model, it is intended for electronics that need a fixed 5V rail.
Would this 5V model work for powering a compact automation gateway or monitoring device?
Yes, for low-power 5V gateways or monitoring devices that fall inside the 5W output rating. The 85-264VAC input range also helps when the equipment may be used across different AC supply standards.
Can the PM-05-5 be used in a small test fixture or bench control assembly?
It is suitable for a small AC-to-5V conversion stage in test or control assemblies where the load remains within 1A. Its compact dimensions of 62.85 × 50.0 × 19.7 mm can be useful when enclosure space is limited.
Is the PM-05-5 intended for outdoor or sealed-enclosure environments?
Its operating temperature range is specified as -20°C to +70°C, which covers a broad indoor equipment range. No IP rating is listed, so it should not be treated as an exposed outdoor or water-resistant power supply based on the provided specs.
