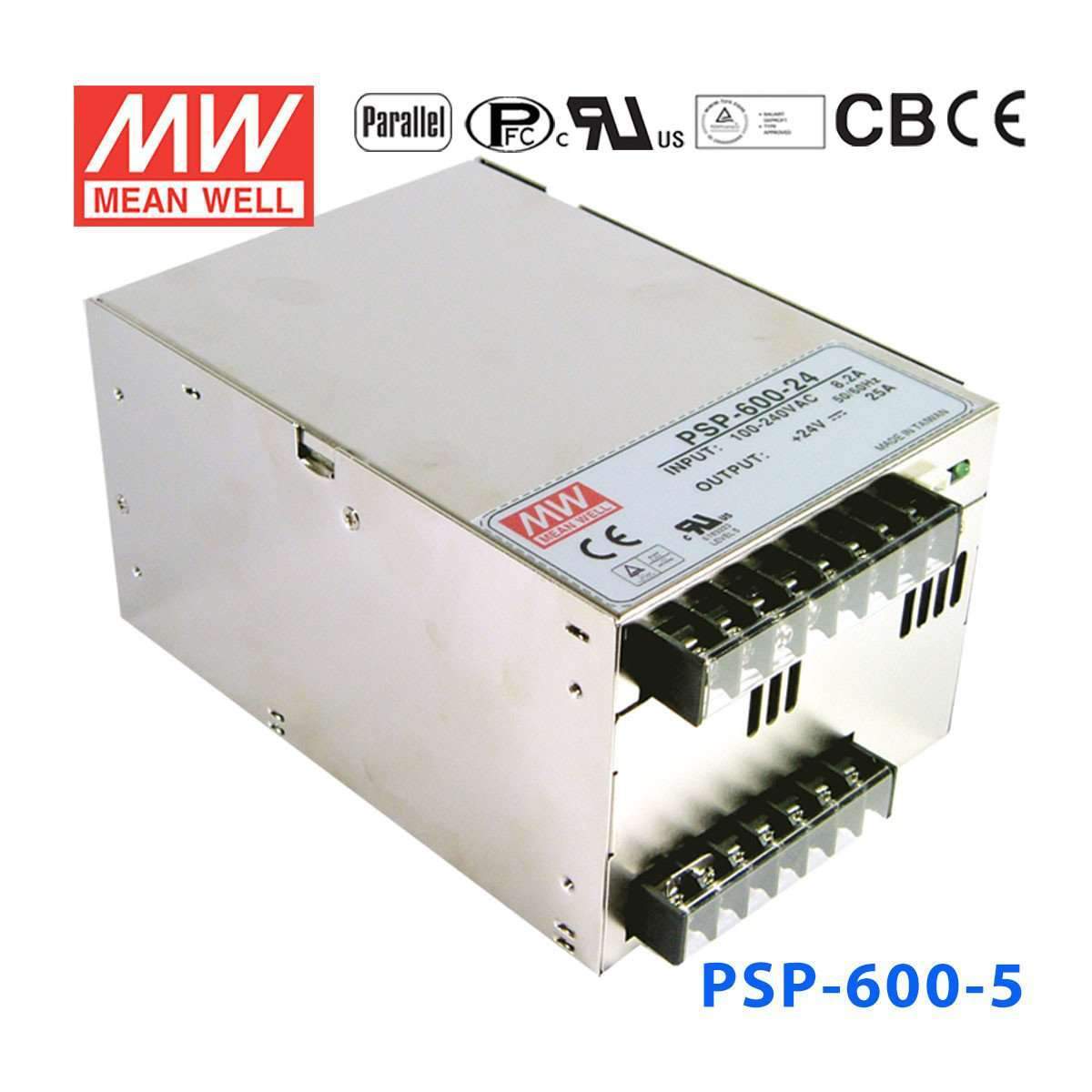

Mean Well PSP-600-5 Power Supply 400W 5V
Please Login for Pricing
Description
Description
The PSP-600 is a 600W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, CCC GB4943.1 BSMI CNS14336-1 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPSP Series
-
Power Rating400 Watt
-
Output Voltage5 Volt
-
Rated Current80 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length17 cm
-
Width12 cm
-
Height9.3 cm
-
Weight1.9 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PSP-600-5 for a 5V industrial control cabinet with high current draw?
Yes, this model is a constant voltage 5V supply rated for 400W and up to 80A output. That combination suits 5V control electronics, logic-heavy industrial assemblies, and other low-voltage loads that need substantial current from one supply.
Is the PSP-600-5 suitable for powering 5V embedded computing or backplane systems?
It can fit 5V embedded platforms that require a regulated constant voltage source and very high current availability. With 5V output and 80A capacity, it is better matched to dense 5V loads than higher-voltage models in the same family.
Can this 5V power supply support automation equipment that runs only on 5V DC?
Yes, if the automation equipment is specified for 5V DC constant voltage input. The unit provides 400W total output and is designed for AC input from 88-264VAC, which is useful in industrial power environments with varying mains standards.
Is the PSP-600-5 a good fit for high-current 5V test fixtures or bench systems?
It is a practical option for 5V bench or production fixtures that need a single supply with high current headroom. The 80A output rating and 400W power limit make it more appropriate for heavy 5V loads than lower-current supplies.
Is the PSP-600-5 intended for outdoor or washdown environments?
The listed operating temperature range is -20°C to +60°C, but no IP rating is provided in these specs. Based on the available data, it is better treated as a supply for protected indoor equipment environments rather than exposed outdoor or washdown locations.
How does the PSP-600-5 compare with other Mean Well PSP series models?
Within the listed PSP family, the PSP-600-5 is 400W at 5V and 80A. Other siblings are PSP-1000-24 at 1000W, 24V, 37.6A; PSP-1500-24 at 1500W, 24V, 56.4A; PSP-500-13.5 at 499.5W, 13.5V, 37A; PSP-500-15 at 495W, 15V, 33A; PSP-500-24 at 499.2W, 24V, 20.8A; PSP-500-27 at 499.5W, 27V, 18.5A; PSP-600-12 at 600W, 12V, 50A; PSP-600-13.5 at 600.75W, 13.5V, 44.5A; PSP-600-15 at 600W, 15V, 40A; PSP-600-24 at 600W, 24V, 25A; PSP-600-27 at 599.4W, 27V, 22.2A; and PSP-600-48 at 600W, 48V, 12.5A.
Other PSP-600 Models
6 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well PSP-600-48 Power Supply 600W 48V | 600W | 48V | 12.5A | View |
| Mean Well PSP-600-27 Power Supply 600W 27V | 599.4W | 27V | 22.2A | View |
| Mean Well PSP-600-24 Power Supply 600W 24V | 600W | 24V | 25A | View |
| Mean Well PSP-600-15 Power Supply 600W 15V | 600W | 15V | 40A | View |
| Mean Well PSP-600-13.5 Power Supply 600W 13.5V | 600.75W | 13.5V | 44.5A | View |
| Mean Well PSP-600-12 Power Supply 600W 12V | 600W | 12V | 50A | View |
