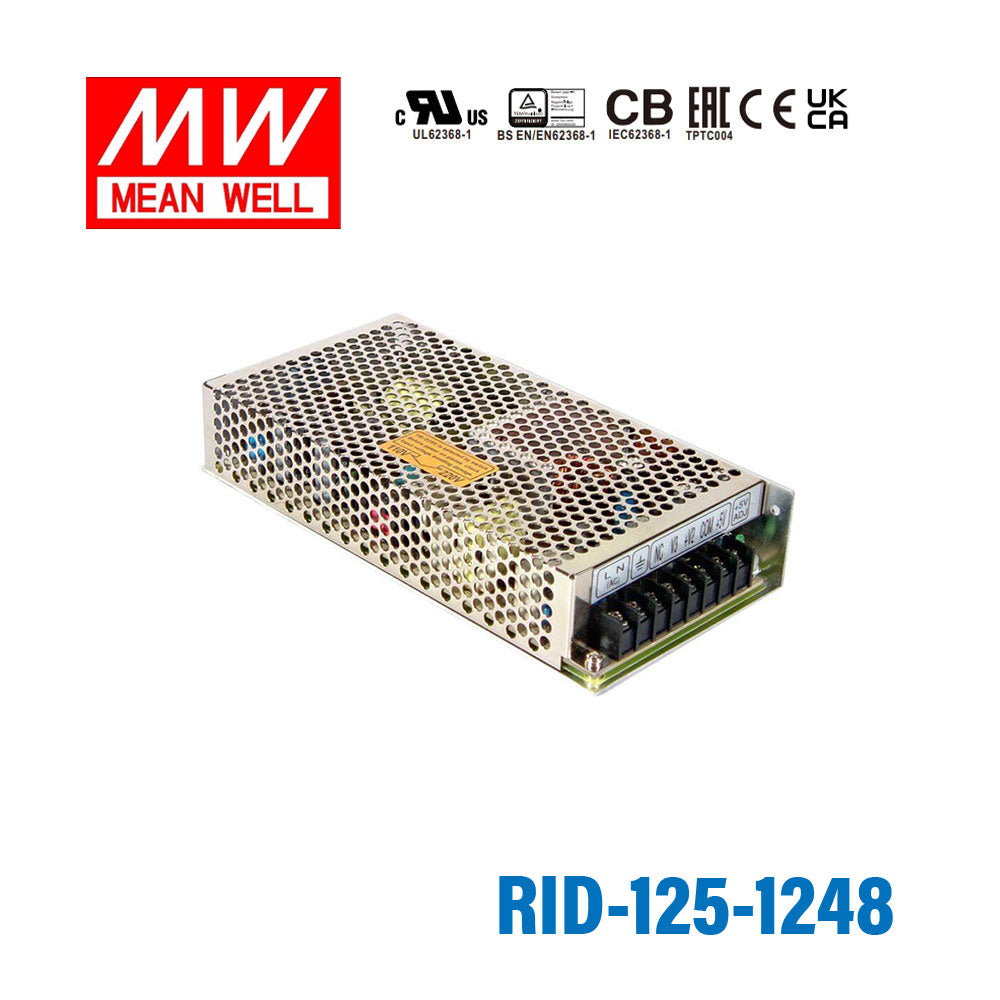

Mean Well RID-125-1248 AC-DC Dual output enclosed power supply 125W
Please Login for Pricing
Description
Description
The RID-125 is a 125W Mean Well power converter (input range: 88~132VAC).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: EN62368-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRID Series
-
Power Rating125 Watt
-
Output Voltage12 Volt
-
Rated Current2.3 Ampere
-
Input Voltage88V~132V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length19.9 cm
-
Width9.8 cm
-
Height3.8 cm
-
Weight0.7 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RID-125-1248 for 12V industrial electronics with a lighter current draw?
It is suitable for 12V industrial electronics where the load fits within its 2.3A output current and 125W rating. That makes it a better match for lighter 12V control loads than for higher-current 12V systems.
Is the RID-125-1248 a fit for 12V embedded devices or compact automation subsystems?
Yes, this power supply matches 12V embedded or compact automation subsystems that do not need more than 2.3A. Its enclosed format also supports use inside equipment housings or control cabinets.
Can the RID-125-1248 be used for 12V sensing, alarm, or interface hardware?
It can work for 12V sensing, alarm, or interface hardware when the power budget stays within 125W and the current draw stays within 2.3A. Buyers comparing 12V models should note that this version provides less output current than the 3.7A sibling.
Does the RID-125-1248 support harsh indoor environments?
The specified operating range is -20°C to +70°C, so it is built for more demanding indoor equipment environments than room-only supplies. No IP rating is provided in the specs, so direct outdoor or wet-location use is not established here.
How does the RID-125-1248 compare with related RID series units?
The listed alternatives are RID-125-1205 at 125W, 5V, 3A; RID-125-1224 at 125W, 12V, 3.7A; RID-125-2405 at 125W, 5V, 3A; RID-125-2448 at 125W, 24V, 22A; RID-50A at 50W, 5V, 2A; RID-50B at 50W, 5V, 1.4A; RID-65A at 65W, 5V, 3A; RID-65B at 65W, 5V, 2A; RID-85A at 85W, 5V, 4A; and RID-85B at 85W, 5V, 2A. The RID-125-1248 is the 125W, 12V option in this list with 2.3A output current.
Other RID-125 Models
4 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well RID-125-2448 AC-DC Dual output enclosed power supply 125W | 125W | 24V | 22A | View |
| Mean Well RID-125-2405 AC-DC Dual output enclosed power supply 125W | 125W | 5V | 3A | View |
| Mean Well RID-125-1224 AC-DC Dual output enclosed power supply 125W | 125W | 12V | 3.7A | View |
| Mean Well RID-125-1205 AC-DC Dual output enclosed power supply 125W | 125W | 5V | 3A | View |
