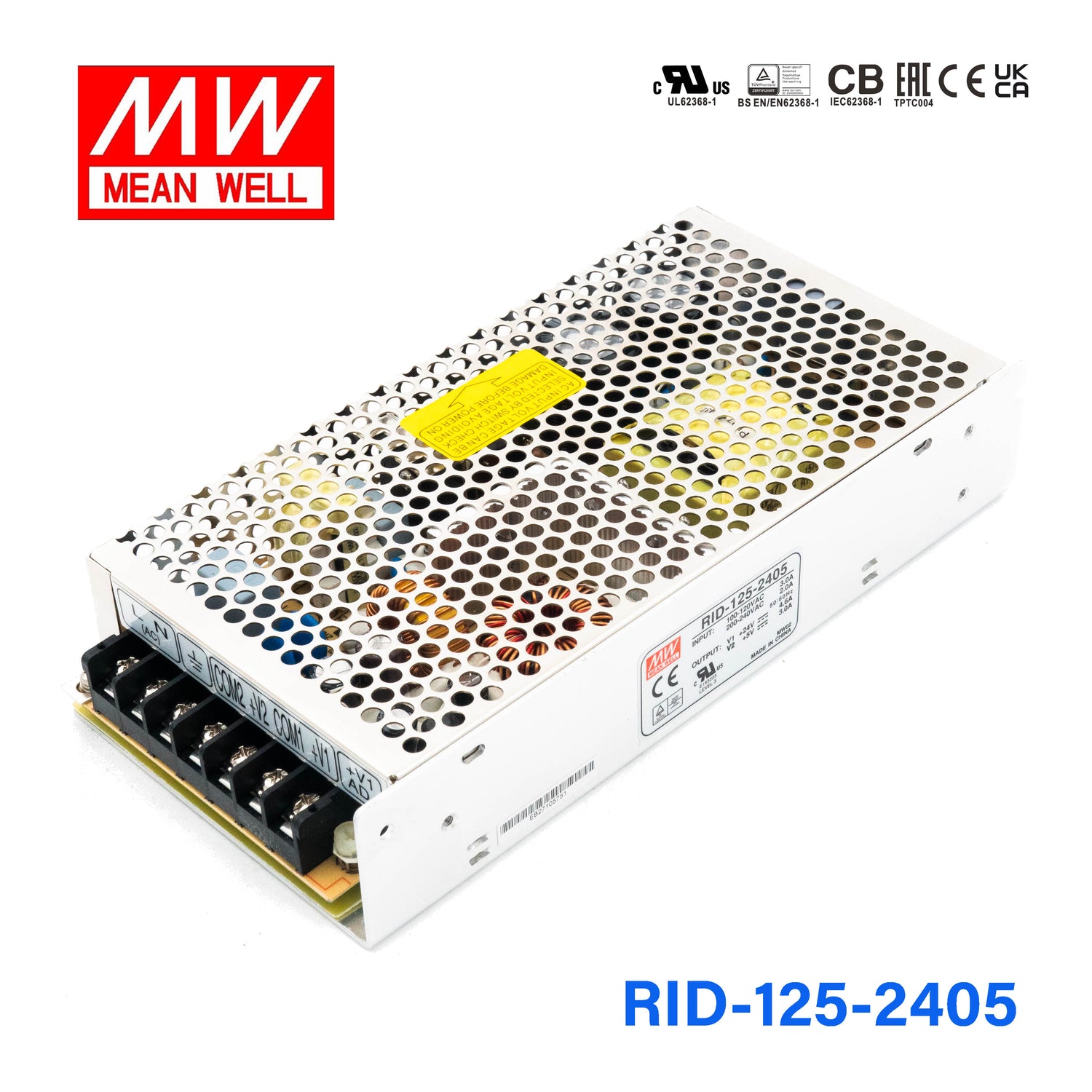

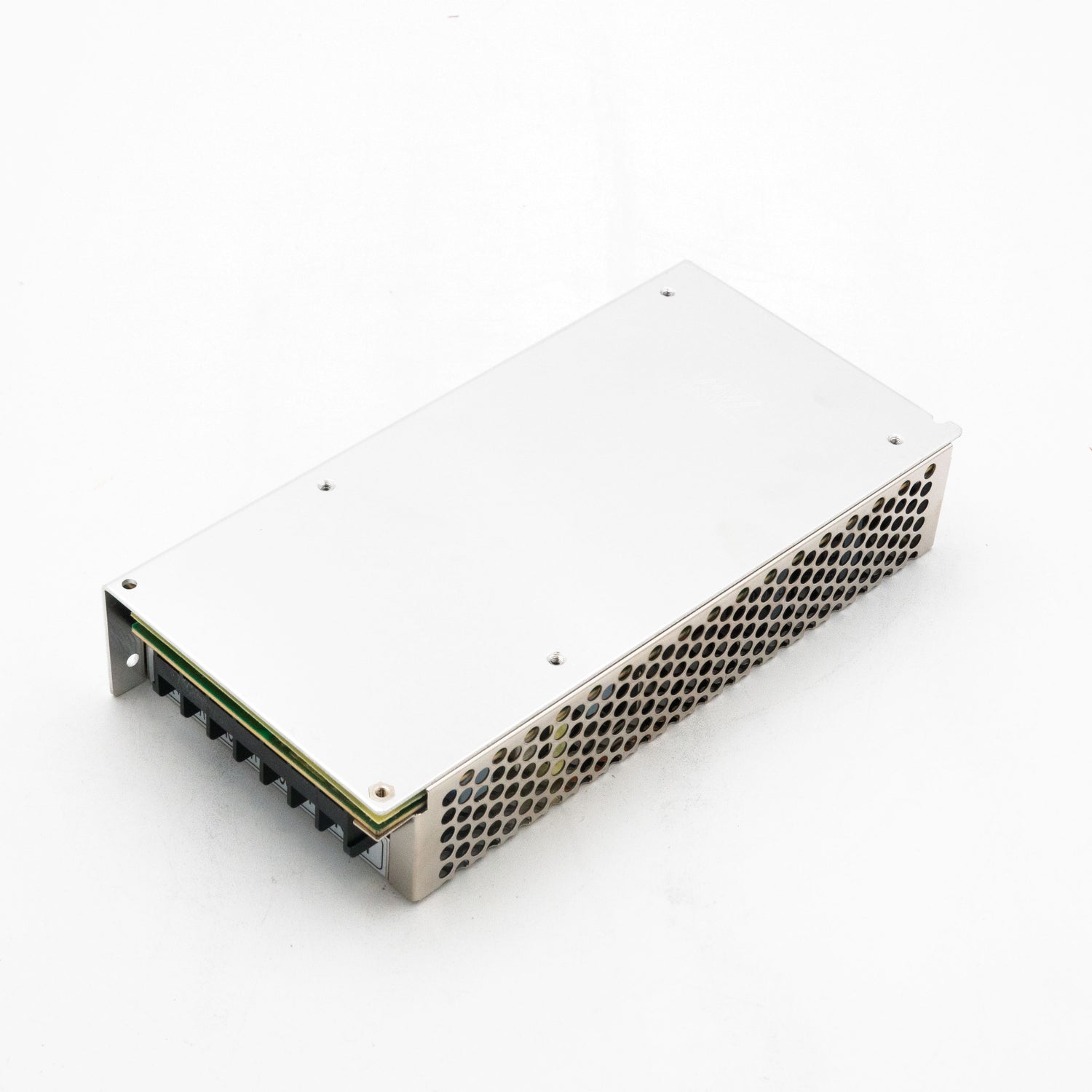

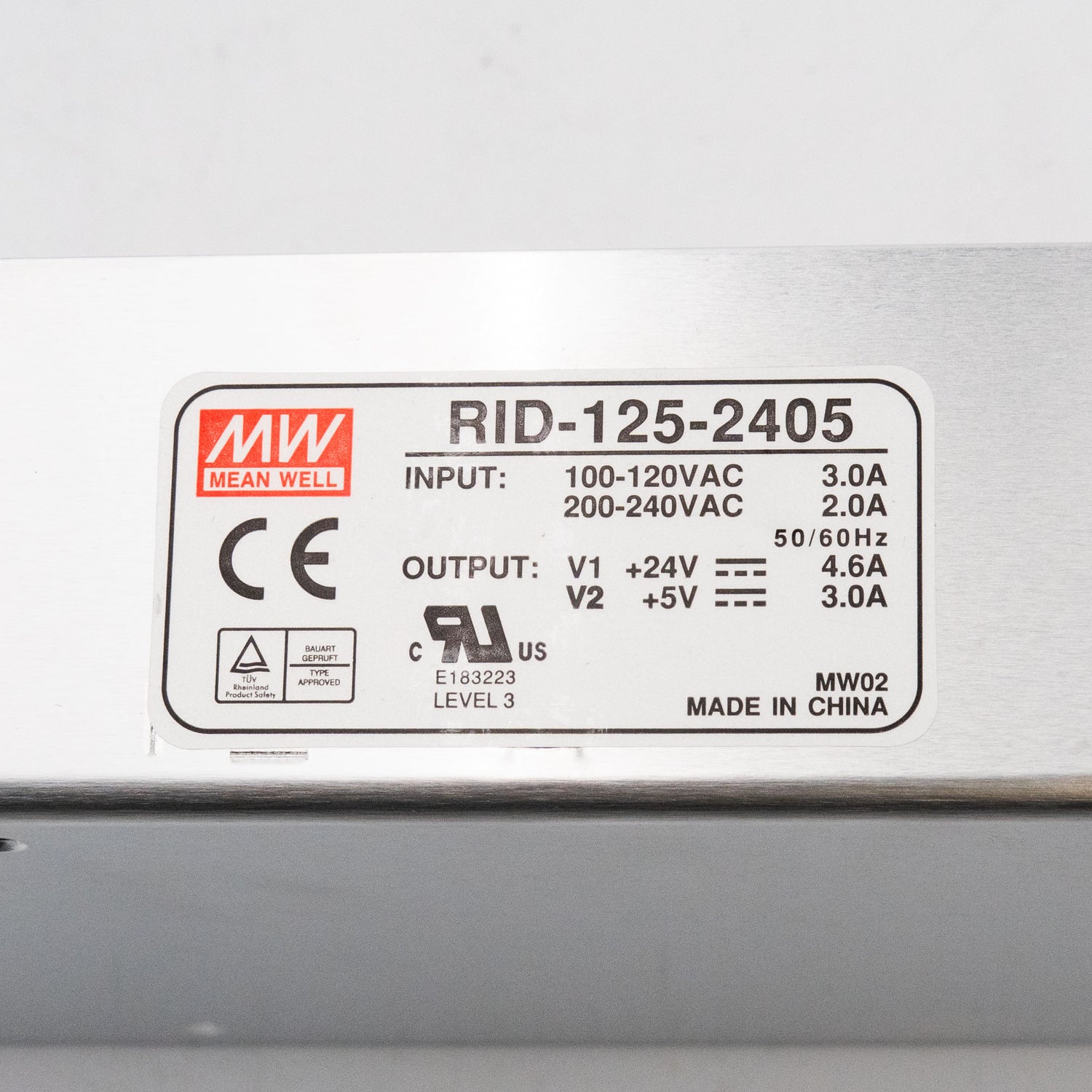

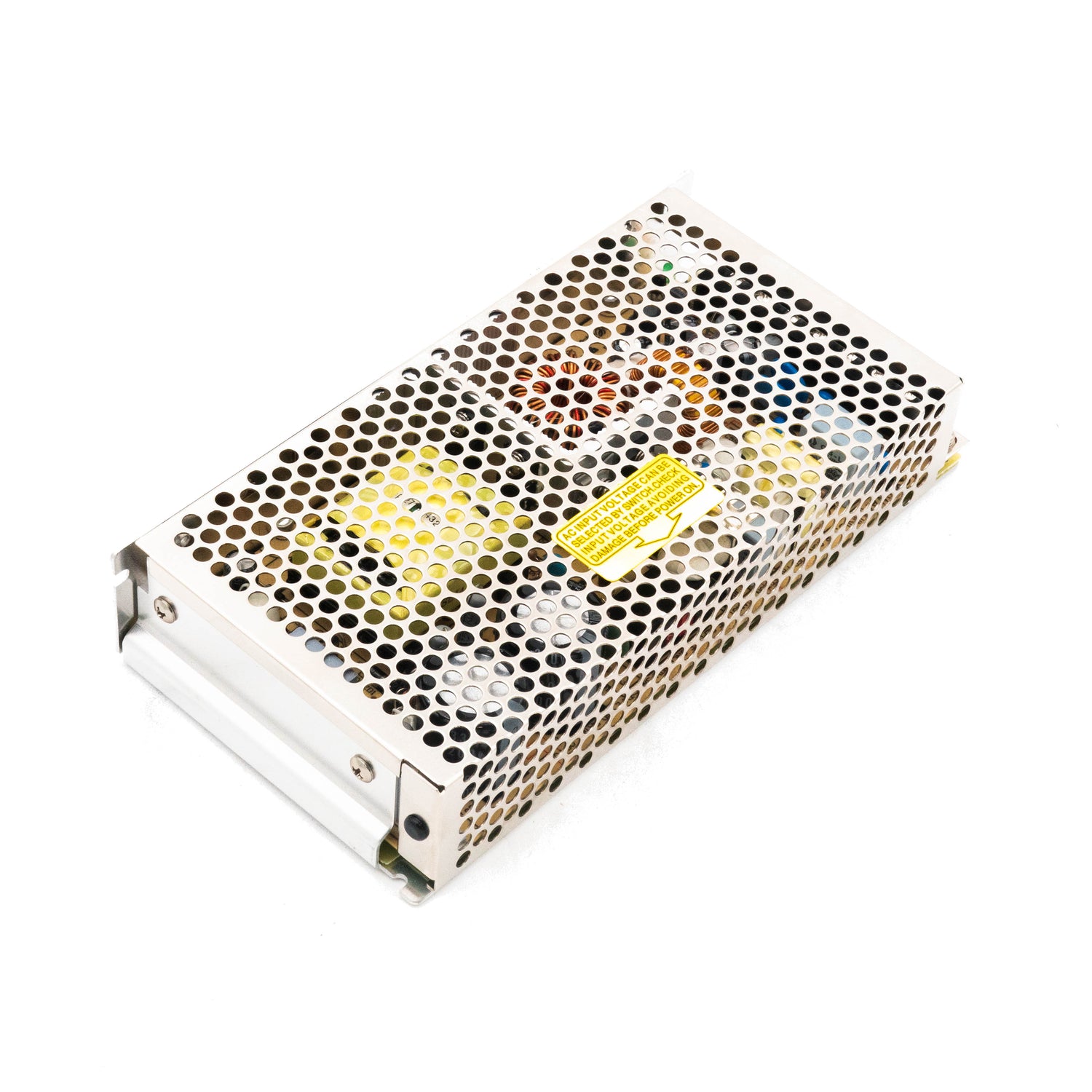

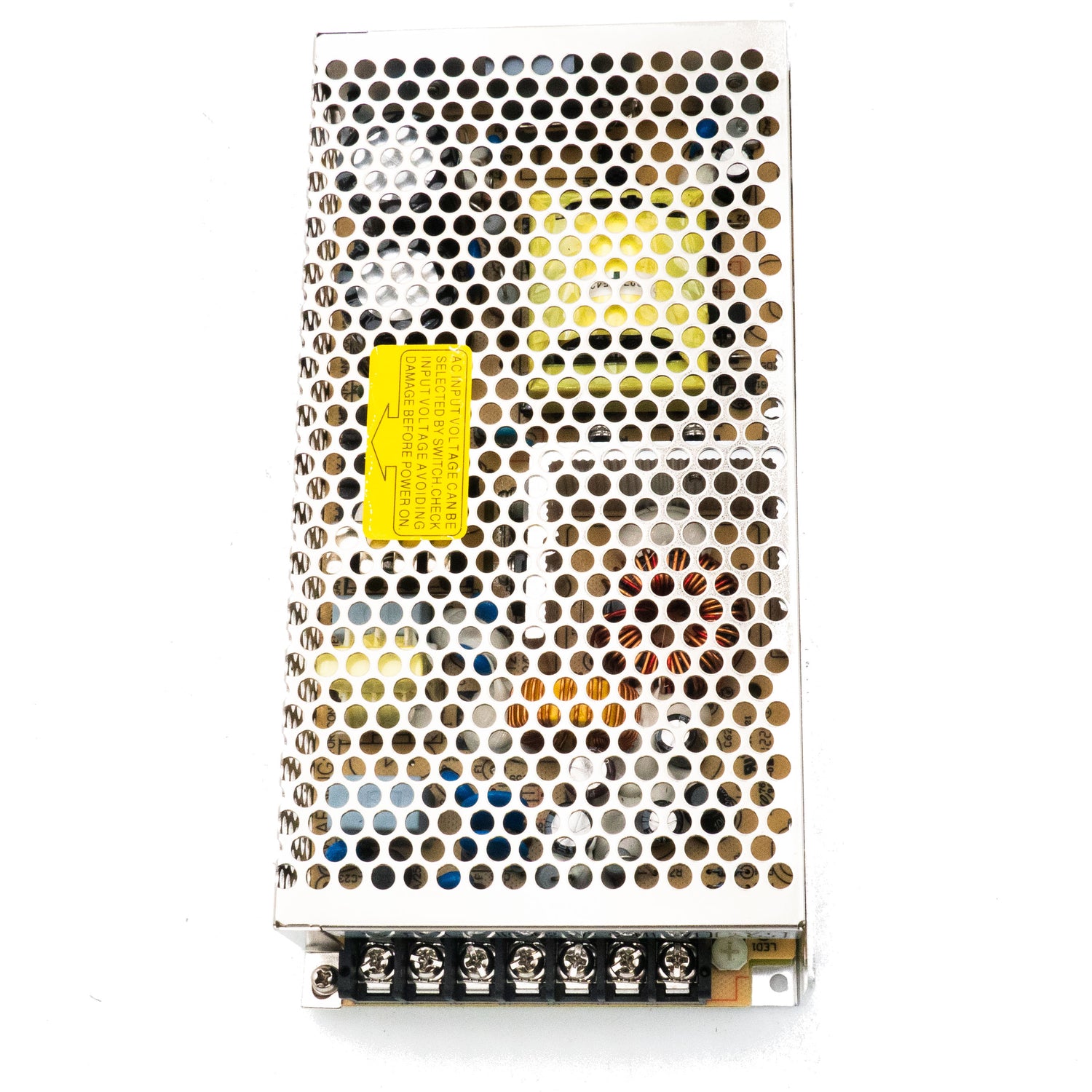

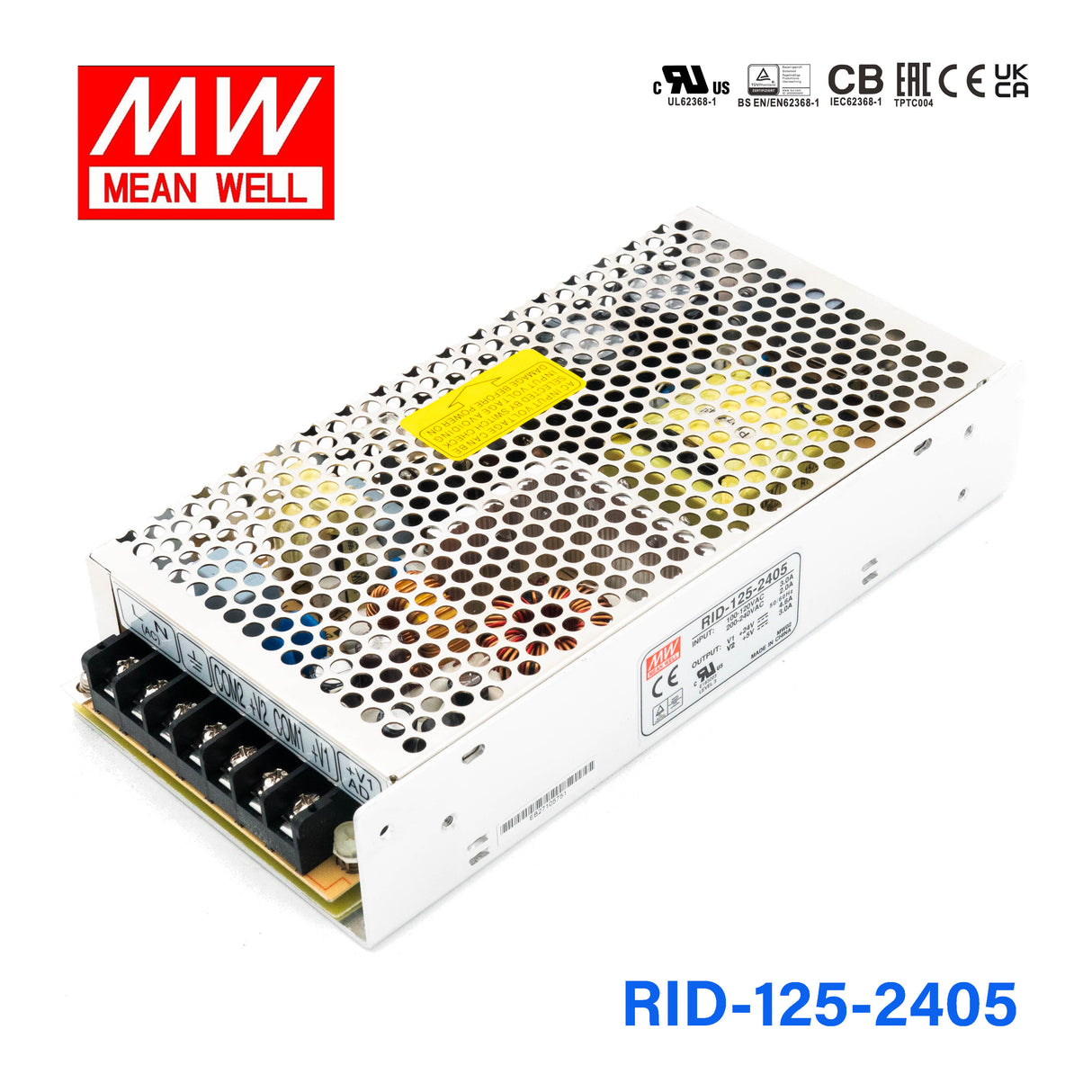

Mean Well RID-125-2405 AC-DC Dual output enclosed power supply 125W
Please Login for Pricing
Description
Description
The RID-125 is a 125W Mean Well power converter (input range: 88~132VAC).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: EN62368-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRID Series
-
Power Rating125 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage88V~132V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length19.9 cm
-
Width9.8 cm
-
Height3.8 cm
-
Weight0.7 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RID-125-2405 for 5V embedded computing or controller boards in industrial equipment?
It can fit 5V embedded computing or controller boards when the load stays within its 3A output current and 125W power rating. The enclosed design supports use inside industrial equipment rather than in exposed environments.
Is the RID-125-2405 suitable for 5V HMI, display, or interface electronics?
Yes, it is aligned with 5V electronics such as display or interface hardware because the rated output is 5V at 3A. It is best matched to equipment that specifically requires a 5V rail.
Can the RID-125-2405 power 5V monitoring or communications hardware in automation systems?
This model can support 5V monitoring or communications hardware if the total load remains within 3A and 125W. The isolated dual-output design can also matter in systems where output separation is required.
Is the RID-125-2405 rated for indoor control cabinets or exposed outdoor use?
Its operating temperature range is -20°C to +70°C, so it is suitable for a broad range of indoor equipment conditions. The provided specifications do not include an IP rating, so exposed outdoor use is not confirmed.
How does the RID-125-2405 differ from the other RID models in this group?
The sibling list includes RID-125-1205 at 125W, 5V, 3A; RID-125-1224 at 125W, 12V, 3.7A; RID-125-1248 at 125W, 12V, 2.3A; RID-125-2448 at 125W, 24V, 22A; RID-50A at 50W, 5V, 2A; RID-50B at 50W, 5V, 1.4A; RID-65A at 65W, 5V, 3A; RID-65B at 65W, 5V, 2A; RID-85A at 85W, 5V, 4A; and RID-85B at 85W, 5V, 2A. The RID-125-2405 is one of the 125W, 5V, 3A entries among those listed.
Other RID-125 Models
4 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well RID-125-2448 AC-DC Dual output enclosed power supply 125W | 125W | 24V | 22A | View |
| Mean Well RID-125-1248 AC-DC Dual output enclosed power supply 125W | 125W | 12V | 2.3A | View |
| Mean Well RID-125-1224 AC-DC Dual output enclosed power supply 125W | 125W | 12V | 3.7A | View |
| Mean Well RID-125-1205 AC-DC Dual output enclosed power supply 125W | 125W | 5V | 3A | View |
