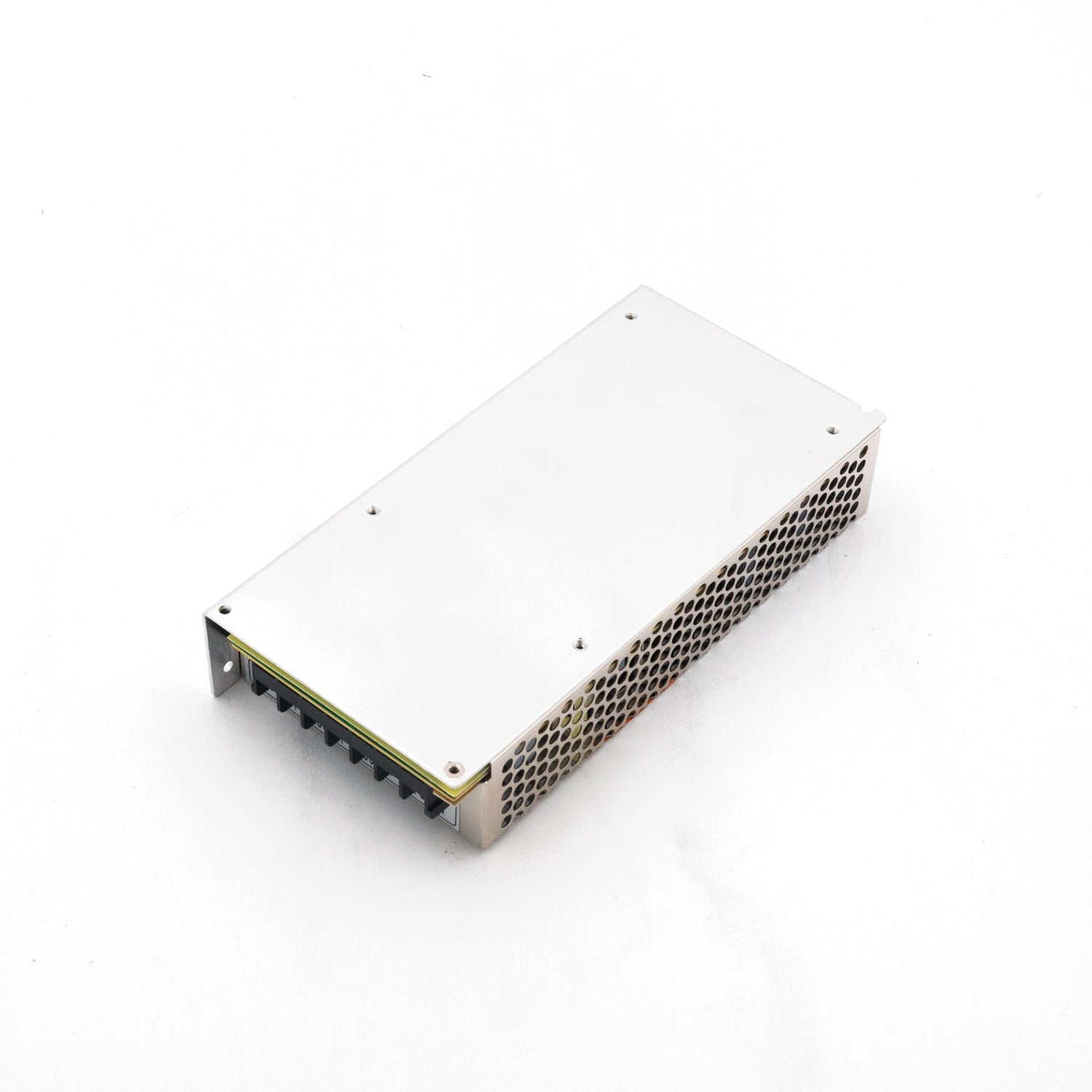

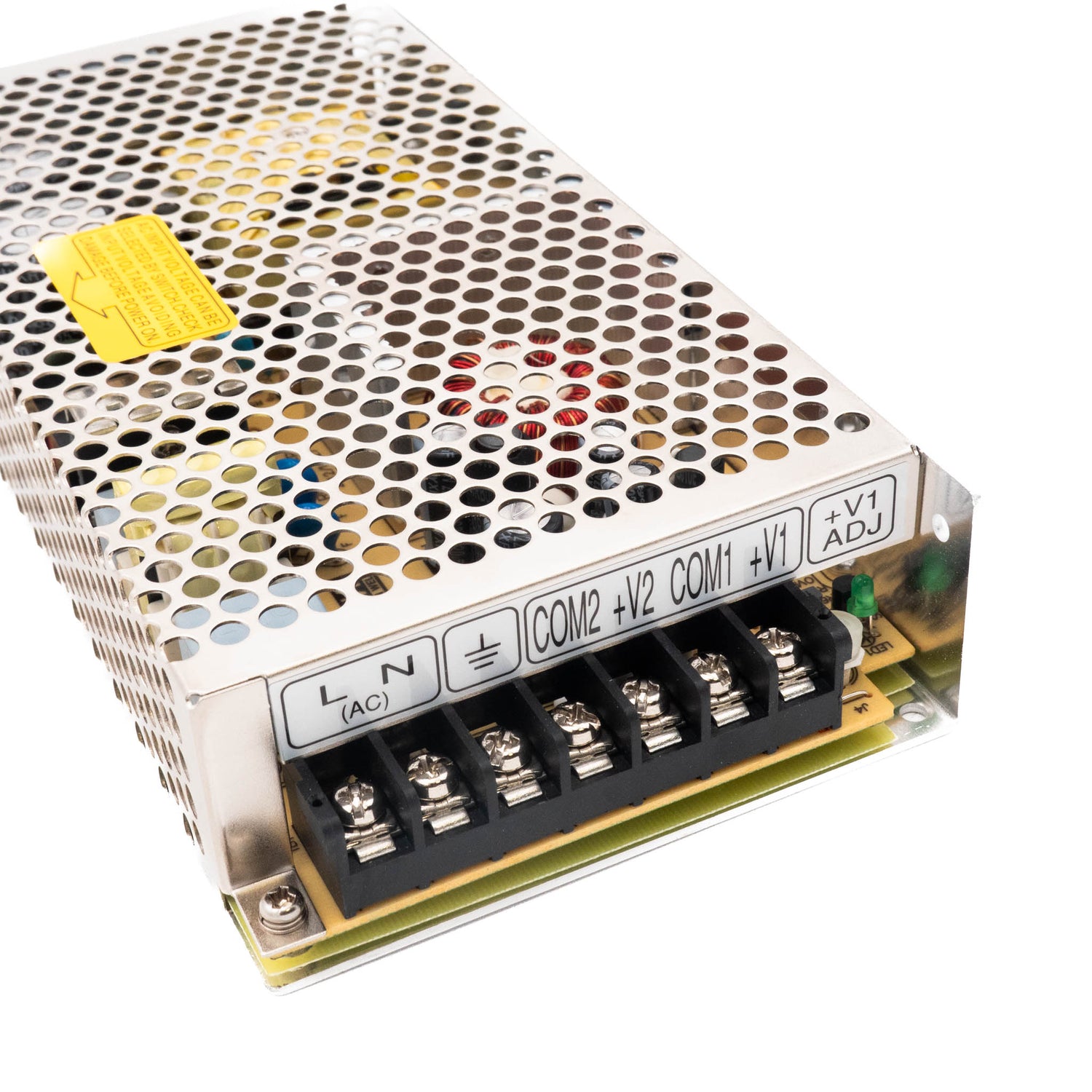

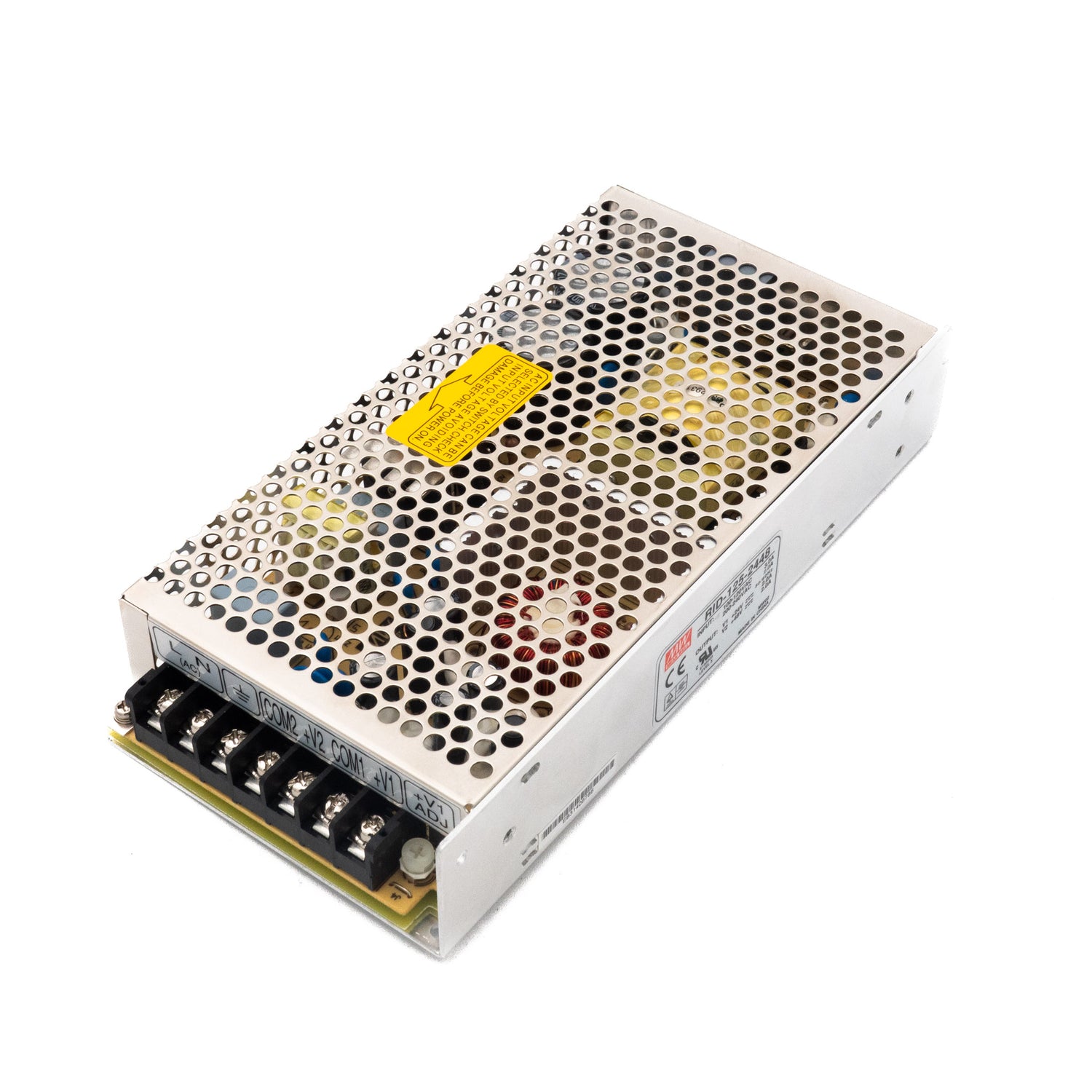

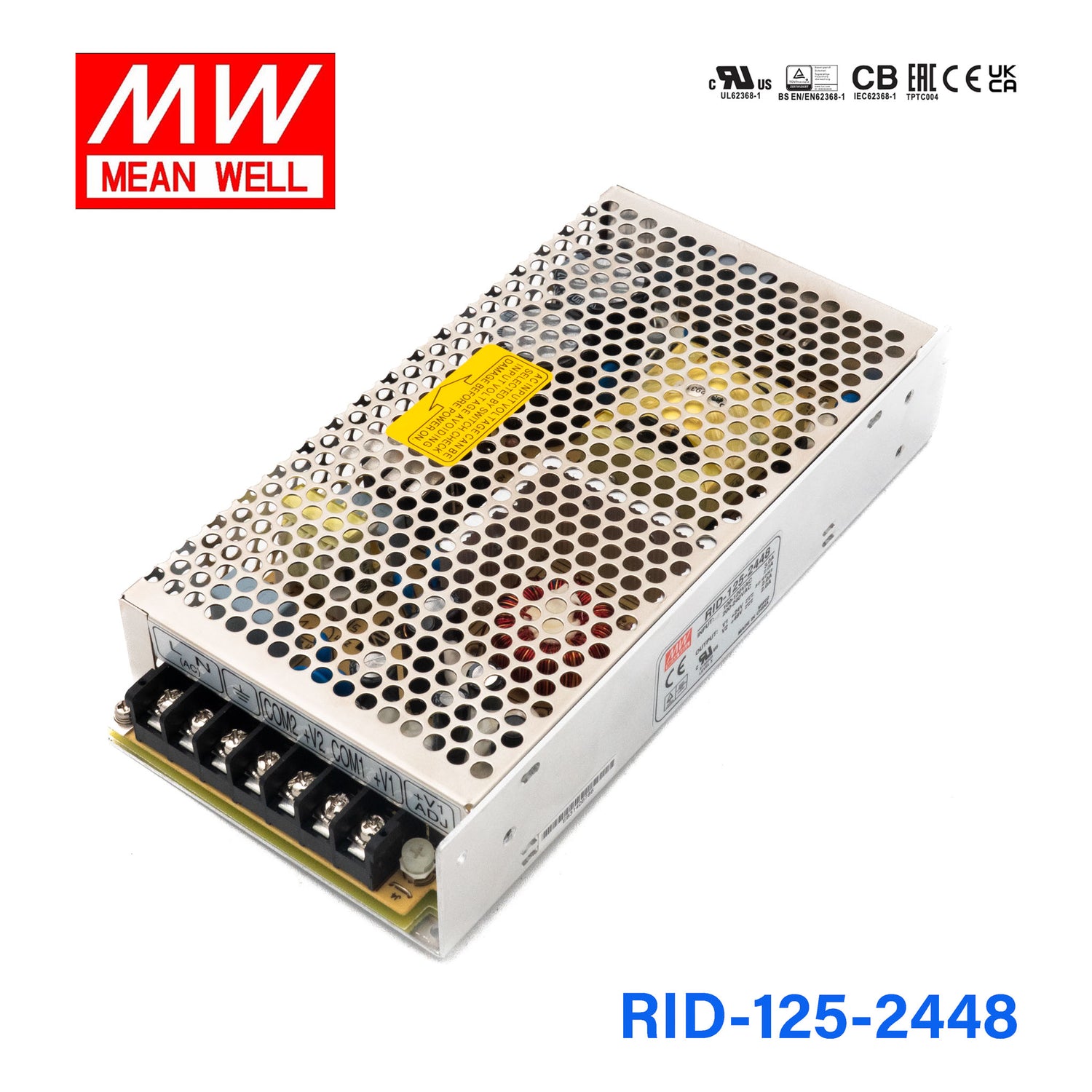

Mean Well RID-125-2448 AC-DC Dual output enclosed power supply 125W
Please Login for Pricing
Description
Description
The RID-125 is a 125W Mean Well power converter (input range: 88~132VAC).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: EN62368-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRID Series
-
Power Rating125 Watt
-
Output Voltage24 Volt
-
Rated Current22 Ampere
-
Input Voltage88V~132V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length19.9 cm
-
Width9.8 cm
-
Height3.8 cm
-
Weight0.7 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RID-125-2448 for a 24V industrial control panel load?
This model is aimed at 24V DC applications and is rated at 125W with 22A output current. That makes it a fit for industrial control panels, automation assemblies, and other equipment that specifically requires 24V DC within that power range.
Is the RID-125-2448 suitable for 24V automation and machine subsystems?
It can be used for 24V automation subsystems that need up to 125W and 22A. The enclosed design and isolated dual output format make it more appropriate for protected machine or cabinet environments than exposed field mounting.
Can this power supply support 24V embedded or industrial electronics in a compact enclosure?
Yes, if the equipment is designed for 24V DC and stays within the 125W and 22A ratings. Its 199.0 × 98.0 × 38.0 mm size is useful where enclosure space matters, and the unit is specified for operation up to +70°C.
Is the RID-125-2448 OK for outdoor or washdown locations?
The provided specs list it as an enclosed power supply, but no IP rating is given. That means it is better suited to protected indoor enclosures and controlled industrial spaces rather than outdoor, wet, or washdown exposure.
How does the RID-125-2448 compare with other Mean Well RID series models?
Within the listed siblings, RID-125-2448 is 125W at 24V and 22A. Other listed models are RID-125-1205 at 125W, 5V, 3A; RID-125-1224 at 125W, 12V, 3.7A; RID-125-1248 at 125W, 12V, 2.3A; RID-125-2405 at 125W, 5V, 3A; RID-50A at 50W, 5V, 2A; RID-50B at 50W, 5V, 1.4A; RID-65A at 65W, 5V, 3A; RID-65B at 65W, 5V, 2A; RID-85A at 85W, 5V, 4A; and RID-85B at 85W, 5V, 2A.
Other RID-125 Models
4 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well RID-125-2405 AC-DC Dual output enclosed power supply 125W | 125W | 5V | 3A | View |
| Mean Well RID-125-1248 AC-DC Dual output enclosed power supply 125W | 125W | 12V | 2.3A | View |
| Mean Well RID-125-1224 AC-DC Dual output enclosed power supply 125W | 125W | 12V | 3.7A | View |
| Mean Well RID-125-1205 AC-DC Dual output enclosed power supply 125W | 125W | 5V | 3A | View |
