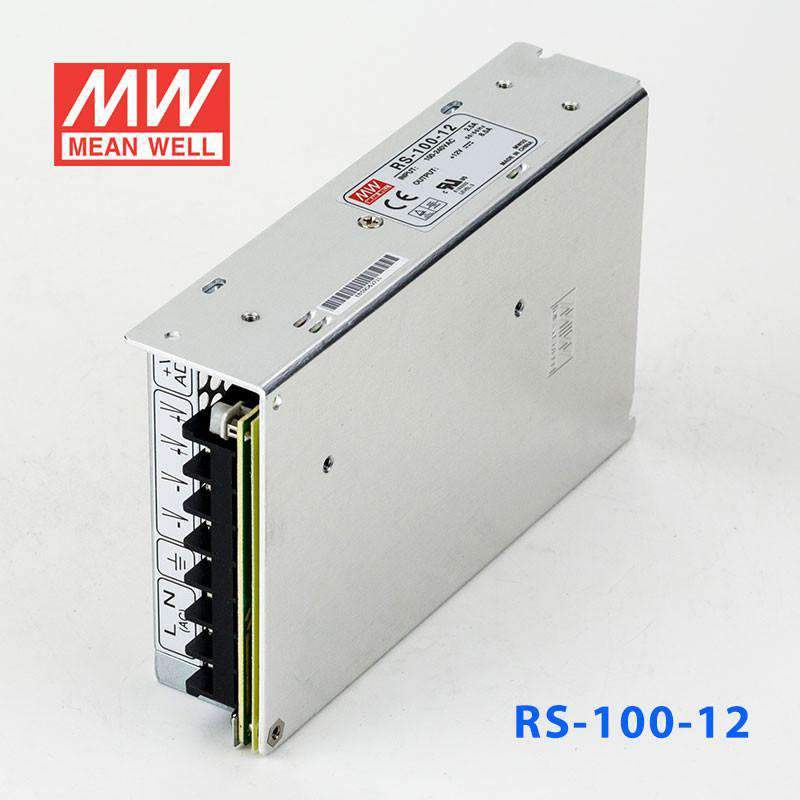

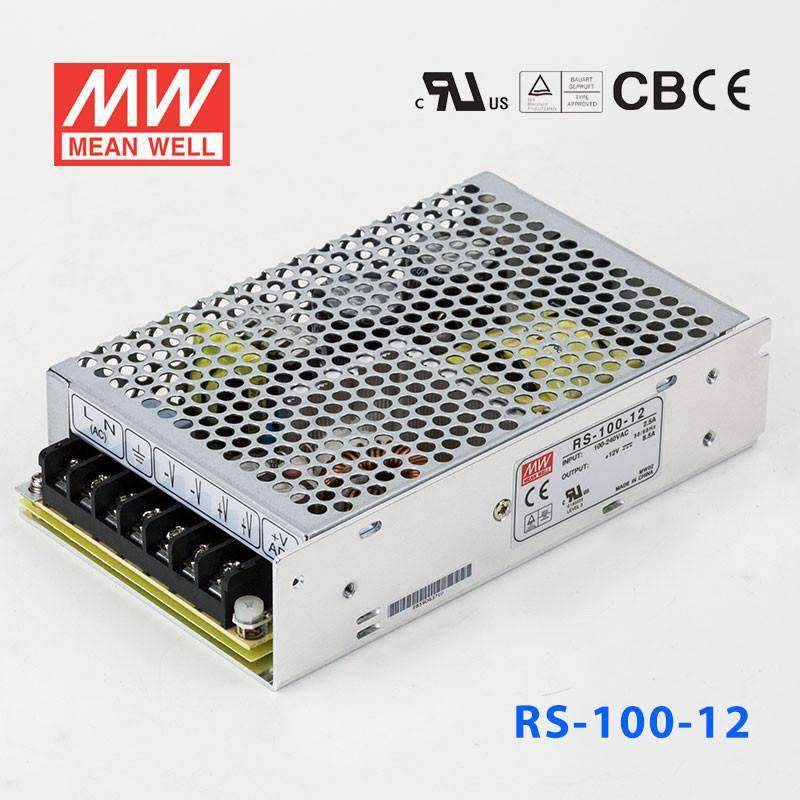

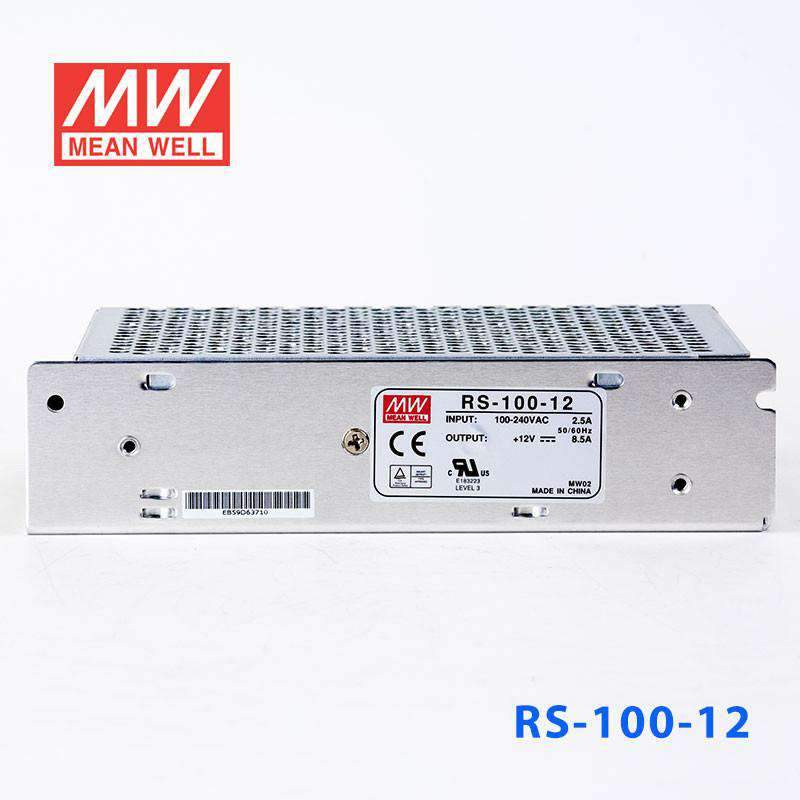

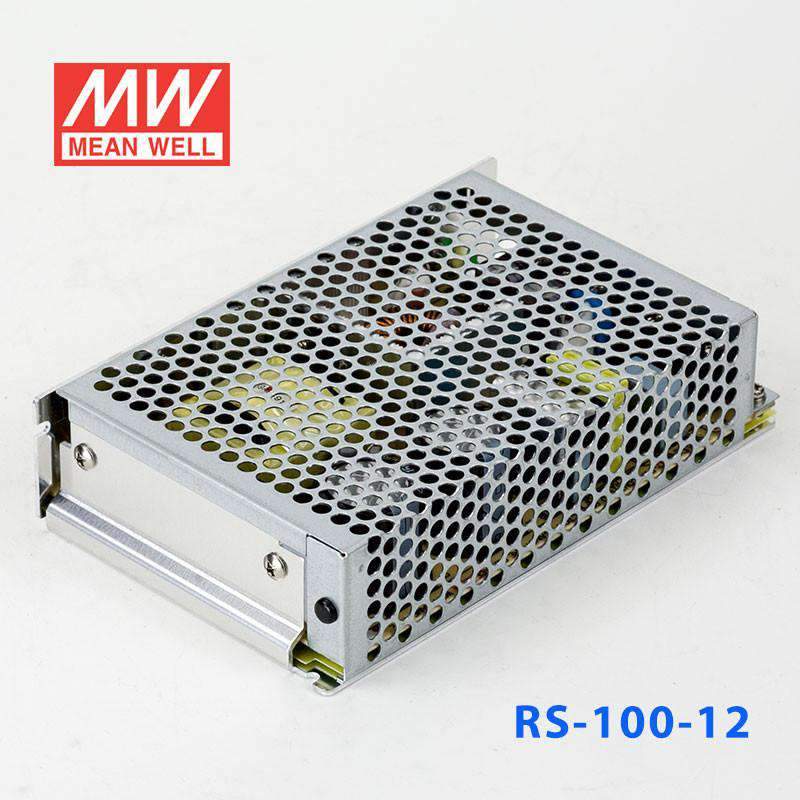

Mean Well RS-100-12 Power Supply 100W 12V

miniature size, economical, withstand 5G vibration and 70°C operation
SKU:
RS-100-12

|

Description

Features

All using 105°C long life electrolytic capacitors
Protections: Short circuit / Overload / Over voltage
Meet EMS EN50082-2/EN61000-6-2
Heavy industry level (35~150W)
Withstand 300VAC surge input for 5 sec.
High operating temperature up to 70°C
Withstand 5G vibration test
Miniature size, high power density
High efficiency, long life and high reliability
LED indicator for power on
100% full load burn-in test
Suitable for critical applications
3 years warranty

General Specification

AC input voltage range 88~264VAC, 125~373VDC
AC inrush current (max.) 40A at 230VAC
DC adjustment range ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection 110%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature -25~+70°C (refer to the derating curve for different models)
Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)

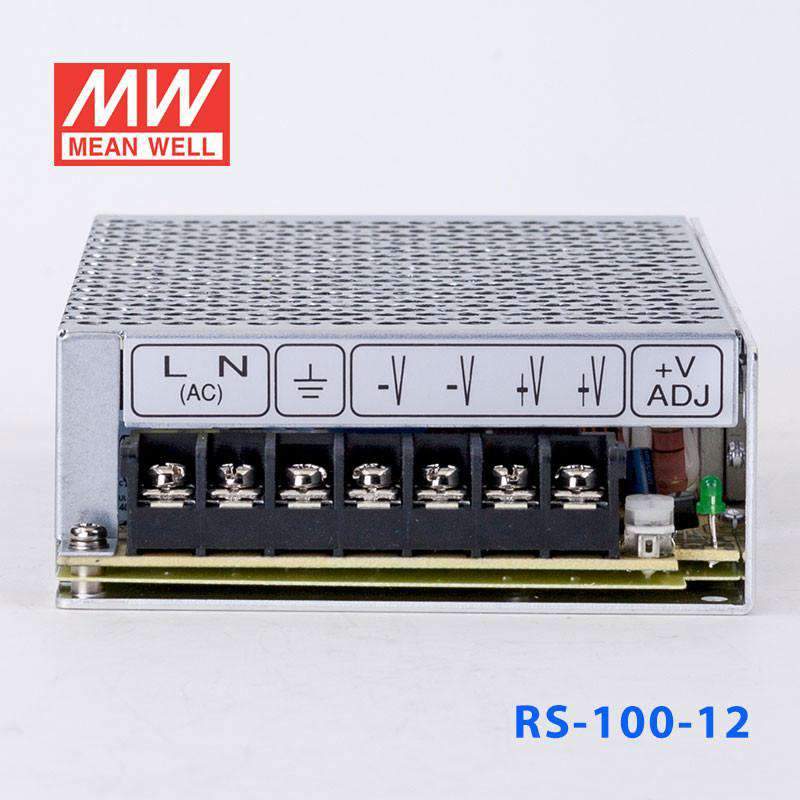

Connection Terminal block for input and output
Dimension (LxWxH) 159x 97x 38
Case No. 901C
Packing 24pcs /15.4kg

Specifications

  • Brand
    Mean Well
  • Series
    RS Series
  • Power Rating
    102 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    8.5 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~70°C
  • Warranty
    3 Year
  • Length
    15.9 cm
  • Width
    9.7 cm
  • Height
    3.8 cm
  • Weight
    0.6 kg
