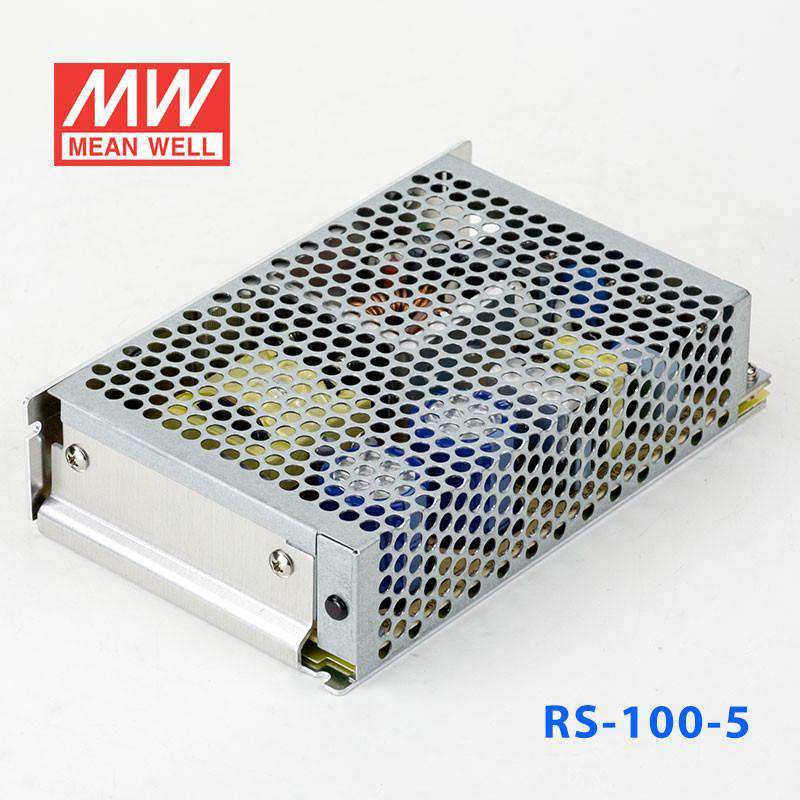

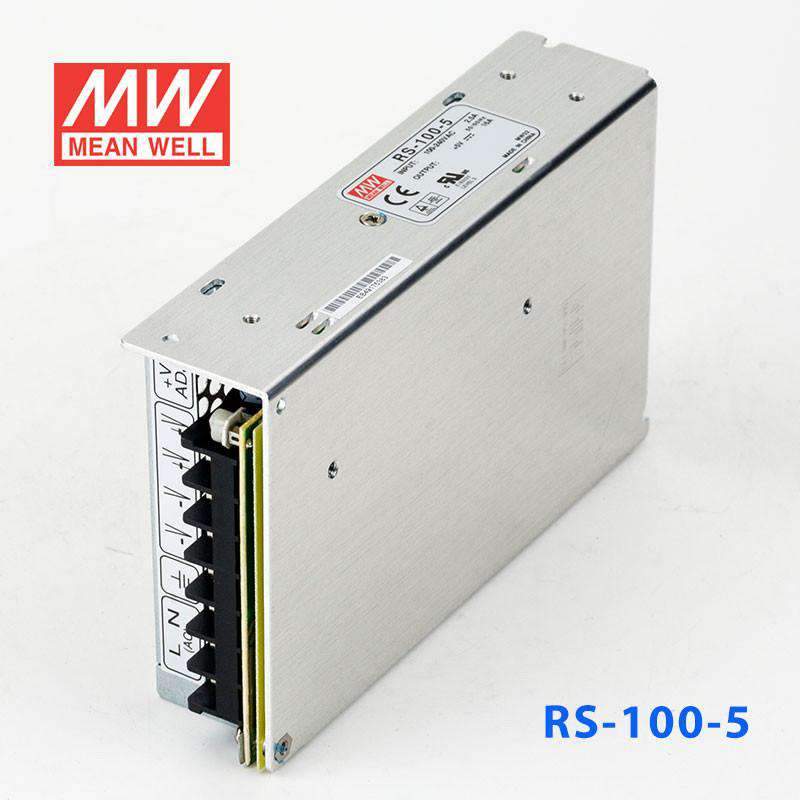

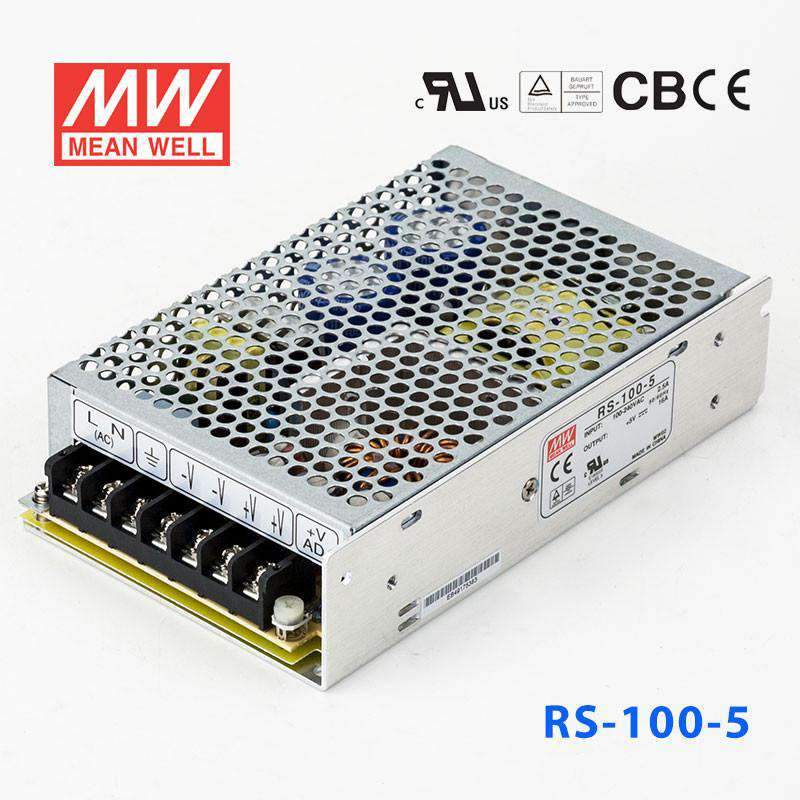

Mean Well RS-100-5 Power Supply 100W 5V 16A
Please Login for Pricing
Description
Description
The RS-100 is a Mean Well DIN rail power converter with a 59mm profile (input range: 125~373VDC).
Key Features
- ✓ 59mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 125~373VDC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368 TUV EN62368-~ EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRS Series
-
Power Rating80 Watt
-
Output Voltage5 Volt
-
Rated Current16 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length15.9 cm
-
Width9.7 cm
-
Height3.8 cm
-
Weight0.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RS-100-5 for a high-current 5V embedded or industrial computing system?
Yes, this model provides a constant 5V output with up to 16A and 80W available. That makes it a fit for 5V systems that need much more current than smaller 5V supplies in the same series.
Is the RS-100-5 suitable for 5V logic, controller, or HMI loads in a machine enclosure?
It can be, as long as the total load stays within 16A and 80W at 5V. The 88-264VAC input range is also useful where the same equipment may be used across different AC mains conditions.
Can this model power a 5V LED or display-related load that needs higher current?
Yes, it is a constant-voltage 5V supply with 16A output capacity, so it fits 5V loads that require a regulated 5V rail. The key limit is that the connected 5V equipment must stay at or below 80W total.
How does the RS-100-5 compare with other 5V RS power supplies?
Among the listed 5V siblings, the RS-15-5 is 15W at 3A, the RS-25-5 is 25W at 5A, the RS-35-5 is 35W at 7A, the RS-50-5 is 50W at 10A, the RS-75-5 is 60W at 12A, this RS-100-5 is 80W at 16A, and the RS-150-5 is 130W at 26A. The series steps up mainly by output current and total wattage while keeping a 5V output.
Can the RS-100-5 be used in harsh temperature environments?
Its operating temperature range is -25°C to +70°C, and the specs also note 5G vibration resistance. No IP rating is provided, so the temperature range is defined, but outdoor or washdown suitability is not established by these specs.
Other RS-100 Models
5 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well RS-100-48 Power Supply 100W 48V 2.3A | 110.4W | 48V | 2.3A | View |
| Mean Well RS-100-3.3 Power Supply 100W 3.3V 20A | 66W | 3.3V | 20A | View |
| Mean Well RS-100-24 Power Supply 100W 24V 4.5A | 108W | 24V | 4.5A | View |
| Mean Well RS-100-15 Power Supply 100W 15V 7A | 105W | 15V | 7A | View |
| Mean Well RS-100-12 Power Supply 100W 12V 8.5A | 102W | 12V | 8.5A | View |
