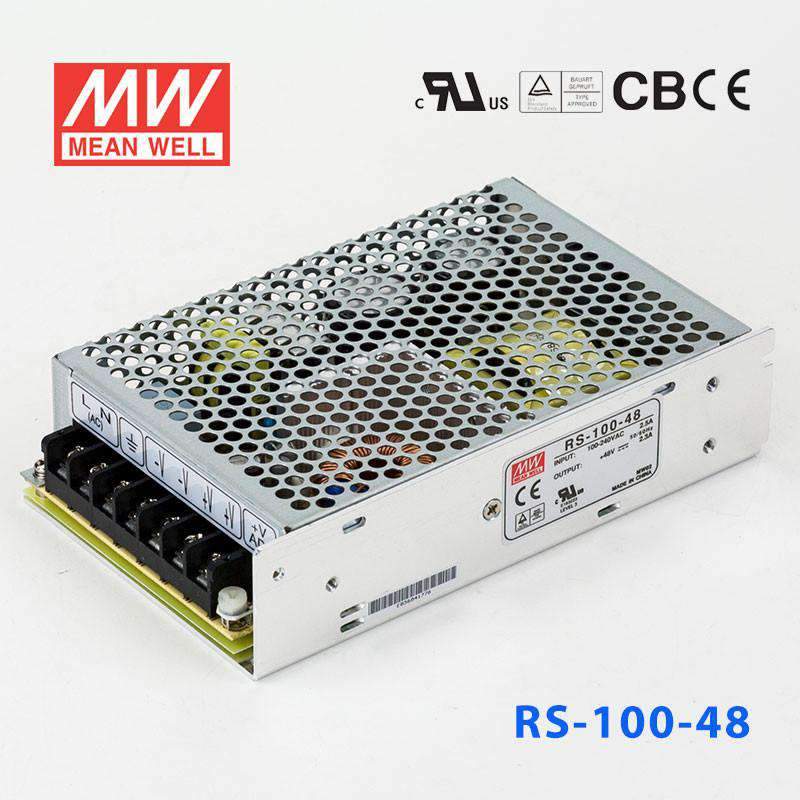

Mean Well RS-100-48 Power Supply 100W 48V 2.3A
Please Login for Pricing
Description
Description
The RS-100 is a Mean Well DIN rail power converter with a 59mm profile (input range: 125~373VDC).
Key Features
- ✓ 59mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 125~373VDC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368 TUV EN62368-~ EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRS Series
-
Power Rating110.4 Watt
-
Output Voltage48 Volt
-
Rated Current2.3 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length15.9 cm
-
Width9.7 cm
-
Height3.8 cm
-
Weight0.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RS-100-48 for a 48V industrial control or automation panel?
Yes, it is a constant-voltage 48V supply with up to 2.3A output and 110.4W capacity, which fits equipment designed for a 48V DC rail. The wide 88-264VAC input also suits panels used in different AC power environments.
Is the RS-100-48 suitable for 48V telecom or network equipment?
It can be suitable for 48V DC equipment that stays within 2.3A and 110.4W. This model is a constant-voltage power supply, so it fits loads that specifically require a 48V regulated output.
Can this power supply run a 48V embedded system or test fixture?
Yes, if the fixture or embedded system needs a stable 48V output and draws no more than 2.3A. Its compact 159.0 × 97.0 × 38.0 mm size and 0.6 kg weight also help where enclosure space is limited.
How does the RS-100-48 compare with other 48V models in the RS series?
Within the listed RS siblings at 48V, the RS-15-48 is 15.024W at 0.31A, the RS-25-48 is 27.36W at 0.57A, the RS-35-48 is 35W at 0.8A, the RS-50-48 is 52.8W at 1.1A, the RS-75-48 is 76.8W at 1.6A, this RS-100-48 is 110.4W at 2.3A, and the RS-150-48 is 158.4W at 3.3A. The main difference is available output current and power at the same 48V nominal output.
Is the RS-100-48 meant for indoor or outdoor use?
The operating temperature range is -25°C to +70°C, and the unit is specified to withstand 5G vibration. No IP rating is listed in the provided specs, so these specs support temperature tolerance but do not establish outdoor or weather-exposed use.
Other RS-100 Models
5 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well RS-100-5 Power Supply 100W 5V 16A | 80W | 5V | 16A | View |
| Mean Well RS-100-3.3 Power Supply 100W 3.3V 20A | 66W | 3.3V | 20A | View |
| Mean Well RS-100-24 Power Supply 100W 24V 4.5A | 108W | 24V | 4.5A | View |
| Mean Well RS-100-15 Power Supply 100W 15V 7A | 105W | 15V | 7A | View |
| Mean Well RS-100-12 Power Supply 100W 12V 8.5A | 102W | 12V | 8.5A | View |
