Features
250-1500Vdc 6:1 ultra-wide iput range |
Withstand 1700Vdc surge input for 10 seconds |
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input rverse Polarity |
Fanless design, fully encapsulated, cooling by free iar convection |
Over voltage category II |
-40~+80°C ultra-wide operating temperature (>+50°C derating |
Operating altitude up to 5000 meters |
DC output voltage adjustable(12~25V, 24~29V, 30~36V, 48~58V) |
1U low profile 41mm |
3 years warranty |
Specifications
Specifications
-

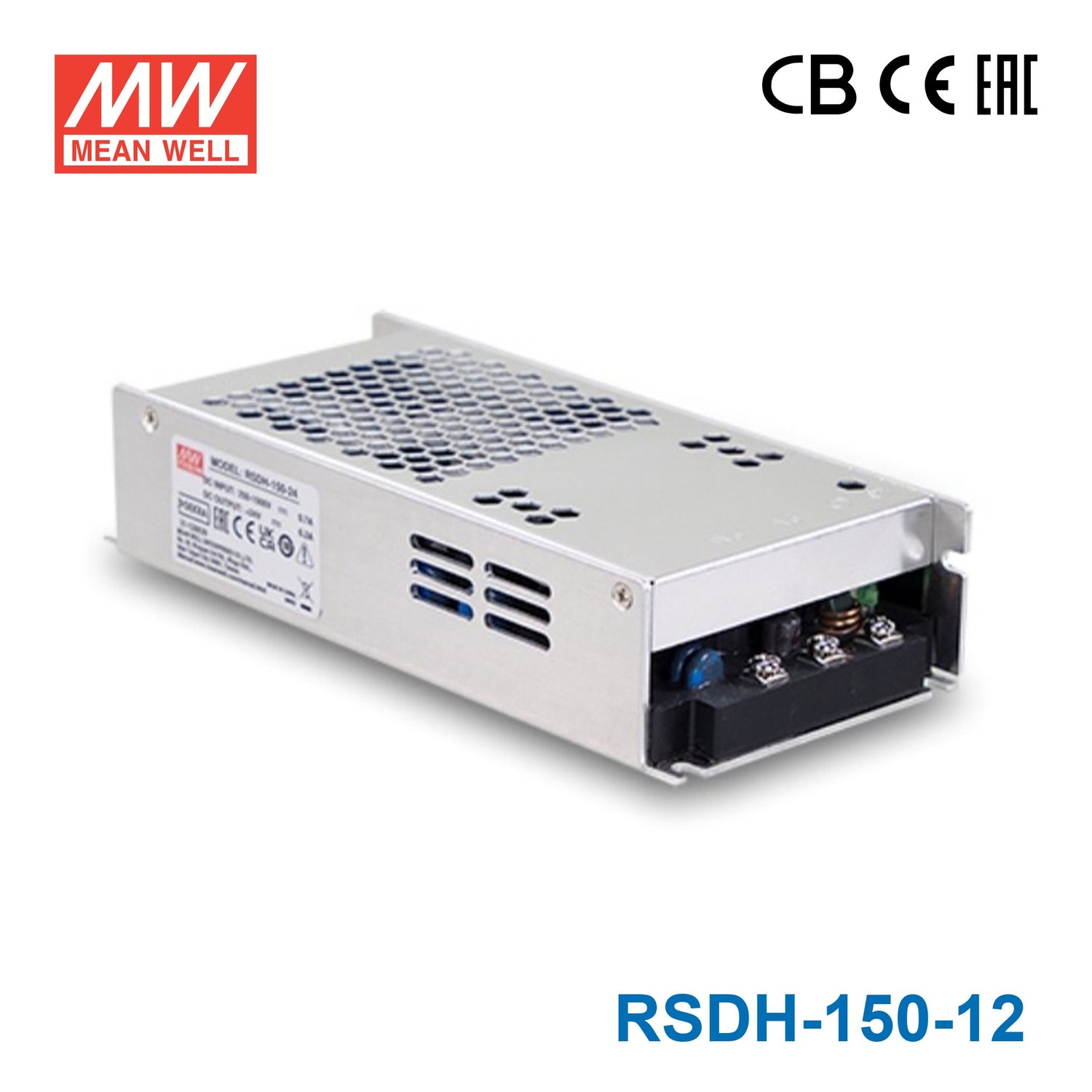

BrandMean Well
-
SeriesRSDH Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage250V~1500V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length19.1 cm
-
Width8.6 cm
-
Height4.1 cm
-
Weight0.81 kg
