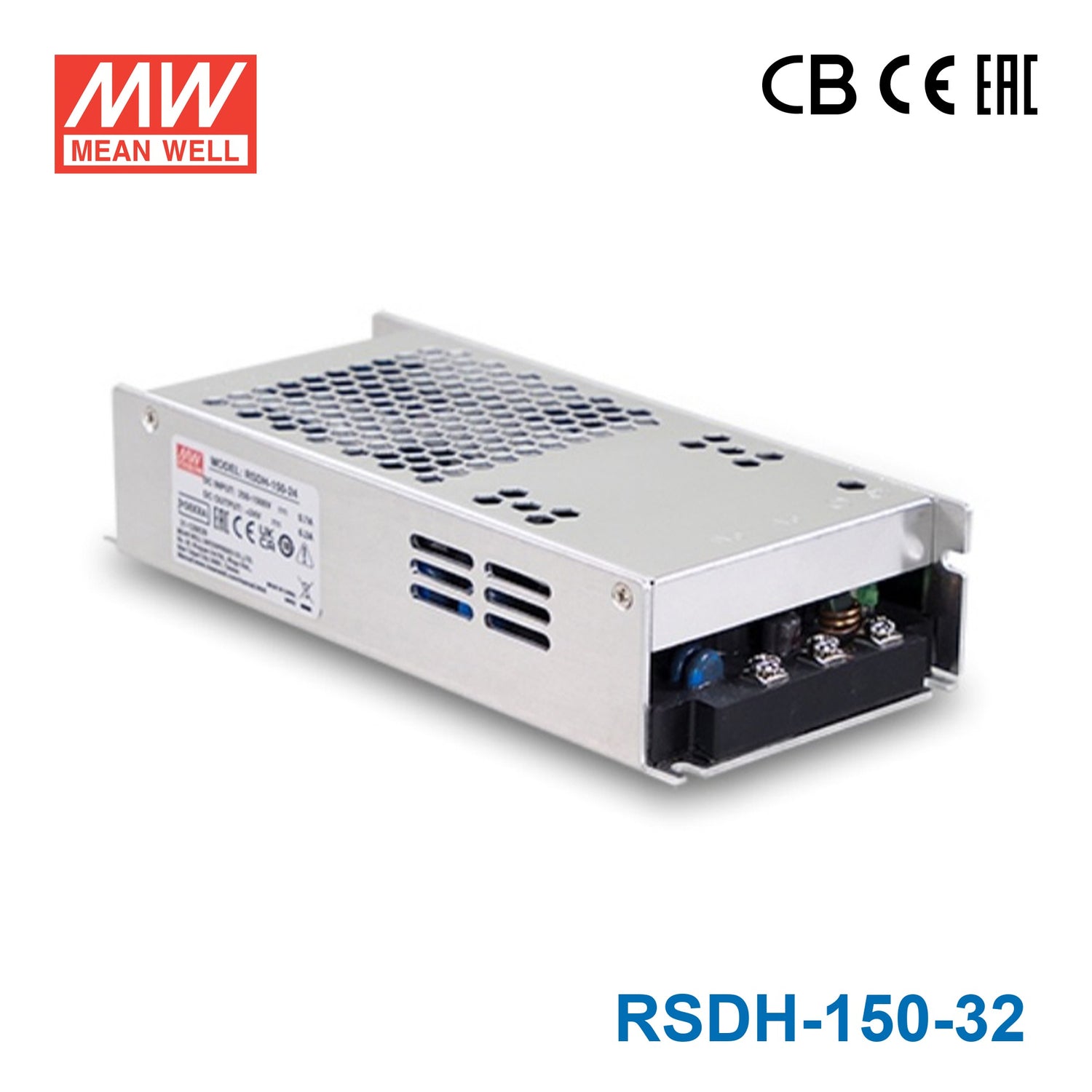

Mean Well RSDH-150-32 Ultra Wide Input DC-DC Converter, 250V-1500VD...
Please Login for Pricing
Description
Description
The RSDH-150 is a 150W Mean Well power converter (input range: 250~1500Vdc).
Key Features
- ✓ Input voltage range: 250~1500Vdc
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity / Under voltage
- ✓ Safety approvals: EN62109-1 IEC62109-1 BS EN/EN62109-1 EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSDH Series
-
Power Rating150 Watt
-
Output Voltage32 Volt
-
Rated Current4.68 Ampere
-
Input Voltage250V~1500V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length19.1 cm
-
Width8.6 cm
-
Height4.1 cm
-
Weight0.81 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What input range does the Mean Well RSDH-150-32 support?
The RSDH-150-32 accepts a 250VDC to 1500VDC input range, giving it a 6:1 ultra-wide input window. It is also specified to withstand a 1700VDC surge input for up to 10 seconds, which helps in demanding high-voltage DC environments.
What output does this DC-DC converter provide?
This model is rated for a 32VDC output with 150W total power and a rated current of 4.68A. The output voltage is also adjustable within the 30V to 36V range for applications that need some voltage trim around the nominal output.
What kinds of applications is the RSDH-150-32 best suited for?
This model is designed for systems that need to convert very high DC input voltages down to a regulated 32VDC output. Its ultra-wide 250-1500VDC input range, fanless encapsulated design, and wide operating temperature range make it a strong fit for industrial and other high-voltage DC power applications.
How does the RSDH-150-32 differ from a standard DC-DC converter?
Its main differentiator is the exceptionally wide 250-1500VDC input range, which is much broader than standard low-voltage DC-DC converters. It also combines fanless operation, a low-profile 41mm form factor, and protection features aimed at harsher operating conditions.
Can this converter operate in harsh environmental conditions?
Yes. The RSDH-150-32 is rated for operation from -40°C to +80°C, with derating required above +50°C, and it supports operation at altitudes up to 5000 meters. Its fully encapsulated, fanless construction is intended for reliable cooling by free air convection.
What protection features are included in the RSDH-150-32?
This model includes protection for short circuit, overload, over voltage, DC input under voltage, and DC input reverse polarity. Those built-in protections help support system reliability in demanding DC power applications.
What warranty is provided with the Mean Well RSDH-150-32?
The RSDH-150-32 includes a 3-year warranty from Mean Well. That aligns with the model's industrial-oriented design and long-service-use positioning.
