Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

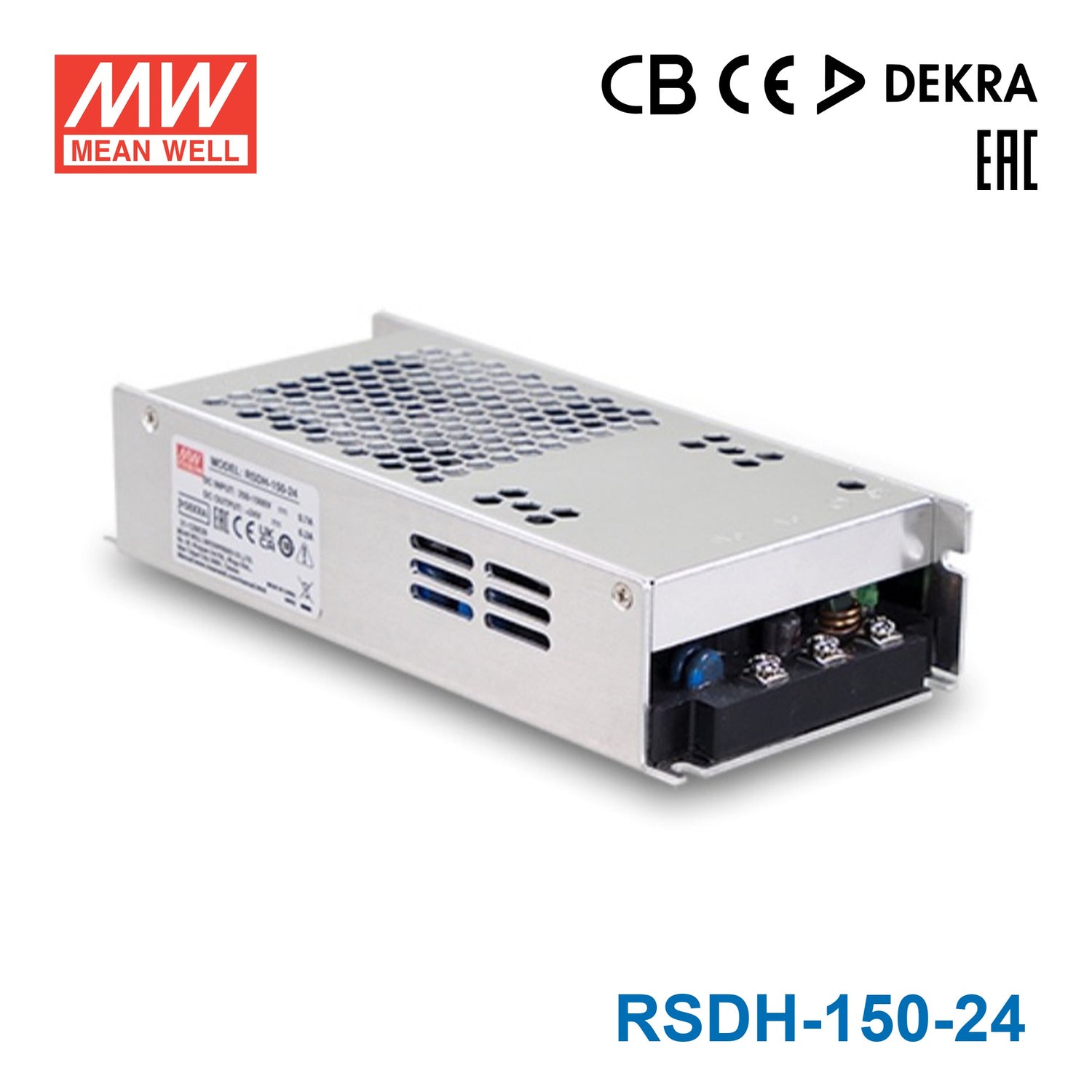

Mean Well RSDH-150-24 Ultra Wide Input DC-DC Converter, 250V-1500VD...
Please Login for Pricing
Description
Description
Features
| 250-1500Vdc 6:1 ultra-wide iput range |
| Withstand 1700Vdc surge input for 10 seconds |
| Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input rverse Polarity |
| Fanless design, fully encapsulated, cooling by free iar convection |
| Over voltage category II |
| -40~+80°C ultra-wide operating temperature (>+50°C derating |
| Operating altitude up to 5000 meters |
| DC output voltage adjustable(12~25V, 24~29V, 30~36V, 48~58V) |
| 1U low profile 41mm |
| 3 years warranty |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSDH Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.2 Ampere
-
Input Voltage250V~1500V
-
Standards MetCB,CE,DEKRA,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length19.1 cm
-
Width8.6 cm
-
Height4.1 cm
-
Weight0.81 kg
