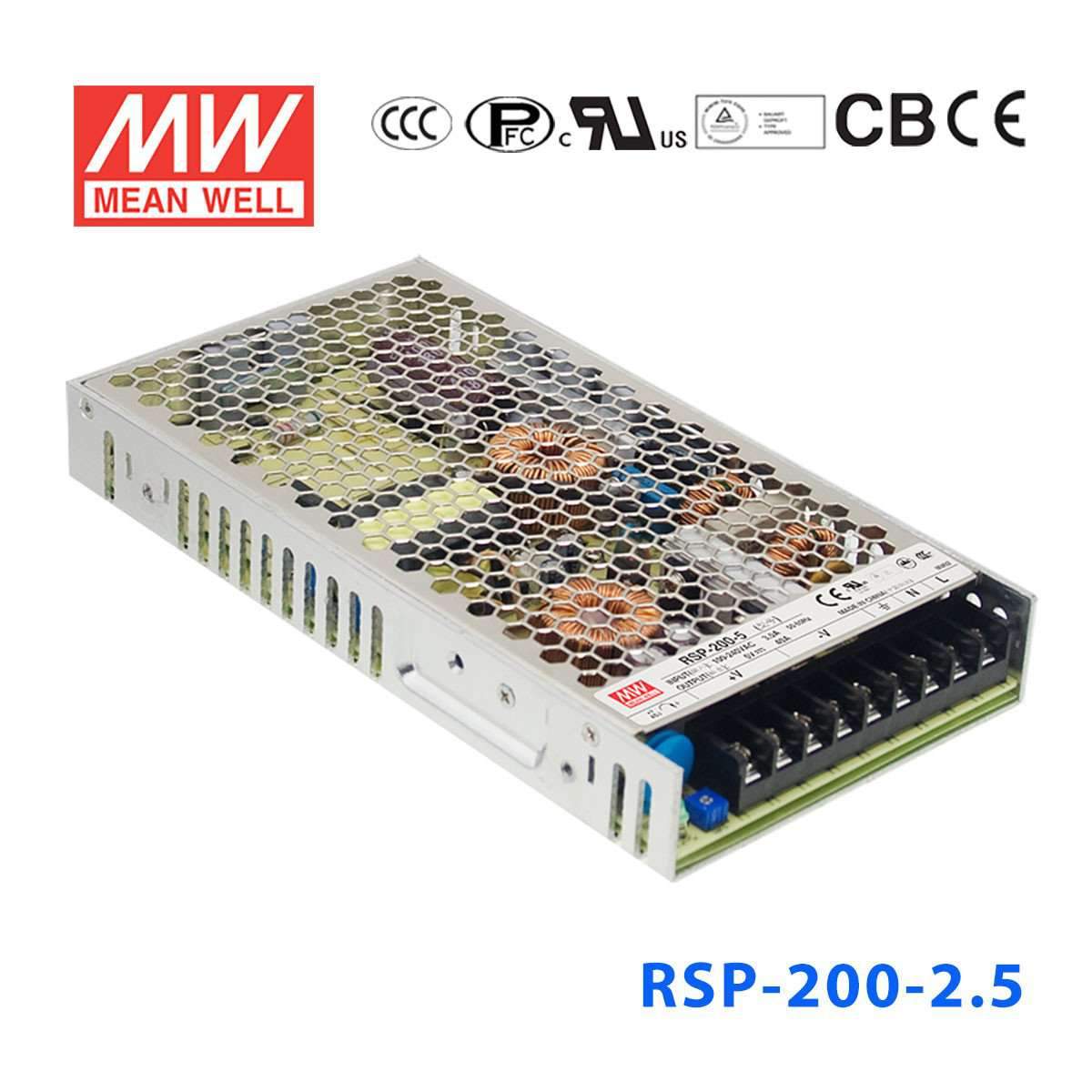

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well RSP-200-2.5 Power Supply 100W 2.5V 40A

1U low profile with active PFChigh efficiency

SKU:

RSP-200-2.5

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

RSP-200-2.5

RSP-200-2.5 200W 2.5V Backorder

RSP-320-2.5 320W 2.5V Backorder

Product variants

Notify me when it's back in stock

The RSP-200 is a 200W Mean Well DIN rail power converter with a 215mm profile (input range: 88~264VAC).

Key Features

✓ 215mm width — DIN rail TS-35 compatible
✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty

Frequently Asked Questions

What applications require a 2.5V supply like the RSP-200-2.5?

The RSP-200-2.5 provides 2.5V at 40A (100W) and is intended for DRAM termination supplies, low-voltage FPGA core rails, high-current logic termination in embedded systems, and specialized DSP board power planes. At 40A the RSP-200-2.5 can power multiple boards simultaneously drawing 2.5V. The 88–264VAC input supports all standard mains voltages.

Why does the RSP-200-2.5 deliver only 100W despite the RSP-200 platform rating?

The RSP-200-2.5 is limited to 100W because the 40A current ceiling of the platform, when multiplied by 2.5V, yields 100W (2.5V × 40A). The RSP-200 model number reflects the platform's target wattage at higher voltages; at 2.5V the available wattage is constrained by the current limit.

How does the RSP-200-2.5 compare to the RSP-200-3.3 and RSP-200-4?

The RSP-200-2.5 delivers 2.5V/40A/100W. The RSP-200-3.3 delivers 3.3V/40A/132W. The RSP-200-4 delivers 4V/40A/160W. All share the same 40A maximum current and 215.0 × 115.0 × 30.0 mm chassis. Total wattage increases with voltage while current remains fixed at 40A.

Is the RSP-200-2.5 suitable for operation in warm server or networking enclosures?

The RSP-200-2.5 is rated from -30°C to +70°C ambient. For warm server or telecommunications cabinets, ensure ambient temperature at the unit stays at or below +70°C. No IP rating is specified; the unit requires an appropriate enclosure for the environment.

What certifications does the RSP-200-2.5 carry?

The RSP-200-2.5 holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications, including CCC (China) and c_rcm (Australia/NZ), providing broad global market coverage.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-200-24 Power Supply 200W 24V 8.4A	200W	24V	8.4A	View
Mean Well RSP-200-7.5 Power Supply 200W 7.5V 26.7A	200.25W	7.5V	26.7A	View
Mean Well RSP-200-5 Power Supply 200W 5V 40A	200W	5V	40A	View
Mean Well RSP-200-48 Power Supply 200W 24V 4.2A	200W	48V	4.2A	View
