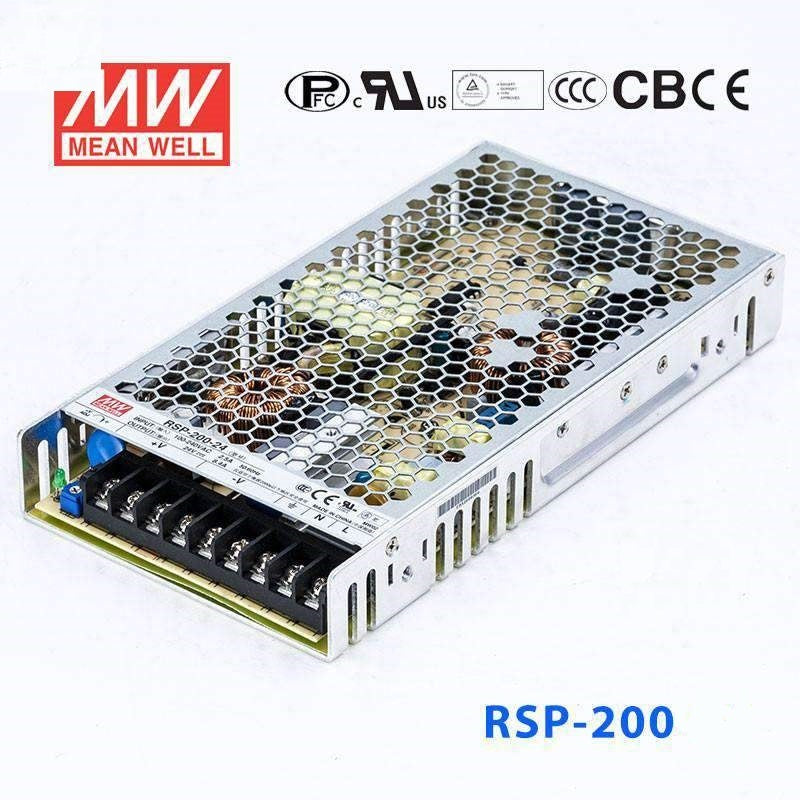

Mean Well RSP-200-27 Power Supply 200W 24V
Please Login for Pricing
Description
Description
Features
| Ultra low profile: 30mm |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in active PFC function |
| Cooling by free air convection |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~150% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |
| Connection | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating200 Watt
-
Output Voltage27 Volt
-
Rated Current7.5 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.72 kg
