What systems use a 4V power supply like the RSP-200-4?

The RSP-200-4 delivers 4V at 40A (160W) and is suited for specialized logic rails in telecommunications line cards, certain DSP hardware platforms, DRAM termination buses, and custom embedded boards specifying a 4V supply. The 88–264VAC input is compatible with worldwide AC supplies.

How does the RSP-200-4 compare to the RSP-200-3.3 and RSP-200-5?

The RSP-200-3.3 delivers 3.3V/40A/132W. The RSP-200-4 delivers 4V/40A/160W. The RSP-200-5 delivers 5V/40A/200W. All three share the same 40A output current limit and 215.0 × 115.0 × 30.0 mm chassis. Wattage increases proportionally with voltage.

Is the RSP-200-4 appropriate for 1U rack panel installation?

Yes. At 215.0 × 115.0 × 30.0 mm (30 mm 1U height) and 0.72 kg, the RSP-200-4 is a 1U low-profile unit compatible with 19-inch rack mounting alongside other 1U equipment.

What is the operating temperature range of the RSP-200-4?

The RSP-200-4 is rated from -30°C to +70°C ambient, identical to other RSP-200 models. No IP rating is specified; an enclosure is required for wet or dusty installation environments.

What certifications does the RSP-200-4 hold?

The RSP-200-4 carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications, providing one of the broadest certification sets in the RSP-200 family.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

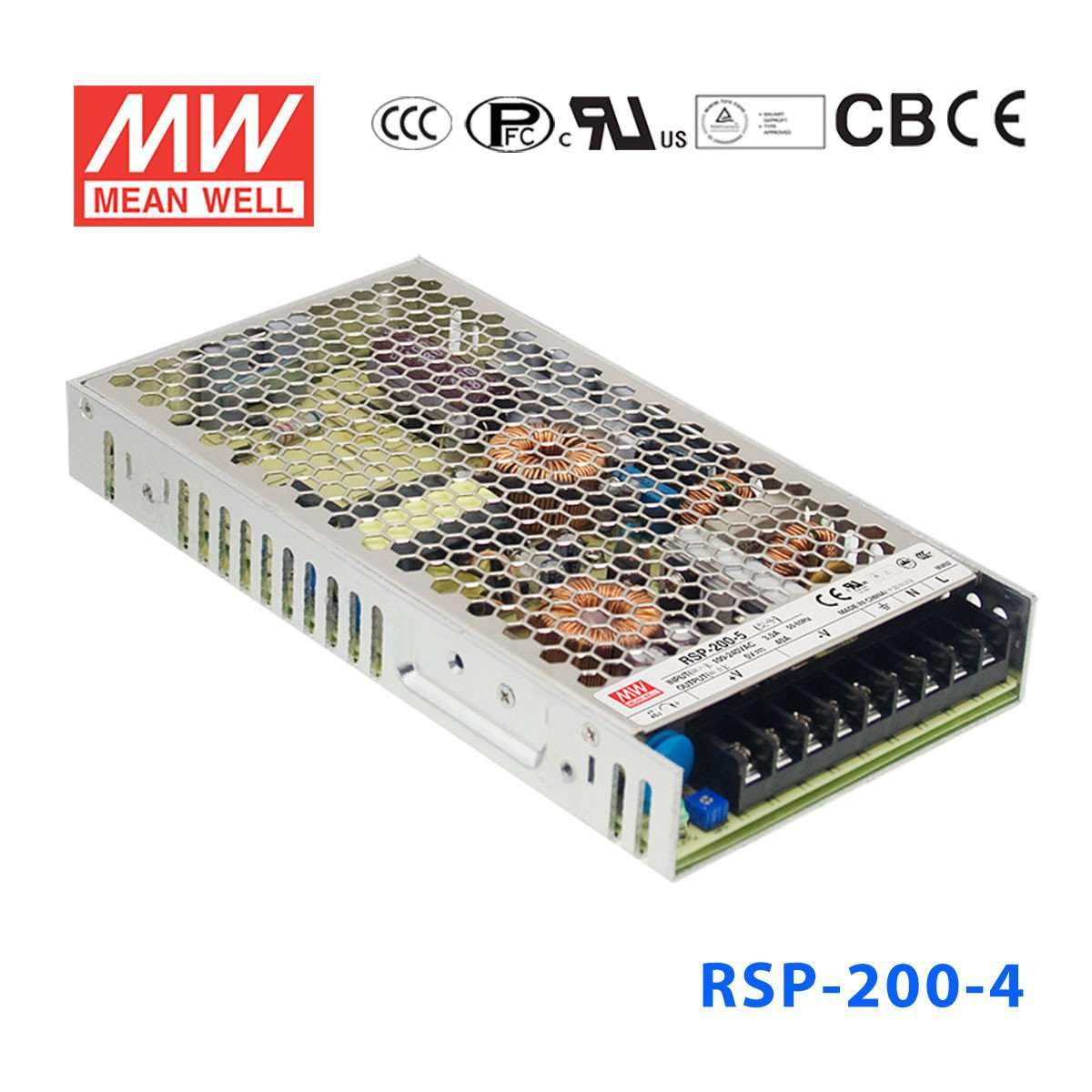

Mean Well RSP-200-4 Power Supply 160W 4V 40A

1U low profile with active PFChigh efficiency

SKU:

RSP-200-4

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RSP-200 is a 200W Mean Well DIN rail power converter with a 215mm profile (input range: 88~264VAC).

Key Features

✓ 215mm width — DIN rail TS-35 compatible
✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-200-24 Power Supply 200W 24V 8.4A	200W	24V	8.4A	View
Mean Well RSP-200-7.5 Power Supply 200W 7.5V 26.7A	200.25W	7.5V	26.7A	View
Mean Well RSP-200-5 Power Supply 200W 5V 40A	200W	5V	40A	View
Mean Well RSP-200-48 Power Supply 200W 24V 4.2A	200W	48V	4.2A	View
