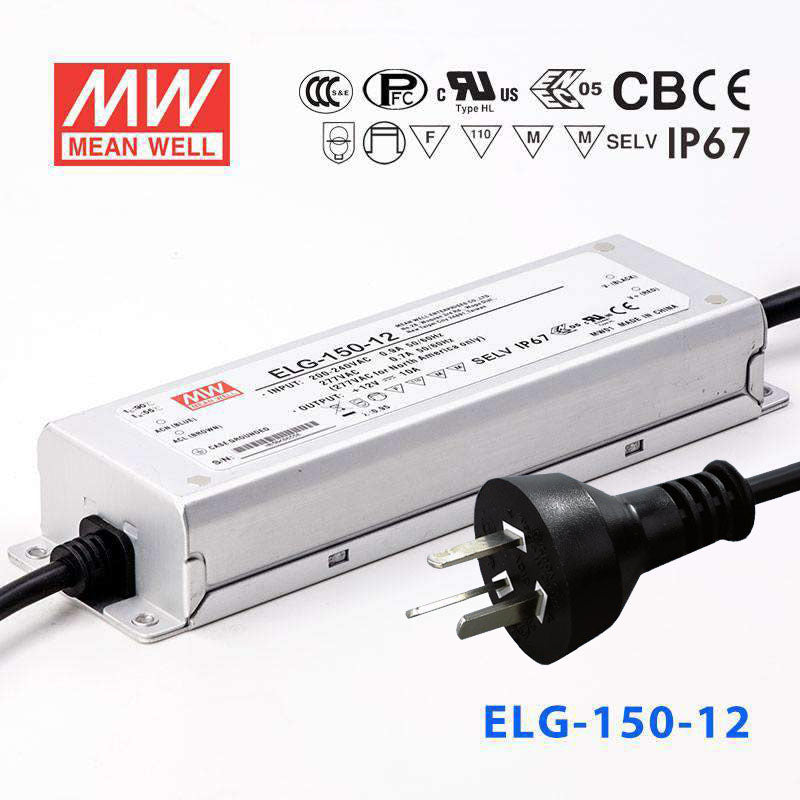

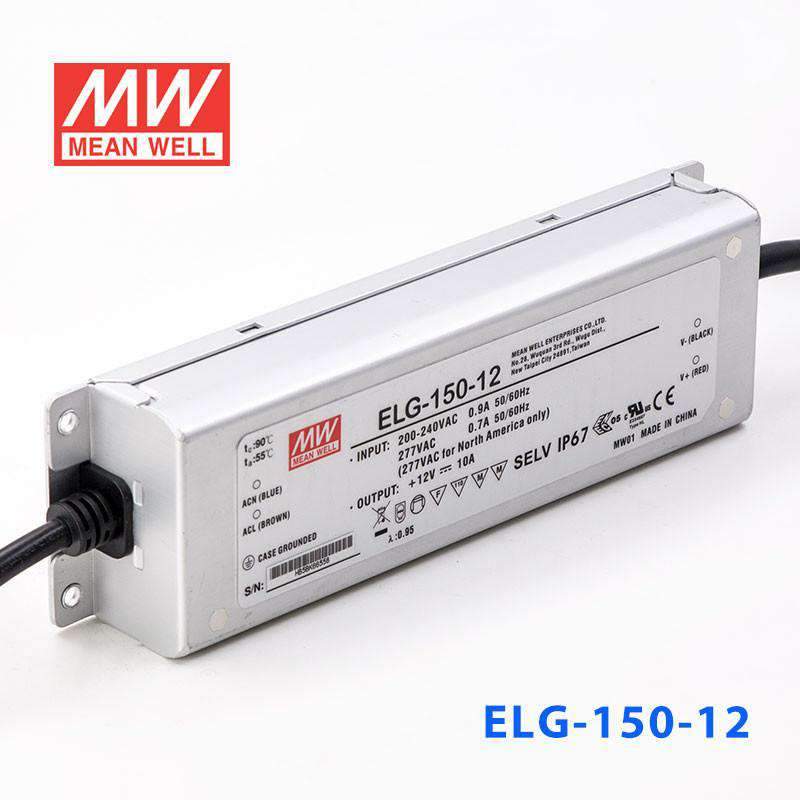

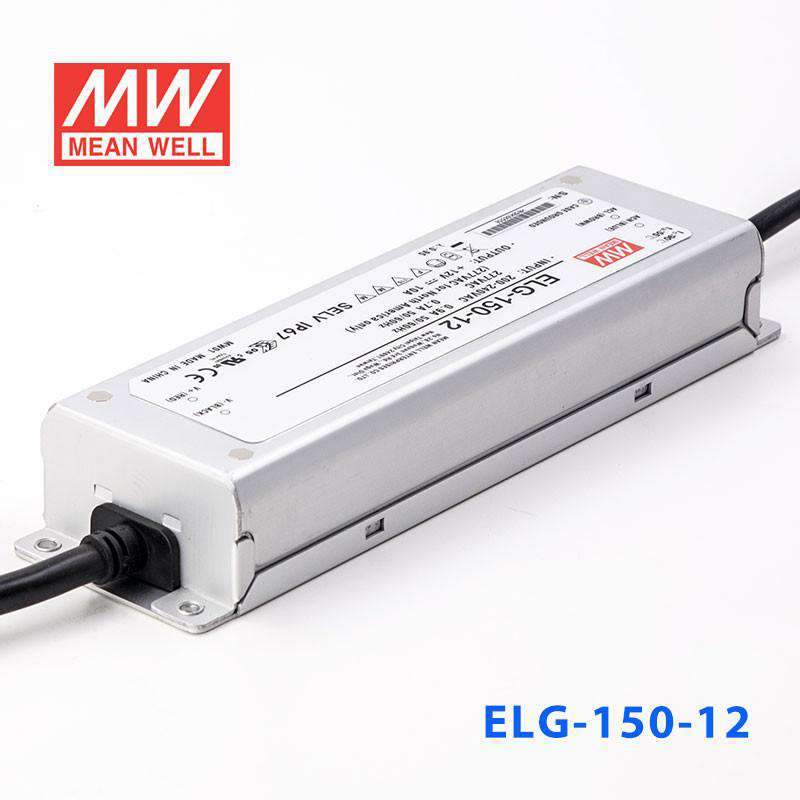

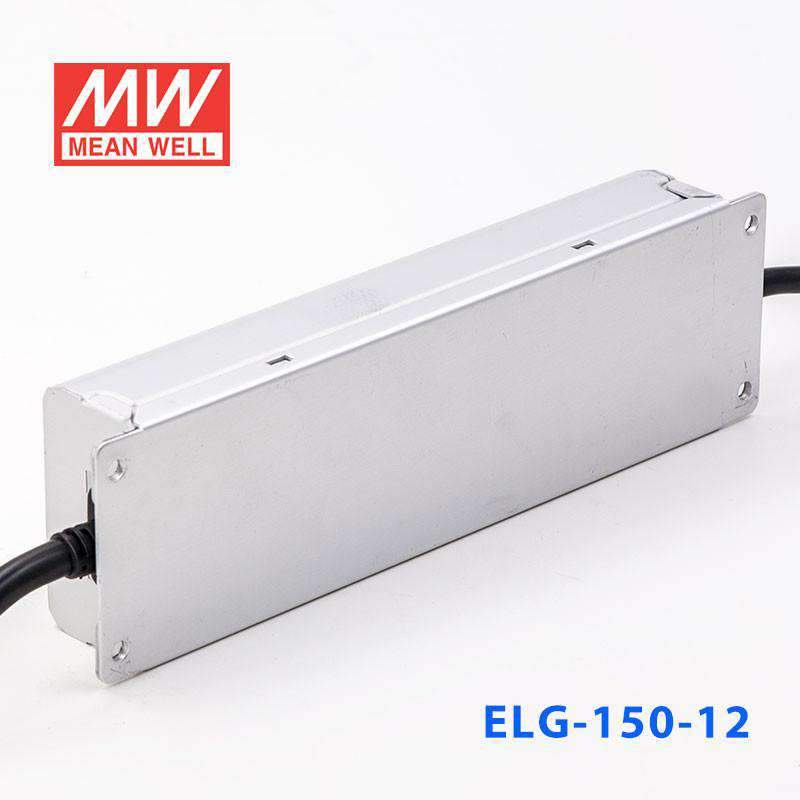

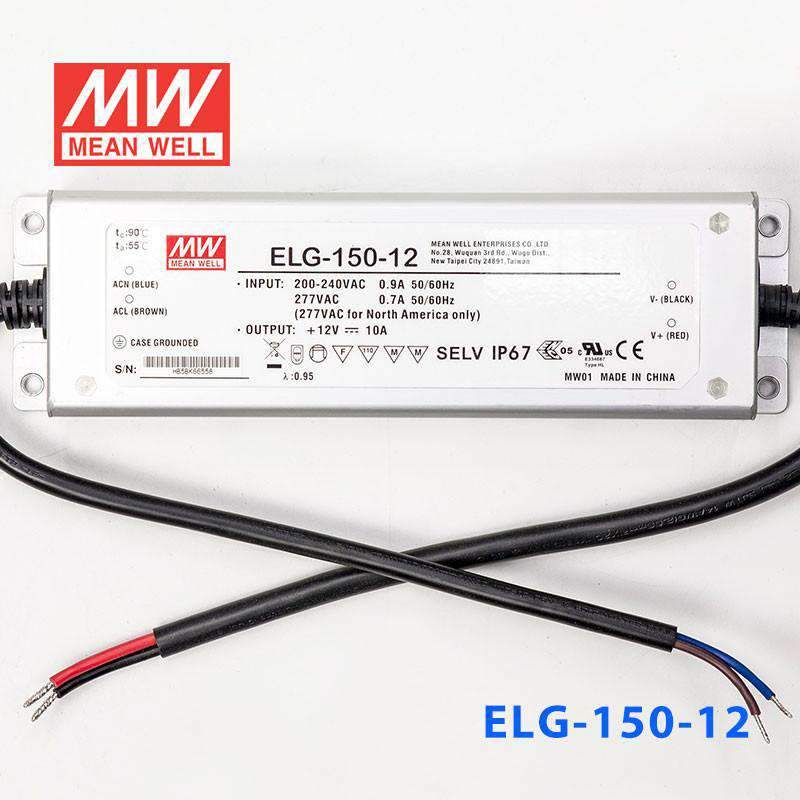

Mean Well S-ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (with Earth)

metal caseIP675 years warranty
SKU S-ELG-150-12-3Y
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

S-ELG-150-12-3Y is the 12V output model of this series: rated current 10A, typical efficiency 88.5%.

ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
  • Typical lifet ime>50000 hours
  • 5 years warranty

Specifications

S-ELG-150-12-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE
12V
CONSTANT CURRENT REGIONNote.2
6 ~ 12V
RATED CURRENT
10A
RATED POWER 100VAC ~ 180VAC
84W
RATED POWER 200VAC ~ 305VAC
120W
RIPPLE & NOISE (max.)Note.3
150mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 10.8 ~ 13.2V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 5 ~ 10A
VOLTAGE TOLERANCENote.4
±3.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±2.0%
SETUP, RISE TIMENote.6
1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.)
10ms/115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
88.5%
AC CURRENT
1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.)
COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION
No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
14 ~ 18V Shut down output voltage, re-power on to recover
OVER TEMPERATURE
Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS
Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF
2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
219*63*35.5mm (L*W*H)
PACKING
0.95Kg ; 16pcs/16.0kg/0.77CUFT

Certifications & ratings

Type
Type HL
Test conditions and notes14
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTICS” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  9. 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  13. 13. ELG-150-12(except blank/A-Type) is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps) .
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

S-ELG-150-12-3Y Block Diagram
Block Diagram
S-ELG-150-12-3Y DIMMING OPERATION
DIMMING OPERATION
S-ELG-150-12-3Y OUTPUT LOAD vs TEMPERATURE(Note.9)
OUTPUT LOAD vs TEMPERATURE(Note.9)
S-ELG-150-12-3Y STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
S-ELG-150-12-3Y TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
S-ELG-150-12-3Y LIFE TIME
LIFE TIME
S-ELG-150-12-3Y Mechanical Specification
Mechanical Specification
S-ELG-150-12-3Y ※ AB-Type
※ AB-Type
S-ELG-150-12-3Y ※ B/DA-Type
※ B/DA-Type
S-ELG-150-12-3Y ※ 3Y Model (3-wire input)
※ 3Y Model (3-wire input)
S-ELG-150-12-3Y Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
  • Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

What is the output rating of the Mean Well S-ELG-150-12 power supply?

This model provides a 12V DC output with a rated current of 10A. Its listed power rating is 120W (84W at 100–180VAC input), making it suitable for 12V loads that need a stable constant-voltage + constant-current supply within that capacity.

What kinds of applications is this 12V Mean Well power supply designed for?

It is an LED driver, suited to LED lighting applications such as signage, architectural and street lighting. It is intended for commercial or trade use where a reliable 12V power supply is needed for compatible lighting systems.

Does this model support dimming control?

No. The listed dimming control for this model is none, so it is not presented as a dimmable power supply in the provided product data.

What input range does the Mean Well S-ELG-150-12 support?

It supports a wide 100 to 305VAC input range and 142 to 431VDC. That broad input range makes it suitable for environments where mains supply conditions may vary; note that output power is derated to 84W below 180VAC.

How efficient is this power supply?

The sheet lists a typical efficiency of 88.5% for the 12V model. It also states no-load power consumption is less than 0.5W, which can be beneficial in applications where standby energy use matters.

What protection features are included in this model?

The sheet lists over current, short circuit, over voltage (14–18V), and over temperature protection. These built-in protections are intended to help safeguard the power supply during abnormal operating conditions.

What operating temperature range is listed for this power supply?

The sheet lists a working case temperature (Tcase) range from -40°C to +90°C, with output derating at higher ambient temperatures. Buyers should review their application requirements carefully to confirm that this range aligns with the intended operating environment.

What warranty comes with the Mean Well S-ELG-150-12?

The spec sheet does not state a warranty period; it refers to the warranty statement on MEAN WELL's website. Check that statement for the current coverage terms for this power supply model.
