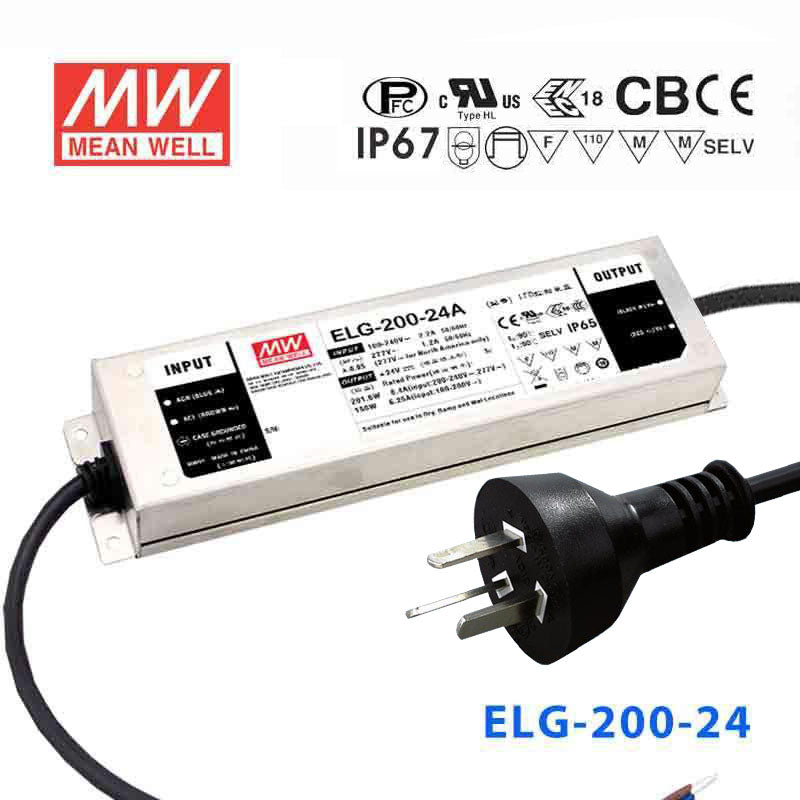

Mean Well S-ELG-200-24 Power Supply 200W 24V with AU/NZ plug
Please Login for Pricing
Description
Description
The S-ELG-200-24 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length24.4 cm
-
Width7.1 cm
-
Height3.75 cm
-
Weight1.38 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well S-ELG-200-24 power supply?
This model provides a 24V DC output with a rated current of 8.4A. Its listed power rating is 201.6W, making it suitable for higher-load 24V lighting and power applications. It is a non-dimming power supply.
What types of applications is the S-ELG-200-24 designed for?
The product description states that it is suitable for LED lighting and street lighting applications. Its 24V output and 200W-class power capacity make it relevant for commercial or project-based LED systems that need a constant-voltage supply. It is positioned as a power supply for professional lighting use rather than a consumer plug pack.
Is this power supply suitable for demanding electrical environments?
This model is specified for a wide 100 to 305VAC input range and includes built-in active PFC. Mean Well also lists protection for short circuit, over voltage, and over temperature. Those features make it a stronger fit for commercial environments where input conditions and operating demands may vary.
Does the S-ELG-200-24 include a plug suitable for Australia and New Zealand?
Yes. The product name identifies this version as the S-ELG-200-24 with an AU/NZ plug. That makes it the regional variant intended for buyers who need an Australia and New Zealand plug format.
How does this model compare with lower-power 24V power supplies?
The main differentiator is its higher output capacity at 24V, with 8.4A rated current and 201.6W power. That makes it better suited to larger 24V loads than smaller 24V units. It is also described with up to 93% efficiency and a 5-year warranty, which are important factors for long-term project selection.
What warranty does Mean Well provide for the S-ELG-200-24?
This model is listed with a 5-year warranty. That longer warranty period is useful for commercial buyers comparing lifecycle value and maintenance risk. It aligns with the product's positioning for LED lighting applications.
Other S-ELG Models
7 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well S-ELG-150-24 Power Supply 150W 24V with AU/NZ plug | 150W | 24V | 6.25A | IP67 | View |
| Mean Well S-ELG-100-24 Power Supply 96W 24V with AU/NZ plug | 96W | 24V | 4A | IP67 | View |
| Mean Well S-ELG-240-24 Power Supply 240W 24V with AU/NZ plug | 240W | 24V | 10A | IP67 | View |
| Mean Well S-ELG-200-12 Power Supply 192W 12V with AU/NZ plug | 192W | 12V | 16A | IP67 | View |
| Mean Well S-ELG-150-12 Power Supply 120W 12V with AU/NZ plug | 120W | 12V | 10A | IP67 | View |
| Mean Well S-ELG-75-24 Power Supply 75W 24V with AU/NZ plug | 75.6W | 24V | 3.15A | IP67 | View |
| Mean Well S-ELG-200-24A Power Supply 200W 24V - Adjustable with AU/NZ plug | 201.6W | 24V | 8.4A | IP65 | View |
