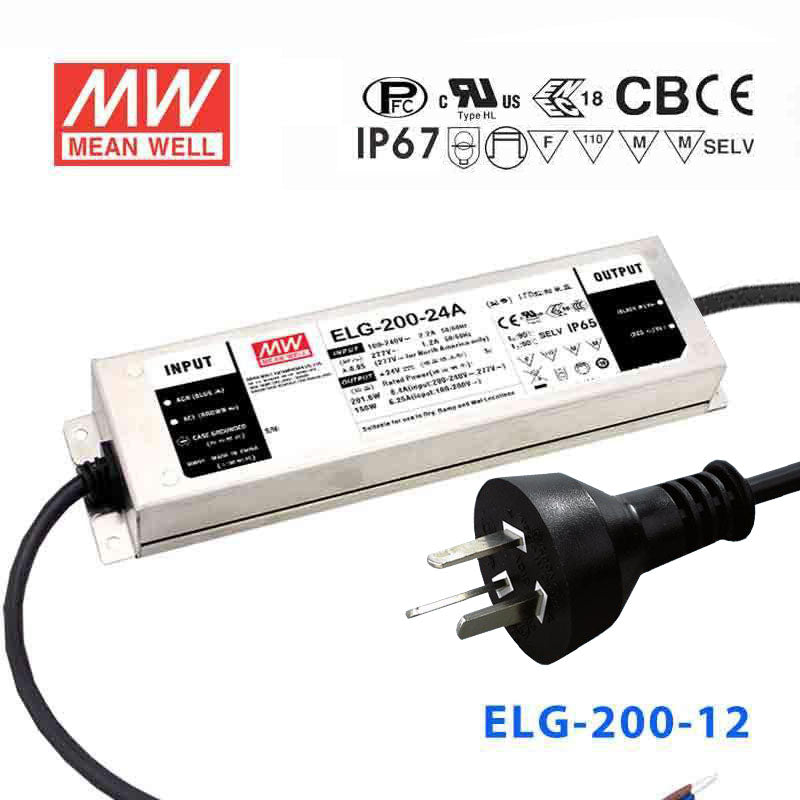

Mean Well S-ELG-200-12 Power Supply 192W 12V with AU/NZ plug
Please Login for Pricing
Description
Description
The S-ELG-200-12 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating192 Watt
-
Output Voltage12 Volt
-
Rated Current16 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length24.4 cm
-
Width7.1 cm
-
Height3.75 cm
-
Weight1.38 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output of the Mean Well S-ELG-200-12 power supply?
This model provides a 12V DC output with a 192W power rating. Its rated output current is 16A, making it suitable for higher-power 12V applications that need a stable constant-voltage supply.
What types of applications is the S-ELG-200-12 designed for?
The S-ELG-200-12 is described as suitable for LED lighting and street lighting applications. It is a constant-voltage 12V power supply intended for commercial and trade use where a durable indoor or protected-environment power source is needed.
Does this power supply support dimming control?
No, this model does not include dimming control. If your project requires integrated dimming, you would need to compare it with a different driver or power supply designed for that feature.
What input range does the Mean Well S-ELG-200-12 support?
This unit supports a wide 100 to 305VAC input range, and the description also lists 142 to 431VDC. That broad input range makes it a practical option for commercial environments where supply conditions may vary.
Is the S-ELG-200-12 suitable for demanding temperature conditions?
The listed operating temperature range runs from -40°C to 90°C. That makes this model a strong candidate for demanding environments, subject to the overall design and enclosure conditions of the finished system.
Does this model include an AU/NZ plug and is it suited to New Zealand buyers?
Yes, the product name specifies that this version includes an AU/NZ plug. That makes it relevant for buyers in Australia and New Zealand looking for this exact regional variant.
What protection and reliability features are included in this model?
The description lists short circuit, over voltage, and over temperature protection. It also states 100% full load burn-in testing, high efficiency up to 93%, low no-load power consumption under 0.5W, and a 5-year warranty.
Other S-ELG Models
7 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well S-ELG-200-24 Power Supply 200W 24V with AU/NZ plug | 201.6W | 24V | 8.4A | IP67 | View |
| Mean Well S-ELG-150-24 Power Supply 150W 24V with AU/NZ plug | 150W | 24V | 6.25A | IP67 | View |
| Mean Well S-ELG-100-24 Power Supply 96W 24V with AU/NZ plug | 96W | 24V | 4A | IP67 | View |
| Mean Well S-ELG-240-24 Power Supply 240W 24V with AU/NZ plug | 240W | 24V | 10A | IP67 | View |
| Mean Well S-ELG-150-12 Power Supply 120W 12V with AU/NZ plug | 120W | 12V | 10A | IP67 | View |
| Mean Well S-ELG-75-24 Power Supply 75W 24V with AU/NZ plug | 75.6W | 24V | 3.15A | IP67 | View |
| Mean Well S-ELG-200-24A Power Supply 200W 24V - Adjustable with AU/NZ plug | 201.6W | 24V | 8.4A | IP65 | View |
