Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

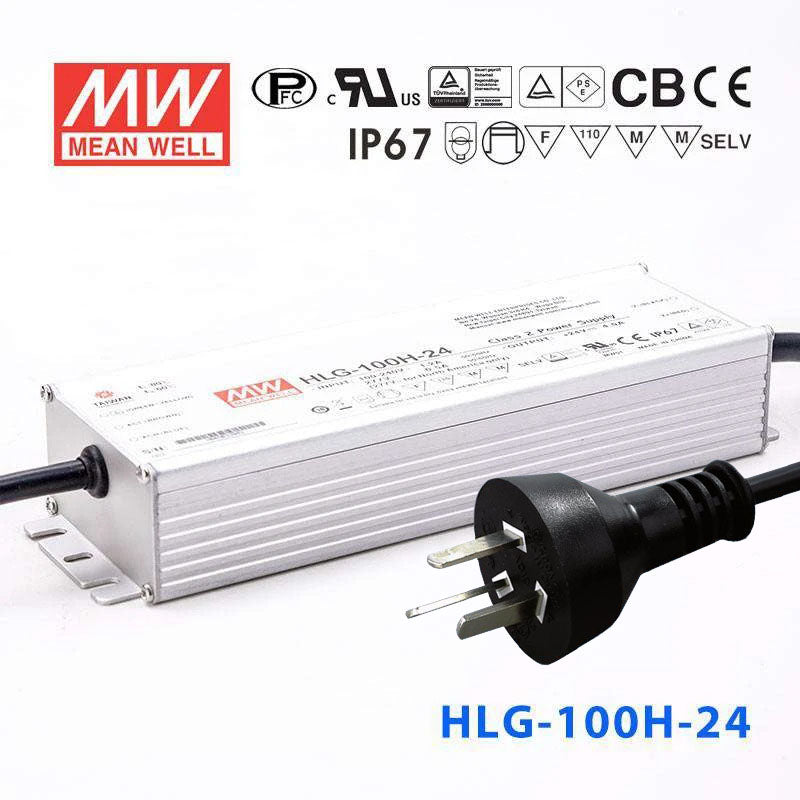

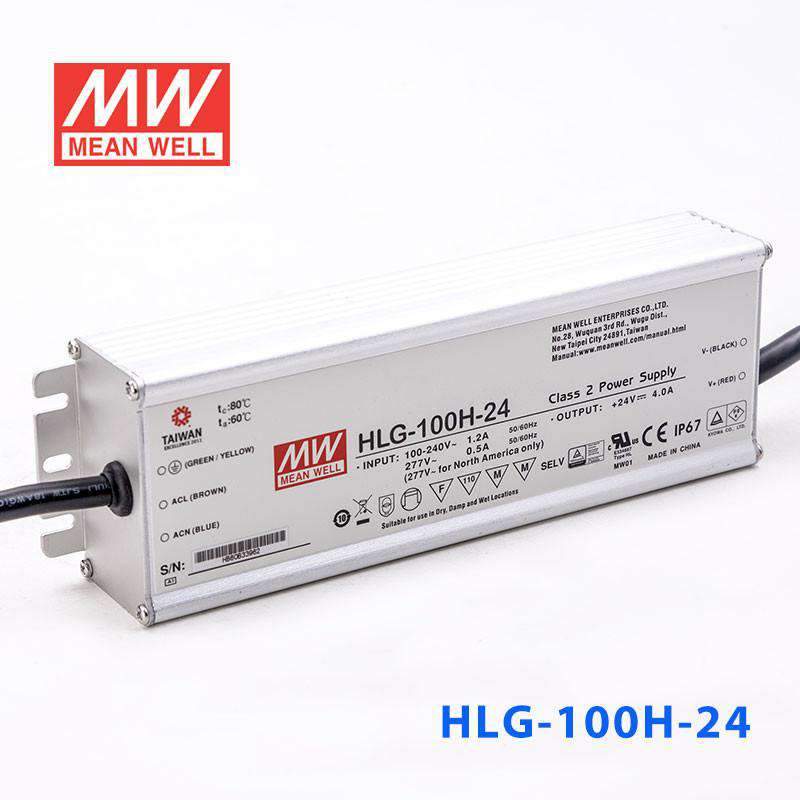

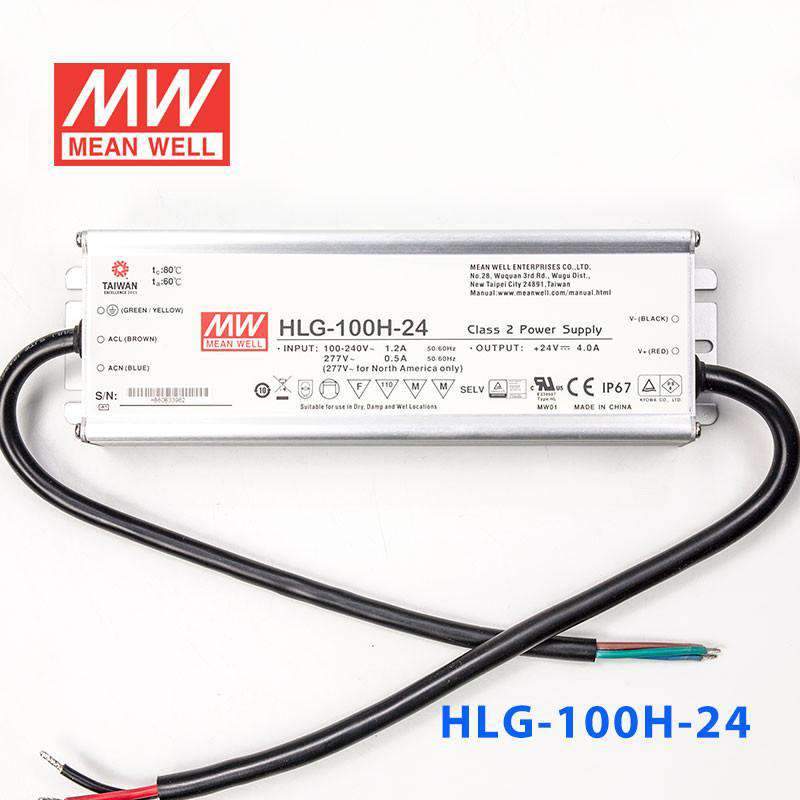

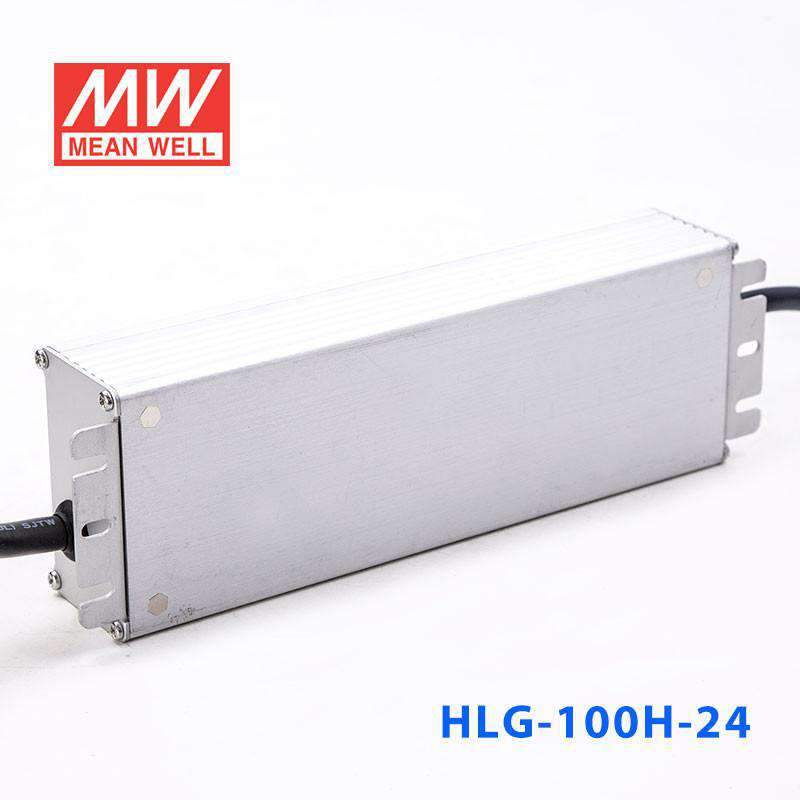

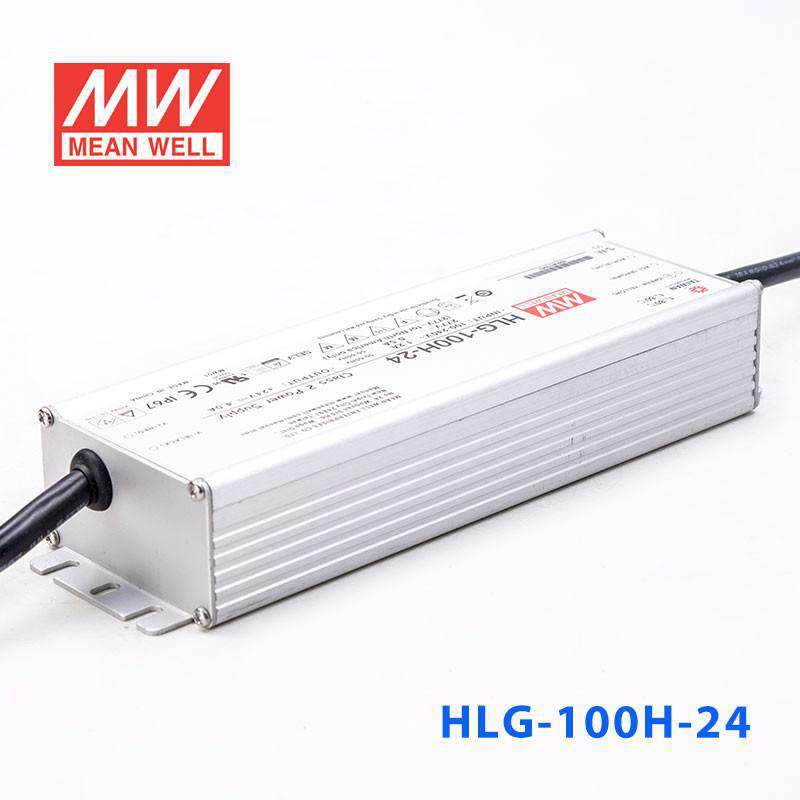

Mean Well S-HLG-100H-24 Power Supply 100W 24V with AU/NZ plug 4A

premium quality7 years warrantyaluminium casinghigh efficiency

SKU S-HLG-100H-24

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

S-HLG-100H-24 is the 24V output model of this series: rated current 4A, rated power 96W, typical efficiency 93%. Type Blank: Io and Vo fixed (IP67).

HLG-100H series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-100H operates from 90～305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 rating for indoor or outdoor installations
Typical lifetime > 62000 hours
7 years warranty

Specifications

S-HLG-100H-24Specifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.4: 12 ~ 24V
RATED CURRENT: 4A
RATED POWER: 96W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=415μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 106% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 28 ~ 34V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.9: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750 (type”HL”) , CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP65 or IP67, J61347-1, J61347-2-13 (except for D-type) , KC61347-1,KC61347-2-13 (except for D-type) ,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF: 2185.8K hrs min. Telcordia SR-332(Bellcore) ; 167.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.12Kg; 12pcs/14.4Kg/0.8CUFT

MODEL ENCODING

Blank (this model): Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

S-HLG-100H-24 BLOCK DIAGRAM — BLOCK DIAGRAM

S-HLG-100H-24 Illustration (page 5) — Illustration (page 5)

S-HLG-100H-24 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

S-HLG-100H-24 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

S-HLG-100H-24 MECHANICAL SPECIFICATION ※Blank/D-Type — MECHANICAL SPECIFICATION ※Blank/D-Type

S-HLG-100H-24 ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

S-HLG-100H-24 Dimensions (mm) — Dimensions (mm)

S-HLG-100H-24 WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

S-HLG-100H-24 datasheetHLG-100H-SPEC.PDF · 2026-07-24 edition PDF Download

Certificates4

UL Certificate (HLG-100H)(EN) PDF Download

TUV Certificate (HLG-100H)(EN) PDF Download

EMC Certificate (HLG-100H)(EN) PDF Download

PSE Certificate (HLG-100H)(EN) PDF Download

Test reports1

Test Report (HLG-100H-24)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What applications is the Mean Well S-HLG-100H-24 best suited for?

This model is designed for 24V DC LED applications that need up to 96W of output power, with a rated current of 4A. It is a practical fit for commercial and industrial LED systems where a 24V constant-voltage or constant-current supply is required. The IP67/IP65 design also makes it suitable for installations exposed to dust or moisture.

Is the S-HLG-100H-24 suitable for indoor and outdoor use?

Yes. This power supply has an IP67/IP65 design and metal housing that suit both indoor and outdoor applications; with a waterproof connector on the output cable it can operate in dry, damp and wet locations. Its working case temperature range of -40°C to +80°C (Tcase, with load derating at high temperatures) also suits demanding environments.

Can this model be used with 24V equipment and LED loads?

It is intended for 24V DC LED loads and provides a rated output of 24V at up to 4A, with 96W rated power. It can drive LEDs directly in constant-current mode (12-24V) or in constant-voltage mode, usually through an additional DC/DC driver. Compatibility depends on the connected load staying within the current and power limits of this model.

Does the S-HLG-100H-24 support dimming?

No. This model has no dimming input; the 3-in-1 dimming function is only on the B and AB types. It is intended for applications that need a fixed 24V output rather than integrated dimming control. If a project requires dimming from the power supply itself, this is not the right model to target.

What key electrical and protection features does this model include?

The S-HLG-100H-24 accepts 90-305VAC (127-431VDC) input and reaches typical efficiency of 93%. It also includes a PFC circuit (PF≥0.98 at 115VAC) and protection against short circuit, over current, over voltage, and over temperature. Output voltage and current are fixed on this model; potentiometer adjustment is only on the A and AB types.

What should buyers know about reliability and service life expectations for this model?

The sheet states a typical life expectancy of more than 62,000 hours when the Tcase point is about 80°C or less, and an MTBF of 2185.8K hours min. (Telcordia SR-332). It uses fanless free air convection cooling, avoiding reliance on fan-based cooling. For warranty terms, refer to MEAN WELL's warranty statement.
