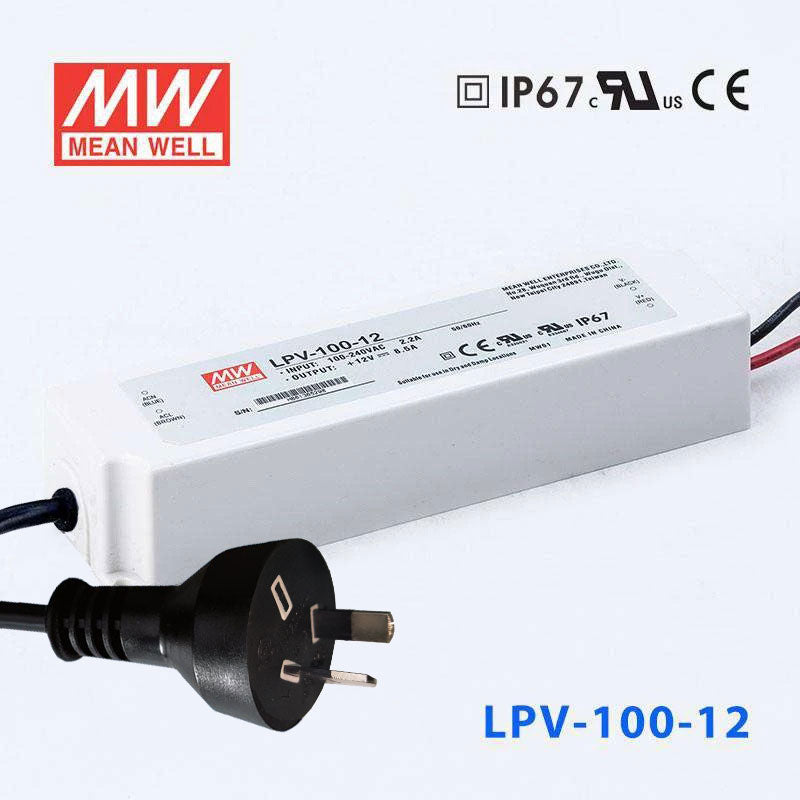

Mean Well S-LPV-100-12 Power Supply 100W 12V with AU/NZ plug
Please Login for Pricing
Description
Description
The S-LPV-100 is a 100W Mean Well DIN rail power converter with a 190mm profile (input range: 90~264VAC).
Key Features
- ✓ 190mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL8750,CSA C22.2 No 250.13-12 UL879,CSA C22.2 No.207-M89,IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating102 Watt
-
Output Voltage12 Volt
-
Rated Current8.5 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length19 cm
-
Width5.2 cm
-
Height3.7 cm
-
Weight0.61 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well S-LPV-100-12 designed for?
The S-LPV-100-12 is a constant-voltage 12V power supply intended for LED-based decorative and architectural lighting, stage and theater lighting, and LED electronic displays. Its 100W class output and IP67 encapsulated design make it suitable for commercial and industrial lighting applications where a reliable 12V supply is needed.
What are the key electrical specifications of this model?
This model is rated at 102W output with a 12V DC output and 8.5A rated current. It accepts a wide 90 to 264VAC input range, which supports use across standard AC mains conditions. It is a constant-voltage design and does not include dimming control.
Is the S-LPV-100-12 suitable for outdoor or damp environments?
The unit is fully encapsulated and rated IP67, which indicates strong protection against dust and water ingress. That makes it a practical option for demanding environments where extra enclosure protection is important. Actual suitability still depends on the overall equipment design and application conditions.
Does this power supply support dimming?
No, this specific model does not include dimming control. It is designed as a fixed 12V constant-voltage power supply for loads that require stable DC output rather than integrated dimming functionality.
How rugged is this power supply in terms of protection and operating conditions?
The S-LPV-100-12 includes short circuit, overload, and over voltage protections. It is rated for operation from -25°C to 70°C and can withstand a 300VAC surge input for 5 seconds. Mean Well also specifies 100% full load burn-in testing and a 2-year warranty for this model.
What distinguishes the S-LPV-100-12 from other LED power supplies?
This model combines a 12V, 8.5A constant-voltage output with IP67 encapsulation, Class 2 power unit classification, and isolation class II construction without F.G. It is positioned as a low-cost, high-reliability option for 12V LED applications, and this version is specifically supplied with an AU/NZ plug.
