Can I use the SCW08A-05 to power a 5V embedded controller inside industrial equipment?

Yes, this model is intended for constant-voltage 5V loads when the source feeding it is within 9-18VAC. It can supply up to 1.6A with an 8W rating, so it fits low-power embedded control boards that stay within those limits.

Is the SCW08A-05 suitable for 5V logic or interface boards in automation panels?

It is a fit for 5V automation electronics that need regulated constant-voltage output and draw no more than 1.6A. The converter is rated at 8W and accepts 9-18VAC input, which suits low-power panel subsystems rather than higher-load equipment.

Can this converter run a 5V monitoring or communications module in a compact industrial enclosure?

It can work for a 5V monitoring or communications module if the module stays within 1.6A and 8W. Its compact 31.75 × 20.32 × 12.19 mm size and 0.015 kg weight make it practical where space is limited.

How does the SCW08A-05 compare with the other SCW08A models?

All SCW08A versions in this group are 8W converters with 9-18VAC input and the same 31.75 × 20.32 × 12.19 mm size. The SCW08A-05 outputs 5V at 1.6A, the SCW08A-12 outputs 12V at 0.67A, and the SCW08A-15 outputs 15V at 0.53A.

Is the SCW08A-05 suitable for outdoor or harsh-temperature locations?

Its operating temperature range is -40°C to +71°C, so it is specified for a wide temperature range. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not stated here.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

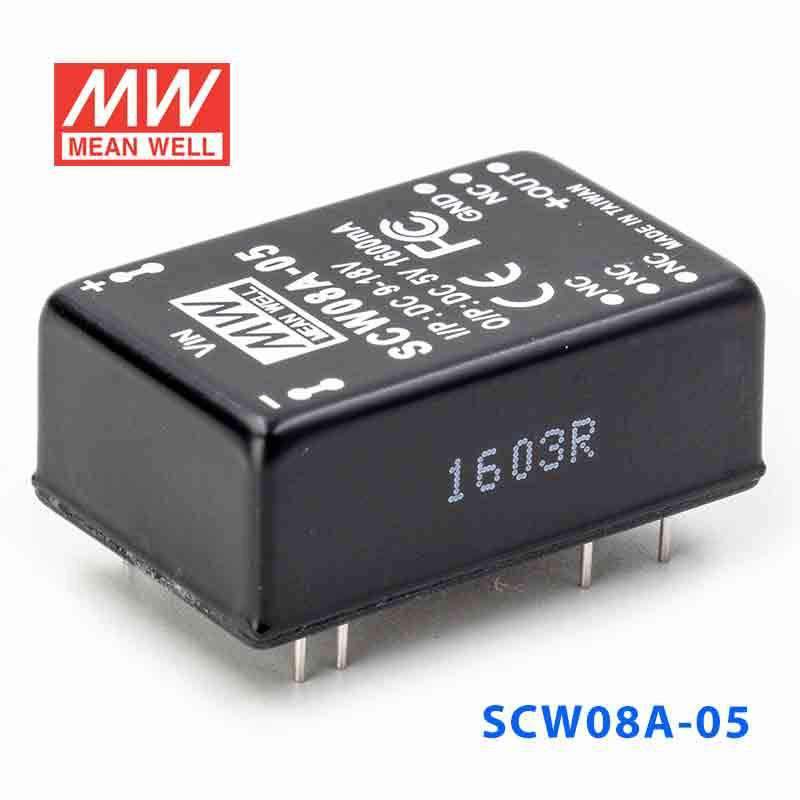

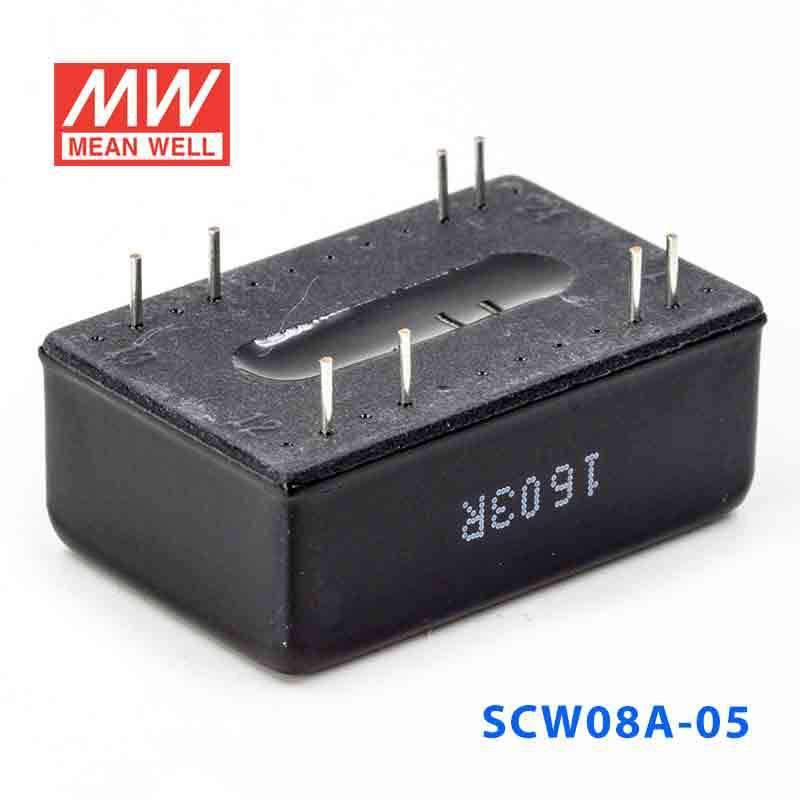

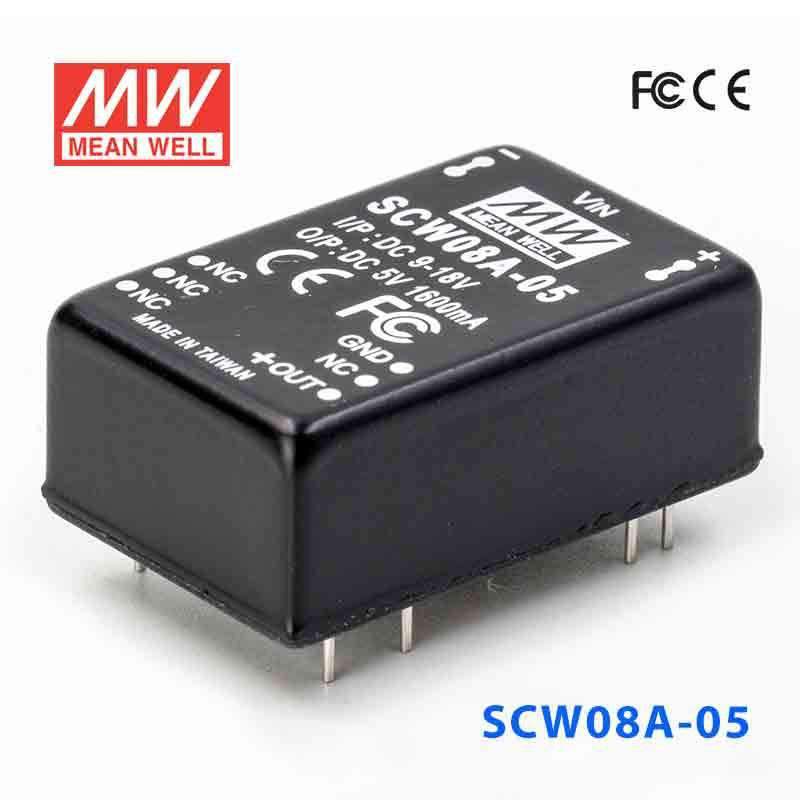

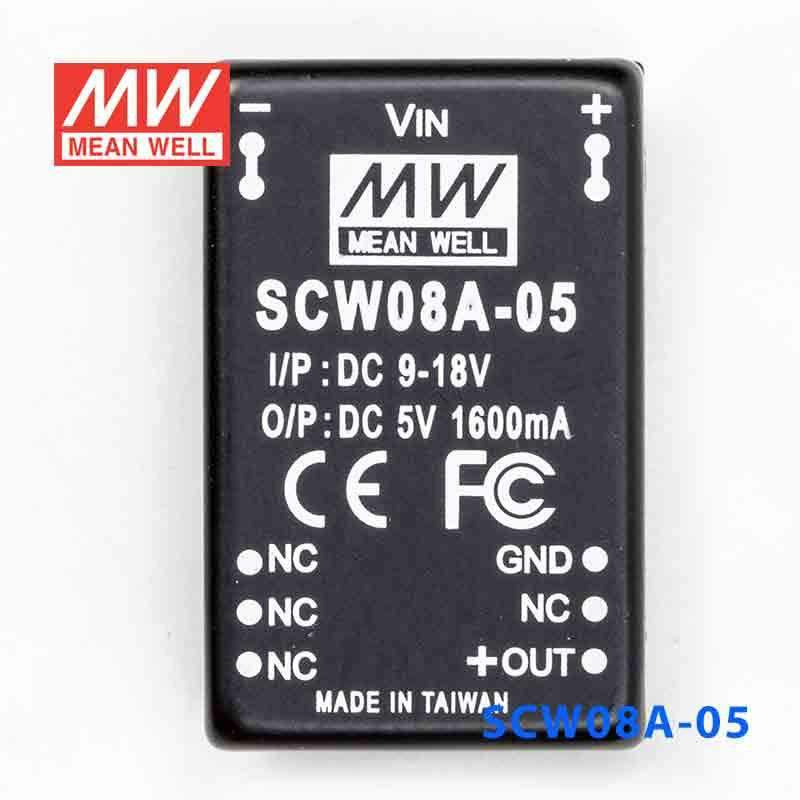

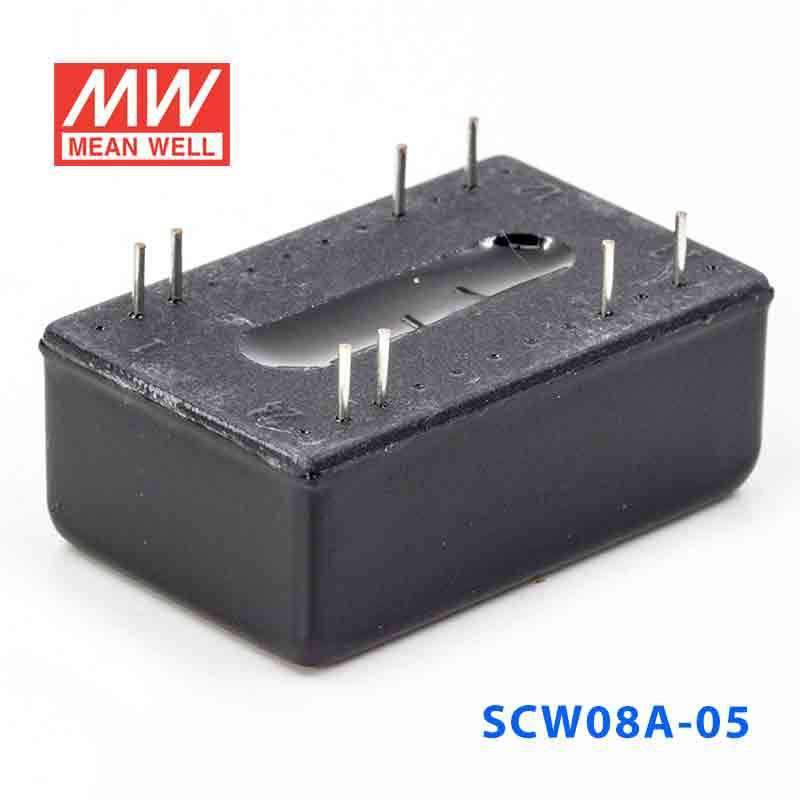

Mean Well SCW08A-05 DC-DC Converter - 8W 9~18V DC in 5V out 1.6A

SKU:

SCW08A-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SCW08A is a 8W Mean Well power converter.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SCW08C-15 DC-DC Converter - 8W 36~72V DC in 15V out 533mA	8W	15V	0.53A	Indoor	View
Mean Well SCW08C-12 DC-DC Converter - 8W 36~72V DC in 12V out 670mA	8W	12V	0.67A	Indoor	View
Mean Well SCW08C-05 DC-DC Converter - 8W 36~72V DC in 5V out 1.6A	8W	5V	1.6A	Indoor	View
Mean Well SCW08B-15 DC-DC Converter - 8W 18~36V DC in 15V out 533mA	8W	15V	0.53A	Indoor	View
Mean Well SCW08B-12 DC-DC Converter - 8W 18~36V DC in 12V out 670mA	8W	12V	0.67A	Indoor	View
Mean Well SCW08B-05 DC-DC Converter - 8W 18~36V DC in 5V out 1.6A	8W	5V	1.6A	Indoor	View
Mean Well SCW08A-15 DC-DC Converter - 8W 9~18V DC in 15V out 533mA	8W	15V	0.53A	Indoor	View
Mean Well SCW08A-12 DC-DC Converter - 8W 9~18V DC in 12V out 670mA	8W	12V	0.67A	Indoor	View
