Can I use the SCW08B-05 to derive 5V for embedded control electronics from a higher-voltage source?

Yes, this version is suited to 5V constant-voltage electronics when the source feeding it is within 18-36VAC. It delivers up to 1.6A with an 8W rating, so it fits low-power embedded control hardware within those limits.

Is the SCW08B-05 appropriate for 5V monitoring or communications modules in industrial systems?

It can be used for 5V monitoring or communications modules that need constant-voltage output and draw no more than 1.6A. The 18-36VAC input range makes it the higher-input member of the 8W family for low-power 5V loads.

Can this converter power a compact 5V automation board in a small enclosure?

Yes, if the board requires 5V and stays within 1.6A and 8W. The converter measures 31.75 × 20.32 × 12.19 mm and weighs 0.015 kg, which is useful in compact assemblies.

What are the differences between the SCW08B-05 and the other SCW08B models?

The SCW08B-05, SCW08B-12, and SCW08B-15 all share an 8W rating, 18-36VAC input range, and 31.75 × 20.32 × 12.19 mm dimensions. Their outputs differ: 5V at 1.6A, 12V at 0.67A, and 15V at 0.53A.

Is the SCW08B-05 suitable for outdoor or high-variation temperature environments?

The specified operating temperature range is -40°C to +71°C, so it is rated for broad temperature conditions. The provided specs do not list an IP rating, so outdoor or water-exposed use is not specified.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

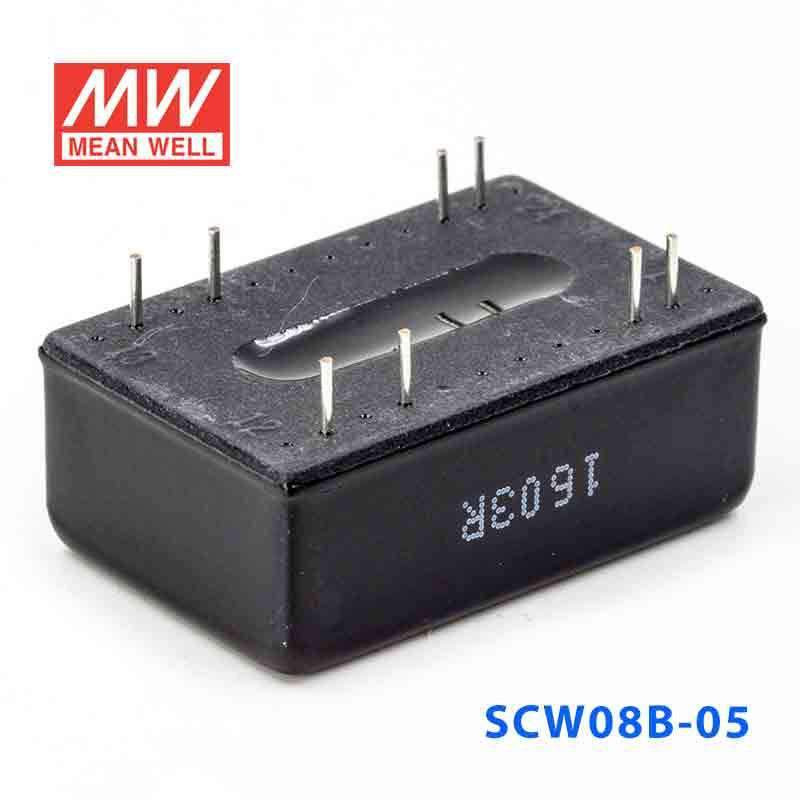

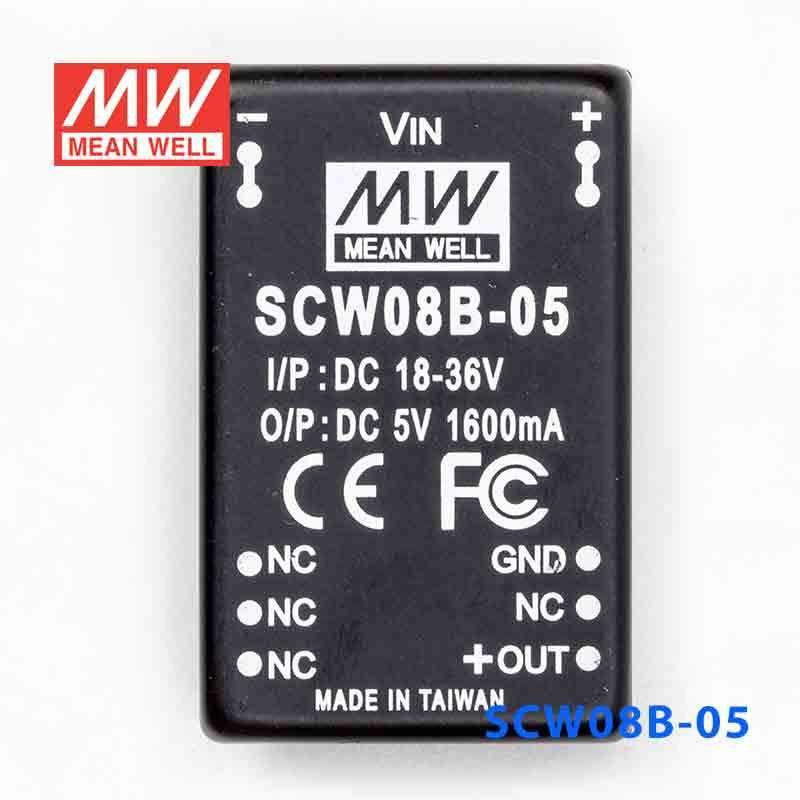

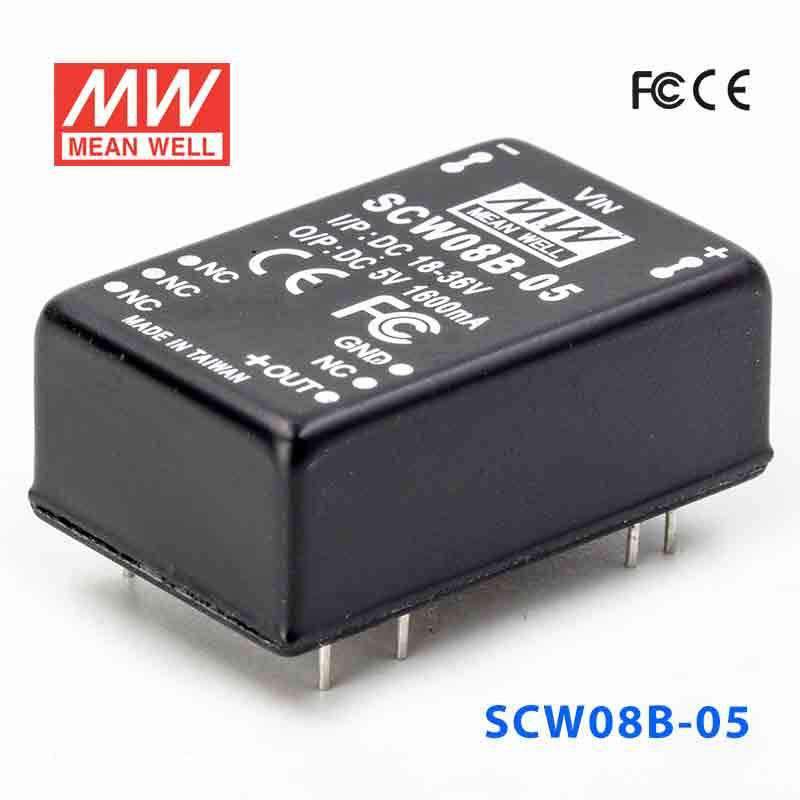

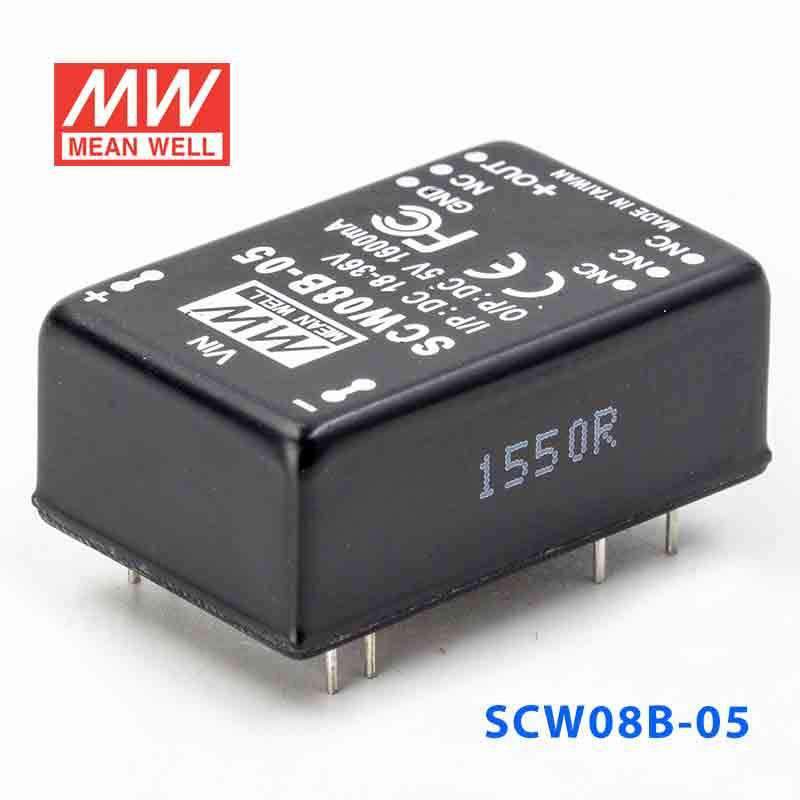

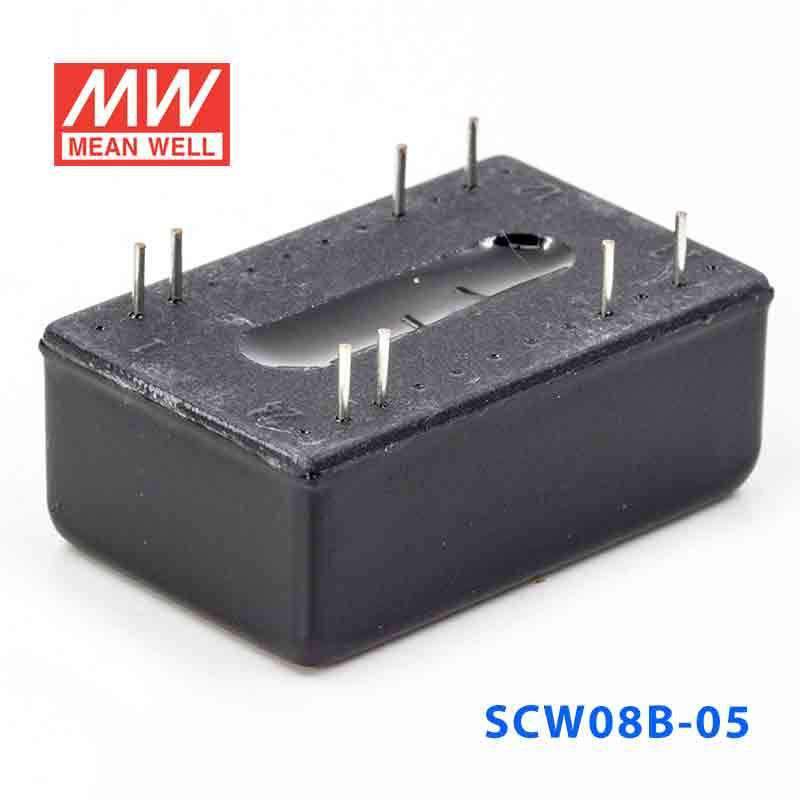

Mean Well SCW08B-05 DC-DC Converter - 8W 18~36V DC in 5V out 1.6A

SKU:

SCW08B-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SCW08B is a 8W Mean Well power converter.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SCW08C-15 DC-DC Converter - 8W 36~72V DC in 15V out 533mA	8W	15V	0.53A	Indoor	View
Mean Well SCW08C-12 DC-DC Converter - 8W 36~72V DC in 12V out 670mA	8W	12V	0.67A	Indoor	View
Mean Well SCW08C-05 DC-DC Converter - 8W 36~72V DC in 5V out 1.6A	8W	5V	1.6A	Indoor	View
Mean Well SCW08B-15 DC-DC Converter - 8W 18~36V DC in 15V out 533mA	8W	15V	0.53A	Indoor	View
Mean Well SCW08B-12 DC-DC Converter - 8W 18~36V DC in 12V out 670mA	8W	12V	0.67A	Indoor	View
Mean Well SCW08A-15 DC-DC Converter - 8W 9~18V DC in 15V out 533mA	8W	15V	0.53A	Indoor	View
Mean Well SCW08A-12 DC-DC Converter - 8W 9~18V DC in 12V out 670mA	8W	12V	0.67A	Indoor	View
Mean Well SCW08A-05 DC-DC Converter - 8W 9~18V DC in 5V out 1.6A	8W	5V	1.6A	Indoor	View
