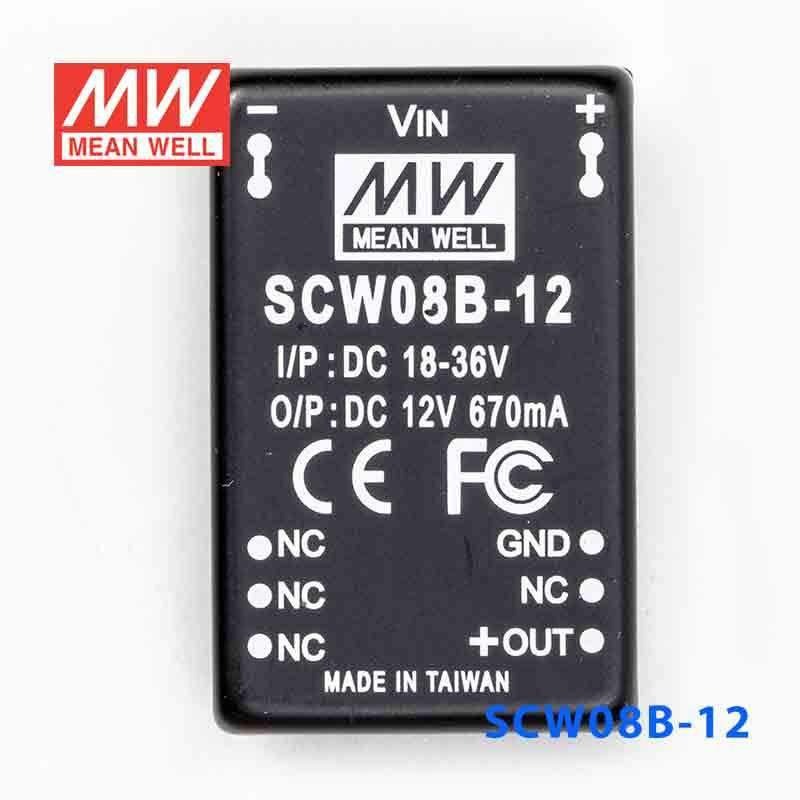

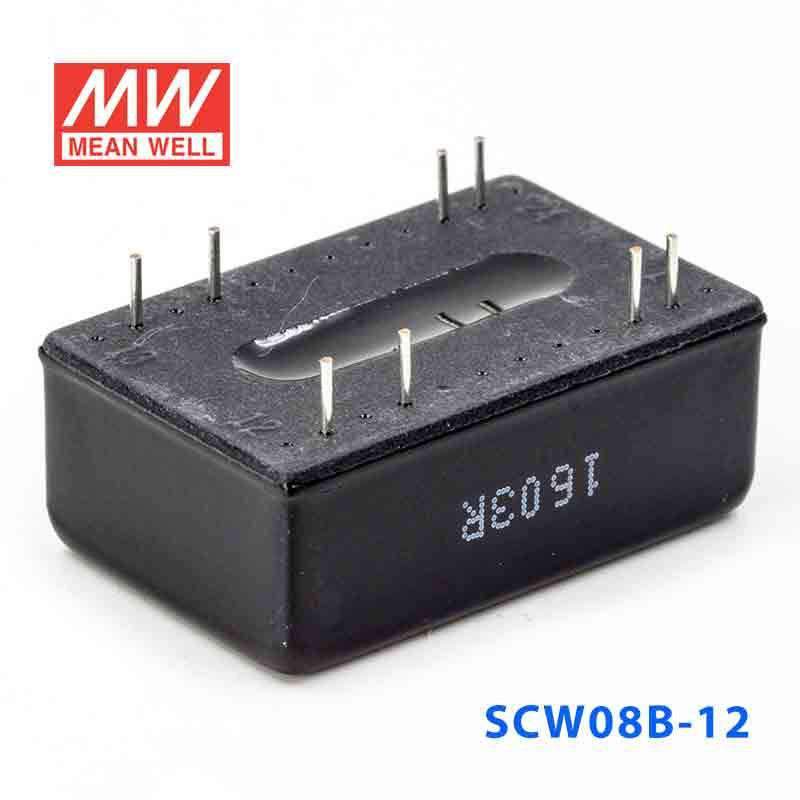

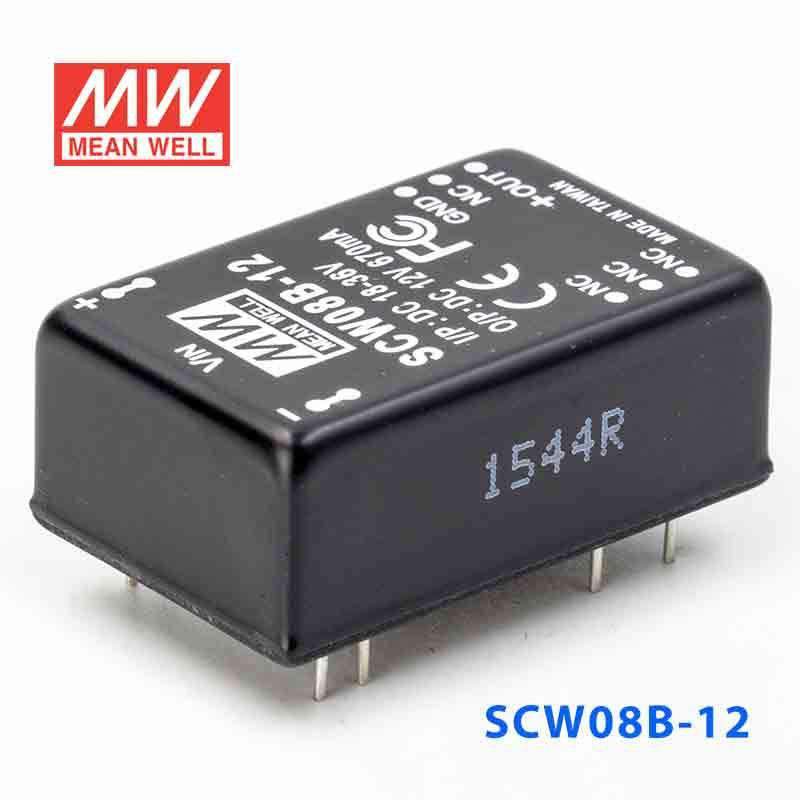

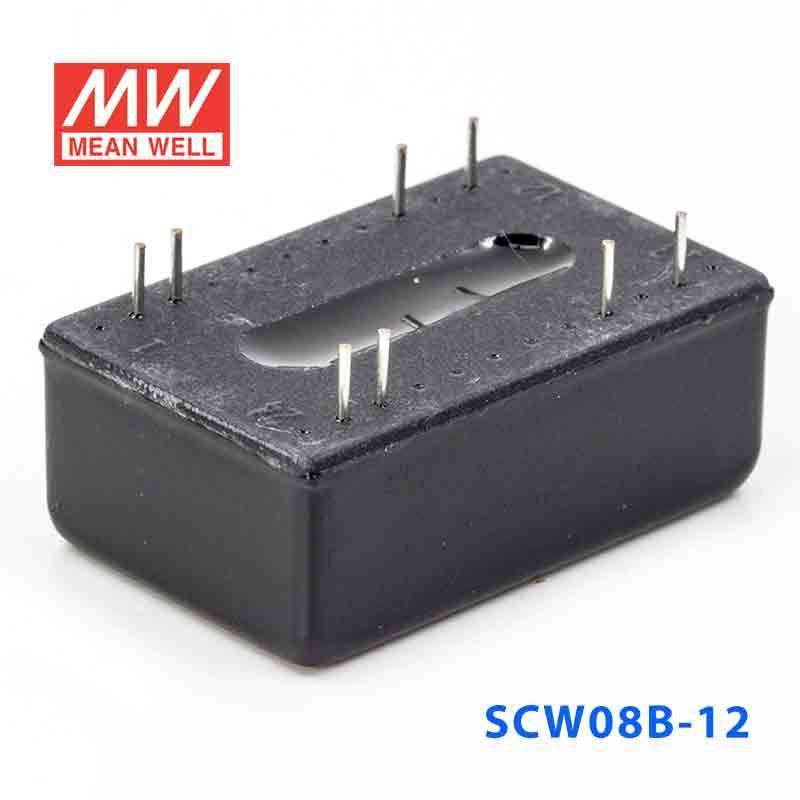

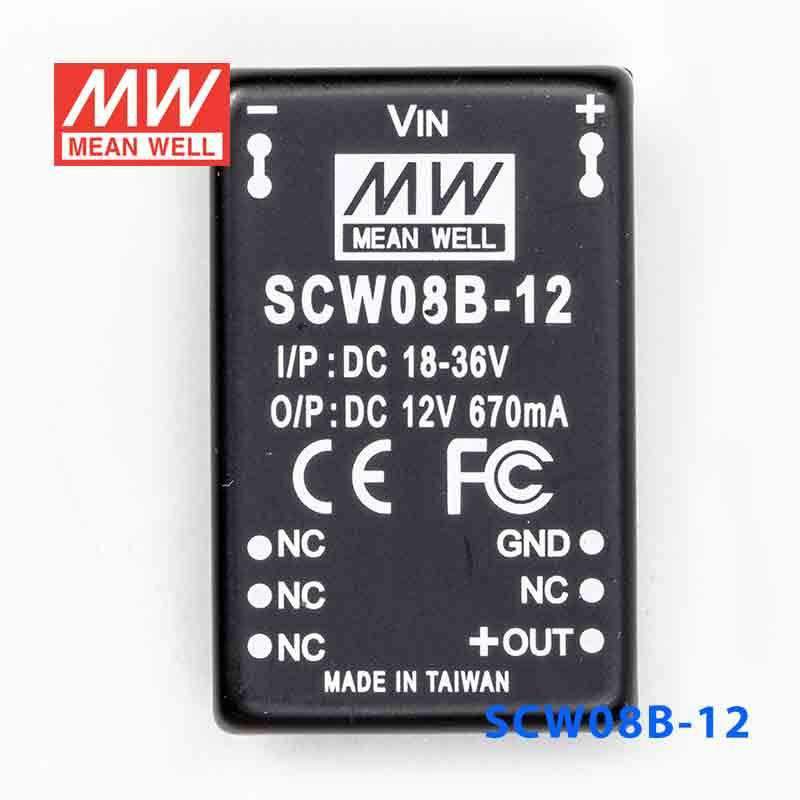

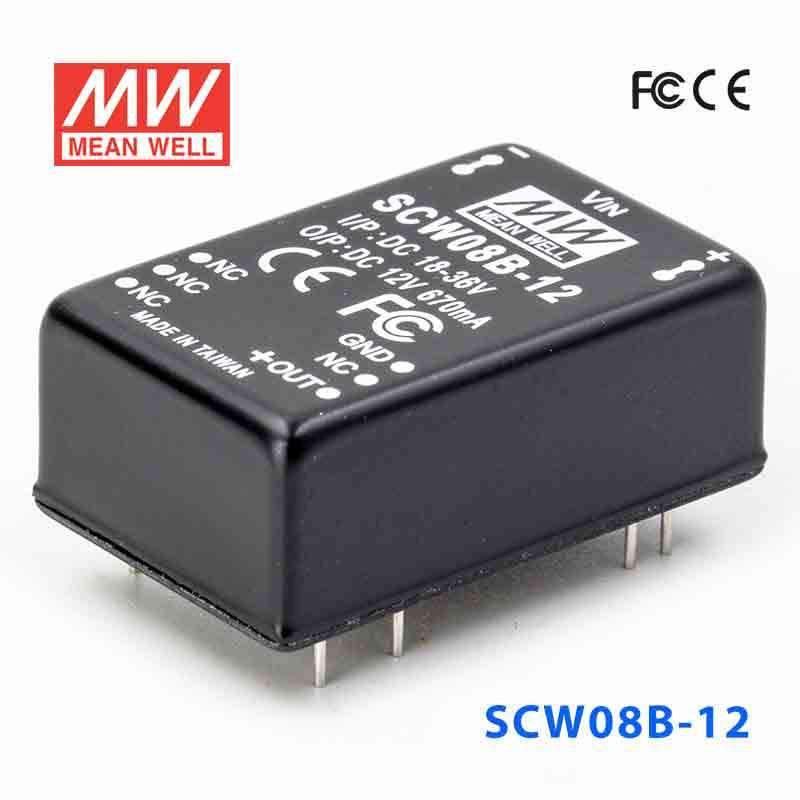

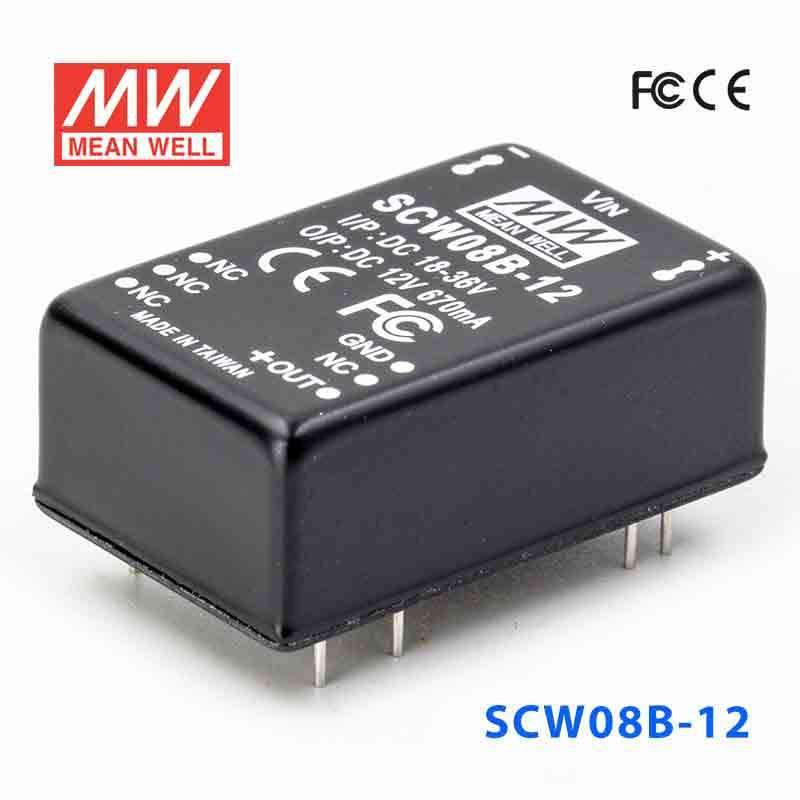

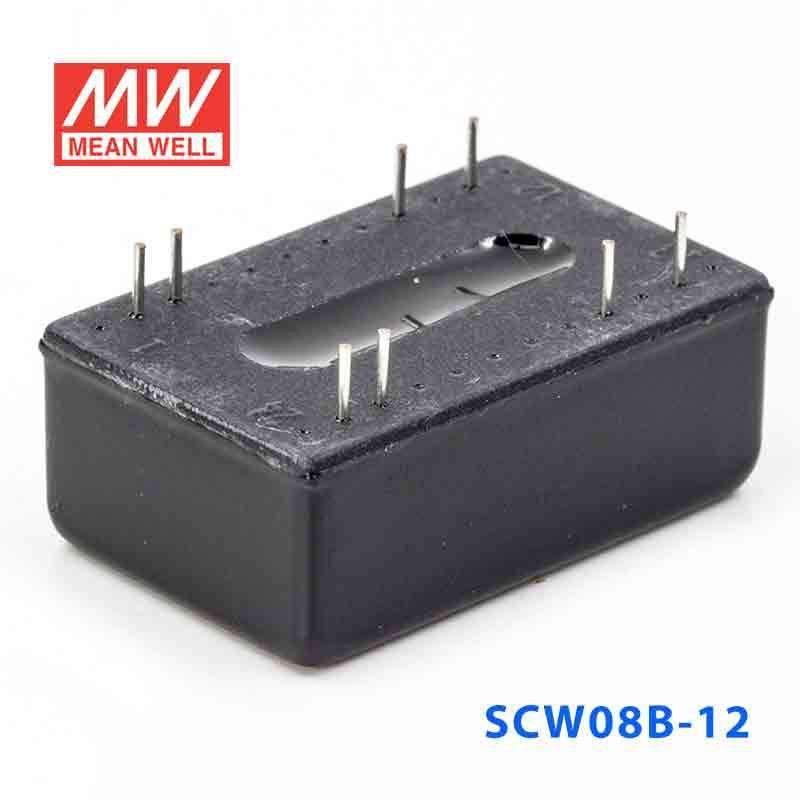

Mean Well SCW08B-12 DC-DC Converter - 8W 18~36V DC in 12V out 670mA

SKU SCW08B-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SCW08B-12 is the 12V output model of this series: rated power 8W, typical efficiency 82%.

Features

  • 2:1 wide input range
  • 1500VDC I/O isolation
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Five-sided shield metal case
  • 100% full load burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

SCW08B-12Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
12V
CURRENT RANGE
134 ~ 670mA
RATED POWER
8W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
50KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
220uF

INPUT

VOLTAGE RANGE
18 ~ 36VDC
EFFICIENCY (Typ.)
82%
DC CURRENT Full load
426mA
DC CURRENT No load
25mA
FILTER
Pi network
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVERLOAD
110 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-40 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
250pF max.
EMC EMISSION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
900khrs min. MIL-HDBK-217F(25℃)
DIMENSION
31.8*20.3*12.2mm or 1.25"*0.80"*0.48" inch (L*W*H)
PACKING
17.5g ; 15pcs/per tube, 750pcs/50 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SCW08B-12 Mechanical Specification
Mechanical Specification
SCW08B-12 Packing
Packing

Downloads

FAQ

Can I use the SCW08B-12 to power a small 12V industrial control circuit from an 18-36VDC source?

Yes, it is designed for an 18-36VDC input range and provides a constant 12V output. Its 8W rating and 0.67A output current make it a fit for low-power 12V control electronics rather than higher-load equipment.

Is the SCW08B-12 suitable for embedded 12V electronics inside compact equipment?

It can be a good fit for compact embedded designs because it measures 31.8 × 20.3 × 12.2 mm and weighs 17.5 g. The output is constant 12V at up to 0.67A, so it is intended for small 12V loads within its 8W capacity.

Can this converter support 12V automation sensors or interface modules?

It is appropriate for 12V automation electronics that need constant voltage and stay within 0.67A output current. With an 8W output limit, it is better suited to light-duty sensor or interface loads than to larger 12V devices.

How does the SCW08B-12 compare with the other SCW08B models?

All three SCW08B models are rated at 8W. The SCW08B-05 provides 5V at 1.6A, the SCW08B-12 provides 12V at 0.67A, and the SCW08B-15 provides 15V at 0.53A.

Is the SCW08B-12 suitable for outdoor or harsh-temperature use?

The operating temperature range is -40°C to +71°C, with output derated at higher temperatures per the derating curve. However, no IP rating is listed, so outdoor exposure or washdown suitability is not specified by these specs.
