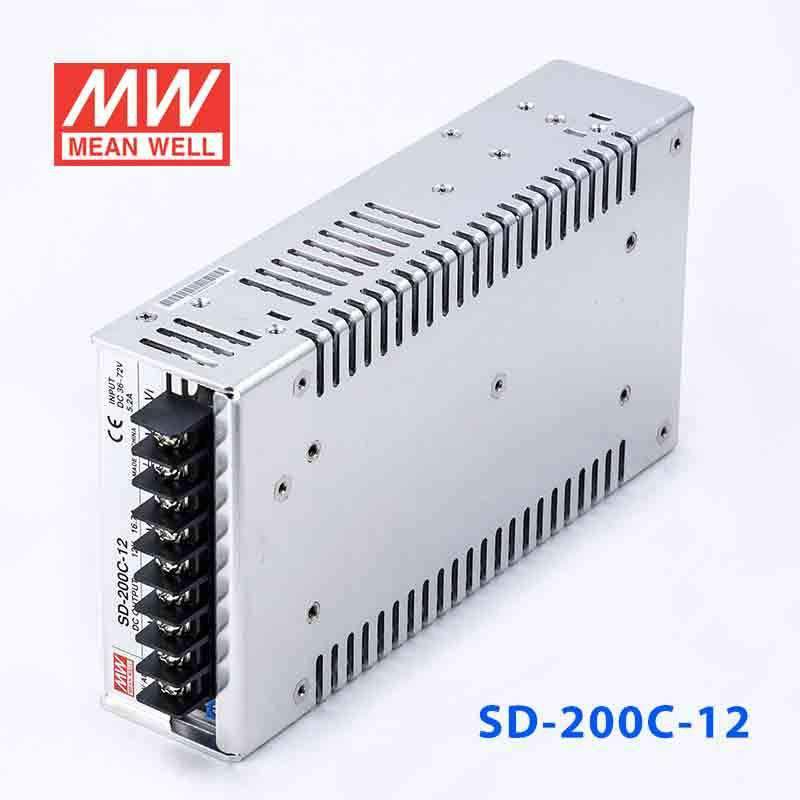

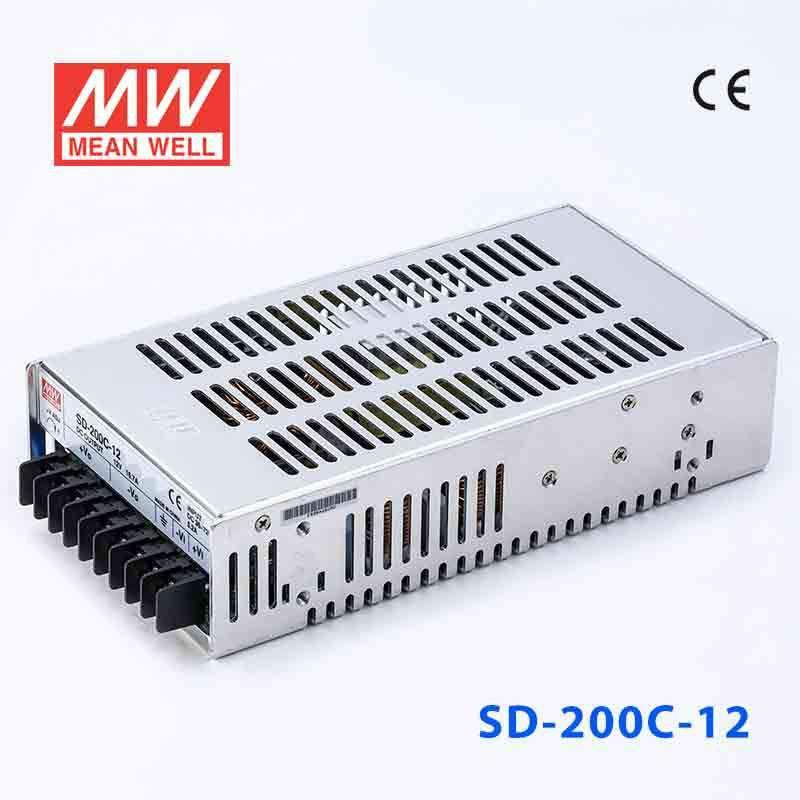

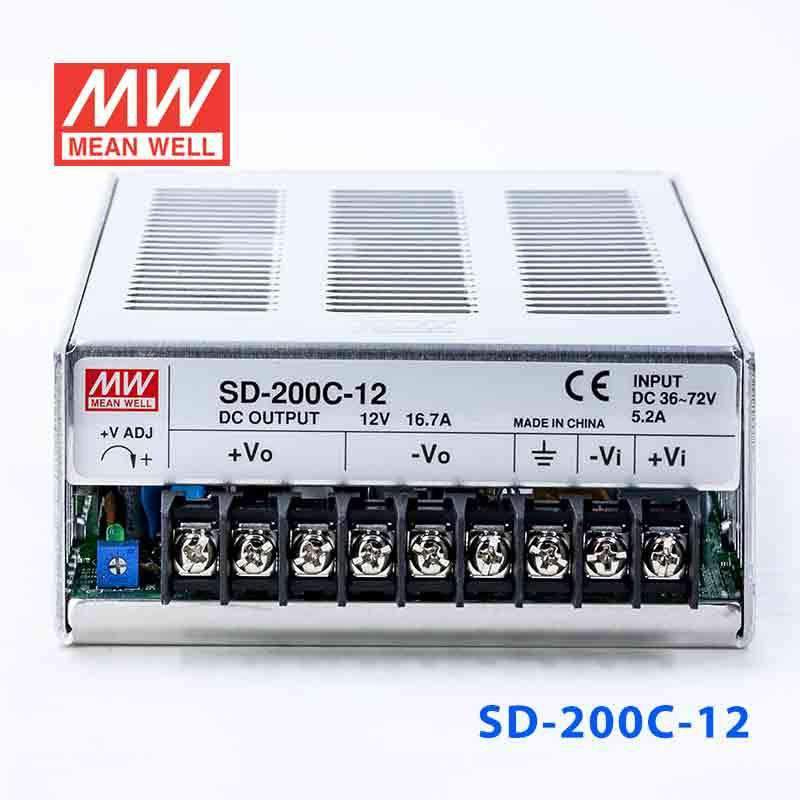

Mean Well SD-200C-12 DC-DC Converter - 200.4W - 36~72V in 12V out 1...
Log in to see priceOverview
SD-200C-12 is the 12V output model of this series: rated current 16.7A, rated power 200.4W, typical efficiency 84%.
Features
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 1500VAC I/O isolation
- Cooling by free air convection
- 100% full load burn-in test
- 24V and 48V input voltage design refer to LVD
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT
- 16.7A
- CURRENT RANGE
- 0 ~ 16.7A
- RATED POWER
- 200.4W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE ADJ. RANGE
- 11 ~ 16VDC
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 300ms, 50ms at full load
INPUT
- VOLTAGE RANGE
- 36 ~ 72VDC
- EFFICIENCY (Typ.)
- 84%
- DC CURRENT (Typ.)
- 5.2A/48V
- INRUSH CURRENT (Typ.)
- 45A/48VDC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Shut down o/p voltage, re-power on to recover
- OVER VOLTAGE
- 16.8 ~ 20V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.

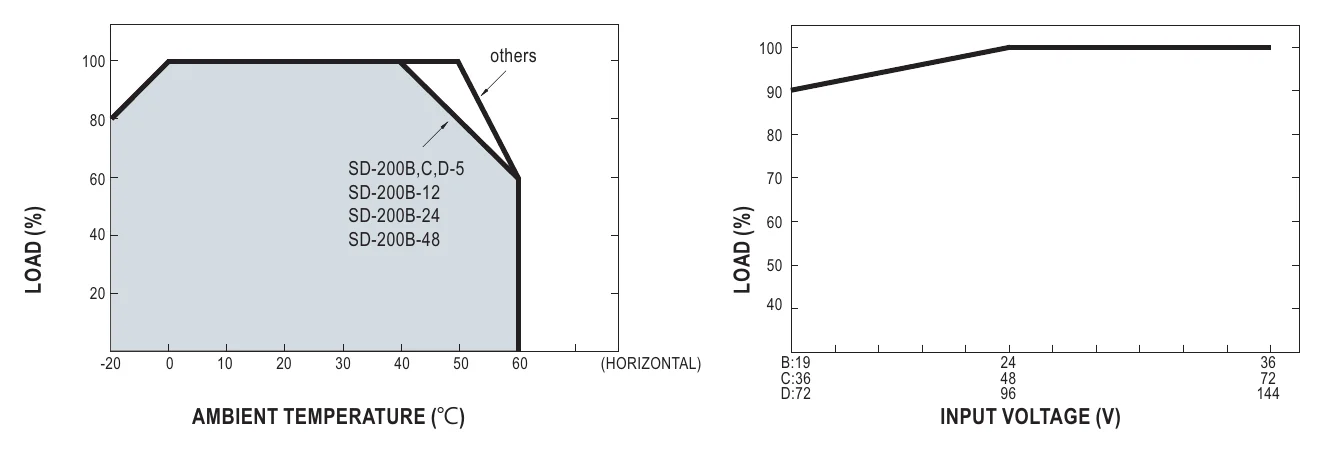

- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1approved (for SD-200C-5/12/24 type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 1919.7K hrs min. Telcordia SR-332 (Bellcore) ; 280.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 215*115*50mm (L*W*H)
- PACKING
- 1.1Kg; 12pcs/14.4Kg/0.9CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

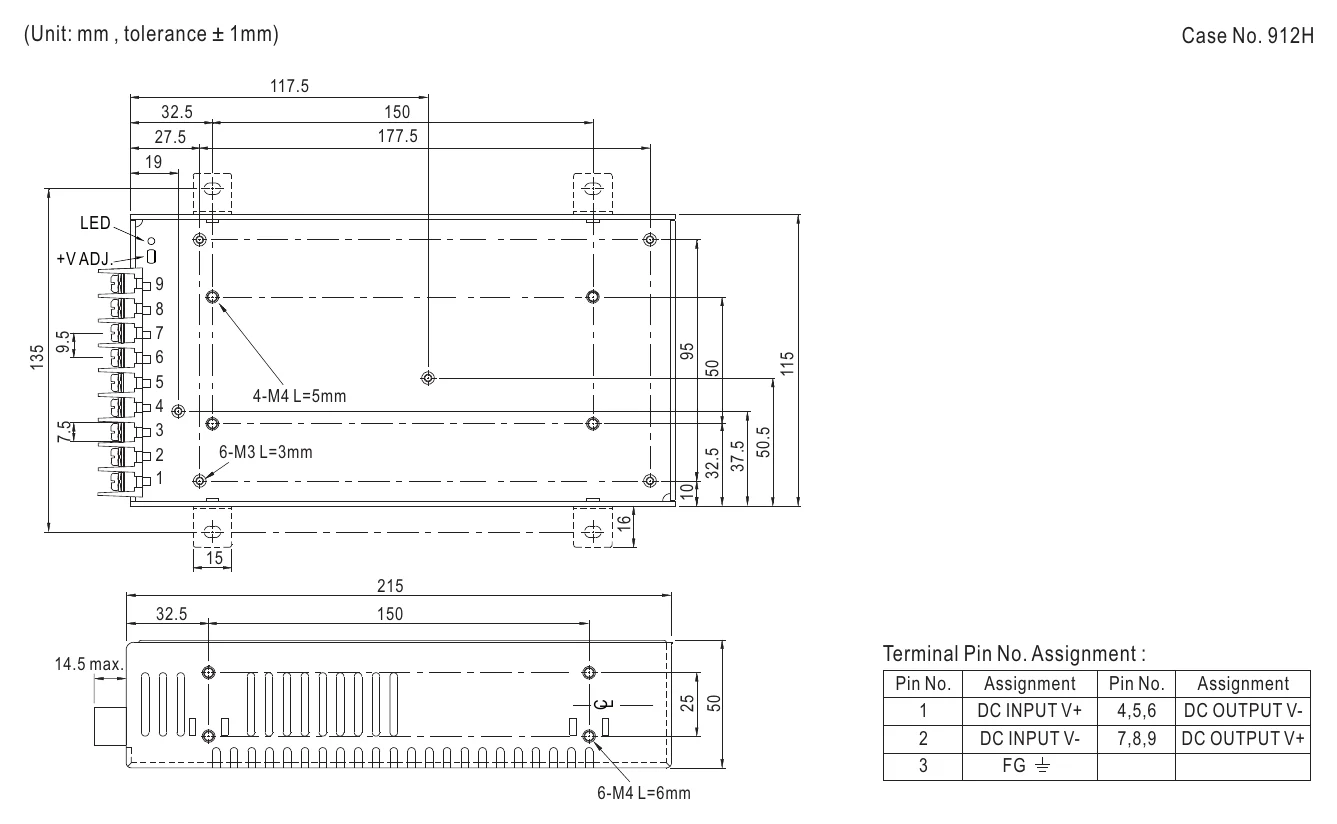

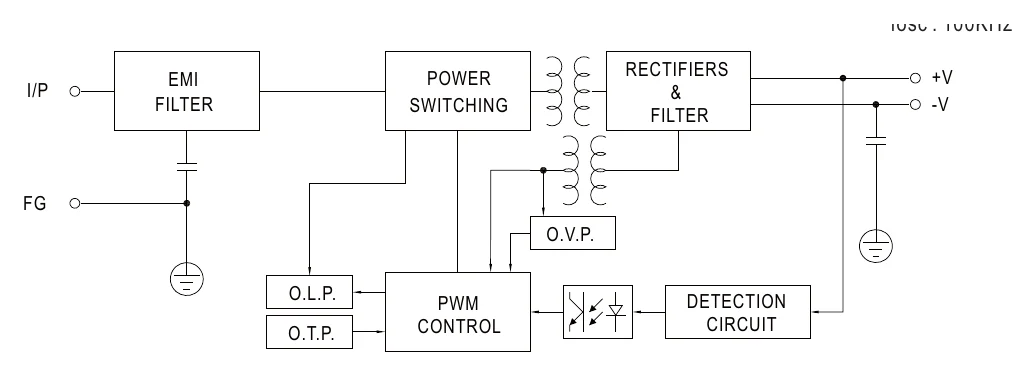

Technical drawings
Downloads
FAQ
Can I use this converter for a 12V industrial computer or controller stack?
Yes, it can fit a 12V constant-voltage load when the source is within 36-72VDC. The output is rated for up to 16.7A and 200.4W, which makes it suitable for higher-current 12V electronics if the total load stays within those limits.
Will this work for a 12V embedded system with multiple logic boards?
It can support a multi-board 12V embedded system because the output provides up to 16.7A at 12V. The key check is keeping the combined demand at or below 200.4W and using a 36-72VDC input source.
Is this a fit for 12V automation electronics in a centralized panel?
It is appropriate for centralized 12V automation electronics that need constant-voltage power and draw within 16.7A and 200.4W. The 2:1 wide 36-72VDC input range can also help when the upstream source is in that span.
Can the SD-200C-12 handle demanding indoor operating temperatures?
The specified operating temperature range is -20°C to +60°C, with output derating per the derating curve, so it is intended for a broad range of indoor equipment conditions. Since no IP rating is listed, the safer assumption is protected indoor use rather than direct weather exposure.
What separates the SD-200C-12 from the other SD-200C models?
The SD-200C models are SD-200C-5 at 200W, 5V, 40A; SD-200C-12 at 200.4W, 12V, 16.7A; SD-200C-24 at 201.6W, 24V, 8.4A; and SD-200C-48 at 201.6W, 48V, 4.2A. All are in the same size class and input family, so the main selection point is the required output voltage and current.
