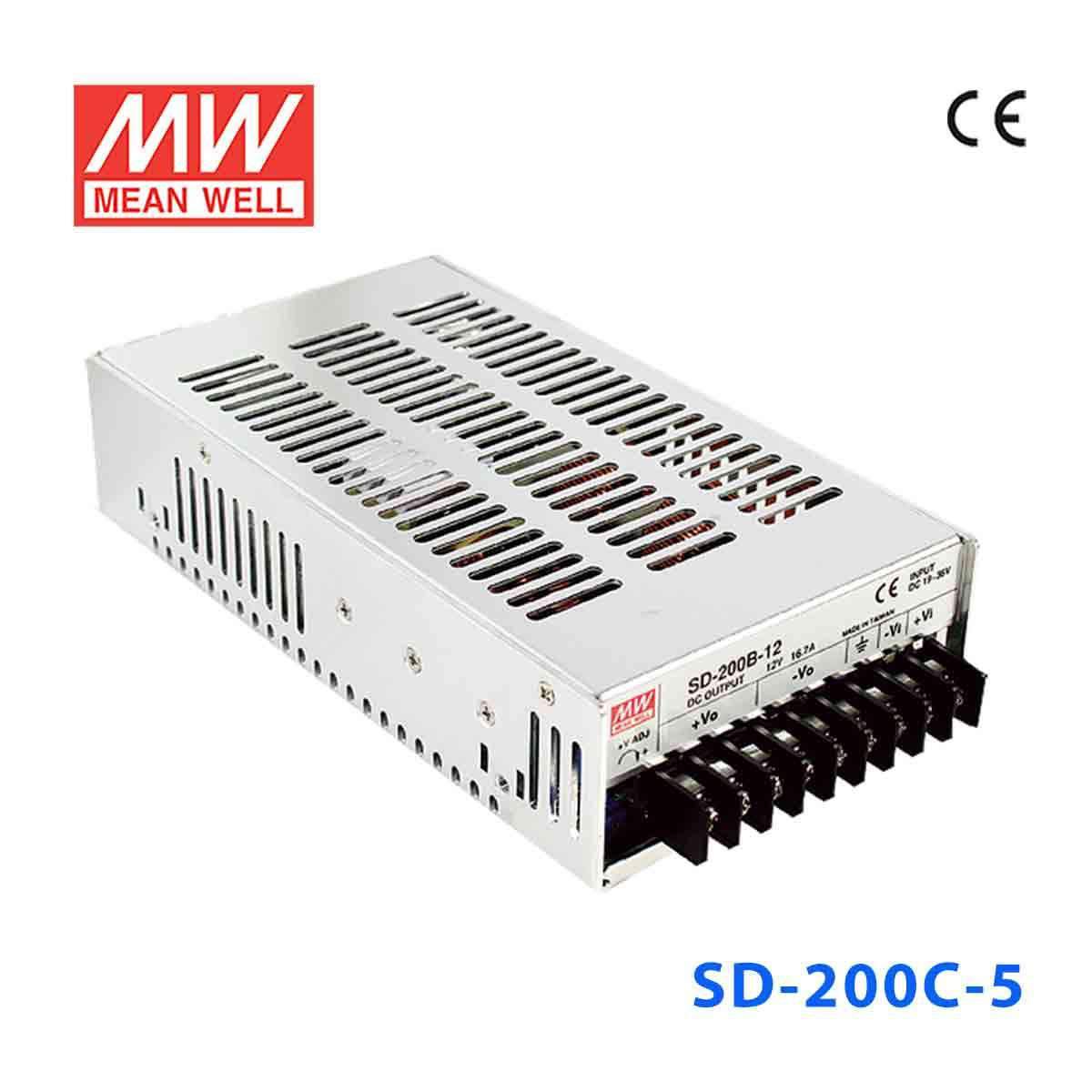

Mean Well SD-200C-5 DC-DC Converter - 200W - 36~72V in 5V out 40A
Log in to see priceOverview
SD-200C-5 is the 5V output model of this series: rated current 40A, rated power 200W, typical efficiency 81%.
Features
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 1500VAC I/O isolation
- Cooling by free air convection
- 100% full load burn-in test
- 24V and 48V input voltage design refer to LVD
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 40A
- CURRENT RANGE
- 0 ~ 40A
- RATED POWER
- 200W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 4.5 ~ 5.5VDC
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 300ms, 50ms at full load
INPUT
- VOLTAGE RANGE
- 36 ~ 72VDC
- EFFICIENCY (Typ.)
- 81%
- DC CURRENT (Typ.)
- 5.4A/48V
- INRUSH CURRENT (Typ.)
- 45A/48VDC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Shut down o/p voltage, re-power on to recover
- OVER VOLTAGE
- 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1approved (for SD-200C-5/12/24 type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 1919.7K hrs min. Telcordia SR-332 (Bellcore) ; 280.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 215*115*50mm (L*W*H)
- PACKING
- 1.1Kg; 12pcs/14.4Kg/0.9CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the SD-200C-5 for a 5V industrial control or telecom load?
Yes, the listed output is constant-voltage 5V at up to 40A. It fits loads that require 5V and stay within the 200W rating, with source input between 36-72VDC.
Will this model work for a 5V embedded system or edge device powered from a 36-72VDC source?
It can, provided the equipment expects constant 5V output and the total draw does not exceed 40A. The specified input window is 36-72VDC, so the source must remain inside that range.
Is the SD-200C-5 a fit for 5V industrial networking hardware in a control cabinet?
It is intended for constant-voltage applications, which matches many 5V industrial electronics and communications loads. The available output is 5V with up to 40A, so the connected equipment must stay within 200W.
Can this converter be used in outdoor equipment enclosures?
The specs show an operating temperature range of -20°C to +60°C (refer to the derating curve), but no IP rating is provided. Because no ingress protection is listed, it is better suited to protected indoor enclosures or weather-shielded cabinets rather than direct outdoor exposure.
What are the differences between the SD-200C-5 and the other SD-200C versions?
The SD-200C series is SD-200C-5 at 200W, 5V, 40A; SD-200C-12 at 200.4W, 12V, 16.7A; SD-200C-24 at 201.6W, 24V, 8.4A; and SD-200C-48 at 201.6W, 48V, 4.2A. The main differences are the output voltage and current ratings, with wattage staying around the 200W class.
