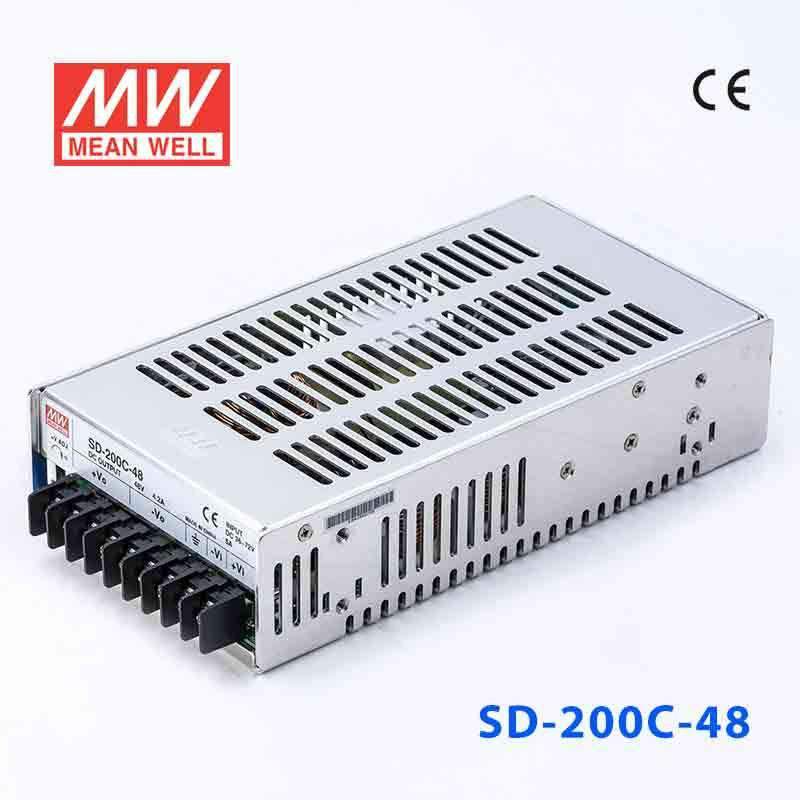

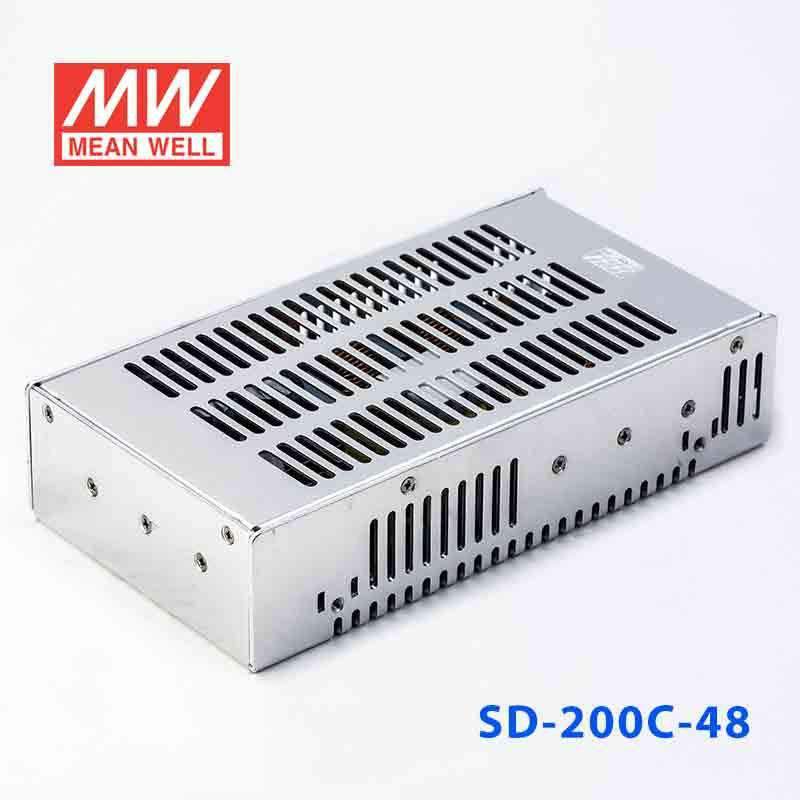

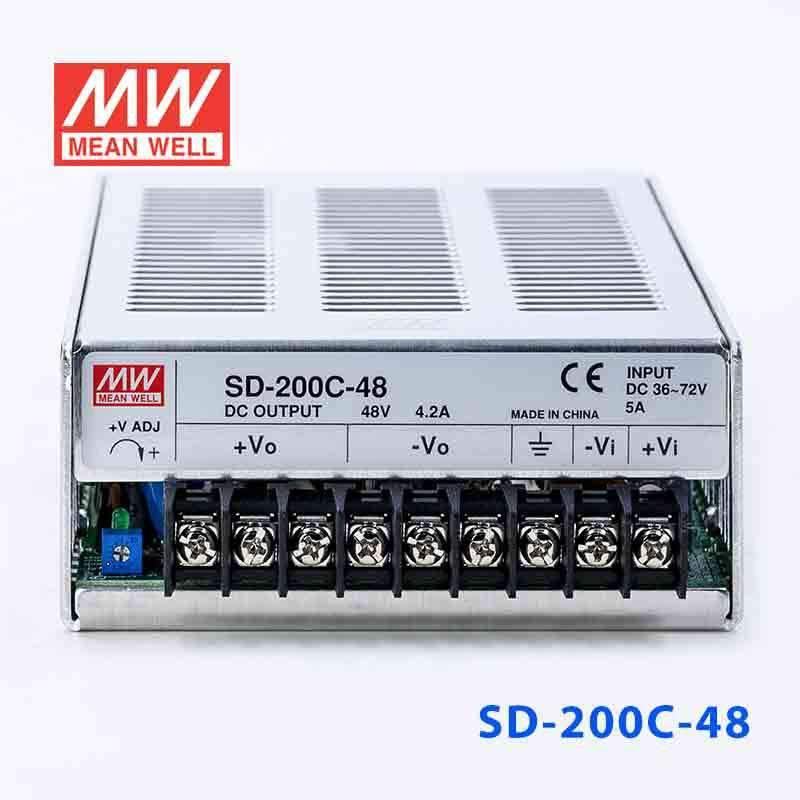

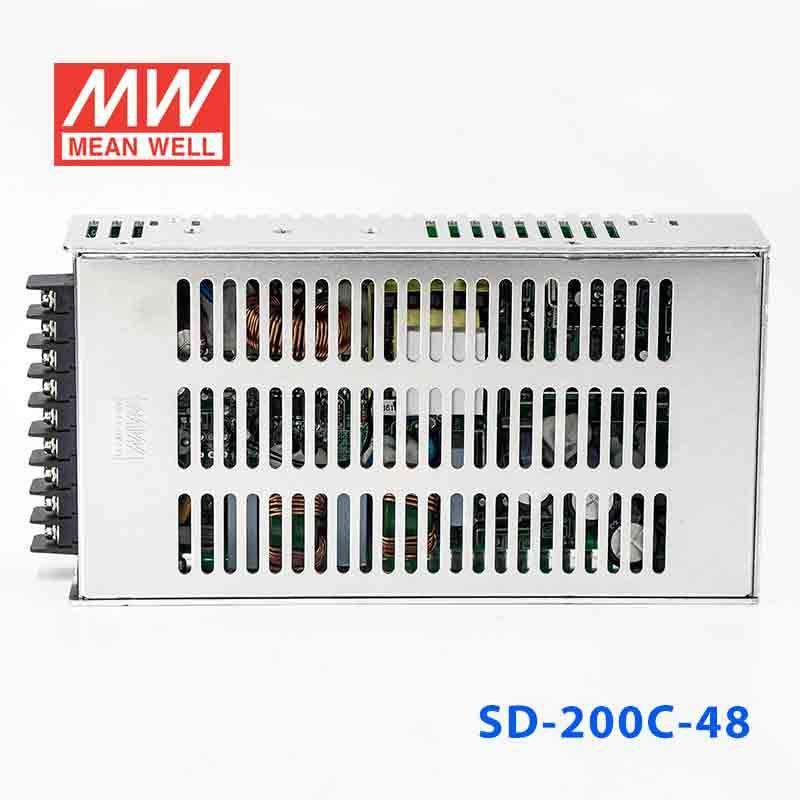

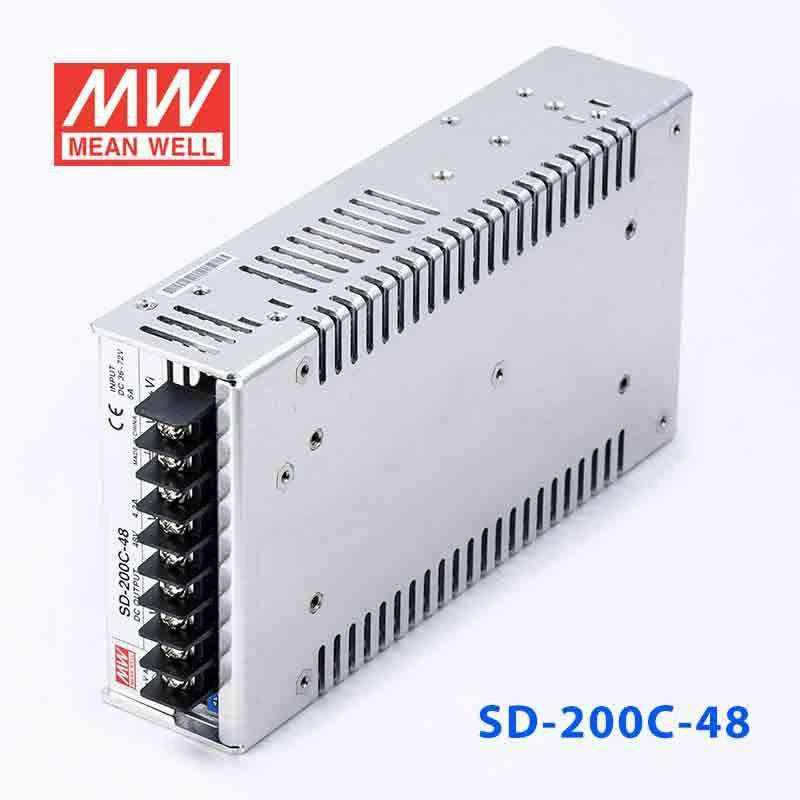

Mean Well SD-200C-48 DC-DC Converter - 200W - 36~72V in 48V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-200C-48

Notify me when it's back in stock

Description

Features : · 2:1 wide input range · Protections: Short circuit / Overload / Over voltage / Over temperature · 1500VAC I/O isolation · Cooling by free air convection · 100% full load burn-in test · 24V and 48V input voltage design refer to LVD · 2 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

201.6 Watt
Output Voltage

24 Volt
Rated Current

8.4 Ampere
Input Voltage

36V~72V
Standards Met

UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

2 Year
Length

21.5 cm
Width

11.5 cm
Height

5 cm
Weight

1.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-200C-48 to run a 24V industrial controller from a 36-72VAC DC bus system?

Yes, the listed specs show constant-voltage 24V output at up to 8.4A with a 36-72VAC input range. That makes it suitable when your source falls within 36-72VAC and the controller load stays within 201.6W.

Is this converter suitable for 24V automation sensors and I/O modules on mobile or embedded equipment?

It can fit 24V automation loads that need stable constant-voltage output rather than variable current drive. The rated output is 24V and 8.4A, so the combined load should remain within 201.6W.

Can the SD-200C-48 power a 24V HMI or communication panel in an industrial cabinet?

It is designed for constant-voltage output, so it can support 24V HMI or panel electronics when the total draw is within 8.4A. The 36-72VAC input range also gives flexibility for systems operating across that span.

Is the SD-200C-48 appropriate for indoor or outdoor environments?

The provided specs list an operating temperature of -20°C to +60°C, but no IP rating is stated. Without an IP rating, it should be treated as a converter for protected indoor enclosures rather than exposed outdoor use.

How does the SD-200C-48 compare with the other SD-200C models?

Within the SD-200C group, SD-200C-12 is listed at 200W, 5V, 40A; SD-200C-24 at 200.4W, 12V, 16.7A; SD-200C-48 at 201.6W, 24V, 8.4A; and SD-200C-5 at 201.6W, 48V, 4.2A. All are part of the same series family, but the output voltage, current, and wattage values differ by model.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-200C-5 DC-DC Converter - 200W - 36~72V in 5V out	201.6W	48V	4.2A	Indoor	View
Mean Well SD-200C-24 DC-DC Converter - 200W - 36~72V in 24V out	200.4W	12V	16.7A	Indoor	View
Mean Well SD-200C-12 DC-DC Converter - 200W - 36~72V in 12V out	200W	5V	40A	Indoor	View
