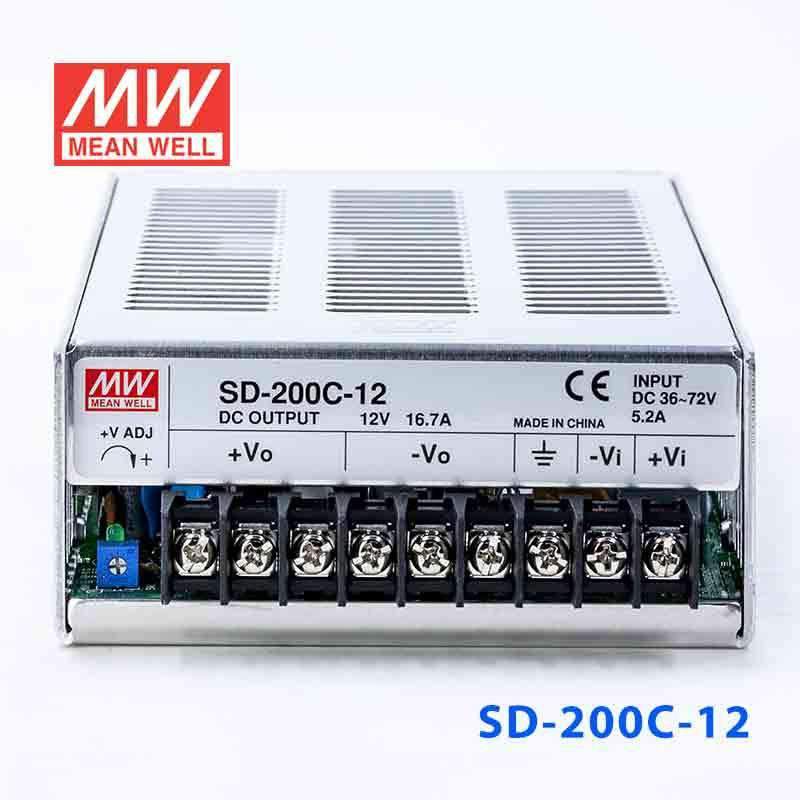

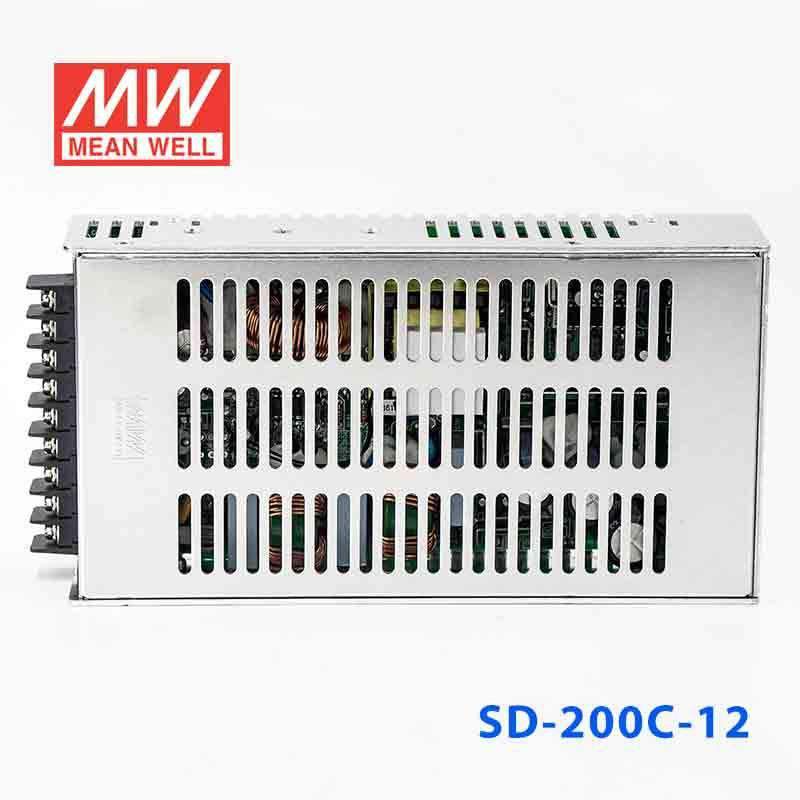

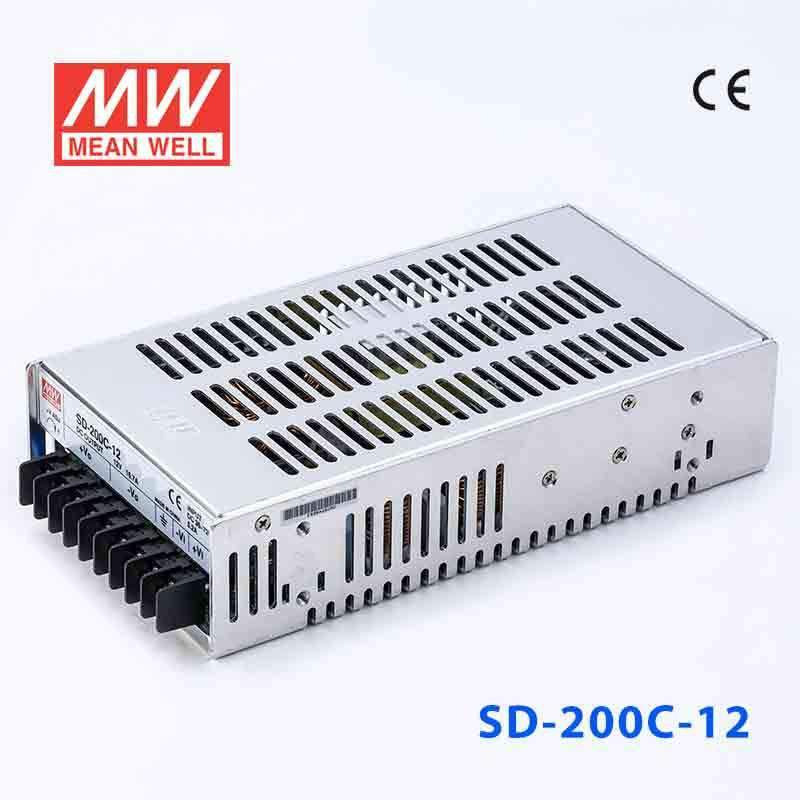

Mean Well SD-200C-12 DC-DC Converter - 200W - 36~72V in 12V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-200C-12

Notify me when it's back in stock

Description

Features : · 2:1 wide input range · Protections: Short circuit / Overload / Over voltage / Over temperature · 1500VAC I/O isolation · Cooling by free air convection · 100% full load burn-in test · 24V and 48V input voltage design refer to LVD · 2 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

200 Watt
Output Voltage

5 Volt
Rated Current

40 Ampere
Input Voltage

36V~72V
Standards Met

UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

2 Year
Length

21.5 cm
Width

11.5 cm
Height

5 cm
Weight

1.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use this converter for a 5V industrial computer or controller stack?

Yes, it can fit a 5V constant-voltage load when the source is within 36-72VAC. The output is rated for up to 40A and 200W, which makes it suitable for higher-current 5V electronics if the total load stays within those limits.

Will this work for a 5V embedded system with multiple logic boards?

It can support a multi-board 5V embedded system because the output provides up to 40A at 5V. The key check is keeping the combined demand at or below 200W and using a 36-72VAC input source.

Is this a fit for 5V automation electronics in a centralized panel?

It is appropriate for centralized 5V automation electronics that need constant-voltage power and draw within 40A and 200W. The wider 36-72VAC input range can also help when the upstream source is in that span.

Can the SD-200C-12 handle demanding indoor operating temperatures?

The specified operating temperature range is -20°C to +60°C, so it is intended for a broad range of indoor equipment conditions. Since no IP rating is listed, the safer assumption is protected indoor use rather than direct weather exposure.

What separates the SD-200C-12 from the other SD-200C models?

The SD-200C models listed here are SD-200C-12 at 200W, 5V, 40A; SD-200C-24 at 200.4W, 12V, 16.7A; SD-200C-48 at 201.6W, 24V, 8.4A; and SD-200C-5 at 201.6W, 48V, 4.2A. All are in the same size class and input family, so the main selection point is the required output voltage and current.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-200C-48 DC-DC Converter - 200W - 36~72V in 48V out	201.6W	24V	8.4A	Indoor	View
Mean Well SD-200C-5 DC-DC Converter - 200W - 36~72V in 5V out	201.6W	48V	4.2A	Indoor	View
Mean Well SD-200C-24 DC-DC Converter - 200W - 36~72V in 24V out	200.4W	12V	16.7A	Indoor	View
