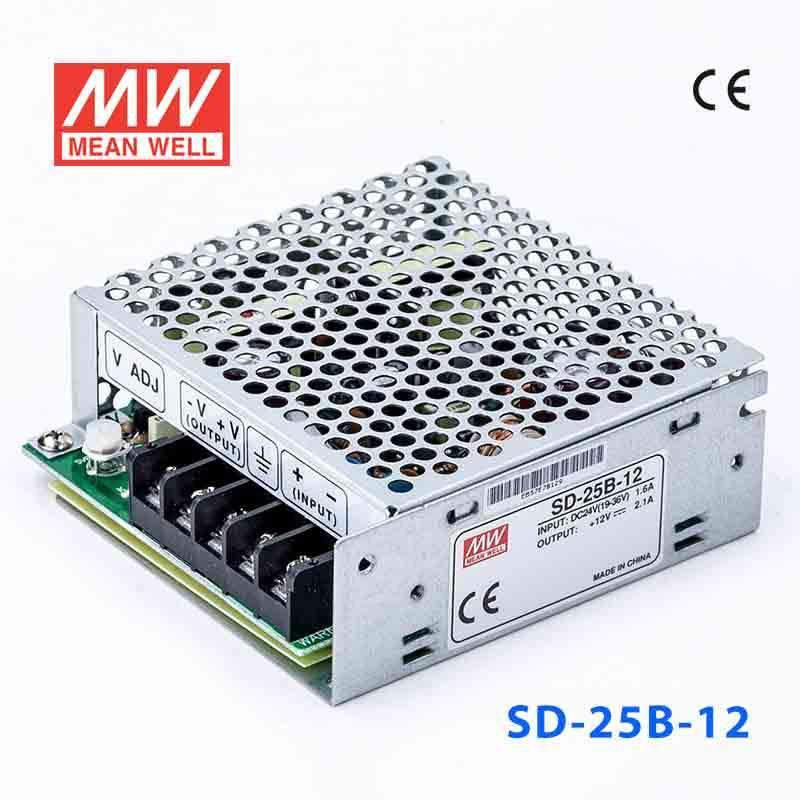

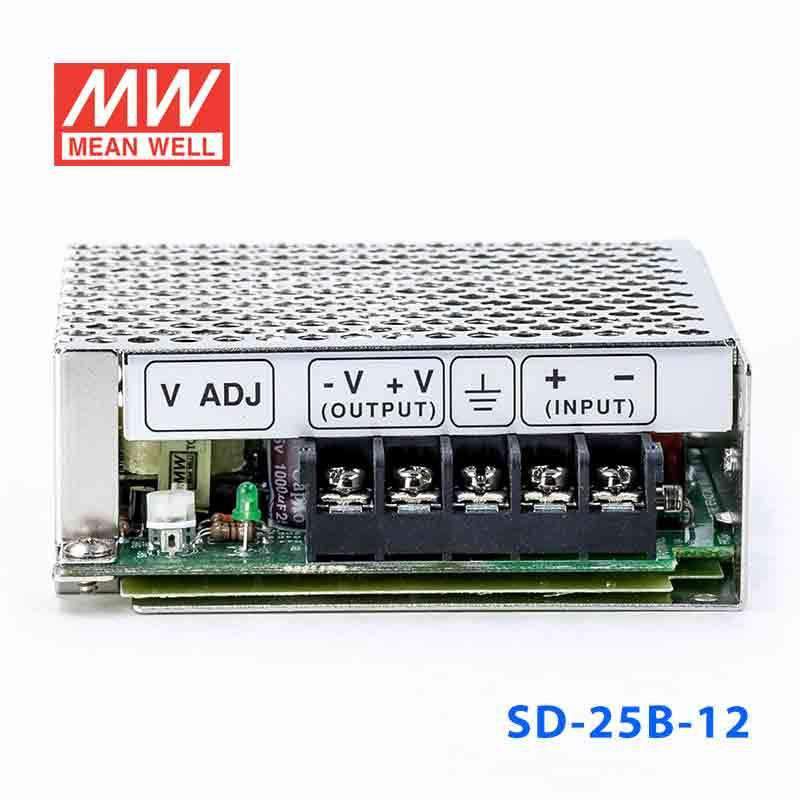

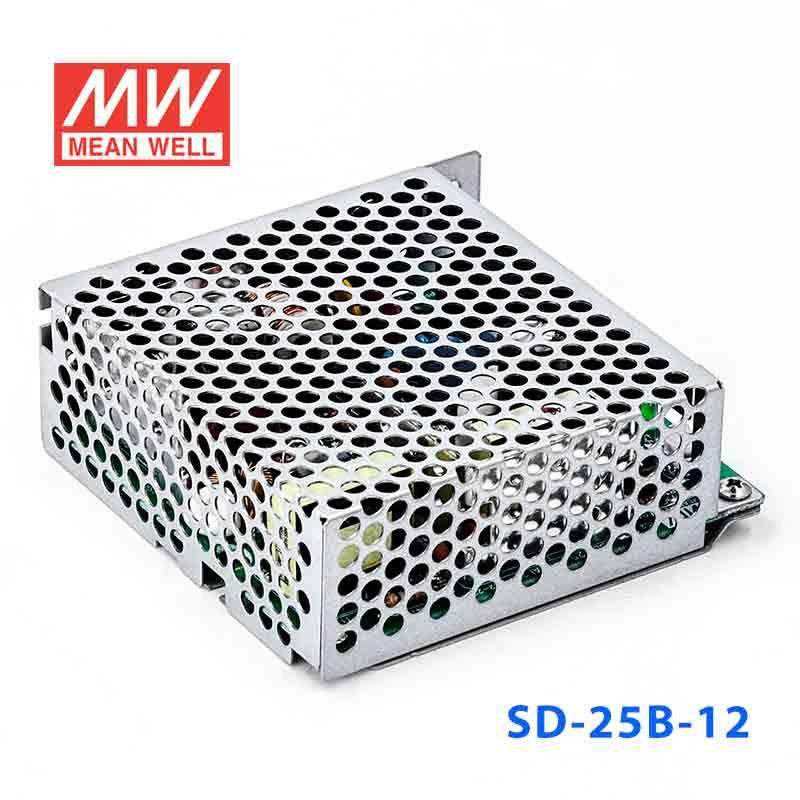

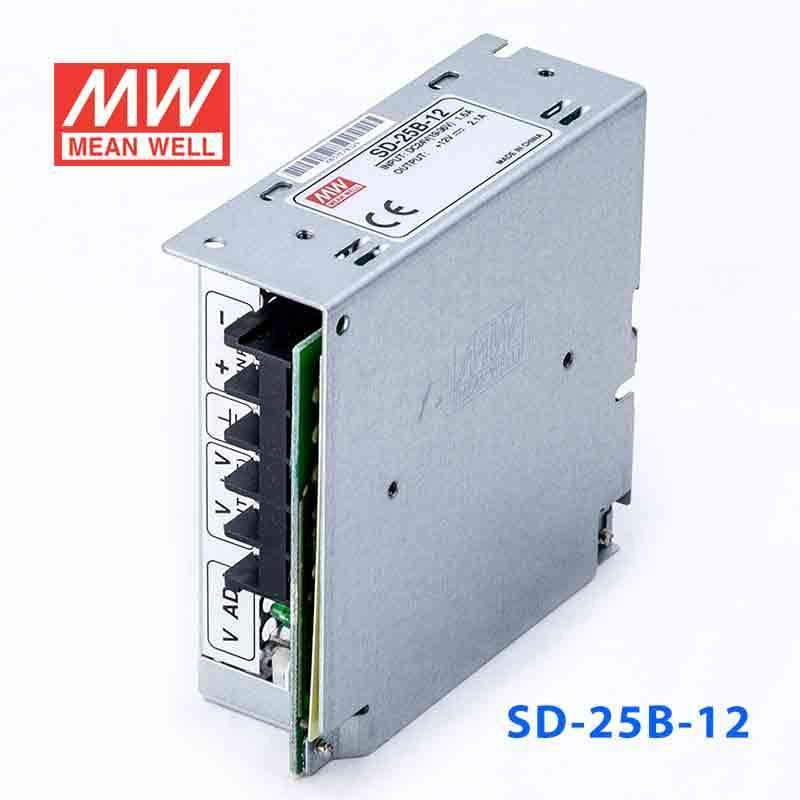

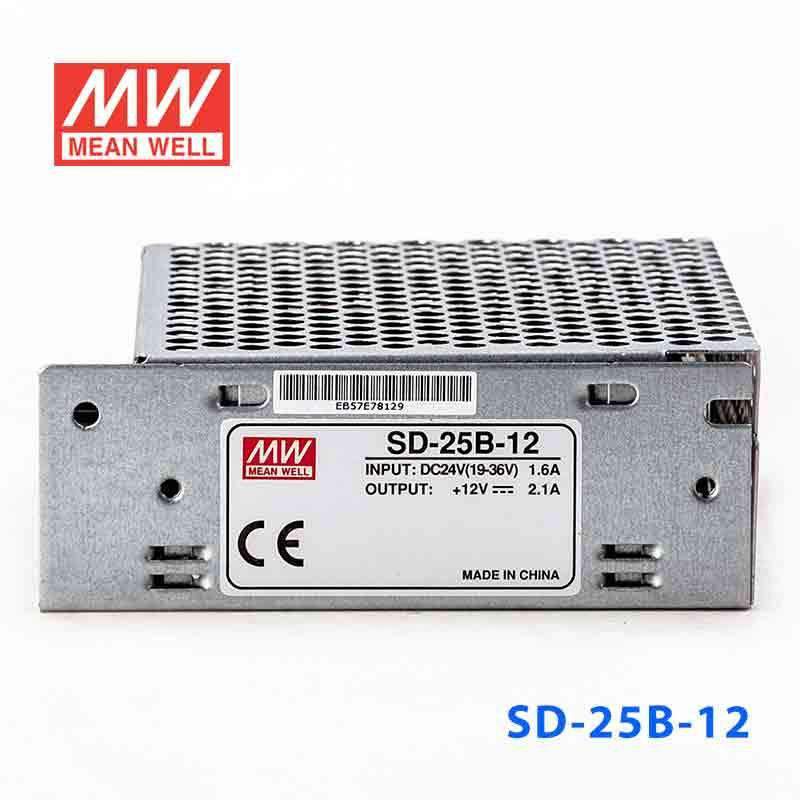

Mean Well SD-25B-12 DC-DC Converter - 25W - 19~36V in 12V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-25B-12

Please for Pricing

Notify me when it's back in stock

Description

·2:1wide inputrange

·Protections: Short circuit/Overload/Overvoltage

·1500VACI/Oisolation

·Built-inEMIfilter,lowripplenoise

·100% full load burn-intest

·Fixed switching frequencyat83KHz

·Lowcost

·Highreliability

2yearswarranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

25.2 Watt
Output Voltage

12 Volt
Rated Current

2.1 Ampere
Input Voltage

19V~36V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

9.9 cm
Width

9.7 cm
Height

3.6 cm
Weight

0.38 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-25B-12 in a 24V or 36V industrial system that needs a 12V output rail?

It can fit that use case when the available input is within the listed 19-36VAC range and the 12V load stays within 2.1A and 25.2W. The output mode is constant voltage.

Is the SD-25B-12 suitable for a small 12V automation or control module?

Yes, for small 12V automation or control loads that require constant-voltage output up to 2.1A. Its rated output power is 25.2W.

Can this converter power a 12V embedded device from a higher input range?

It is designed for applications needing 12V output from a listed 19-36VAC input range. The connected 12V device must remain within 2.1A and 25.2W.

How does the SD-25B-12 compare with the other SD-25B models?

Within the SD-25B family, SD-25B-12 is 25.2W at 12V and 2.1A, SD-25B-24 is 26.4W at 24V and 1.1A, and SD-25B-5 is 25W at 5V and 5A. The listed differences are the output voltage, output current, and wattage by model.

Is the SD-25B-12 intended for indoor or outdoor environments?

The provided specs show an operating temperature range of -10°C to +60°C, but they do not include an IP rating. That means the temperature range is stated, while outdoor exposure protection is not.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-25B-5 DC-DC Converter - 25W - 19~36V in 5V out	25W	5V	5A	Indoor	View
Mean Well SD-25B-24 DC-DC Converter - 25W - 19~36V in 24V out	26.4W	24V	1.1A	Indoor	View
