Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

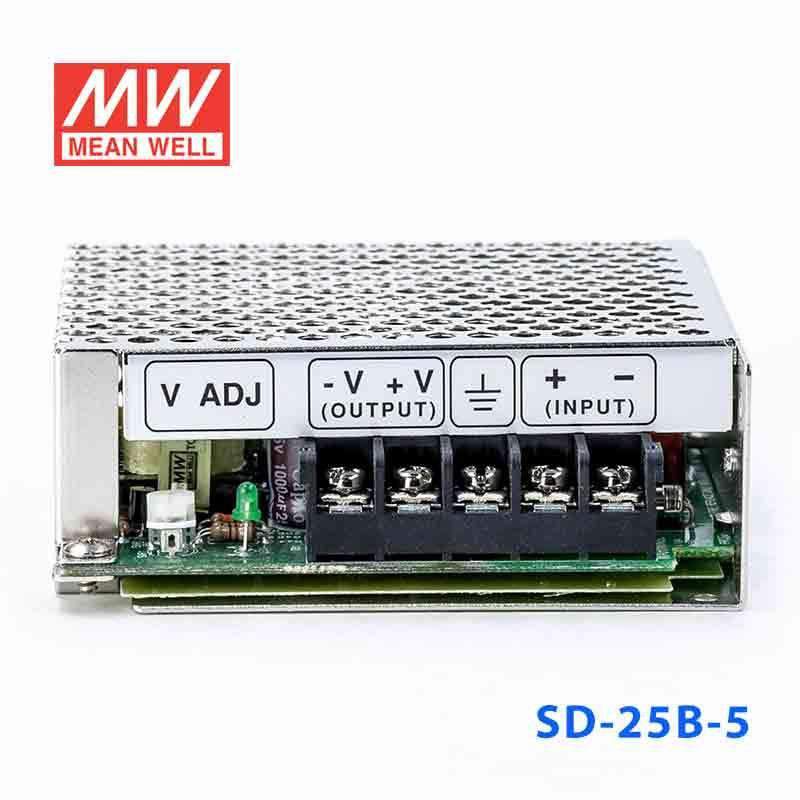

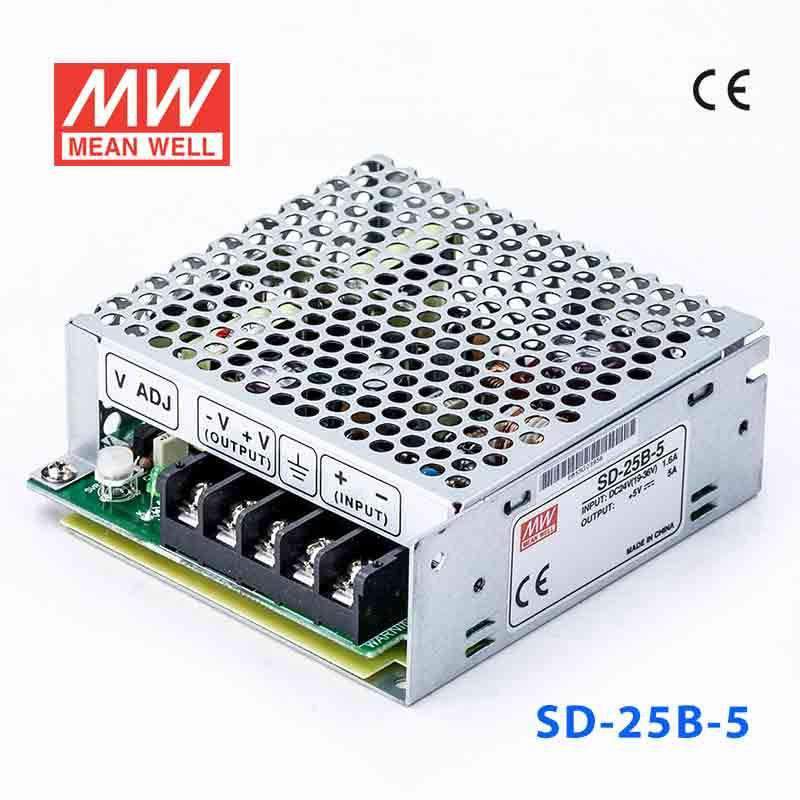

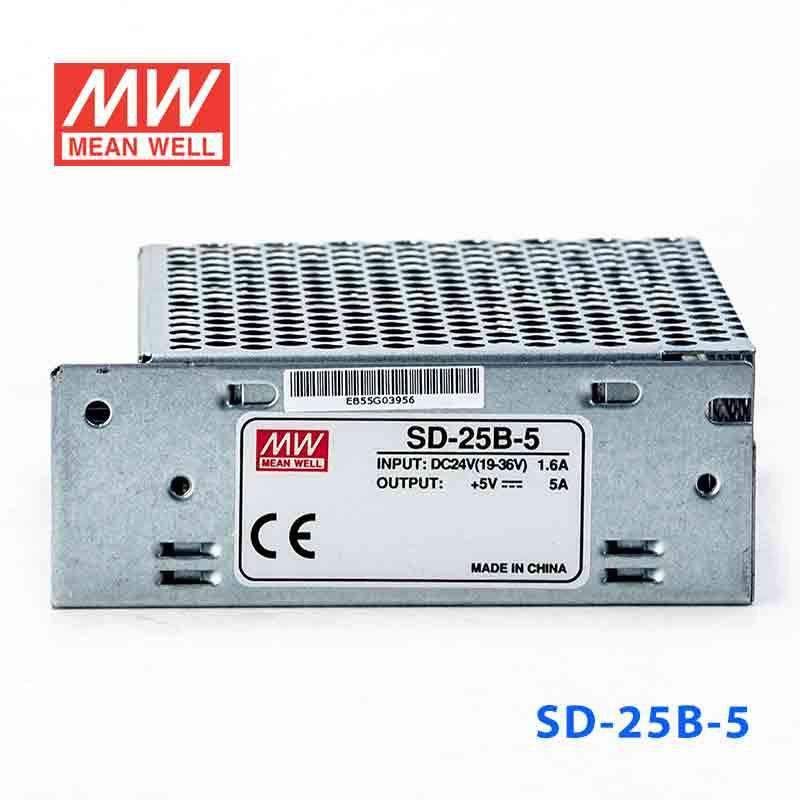

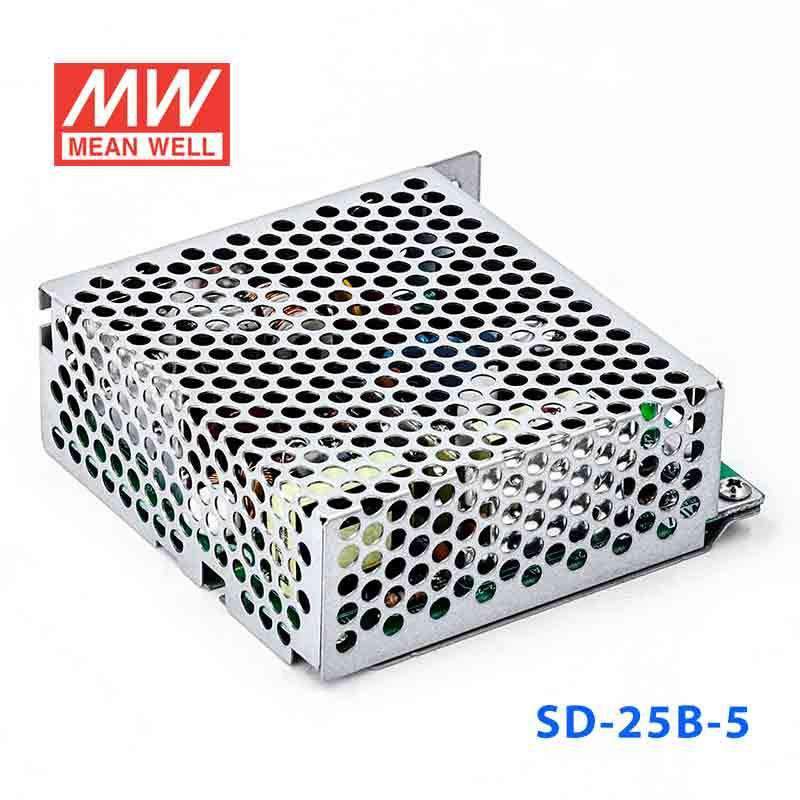

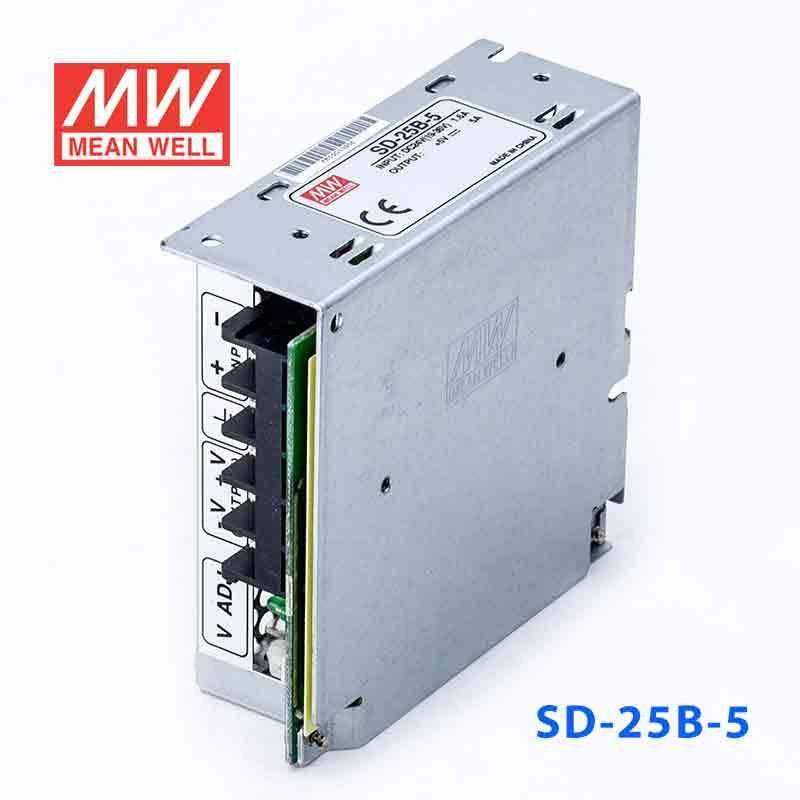

Mean Well SD-25B-5 DC-DC Converter - 25W - 19~36V in 5V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-25B-5

Please for Pricing

Notify me when it's back in stock

Description

·2:1wide inputrange

·Protections: Short circuit/Overload/Overvoltage

·1500VACI/Oisolation

·Built-inEMIfilter,lowripplenoise

·100% full load burn-intest

·Fixed switching frequencyat83KHz

·Lowcost

·Highreliability

2yearswarranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

25 Watt
Output Voltage

5 Volt
Rated Current

5 Ampere
Input Voltage

19V~36V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

9.9 cm
Width

9.7 cm
Height

3.6 cm
Weight

0.38 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-25B-5 for a 5V embedded controller or single-board computer in industrial equipment?

Yes, it provides 5V constant voltage output up to 5A with 25W total power available. That makes it suitable for low-voltage embedded electronics that need a regulated 5V rail from a 19-36V input source.

Is the SD-25B-5 a fit for powering 5V logic, I/O boards, or communication modules?

It can support 5V control electronics as long as the total load stays within 5A and 25W. This makes it a practical choice for compact logic boards, interface modules, and similar low-power electronics rather than larger 5V systems.

Can this model be used in a 24V-class control cabinet when the load needs 5V?

It is designed for installations where the available input stays within 19-36V and the output requirement is 5V constant voltage. With up to 5A output current, it fits modest 5V embedded and automation electronics within a 25W budget.

What are the differences between the SD-25B-5 and the other SD-25B versions?

The SD-25B series includes SD-25B-5 at 25W, 5V, 5A; SD-25B-12 at 25.2W, 12V, 2.1A; and SD-25B-24 at 26.4W, 24V, 1.1A. All three share the same 19-36V input range in this series grouping.

Can the SD-25B-5 be used outdoors or in unprotected environments?

The provided specs do not show an IP rating, so there is no stated basis for outdoor exposure or direct moisture exposure. Its operating temperature range is -10°C to +60°C, so it is better suited to protected indoor equipment spaces that stay within that range.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-25B-24 DC-DC Converter - 25W - 19~36V in 24V out	26.4W	24V	1.1A	Indoor	View
Mean Well SD-25B-12 DC-DC Converter - 25W - 19~36V in 12V out	25.2W	12V	2.1A	Indoor	View
