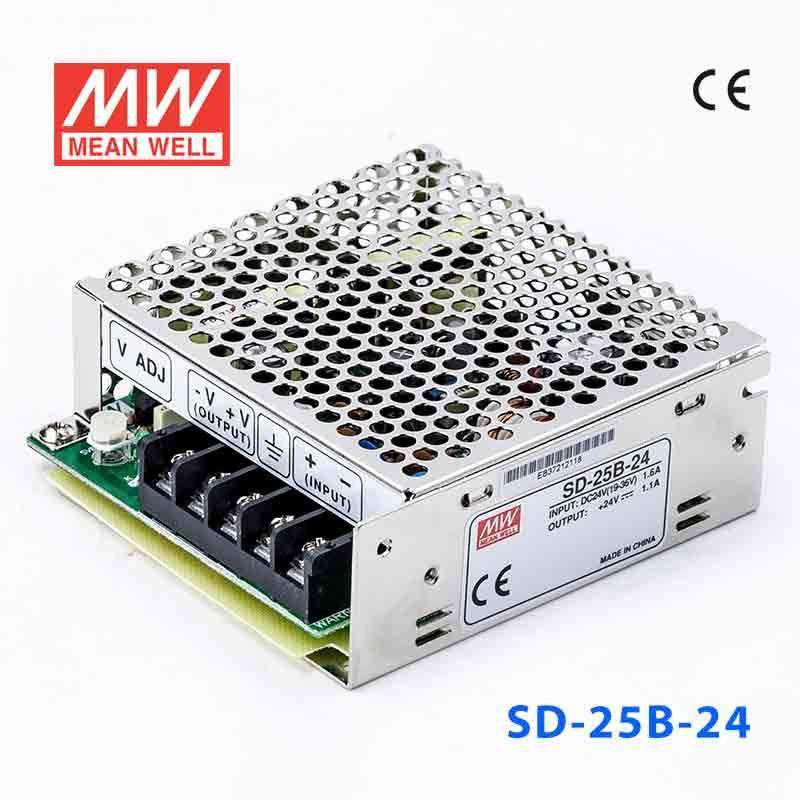

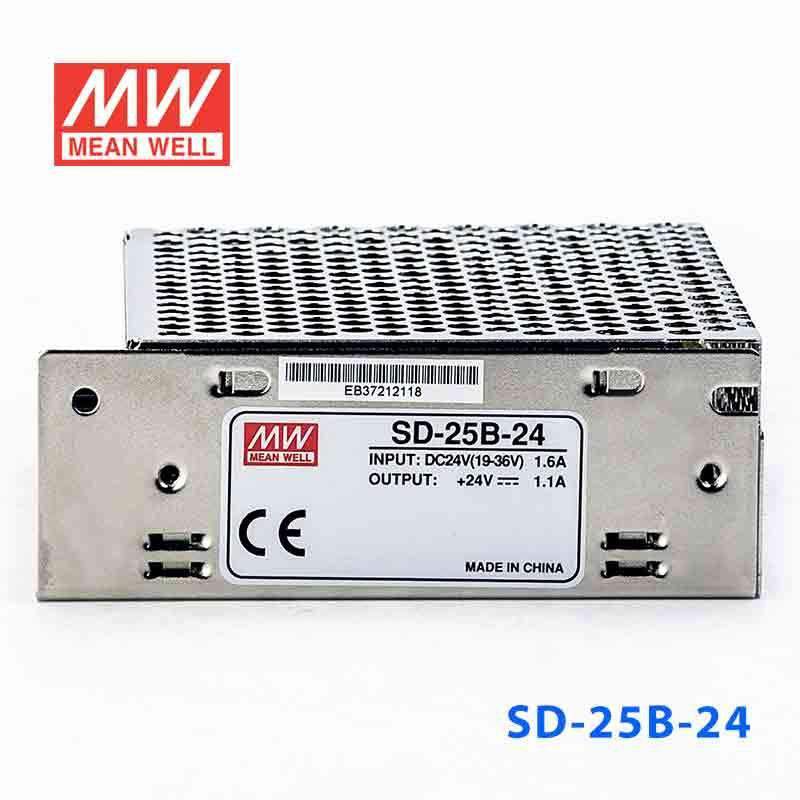

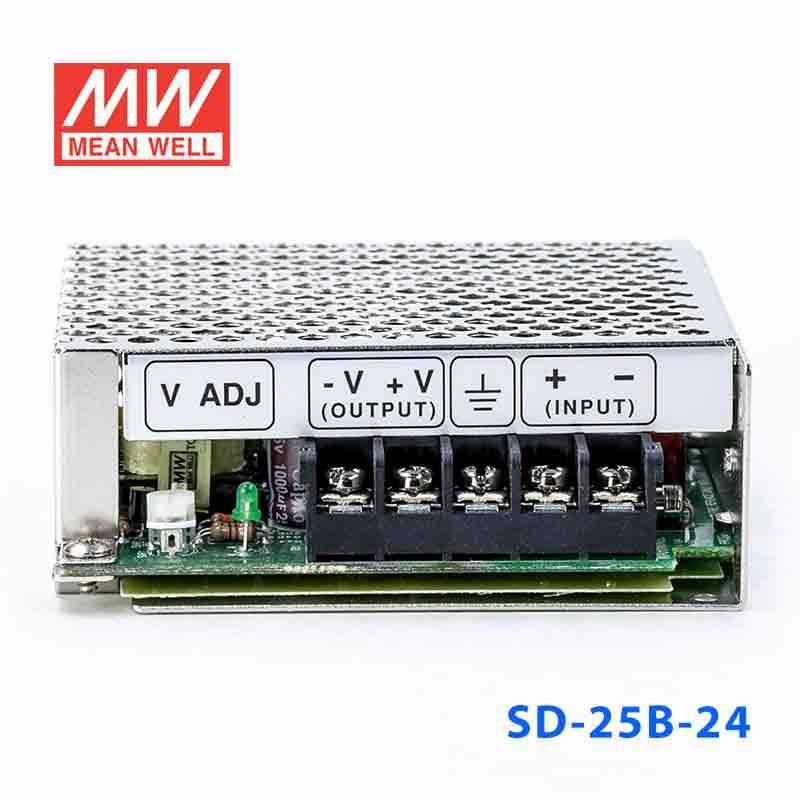

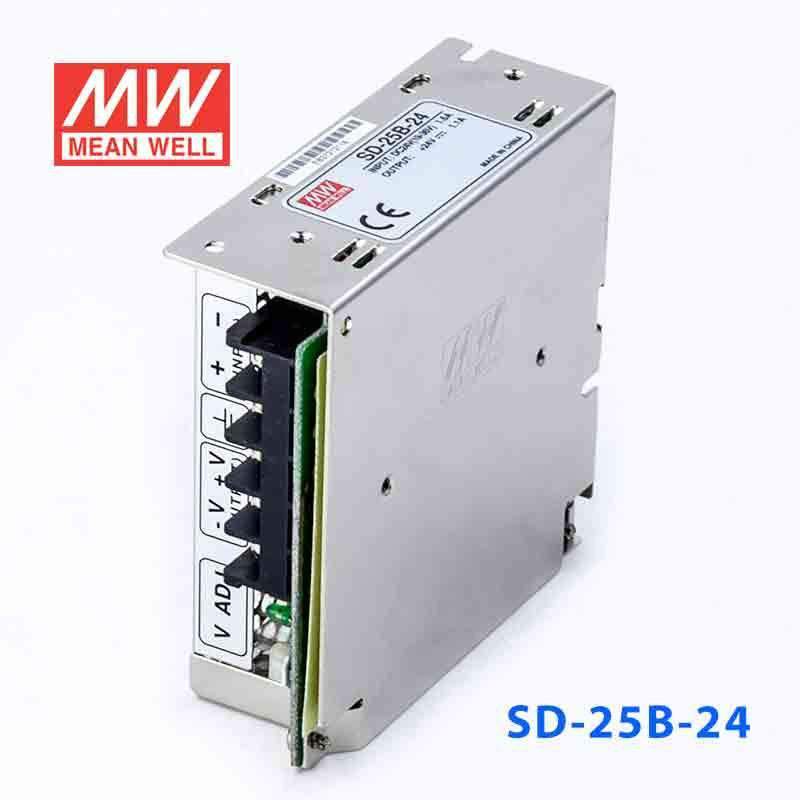

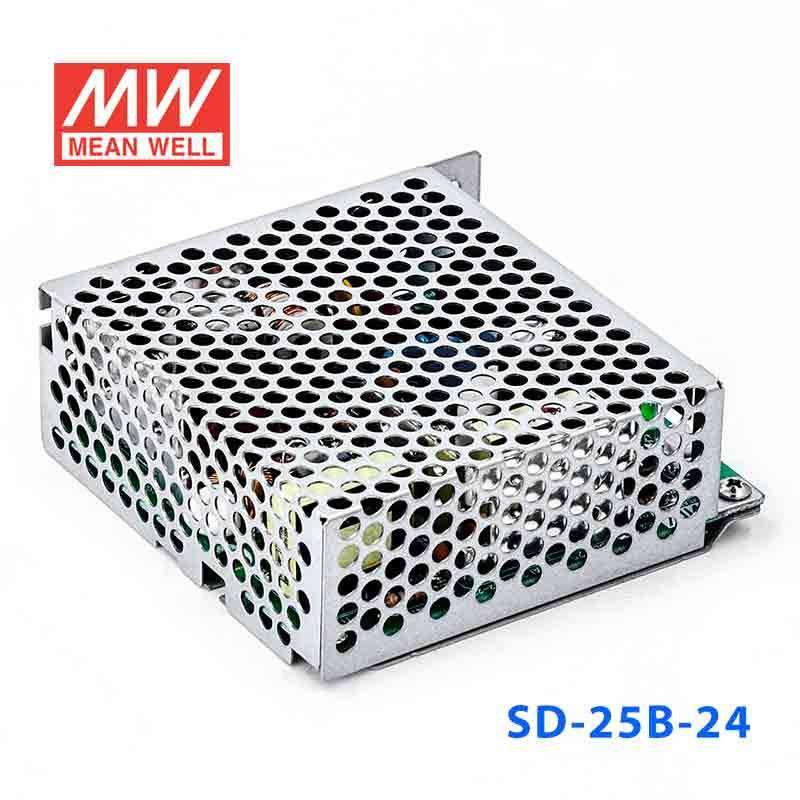

Mean Well SD-25B-24 DC-DC Converter - 25W - 19~36V in 24V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-25B-24

Please for Pricing

Notify me when it's back in stock

Description

·2:1wide inputrange

·Protections: Short circuit/Overload/Overvoltage

·1500VACI/Oisolation

·Built-inEMIfilter,lowripplenoise

·100% full load burn-intest

·Fixed switching frequencyat83KHz

·Lowcost

·Highreliability

2yearswarranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

26.4 Watt
Output Voltage

24 Volt
Rated Current

1.1 Ampere
Input Voltage

19V~36V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

9.9 cm
Width

9.7 cm
Height

3.6 cm
Weight

0.38 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-25B-24 to power a small 24V PLC or control module?

It can fit small 24V control electronics that stay within the 24V, 1.1A, and 26.4W output rating. That makes it more appropriate for low-power PLC logic, compact controllers, or light automation loads than for larger 24V devices.

Is the SD-25B-24 suitable for 24V sensors, relays, and interface devices in an automation panel?

Yes, it is intended for constant-voltage 24V output and can support loads up to 1.1A with 26.4W available. It is a better fit for smaller 24V interface devices and relay or sensor circuits than for higher-current 24V equipment.

Can this converter be used in a vehicle or mobile equipment system with a 19-36V source?

It is designed for applications where the input stays within the 19-36V range and the load needs 24V constant voltage output. With 26.4W maximum output power, it suits lower-power embedded or control loads rather than larger 24V accessories.

How does the SD-25B-24 compare with the other SD-25B models?

Within the SD-25B group, the output options are SD-25B-5 at 25W, 5V, 5A; SD-25B-12 at 25.2W, 12V, 2.1A; and SD-25B-24 at 26.4W, 24V, 1.1A. All use the same 19-36V input range and share the same compact series class.

Is the SD-25B-24 suitable for outdoor or harsh-environment use?

No IP rating is listed in the provided specs, so this model should not be treated as an outdoor or washdown unit based on the available data. The stated operating temperature range is -10°C to +60°C, which supports controlled indoor equipment environments within that temperature window.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-25B-5 DC-DC Converter - 25W - 19~36V in 5V out	25W	5V	5A	Indoor	View
Mean Well SD-25B-12 DC-DC Converter - 25W - 19~36V in 12V out	25.2W	12V	2.1A	Indoor	View
