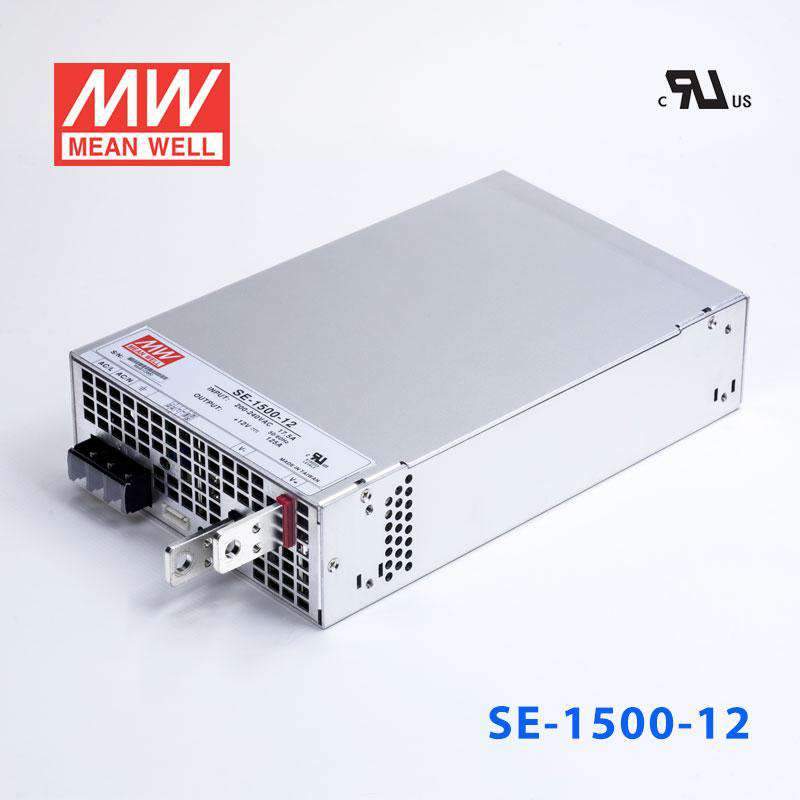

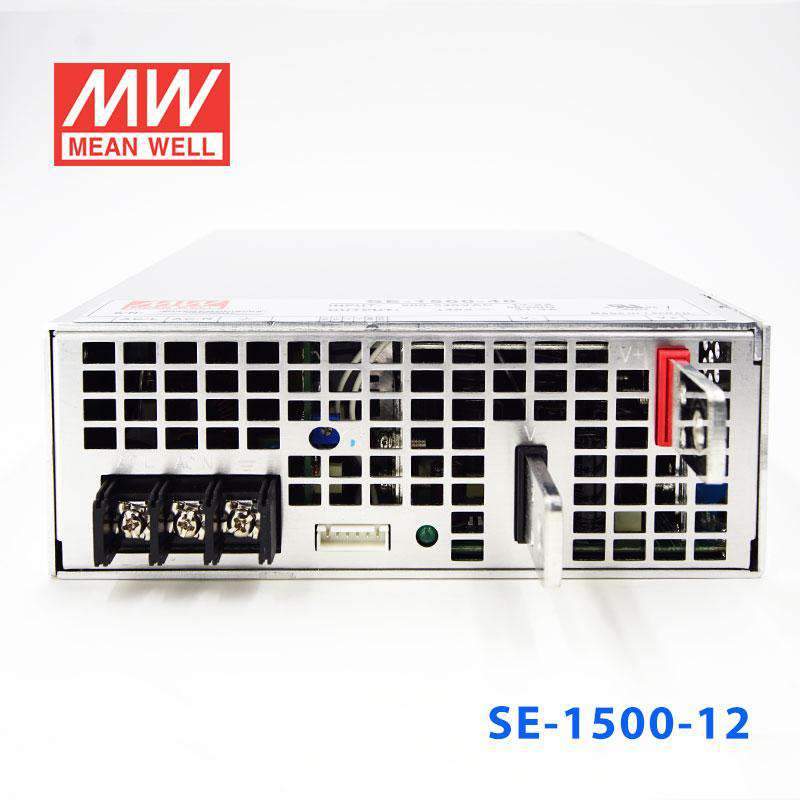

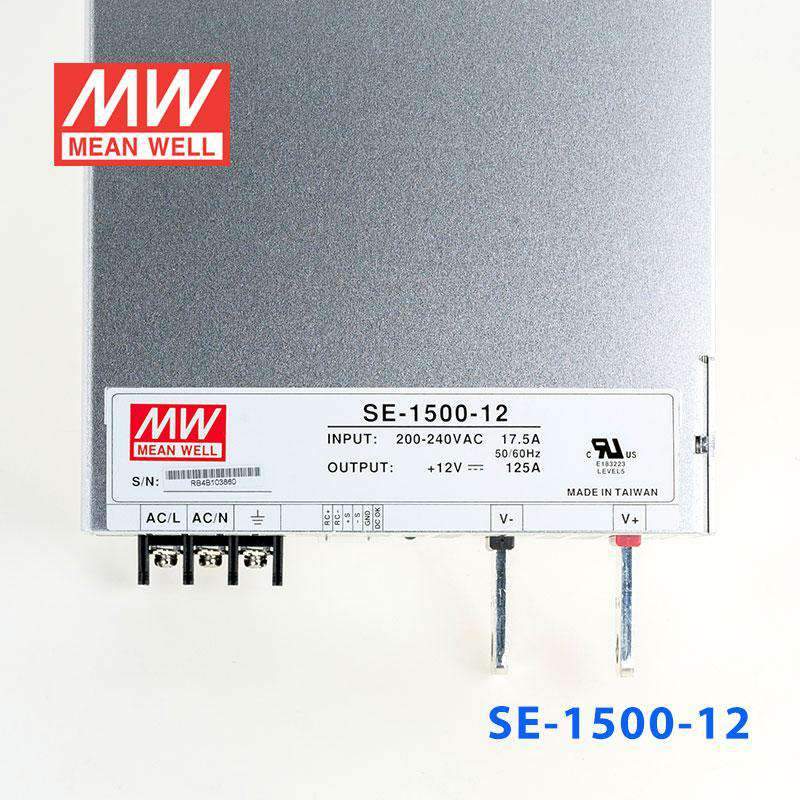

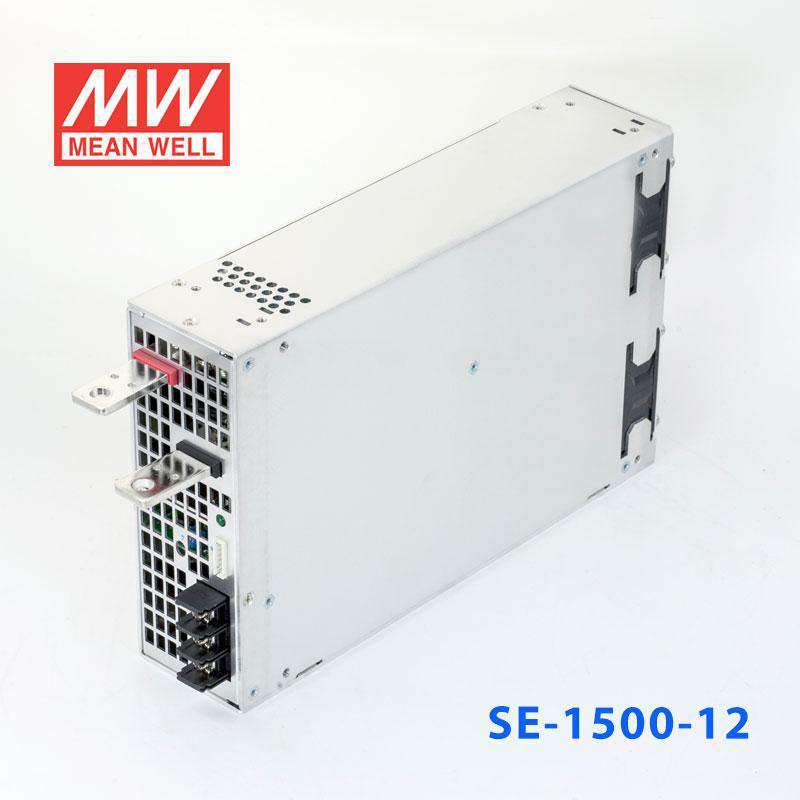

Mean Well SE-1500-12 Power Supply 1500W 12V 125A

economical model medium to high power(450W~1500W)

SKU SE-1500-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

SE-1500-12

SE-450-12 450W 12V Backorder

SE-1000-12 1000W 12V Backorder

SE-1500-12 1500W 12V Backorder

SE-600-12 600W 12V Backorder

Product variants

Available to order

Overview

SE-1500-12 is the 12V output model of this series: rated current 125A, rated power 1500W, typical efficiency 85%.

Features

AC input 180 ~ 264VAC
AC input active surge current limiting
Protections: Short circuit / Overload / Over voltage / Over temperature

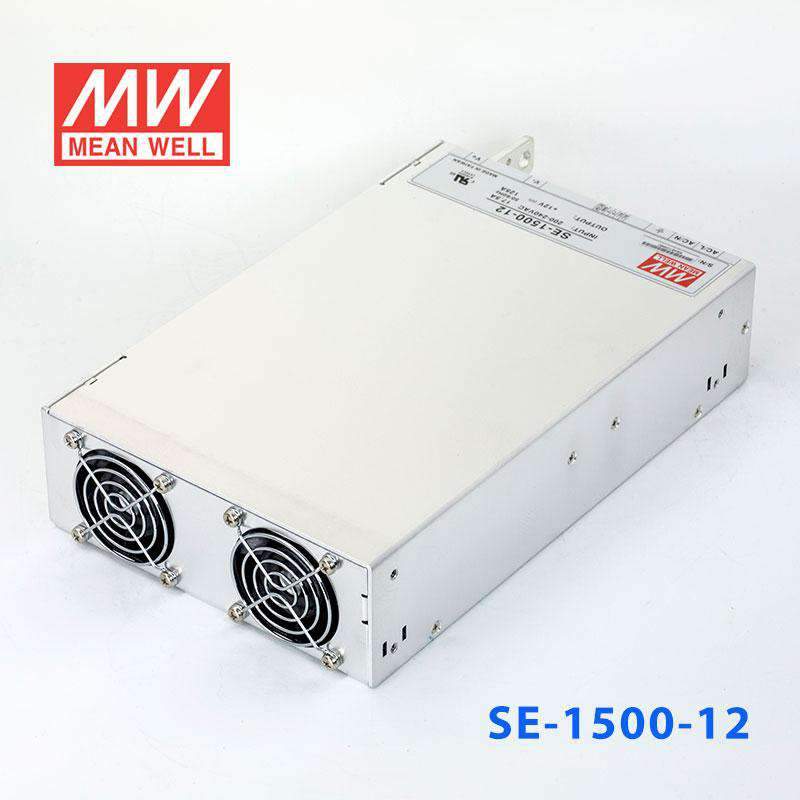

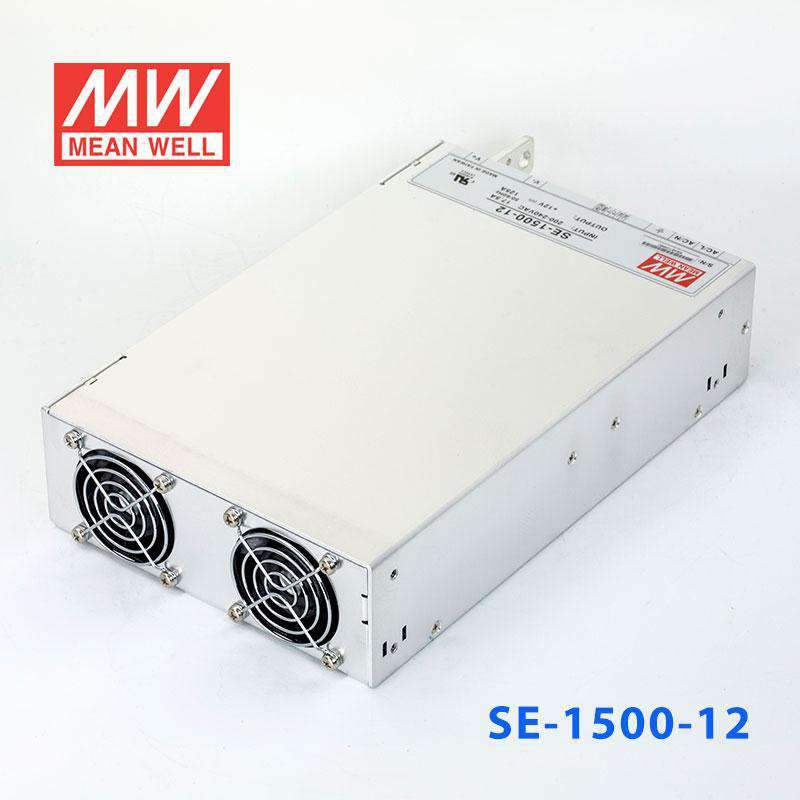

Forced air cooling by built-in DC ball bearing fan
High power density 7.8w/inch³
With DC OK signal output
Built-in remote ON-OFF control
Built-in remote sense function
UL / CUL approved
Low cost
2 years warranty

Specifications

SE-1500-12Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 125A
CURRENT RANGE: 0 ~ 125A
RATED POWER: 1500W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 10.8 ~ 13.5V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 150ms, 12ms / 230VAC at full load
HOLD UP TIME (Typ.): 26ms / 230VAC at full load

INPUT

VOLTAGE RANGE: 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 17.5A / 230VAC
INRUSH CURRENT (Typ.): 60A / 230VAC
LEAKAGE CURRENT: <3.5mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 14.5 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC_OK SIGNAL: PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V
REMOTE CONTROL: RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1 , BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32),CNS15936 Class A
Radiated BS EN/ EN55032 (CISPR32),CNS15936 Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY^{Note 4}: BS EN/ EN55035, BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-6-2 1KV/Line-Line 2KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32),CNS15936	Class A
Radiated	BS EN/ EN55032 (CISPR32),CNS15936	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-6-2	1KV/Line-Line 2KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 999.9K hrs min. Telcordia SR-332 (Bellcore) ; 134.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 278*177.8*63.5mm (L*W*H)
PACKING: 3.3Kg; 4pcs/14.2Kg/1.14CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. This power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

SE-1500-12 Mechanical Specification — Mechanical Specification

SE-1500-12 Block Diagram — Block Diagram

SE-1500-12 Derating Curve — Derating Curve

SE-1500-12 Function Manual — Function Manual

Downloads

Datasheet1

SE-1500-12 datasheetSE-1500-SPEC.PDF · 2026-09-07 edition PDF Download

Certificates1

UL Certificate (SE-1500)(EN) PDF Download

Test reports1

Test Report (SE-1500-12)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SE-1500-12 for large 12V industrial control or automation loads?

Yes, this is a constant-voltage 12V power supply with up to 125A output current. It can fit larger 12V automation or control loads when the combined demand stays within 1500W.

Is the SE-1500-12 suitable for centralized 12V DC power distribution in a machine or panel?

It can support centralized 12V DC loads because it provides a single constant-voltage 12V output. The available capacity is 125A and 1500W, so the combined load has to stay within those limits.

Can this power 12V embedded systems or high-current 12V electronics in one enclosure?

Yes, for 12V DC electronics that need a constant-voltage source, this model provides substantial current headroom. The total connected load must stay within 125A and 1500W.

How does the SE-1500-12 compare with the other SE-1500 versions?

The listed SE-1500 models are SE-1500-5 at 5V, 300A, 1500W; SE-1500-12 at 12V, 125A, 1500W; SE-1500-15 at 15V, 100A, 1500W; SE-1500-24 at 24V, 62.5A, 1500W; SE-1500-27 at 27V, 55.6A, 1501.2W; and SE-1500-48 at 48V, 31.3A, 1502.4W. Compared with the other versions, this model keeps the same series power class while changing voltage and maximum current.

Can the SE-1500-12 be used outdoors or in hotter operating conditions?

The provided specs list an operating temperature range of -20°C to +70°C, with output derated at higher temperatures according to the derating curve. No IP rating is provided, so outdoor exposure cannot be confirmed from these specs alone.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well SE-1500-5 Power Supply 1500W 5V 300A	1500W	5V	300A	View
Mean Well SE-1500-48 Power Supply 1500W 48V 31.3A	1502.4W	48V	31.3A	View
Mean Well SE-1500-27 Switching Power Supplies 1501.2W 27V 55.6A Enclosed	1501.2W	27V	55.6A	View
Mean Well SE-1500-24 Power Supply 1500W 24V 62.5A	1500W	24V	62.5A	View
Mean Well SE-1500-15 Power Supply 1500W 15V 100A	1500W	15V	100A	View
