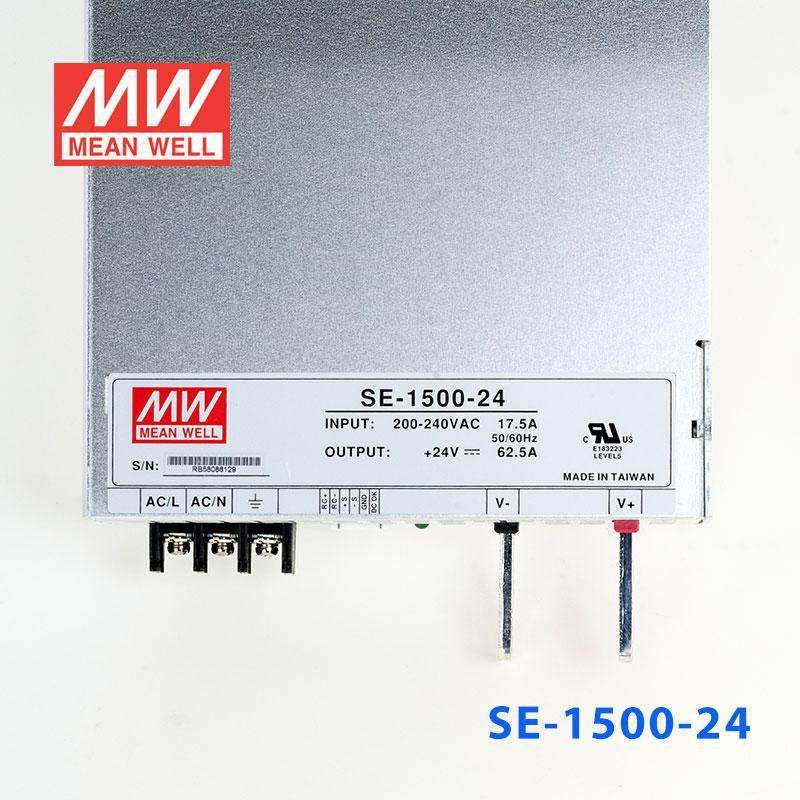

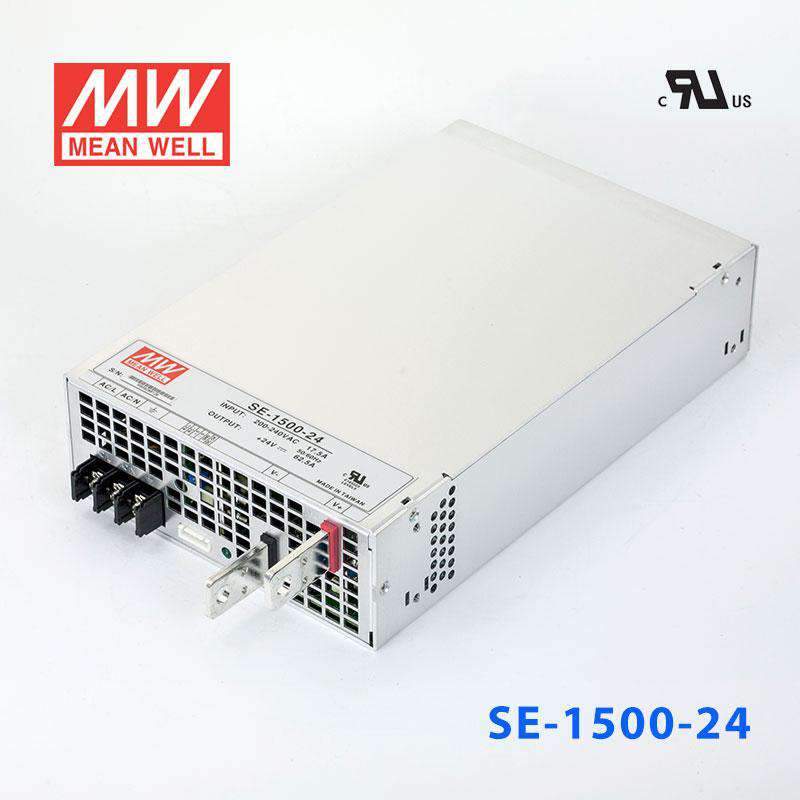

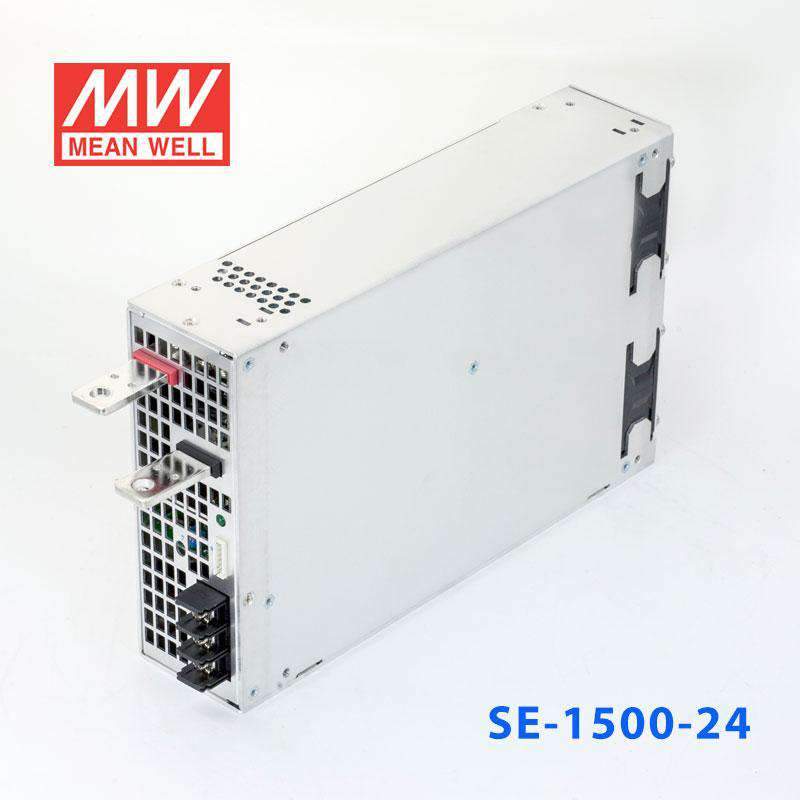

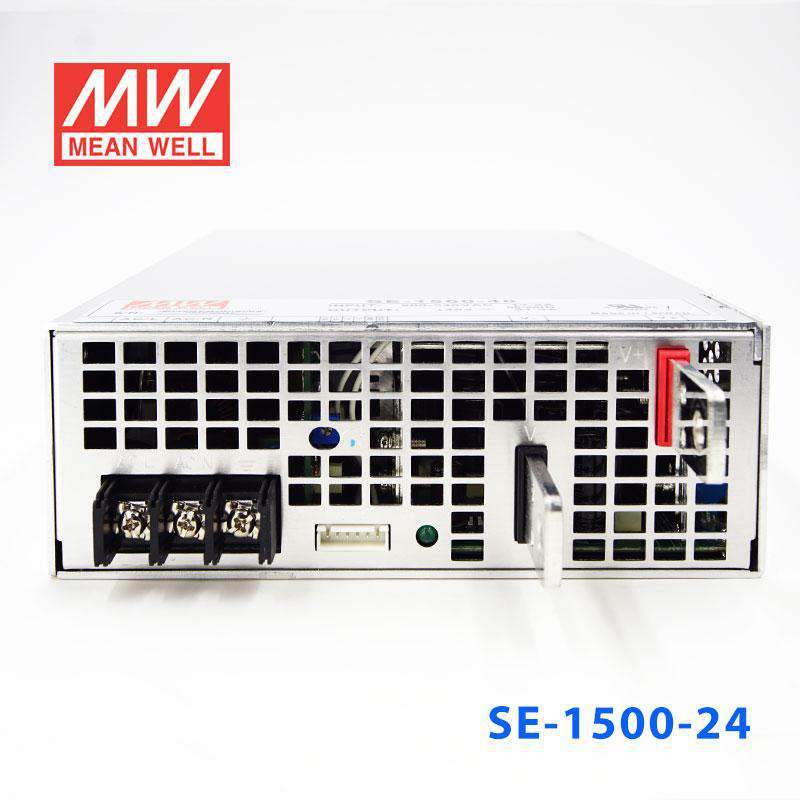

Mean Well SE-1500-24 Power Supply 1500W 24V 62.5A

economical model medium to high power(450W~1500W)

SKU SE-1500-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

SE-1500-24

SE-450-24 450W 24V Low stock

SE-1000-24 1000W 24V Backorder

SE-1500-24 1500W 24V Backorder

SE-600-24 600W 24V Backorder

Product variants

Available to order

Overview

SE-1500-24 is the 24V output model of this series: rated current 62.5A, rated power 1500W, typical efficiency 87%.

Features

AC input 180 ~ 264VAC
AC input active surge current limiting
Protections: Short circuit / Overload / Over voltage / Over temperature

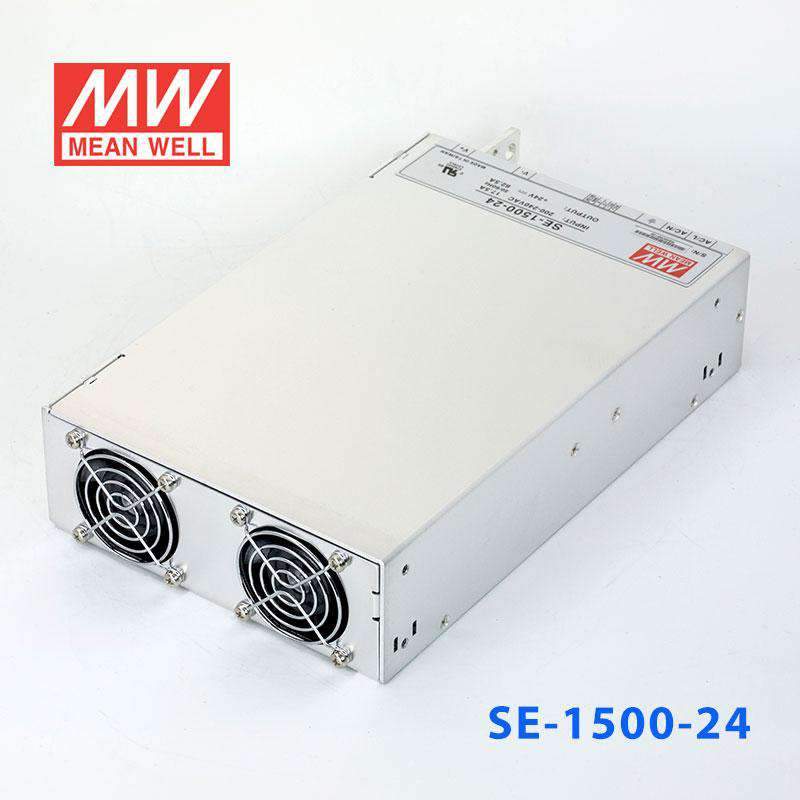

Forced air cooling by built-in DC ball bearing fan
High power density 7.8w/inch³
With DC OK signal output
Built-in remote ON-OFF control
Built-in remote sense function
UL / CUL approved
Low cost
2 years warranty

Specifications

SE-1500-24Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 62.5A
CURRENT RANGE: 0 ~ 62.5A
RATED POWER: 1500W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 21.6 ~ 26.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 150ms, 12ms / 230VAC at full load
HOLD UP TIME (Typ.): 26ms / 230VAC at full load

INPUT

VOLTAGE RANGE: 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 17.5A / 230VAC
INRUSH CURRENT (Typ.): 60A / 230VAC
LEAKAGE CURRENT: <3.5mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC_OK SIGNAL: PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V
REMOTE CONTROL: RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1 , BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32),CNS15936 Class A
Radiated BS EN/ EN55032 (CISPR32),CNS15936 Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY^{Note 4}: BS EN/ EN55035, BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-6-2 1KV/Line-Line 2KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32),CNS15936	Class A
Radiated	BS EN/ EN55032 (CISPR32),CNS15936	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-6-2	1KV/Line-Line 2KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 999.9K hrs min. Telcordia SR-332 (Bellcore) ; 134.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 278*177.8*63.5mm (L*W*H)
PACKING: 3.3Kg; 4pcs/14.2Kg/1.14CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. This power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

SE-1500-24 Mechanical Specification — Mechanical Specification

SE-1500-24 Block Diagram — Block Diagram

SE-1500-24 Derating Curve — Derating Curve

SE-1500-24 Function Manual — Function Manual

Downloads

Datasheet1

SE-1500-24 datasheetSE-1500-SPEC.PDF · 2026-09-07 edition PDF Download

Certificates1

UL Certificate (SE-1500)(EN) PDF Download

Test reports1

Test Report (SE-1500-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SE-1500-24 for a 24V PLC or automation control cabinet?

Yes, this unit is a constant-voltage 24V supply rated for up to 62.5A and 1500W. That makes it suitable for 24V industrial control or automation systems that need a high-power 24V DC source within those limits.

Is the SE-1500-24 a good fit for 24V industrial sensors, relays, and actuators on one DC bus?

It can be used as a centralized 24V source when the connected equipment is designed for a constant 24V DC bus. The total available output is 62.5A with a 1500W rating, so the combined load has to stay inside those numbers.

Can this model power a 24V embedded or industrial computing rack?

It is appropriate for systems that require a regulated 24V constant-voltage supply and higher aggregate power. The output is 24V at up to 62.5A, which supports more demanding 24V DC loads than lower-power supply classes.

Is the SE-1500-24 intended for indoor or outdoor use?

The specifications shown do not include an IP rating, so the product data does not confirm outdoor, wet, or washdown use. The stated operating temperature range is -20°C to +70°C, which describes temperature capability but not enclosure sealing.

What are the key differences between the SE-1500-24 and the other SE-1500 voltage options?

The listed SE-1500 variants are 5V 300A 1500W, 12V 125A 1500W, 15V 100A 1500W, 24V 62.5A 1500W, 27V 55.6A 1501.2W, and 48V 31.3A 1502.4W. The SE-1500-24 sits in the middle of that range with 24V output and 62.5A current capacity.
