Can I use the SKA20A-05 to power 5V embedded controllers or single-board electronics from a 9-18VAC source?

Yes, if the input source is within 9-18VAC and the electronics require 5V constant voltage. The output rating is 20W with up to 4A available, which suits higher-current 5V embedded loads within that limit.

Is this converter suitable for 5V industrial sensors, I/O, or communication modules?

It can be a fit for 5V constant-voltage industrial electronics when the total load stays at or below 4A. With 20W available, it supports more 5V current headroom than lower-power compact converters.

Would the SKA20A-05 work for a compact 5V automation subsystem inside a control panel?

Yes, provided the subsystem runs on 5V constant voltage and remains within the 20W output budget. The body size is 50.8 × 25.4 × 11.2 mm, so it is suited to compact panel or embedded spaces.

Can I use this model for 5V IT or networking support electronics that need more than 1A?

This model is better suited to higher-current 5V support electronics because it provides up to 4A at 5V. The main check is keeping the total output demand within 20W and using a source in the 9-18VAC input range.

Is the SKA20A-05 meant for outdoor use or wide-temperature environments?

The specified operating range is -40°C to +85°C, which supports a broader temperature span than many indoor-only electronics. However, no IP rating is listed in the provided specs, so the product page does not identify it as weatherproof or outdoor-rated.

1 5

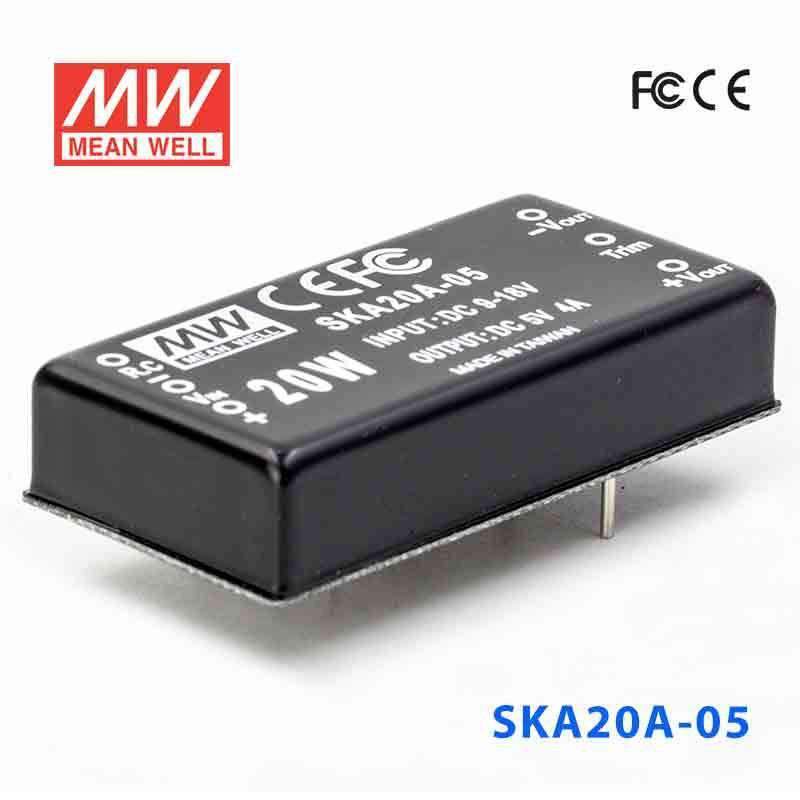

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well SKA20A-05 DC-DC Converter - 20W - 9~18V in 5V out 4A

SKU:

SKA20A-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SKA20A is a 20W Mean Well power converter.

Key Features

✓ 1.5KVDC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA20W8-24 20W DC-DC Converter 24VDC 830mA	—	—	—	Indoor	View
Mean Well SKA20W8-15 20W DC-DC Converter 15VDC 1.33A	—	—	—	Indoor	View
Mean Well SKA20W8-12 20W DC-DC Converter 12VDC 1.67A	—	—	—	Indoor	View
Mean Well SKA20W8-05 20W DC-DC Converter 5VDC 4A	—	—	—	Indoor	View
Mean Well SKA20W8-03 20W DC-DC Converter 3.3VDC 6.06A	—	—	—	Indoor	View
Mean Well SKA20C-15 DC-DC Converter - 20W - 36~75V in 15V out 1.33A	20W	15V	1.33A	Indoor	View
Mean Well SKA20C-12 DC-DC Converter - 20W - 36~75V in 12V out 1.66A	20W	12V	1.66A	Indoor	View
Mean Well SKA20C-05 DC-DC Converter - 20W - 36~75V in 5V out 4A	20W	5V	4A	Indoor	View
Mean Well SKA20B-15 DC-DC Converter - 20W - 18~36V in 15V out 1.33A	20W	15V	1.33A	Indoor	View
Mean Well SKA20B-12 DC-DC Converter - 20W - 18~36V in 12V out 1.66A	20W	12V	1.66A	Indoor	View
Mean Well SKA20B-05 DC-DC Converter - 20W - 18~36V in 5V out 4A	20W	5V	4A	Indoor	View
Mean Well SKA20A-15 DC-DC Converter - 20W - 9~18V in 15V out 1.33A	20W	15V	1.33A	Indoor	View
Mean Well SKA20A-12 DC-DC Converter - 20W - 9~18V in 12V out 1.66A	20W	12V	1.66A	Indoor	View
