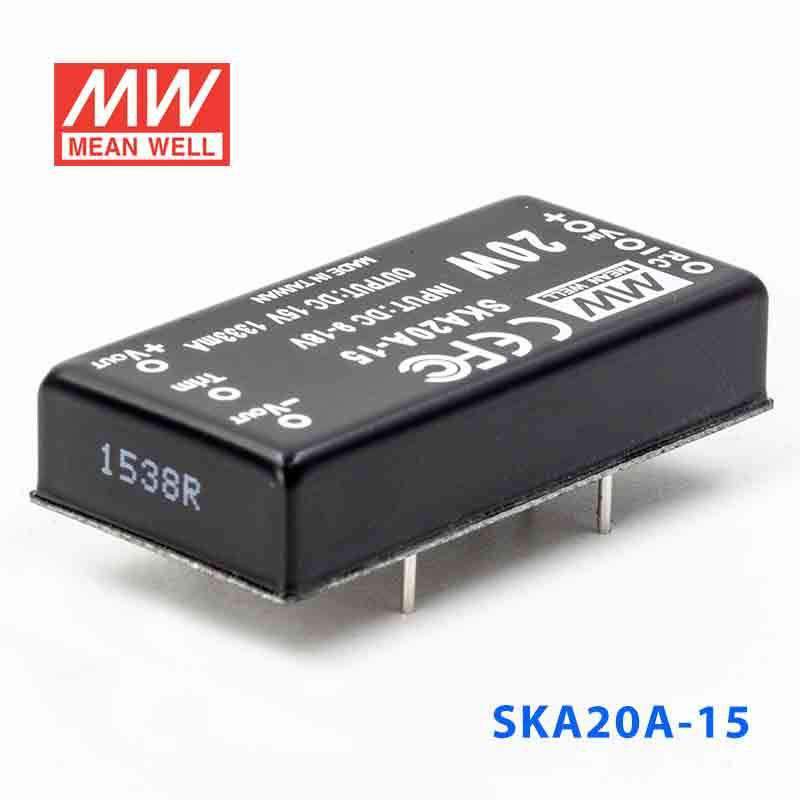

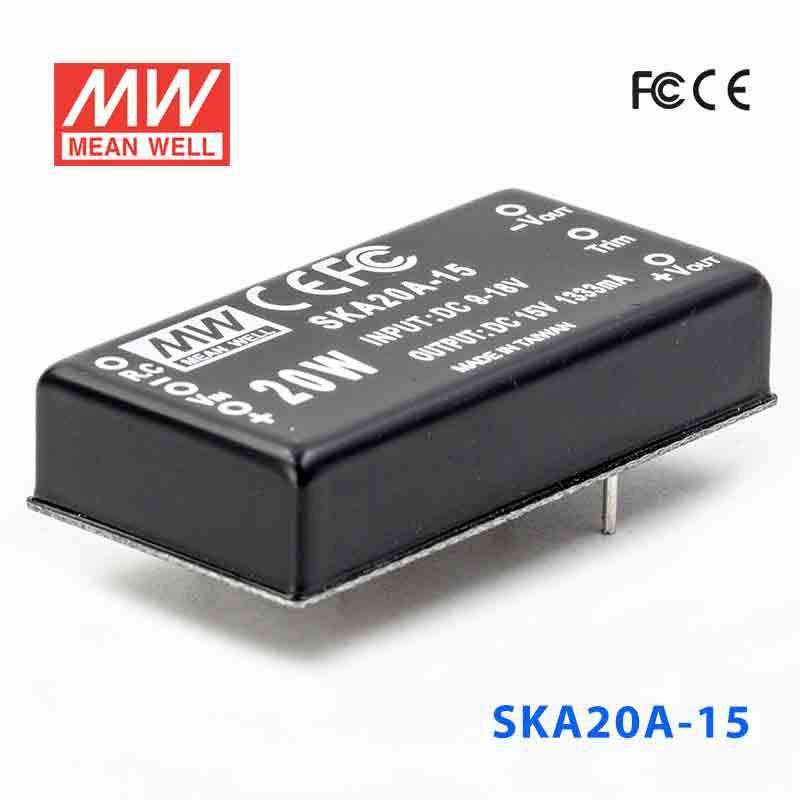

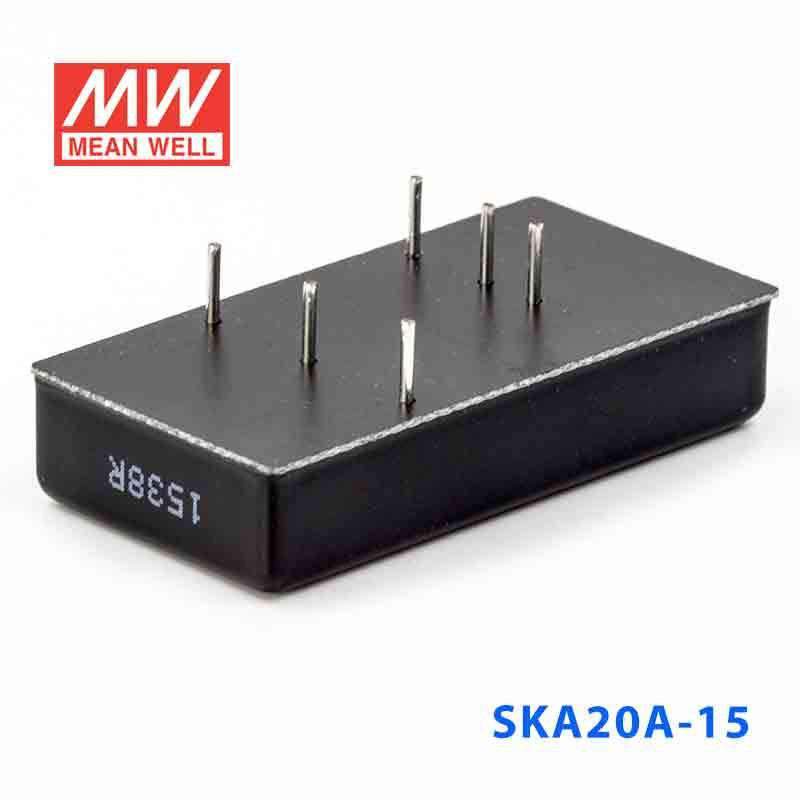

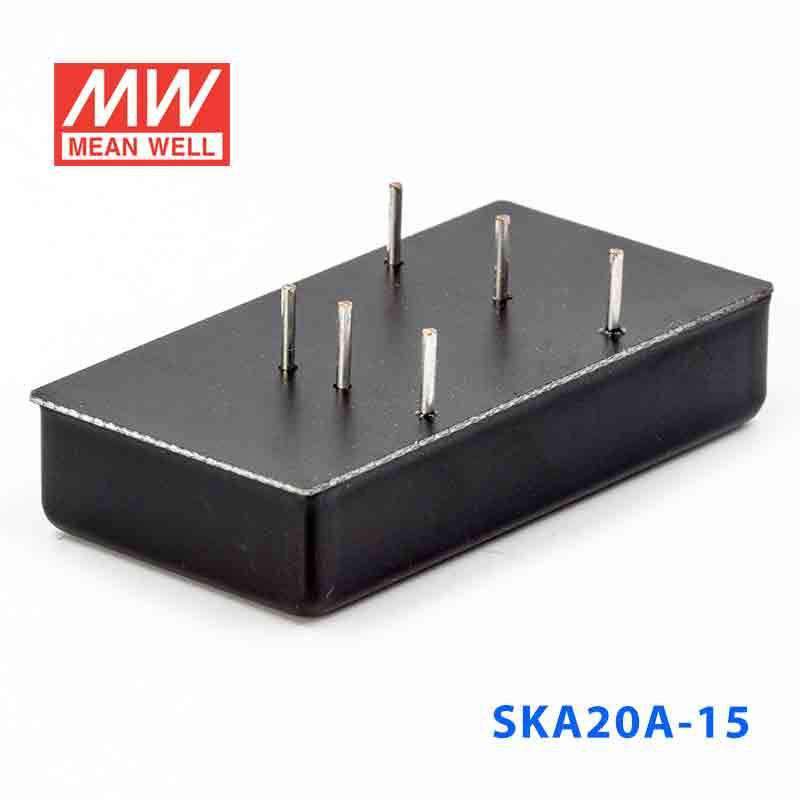

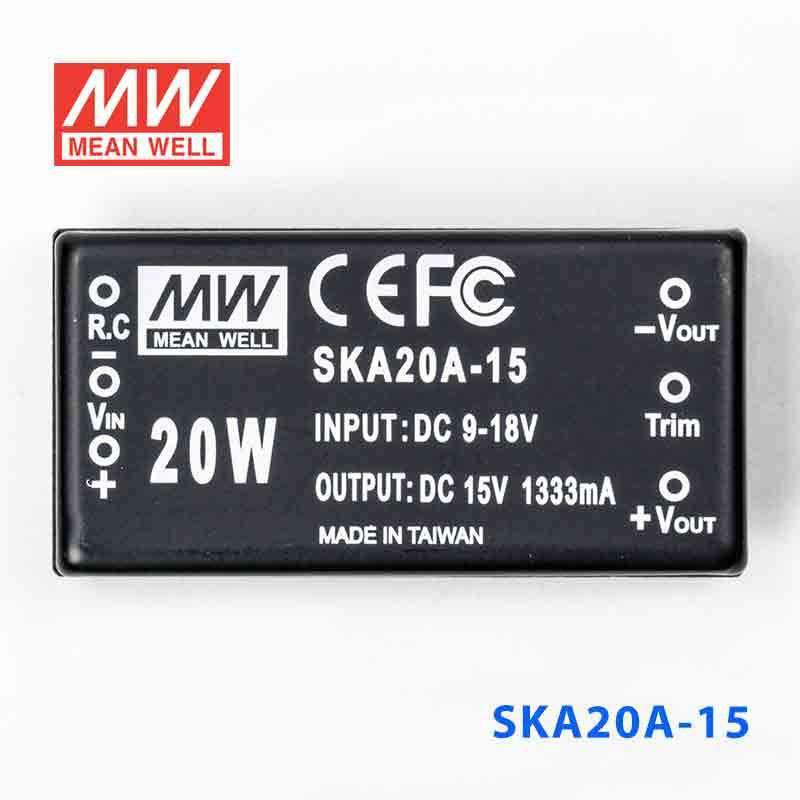

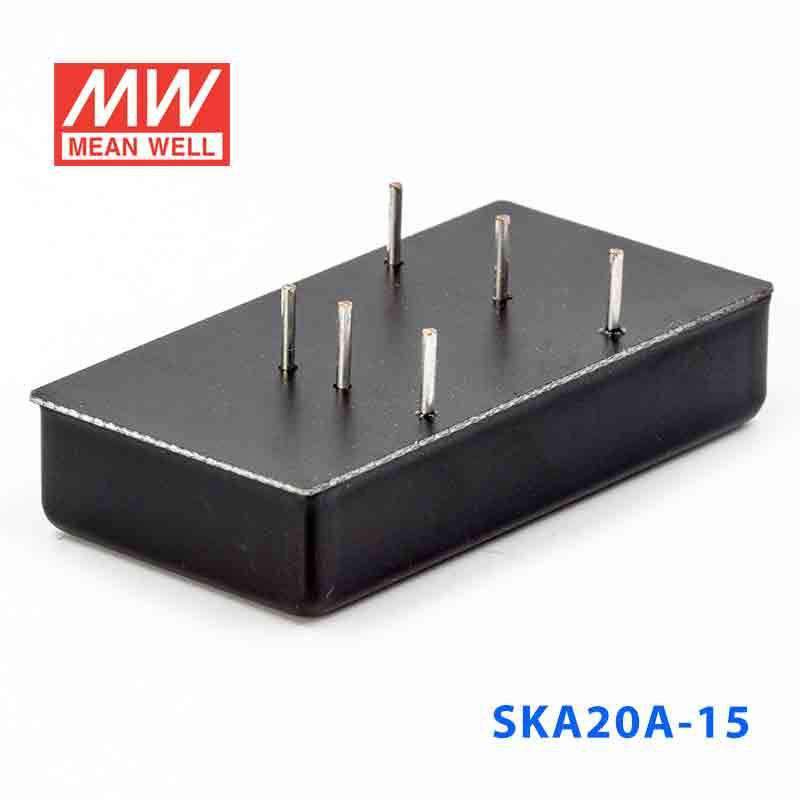

Mean Well SKA20A-15 DC-DC Converter - 20W - 9~18V in 15V out
Please Login for Pricing
Description
Description
The SKA20A is a 20W Mean Well power converter.
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length5.08 cm
-
Width2.54 cm
-
Height1.12 cm
-
Weight0.03 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA20A-15 for a 15V industrial control circuit from a 9-18VAC source?
Yes, if the input source is within 9-18VAC and the load needs constant 15V output. The converter is rated for 20W total and up to 1.33A, so it fits smaller 15V control circuits within those limits.
Is this model suitable for 15V embedded or analog electronics in automation equipment?
It can be used for 15V constant-voltage electronics when the total current stays at or below 1.33A. That makes it a fit for lower-power embedded or analog sections that need a regulated 15V rail.
Would the SKA20A-15 work for 15V instrumentation or interface modules inside a panel?
Yes, for panel-mounted instrumentation or interface modules that need 15V constant voltage and stay within 20W output. The compact 50.8 × 25.4 × 11.2 mm size also helps in tighter cabinet layouts.
Can this converter be used for a small 15V communications or monitoring subsystem?
It is suitable for smaller 15V subsystems as long as the total load remains within 1.33A and 20W. The unit also weighs 0.0312 kg, which supports compact low-mass assemblies.
Is the SKA20A-15 appropriate for outdoor installations or only controlled enclosures?
The operating temperature range is -40°C to +85°C, so the listed thermal range is broad. However, no IP rating appears in the provided specs, so it should not be described from this data alone as an outdoor-rated or sealed model.
