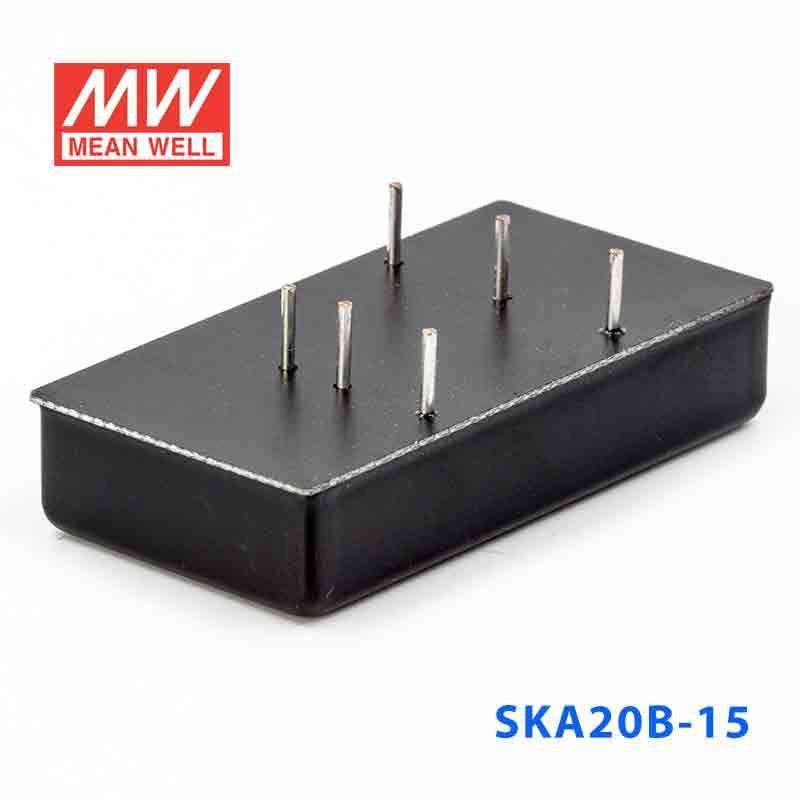

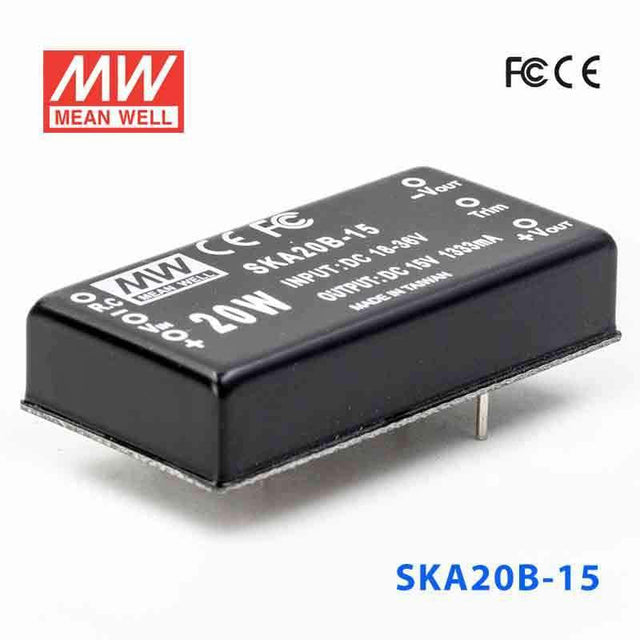

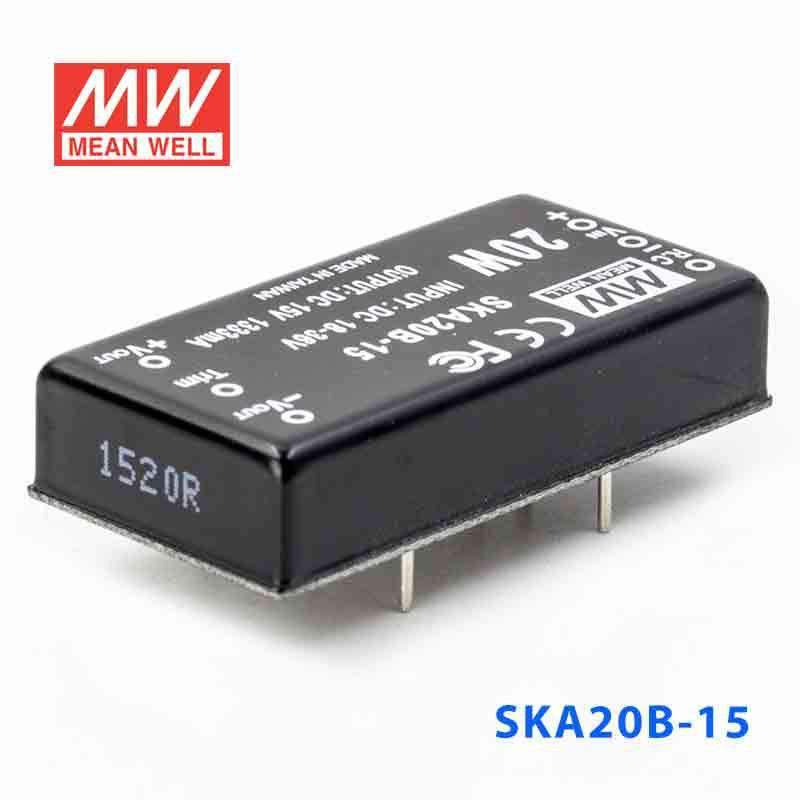

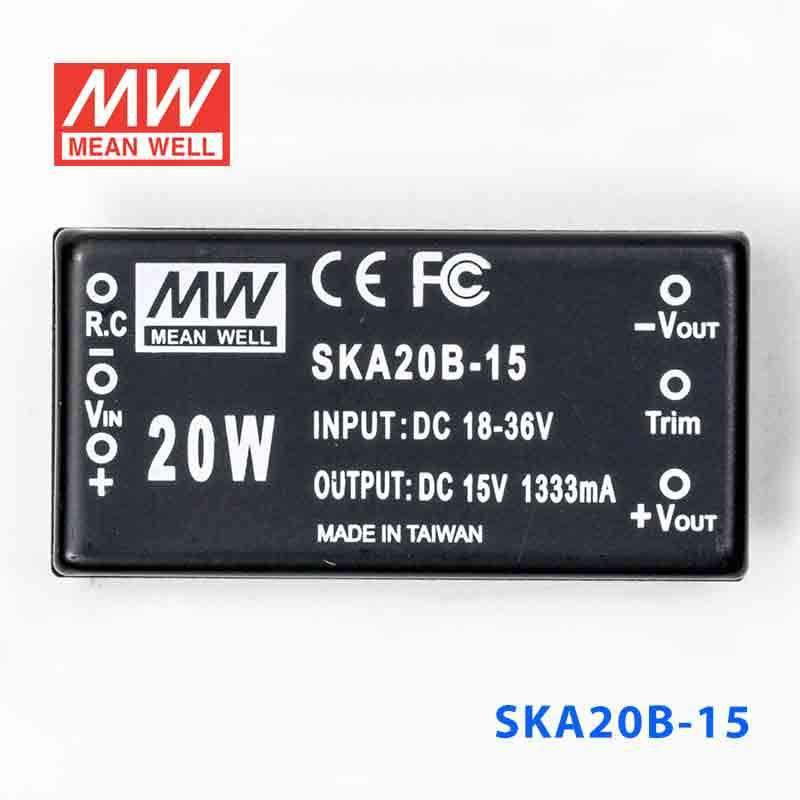

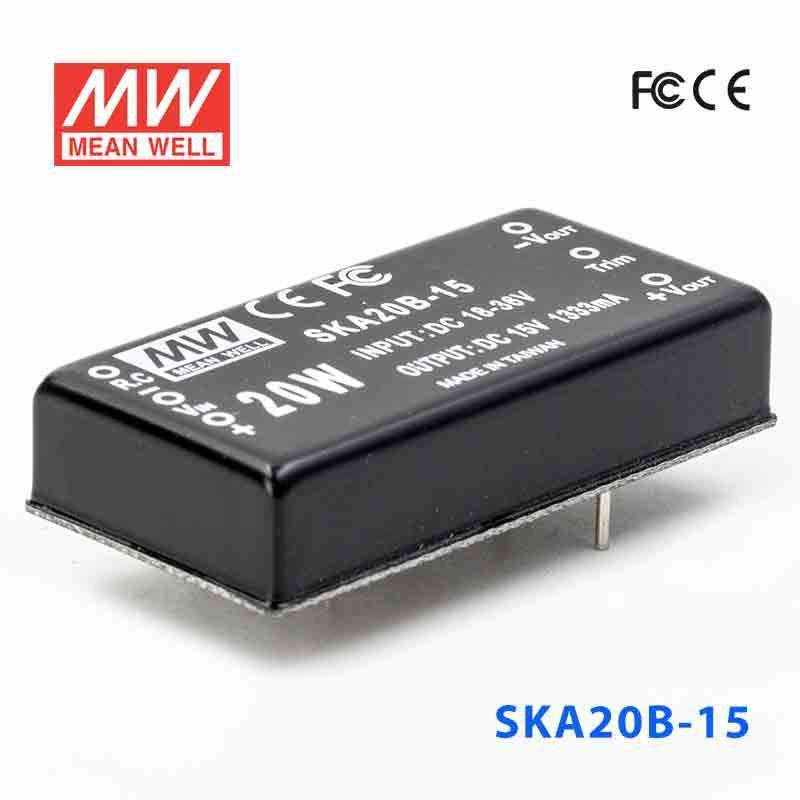

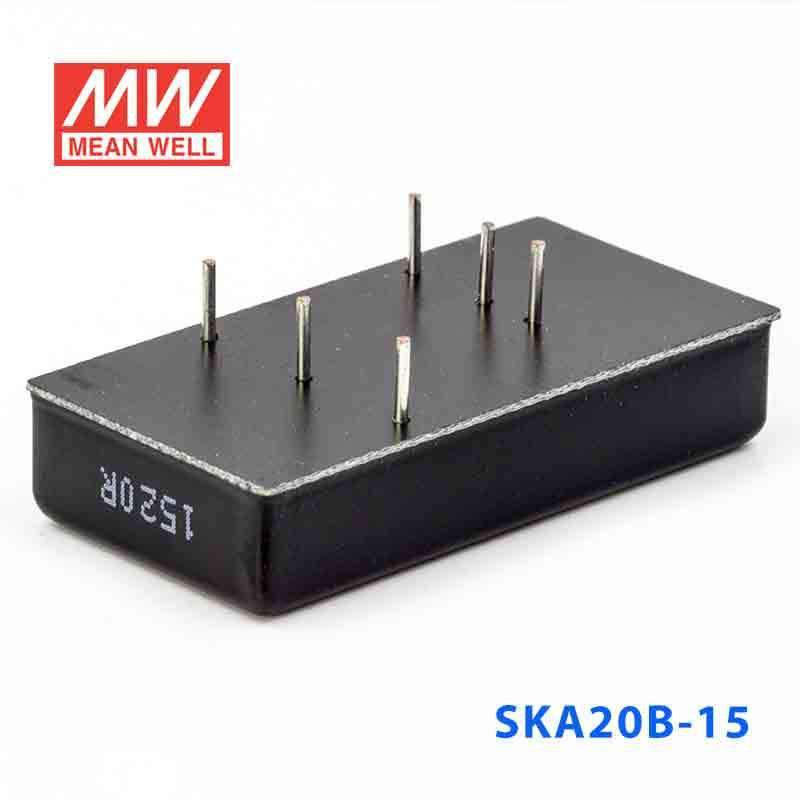

Mean Well SKA20B-15 DC-DC Converter - 20W - 18~36V in 15V out
Please Login for Pricing
Description
Description
The SKA20B is a 20W Mean Well power converter.
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage18V~36V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length5.08 cm
-
Width2.54 cm
-
Height1.12 cm
-
Weight0.03 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKA20B-15 to run a 15V industrial control or embedded subsystem?
Yes, it is a constant-voltage converter with a 15V output and an 18-36VAC input range. It can support 15V loads up to 1.33A, with a maximum output power of 20W.
Is the SKA20B-15 suitable for 15V automation electronics inside machinery or cabinets?
It can be suitable for 15V automation electronics if the available input falls within 18-36VAC. The connected load must remain within the converter's 1.33A output current and 20W output rating.
Can this converter power 15V industrial sensors or signal-processing modules?
This model is intended for fixed 15V output applications and uses constant-voltage operation. It fits 15V devices that require no more than 1.33A from a source in the 18-36VAC input range.
How does the SKA20B-15 handle temperature and environmental exposure?
The specified operating temperature range is -40°C to +85°C, which covers a wide set of temperature conditions. No IP rating appears in the provided specs, so the product page does not classify it for outdoor or washdown exposure.
How is SKA20B-15 different from SKA20B-05 and SKA20B-12?
The three SKA20B versions have the same 20W power rating, 18-36VAC input range, compact 50.8 × 25.4 × 11.2 mm size, 0.0312 kg weight, and -40°C to +85°C operating temperature. The output options are 5V at 4A for SKA20B-05, 12V at 1.66A for SKA20B-12, and 15V at 1.33A for SKA20B-15.
