Mean Well

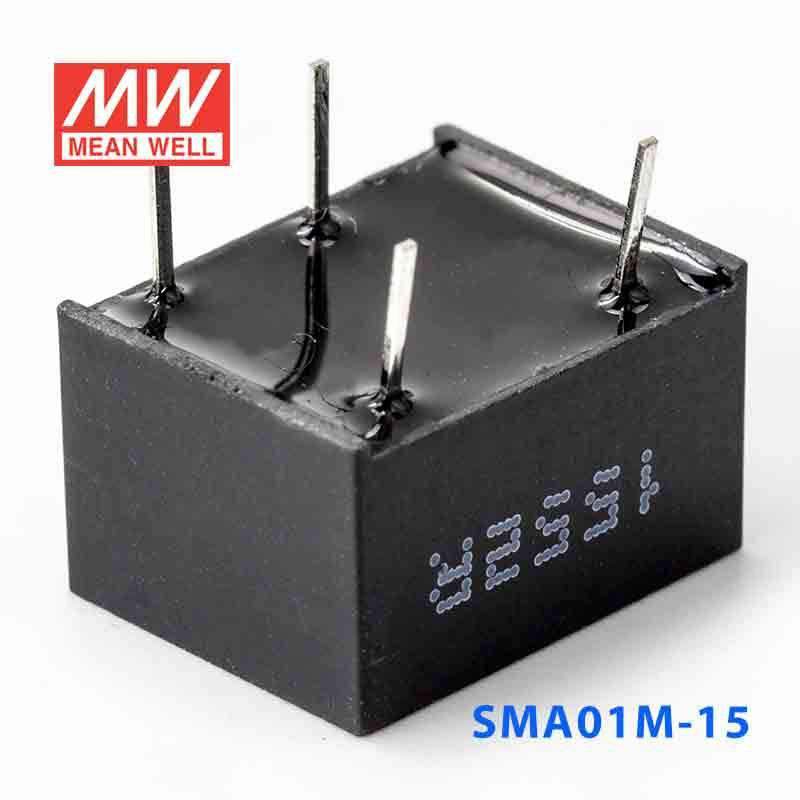

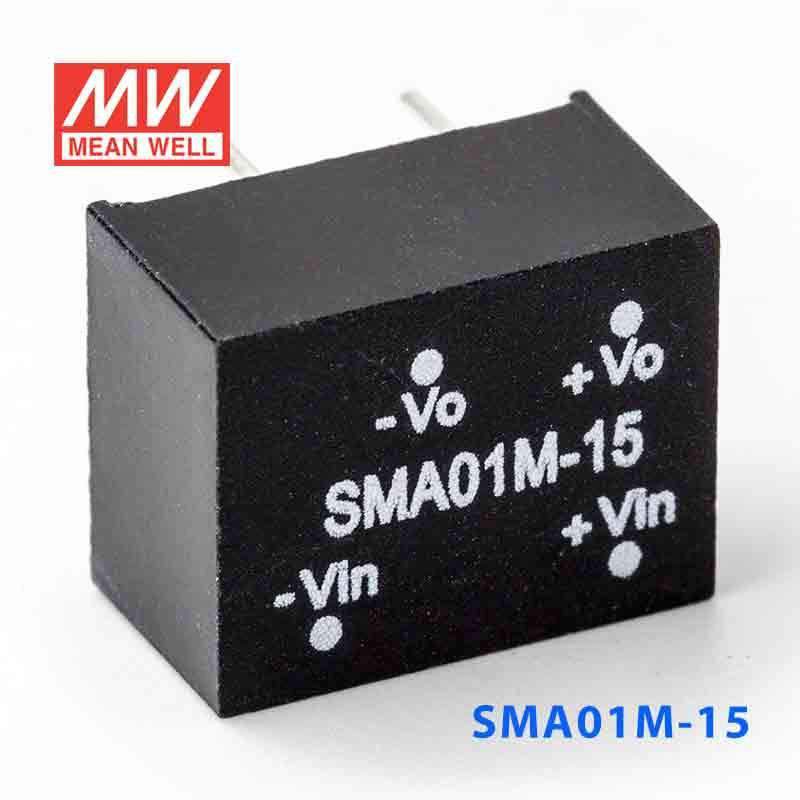

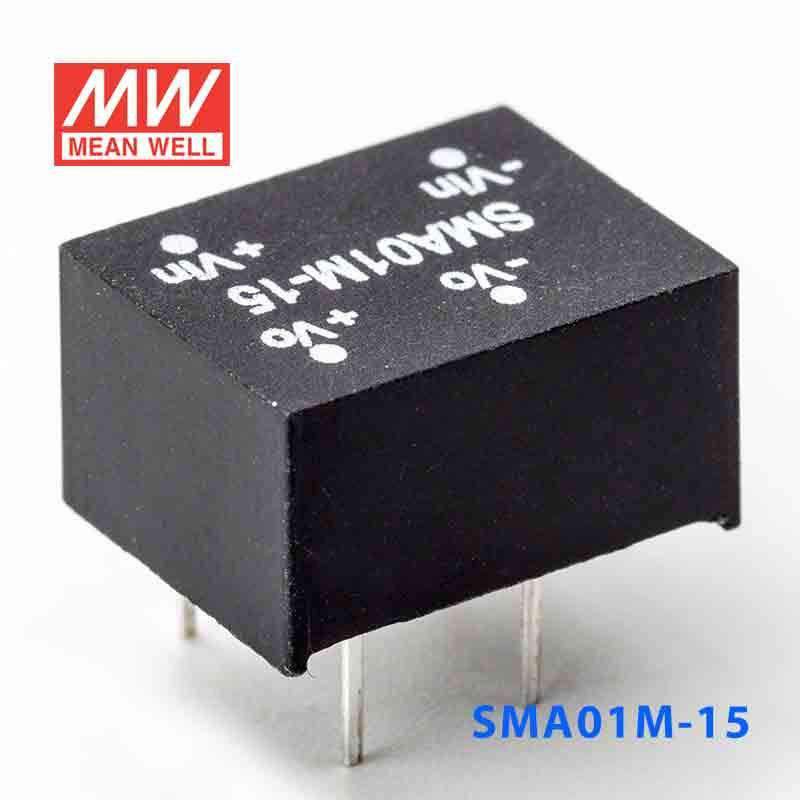

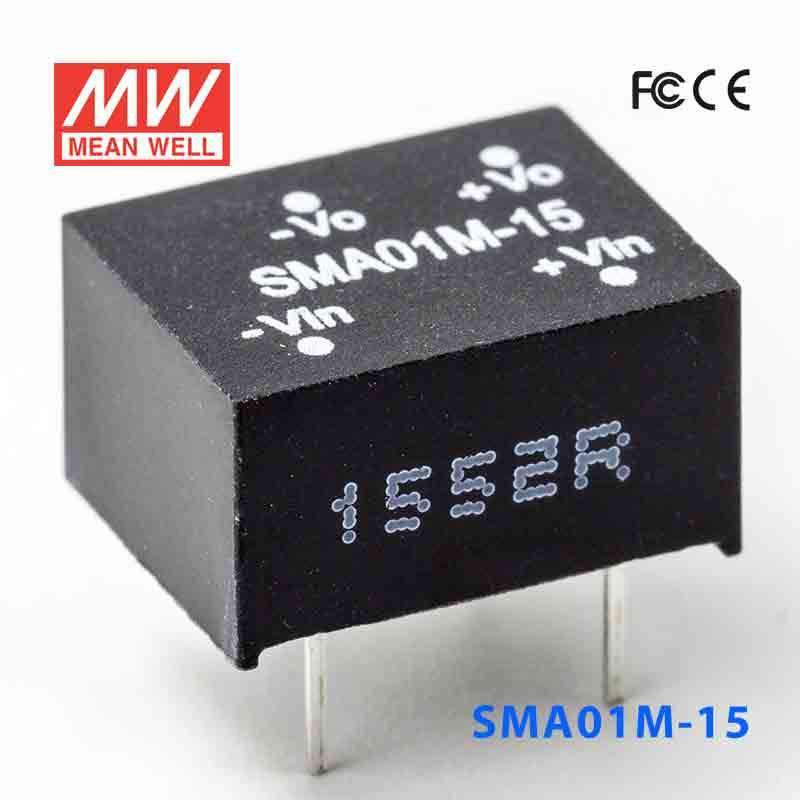

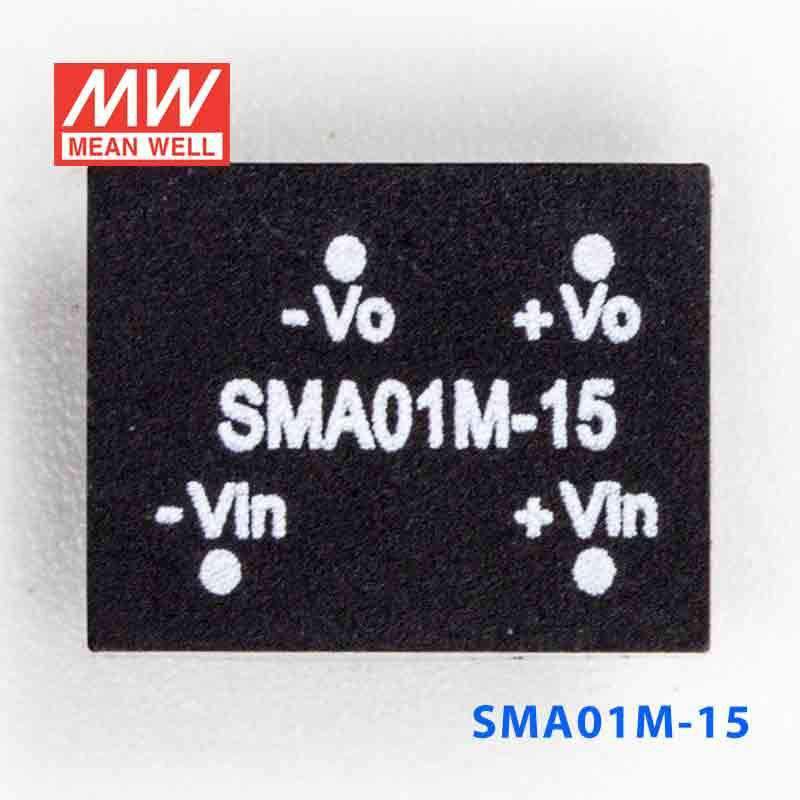

Mean Well SMA01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out 67mA

SKU SMA01M-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SMA01M-15 is the model of this series: rated power 1W, typical efficiency 79%.

Features

  • 1500VDC I/O isolation
  • 3000VDC I/O isolation(optional)
  • Operating temperature range of -40 ~ +85℃ without derating
  • Internal SMD technology
  • Built-in EMI filter
  • Cooling by free air convection
  • Non-conductive plastic case
  • Dual in line package
  • Industry standard pinout
  • 100% burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

SMA01M-15Specifications from the official datasheet (2024-08-02 edition)

SELECTION GUIDE

DC OUTPUT VOLTAGE
15V
OUTPUT CURRENT RANGE
0 ~ 67mA
EFFICIENCY(Typ.)
79%

OUTPUT

RATED POWER
1W
RIPPLE & NOISE (max.)Note.2
100mVp-p
LINE REGULATIONNote.3
±1.2% for 1% input variation
LOAD REGULATIONNote.4
±8.0%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY(Typ.)
100KHz

INPUT

VOLTAGE RANGE
10.8 ~ 13.2V
NORMAL VOLTAGE
12V
INPUT CURRENT Full load
110mA
INPUT CURRENT No load
15mA
PROTECTION (FUSE RECOMMENDED)
250mA
FILTER
Capacitor type

PROTECTION

OVERLOAD
Momentary Protection type : Broken
SHORT CIRCUIT
Momentary Protection type : Broken

ENVIRONMENT

WORKING TEMP.
-40 ~ +90℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +125℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
80pF max.
EMI RADIATION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMS IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
700khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H)
12.7*10.16*7.1mm or 0.50"*0.40"*0.28" inch for 5V,12V input ; 12.7*10.16*7.62mm or 0.50"*0.40"*0.30" inch for 24V input
PACKING
1.6g ; 40pcs/per tube, 6000pcs/150 tube/per carton
Test conditions and notes4
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.

Technical drawings

SMA01M-15 Mechanical Specification Unit: mm
Mechanical Specification Unit: mm
SMA01M-15 Packing
Packing

Downloads

FAQ

Can I use the SMA01M-15 for a small 15V analog or interface section in industrial electronics?

Yes, this model is a constant-voltage 15V converter rated at 1W, so it suits low-power analog, interface, or auxiliary circuits that need 15V. It is intended for small board-level loads rather than higher-power 15V equipment.

Is the SMA01M-15 appropriate for embedded designs that need a compact 15V rail?

It can be appropriate when the embedded system has a 10.8~13.2V input source and only needs a low-power 15V output. The 12.7 × 10.16 × 7.1 mm size makes it easier to place in compact electronic assemblies.

Can this converter be used for low-power instrumentation support inside an automation cabinet?

Yes, it is suitable for low-power 15V support functions where constant-voltage output is required and the load stays within the 1W limit. That makes it relevant for auxiliary instrumentation or signal-stage circuits inside enclosed equipment.

Does the SMA01M-15 fit wide-temperature industrial environments?

Its operating temperature range is -40°C to +90°C, so it supports wide indoor industrial temperature conditions. Since there is no listed IP rating, it is better used in protected enclosures than in direct outdoor exposure.

What should I compare across the SMA01M-15 and the other SMA01M models?

All SMA01M models are 1W constant-voltage converters with 10.8~13.2V input. The output variants are 5V at 200mA, 9V at 110mA, 12V at 84mA, and 15V at 67mA.
