Mean Well

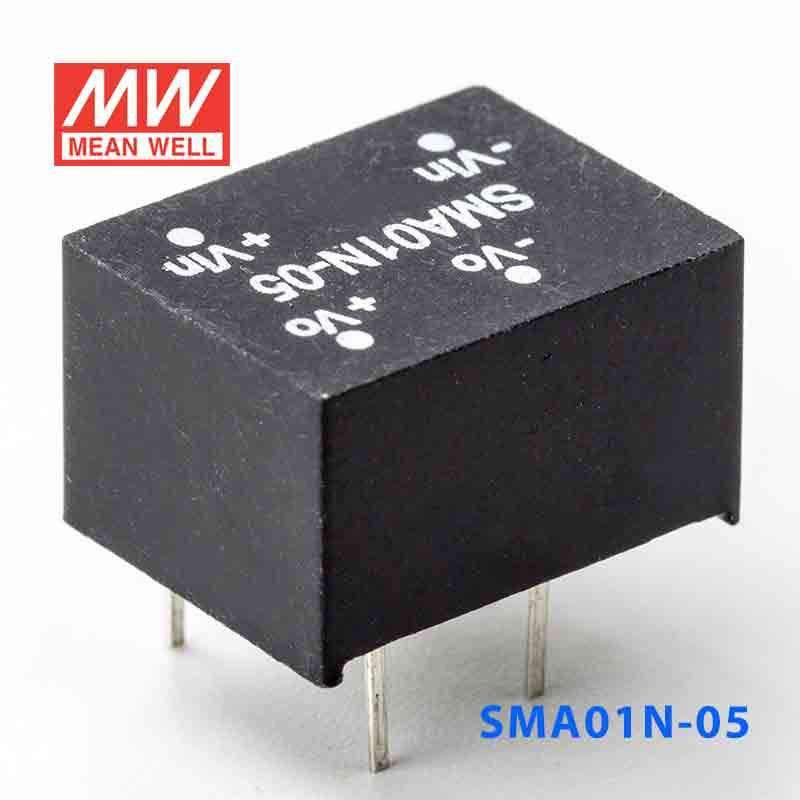

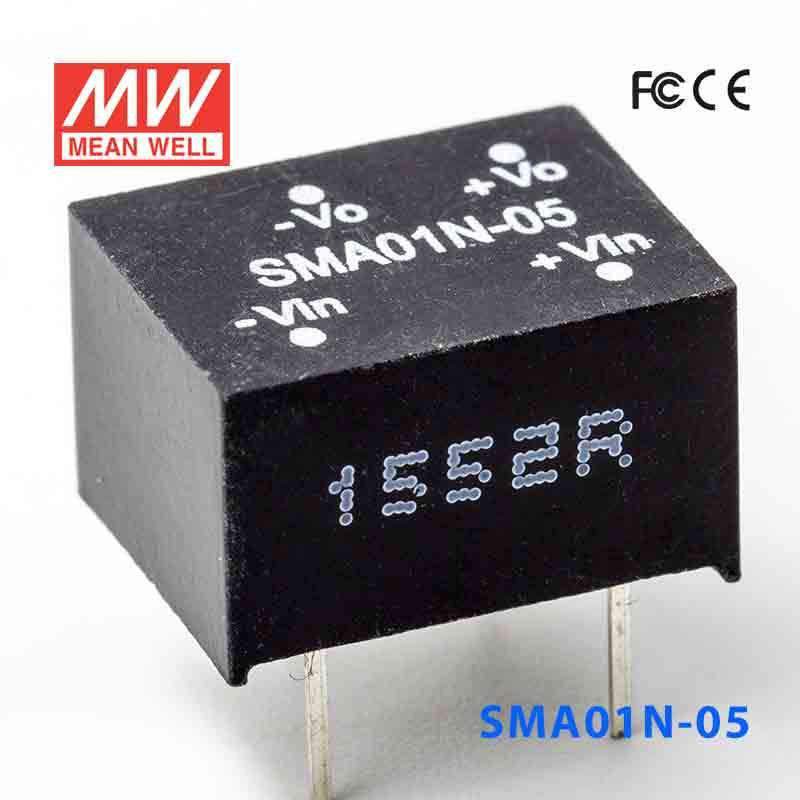

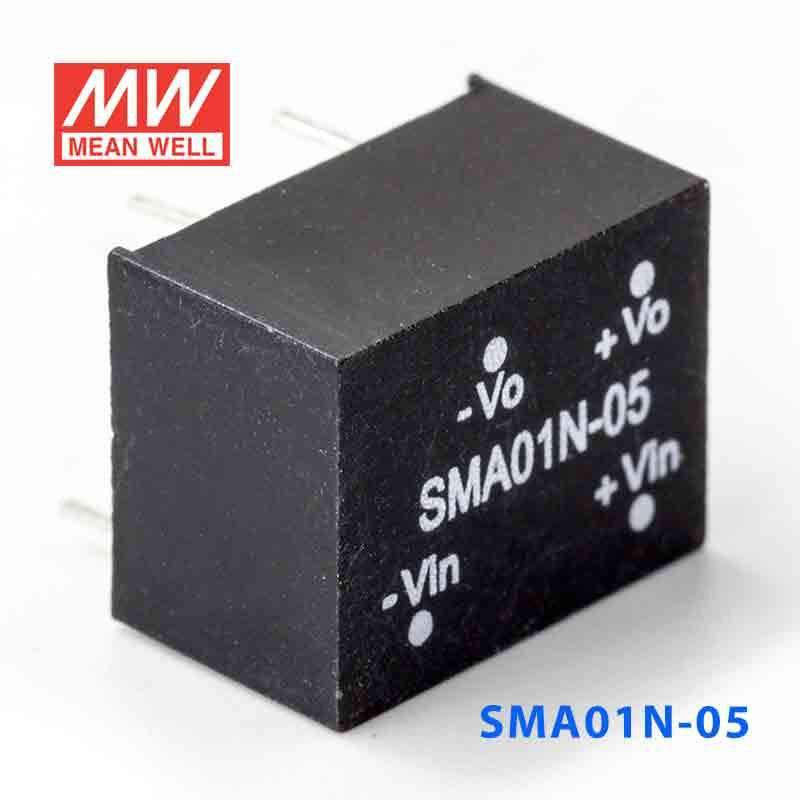

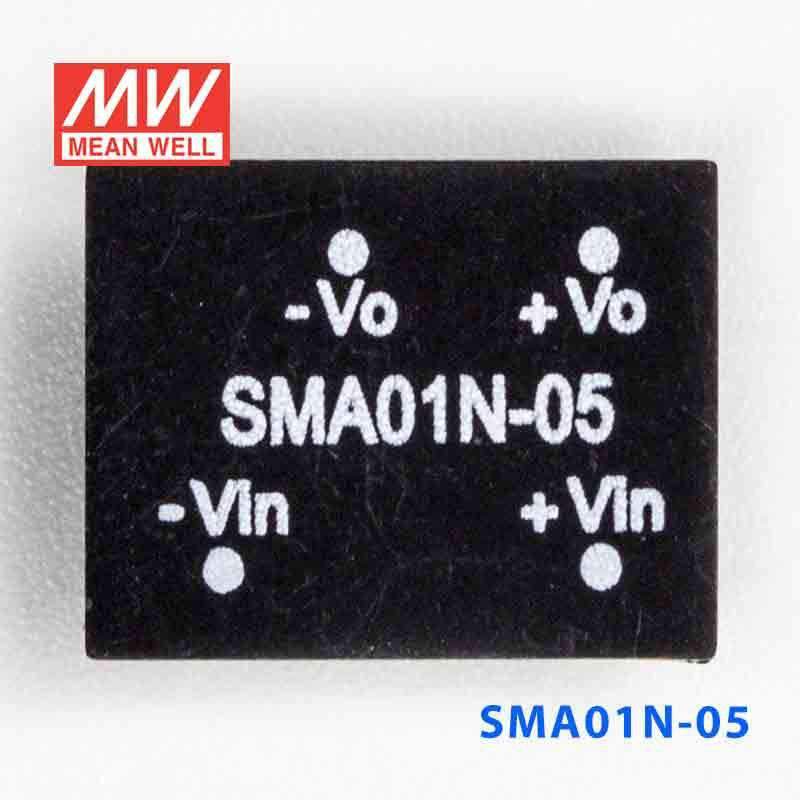

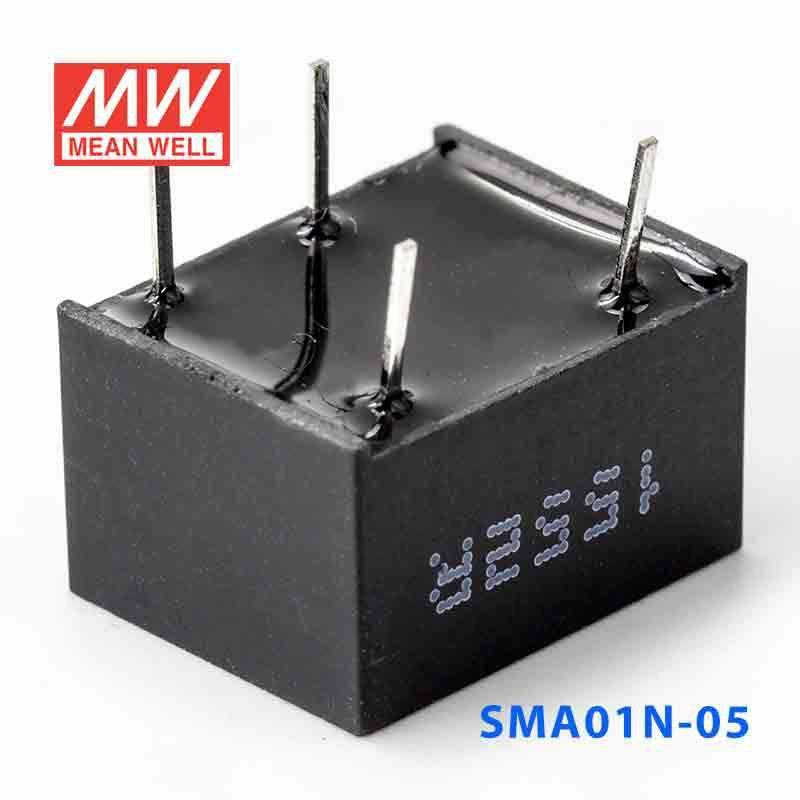

Mean Well SMA01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out 200mA

SKU SMA01N-05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SMA01N-05 is the model of this series: rated power 1W, typical efficiency 77%.

Features

  • 1500VDC I/O isolation
  • 3000VDC I/O isolation(optional)
  • Operating temperature range of -40 ~ +85℃ without derating
  • Internal SMD technology
  • Built-in EMI filter
  • Cooling by free air convection
  • Non-conductive plastic case
  • Dual in line package
  • Industry standard pinout
  • 100% burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

SMA01N-05Specifications from the official datasheet (2024-08-02 edition)

SELECTION GUIDE

DC OUTPUT VOLTAGE
5V
OUTPUT CURRENT RANGE
0 ~ 200mA
EFFICIENCY(Typ.)
77%

OUTPUT

RATED POWER
1W
RIPPLE & NOISE (max.)Note.2
100mVp-p
LINE REGULATIONNote.3
±1.2% for 1% input variation
LOAD REGULATIONNote.4
±8.0%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY(Typ.)
100KHz

INPUT

VOLTAGE RANGE
21.6 ~ 26.4V
NORMAL VOLTAGE
24V
INPUT CURRENT Full load
57mA
INPUT CURRENT No load
11mA
PROTECTION (FUSE RECOMMENDED)
150mA
FILTER
Capacitor type

PROTECTION

OVERLOAD
Momentary Protection type : Broken
SHORT CIRCUIT
Momentary Protection type : Broken

ENVIRONMENT

WORKING TEMP.
-40 ~ +90℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +125℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
80pF max.
EMI RADIATION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMS IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
700khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H)
12.7*10.16*7.1mm or 0.50"*0.40"*0.28" inch for 5V,12V input ; 12.7*10.16*7.62mm or 0.50"*0.40"*0.30" inch for 24V input
PACKING
1.6g ; 40pcs/per tube, 6000pcs/150 tube/per carton
Test conditions and notes4
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.

Technical drawings

SMA01N-05 Mechanical Specification Unit: mm
Mechanical Specification Unit: mm
SMA01N-05 Packing
Packing

Downloads

FAQ

Can I use the SMA01N-05 to generate 5V for low-power control electronics from a 21.6~26.4V source?

Yes, this model is designed for that kind of low-power conversion, with 21.6~26.4V input and constant 5V output at 1W. It fits small control, logic, or interface sections that need a regulated 5V auxiliary rail.

Is the SMA01N-05 suitable for 24V-class automation systems that need a compact 5V auxiliary output?

It is suitable when the available input falls within the listed 21.6~26.4V range and the downstream electronics only need a 1W 5V supply. The compact 12.7 × 10.16 × 7.62 mm package also helps in dense panel or embedded layouts.

Can this converter support small 5V sensing or communications electronics inside industrial equipment?

Yes, it can support low-power 5V sensing or communications-related electronics when the application needs constant-voltage output from a 21.6~26.4V input source. It is intended for auxiliary electronics, not larger 5V power loads.

Is the SMA01N-05 acceptable for outdoor installations?

The specified operating range is -40°C to +90°C, which supports wide-temperature use inside equipment. No IP rating is provided, so it should be treated as a protected indoor-enclosure component rather than an exposed outdoor one.

How does the SMA01N-05 compare with the rest of the SMA01N series?

All SMA01N models are 1W constant-voltage converters with 21.6~26.4V input. The series includes 5V at 200mA, 9V at 110mA, 12V at 84mA, and 15V at 67mA.
