Can I use the SMU01L-05 to supply 5V logic in embedded or automation electronics?

Yes, it can fit low-power 5V logic sections that need constant voltage output and operate within the converter's 1W rating. This version is specified for 5V output with 200A output current and is intended for designs matched to that product specification.

Is the SMU01L-05 suitable for a 5V auxiliary rail when my source is around 5V?

This model is intended for input in the 4.5~5.5V range and provides a 5V constant voltage output. It is a compact option for low-power auxiliary electronics because the package measures 11.6 × 10.14 × 6.1 mm.

Can the SMU01L-05 be used in compact industrial or IT devices with tight board space?

It can be a fit where physical space is limited and the required power level is only 1W. The converter weighs 0.0013 kg and uses an 11.6 × 10.14 × 6.1 mm form factor, which is useful for compact assemblies.

Is the SMU01L-05 appropriate for indoor or outdoor equipment?

The operating temperature range is -40°C to +90°C, so the temperature specification covers demanding indoor equipment conditions. An IP rating is not listed in the provided specs, so exposed outdoor or wet-location suitability is not defined here.

How does the SMU01L-05 compare with the other SMU01L models?

The listed SMU01L siblings are all 1W converters. The SMU01L-05 is 5V with 200A output current, the SMU01L-09 is 9V with 110A, the SMU01L-12 is 12V with 0.08A, and the SMU01L-15 is 15V with 0.07A.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

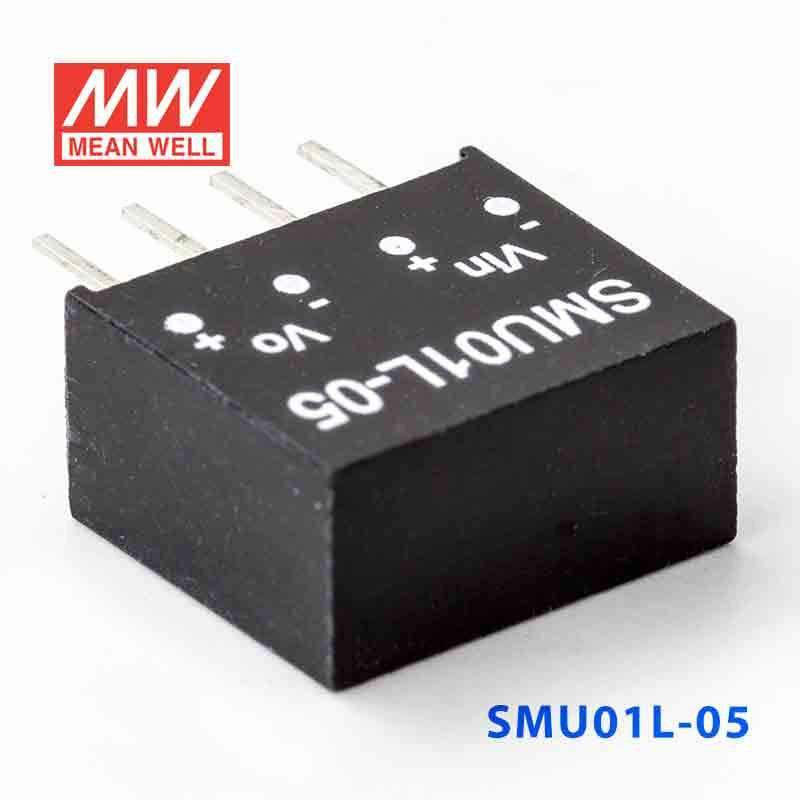

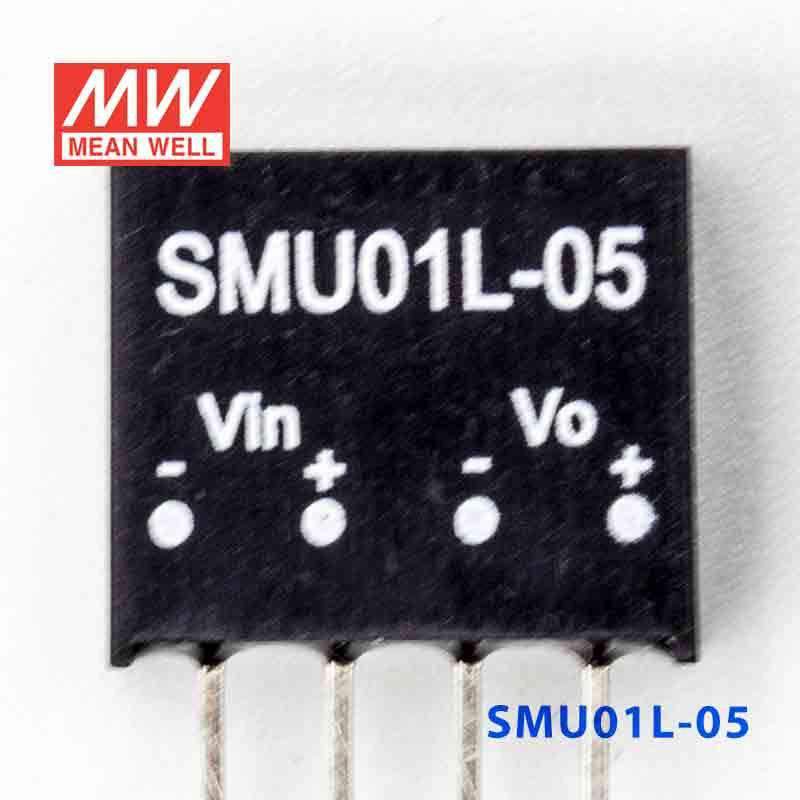

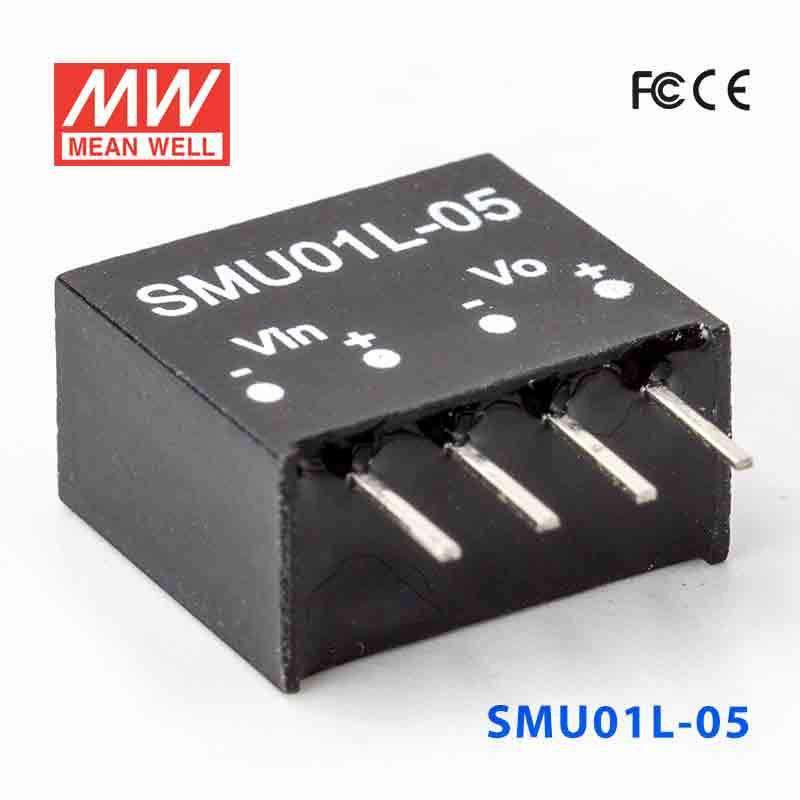

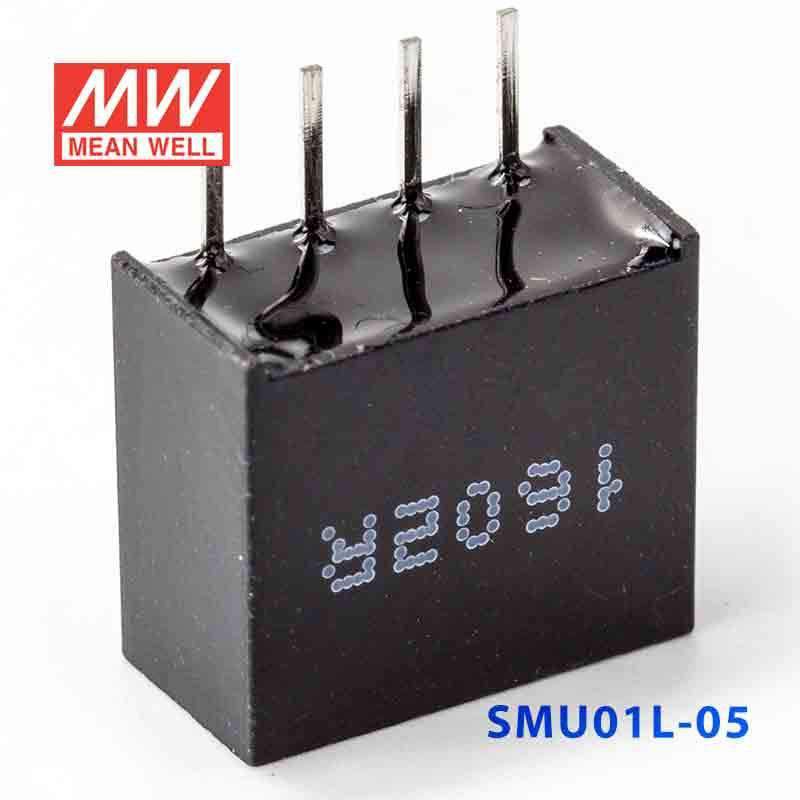

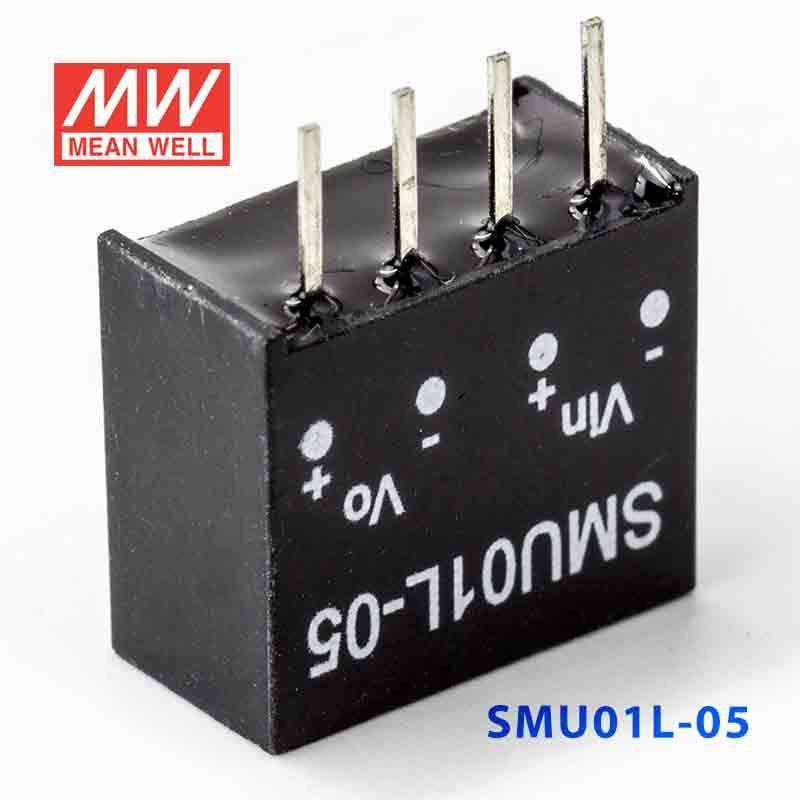

Mean Well SMU01L-05 DC-DC Converter - 1W - 4.5~5.5V in 5V out 200mA

SKU:

SMU01L-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SMU01L is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).

Key Features

✓ Input voltage range: 4.5~5.5V
✓ 1.5KVDC reinforced I/O isolation
✓ No minimum load required
✓ Wide operating temperature: -40~+90℃
✓ Protections: Short circuit / Overload
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SMU01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out 67mA	1W	15V	0.06A	Indoor	View
Mean Well SMU01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out 84mA	1W	12V	0.08A	Indoor	View
Mean Well SMU01N-09 DC-DC Converter - 1W - 21.6~26.4V in 9V out 110mA	1W	9V	0.11A	Indoor	View
Mean Well SMU01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out 200mA	1W	5V	0.2A	Indoor	View
Mean Well SMU01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out 67mA	1W	15V	0.06A	Indoor	View
Mean Well SMU01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out 84mA	1W	12V	0.08A	Indoor	View
Mean Well SMU01M-09 DC-DC Converter - 1W - 10.8~13.2V in 9V out 110mA	1W	9V	0.11A	Indoor	View
Mean Well SMU01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out 200mA	1W	5V	0.2A	Indoor	View
Mean Well SMU01L-15 DC-DC Converter - 1W - 4.5~5.5V in 15V out 67mA	1W	15V	0.06A	Indoor	View
Mean Well SMU01L-12 DC-DC Converter - 1W - 4.5~5.5V in 12V out 84mA	1W	12V	0.08A	Indoor	View
Mean Well SMU01L-09 DC-DC Converter - 1W - 4.5~5.5V in 9V out 110mA	1W	9V	0.11A	Indoor	View
