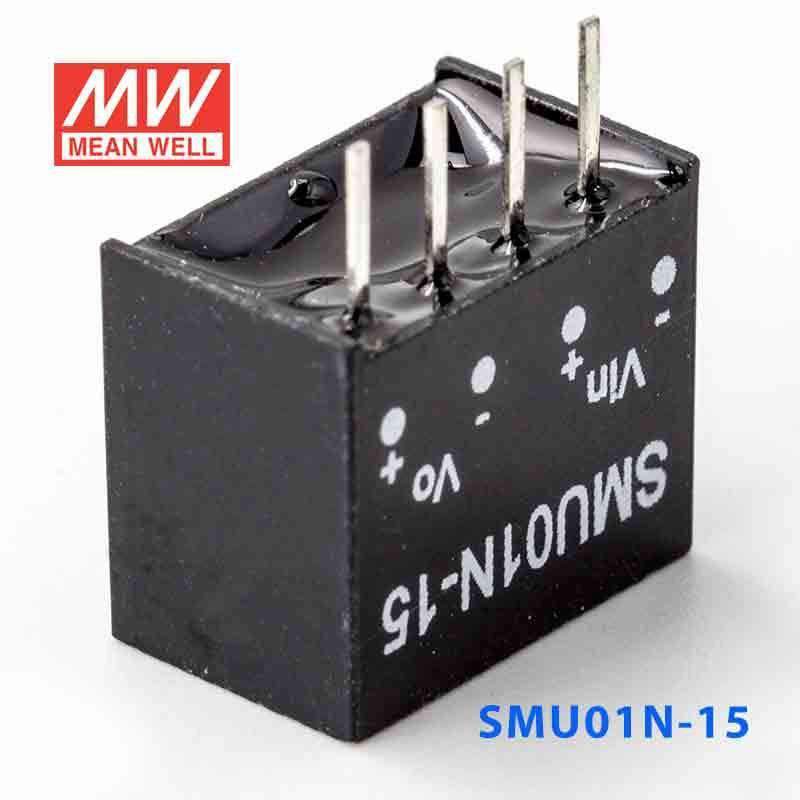

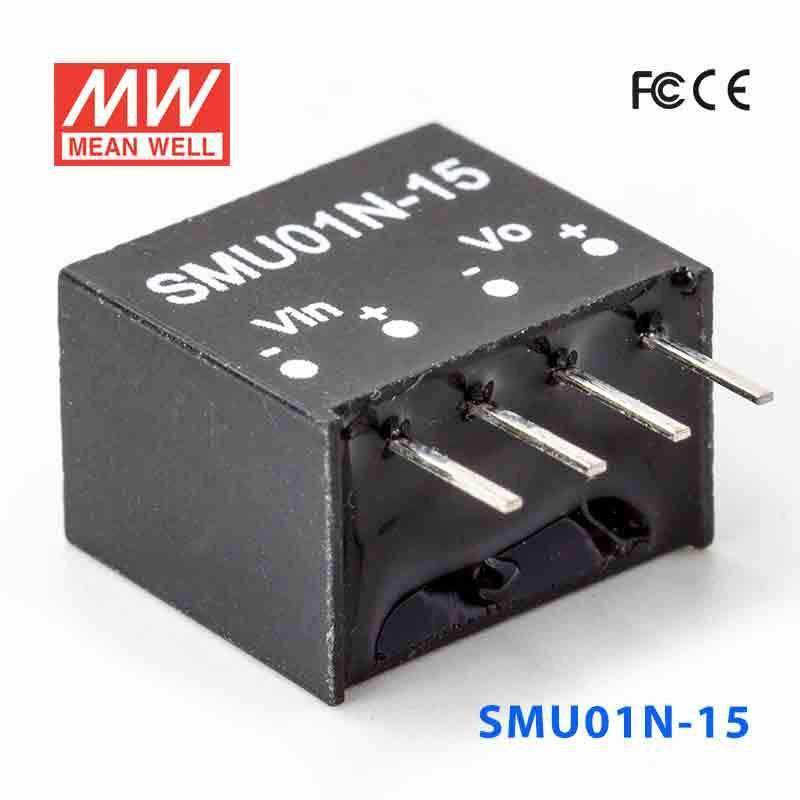

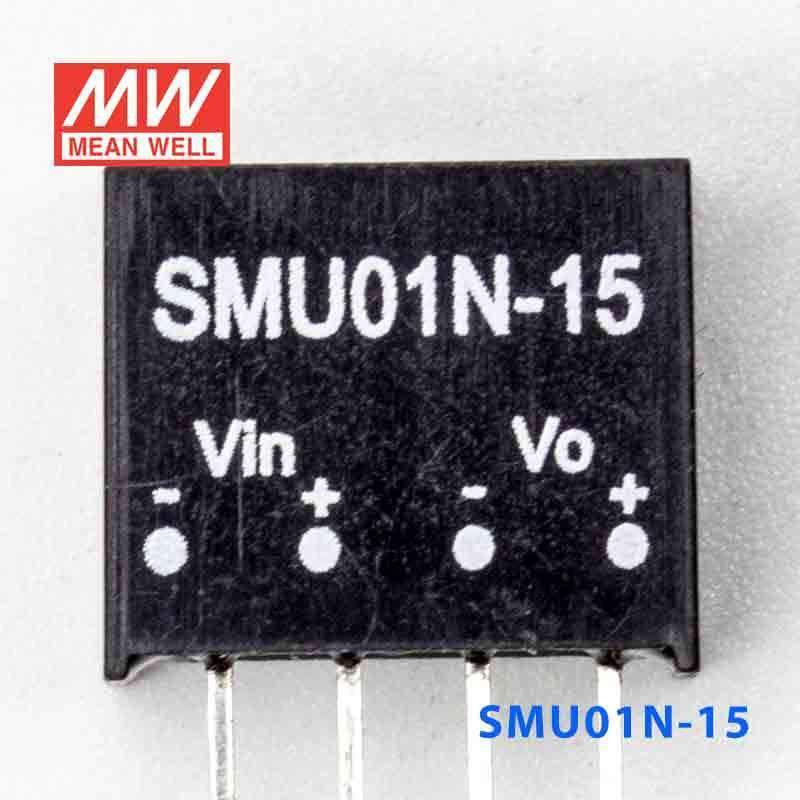

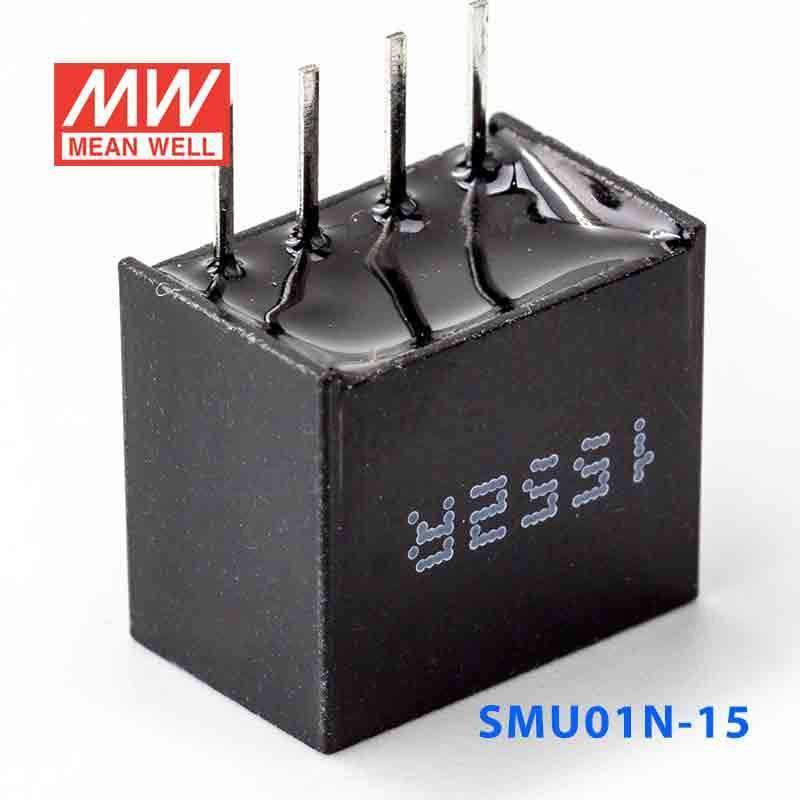

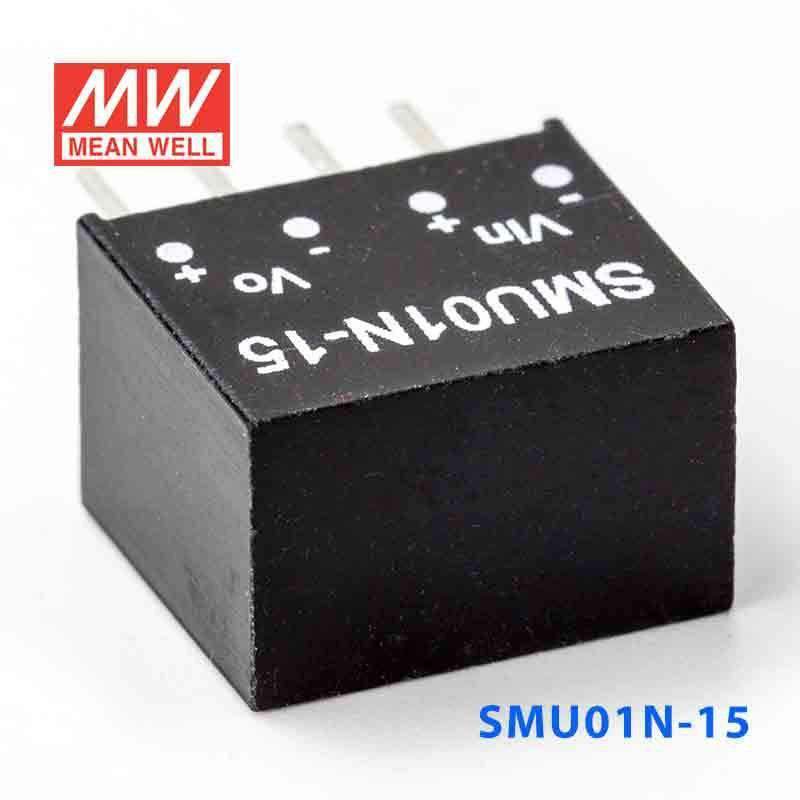

Mean Well SMU01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out 67mA

SKU SMU01N-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SMU01N-15 is the model of this series: rated power 1W, typical efficiency 77%.

Features

  • 1500VDC I/O isolation
  • 3000VDC I/O isolation(optional)
  • Operating temperature range of -40 ~ +85℃ without derating
  • Internal SMD technology
  • Built-in EMI filter
  • Cooling by free air convection
  • Non-conductive plastic case
  • SIP packge
  • Industry standard pinout
  • 100% burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

SMU01N-15Specifications from the official datasheet (2024-08-02 edition)

SELECTION GUIDE

DC OUTPUT VOLTAGE
15V
OUTPUT CURRENT RANGE
0 ~ 67mA
EFFICIENCY(Typ.)
77%

OUTPUT

RATED POWER
1W
RIPPLE & NOISE (max.)Note.2
100mVp-p
LINE REGULATIONNote.3
±1.2% for 1% input variation
LOAD REGULATIONNote.4
±8.0%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY(Typ.)
100KHz

INPUT

VOLTAGE RANGE
21.6 ~ 26.4V
NORMAL VOLTAGE
24V
INPUT CURRENT Full load
57mA
INPUT CURRENT No load
11mA
PROTECTION (FUSE RECOMMENDED)
150mA
FILTER
Capacitor type

PROTECTION

OVERLOAD
Momentary Protection type : Broken
SHORT CIRCUIT
Momentary Protection type : Broken

ENVIRONMENT

WORKING TEMP.
-40 ~ +90℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +125℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
80pF max.
EMI RADIATION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMS IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
700khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H)
11.6*6.1*10.14mm or 0.46"*0.24"*0.40" inch for 5V,12V input ; 11.6*7.4*10.14mm or 0.46"*0.29"*0.40" inch for 24V input
PACKING
SMU01L/M: 1.3g ; 42 pcs/per tube, 6720 pcs/ 160 tube/per carton SMU01N : 1.4g ; 42 pcs/per tube, 6720 pcs/ 160 tube/per carton
Test conditions and notes4
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.

Technical drawings

SMU01N-15 Mechanical Specification Unit: mm
Mechanical Specification Unit: mm
SMU01N-15 Packing
Packing

Downloads

FAQ

Can I use the SMU01N-15 for 15V auxiliary power in industrial control assemblies?

Yes, if the source is within 21.6~26.4VAC and the load needs a constant 15V output. With a 1W rating, it fits low-power auxiliary electronics, control sections, and embedded circuits rather than larger 15V devices.

Is the SMU01N-15 appropriate for compact embedded boards that need a 15V rail?

It is designed for dense board layouts because the body size is 11.6 × 10.14 × 7.4 mm and the weight is 0.0013 kg. That small footprint suits embedded and automation boards with limited space for a 15V converter.

Can this converter be used in industrial measurement or signal-processing equipment that runs on 15V?

Yes, it can support low-power 15V electronics when the available input is 21.6~26.4VAC. The constant-voltage design and 1W capacity make it appropriate for auxiliary measurement and processing circuits.

What is the difference between the SMU01N-15 and the other SMU01N versions?

The SMU01N-15 is the 1W model with a 15V output and a listed output current of 0.07A. Other SMU01N variants are SMU01N-05 at 1W and 5V with 200A, SMU01N-09 at 1W and 9V with 110A, and SMU01N-12 at 1W and 12V with 0.08A.

Can the SMU01N-15 handle wide-temperature industrial environments?

Its specified operating temperature range is -40°C to +90°C, which supports use in demanding ambient conditions. Since no IP rating appears in the listed specs, the finished enclosure determines whether the overall equipment is suitable for outdoor exposure.
