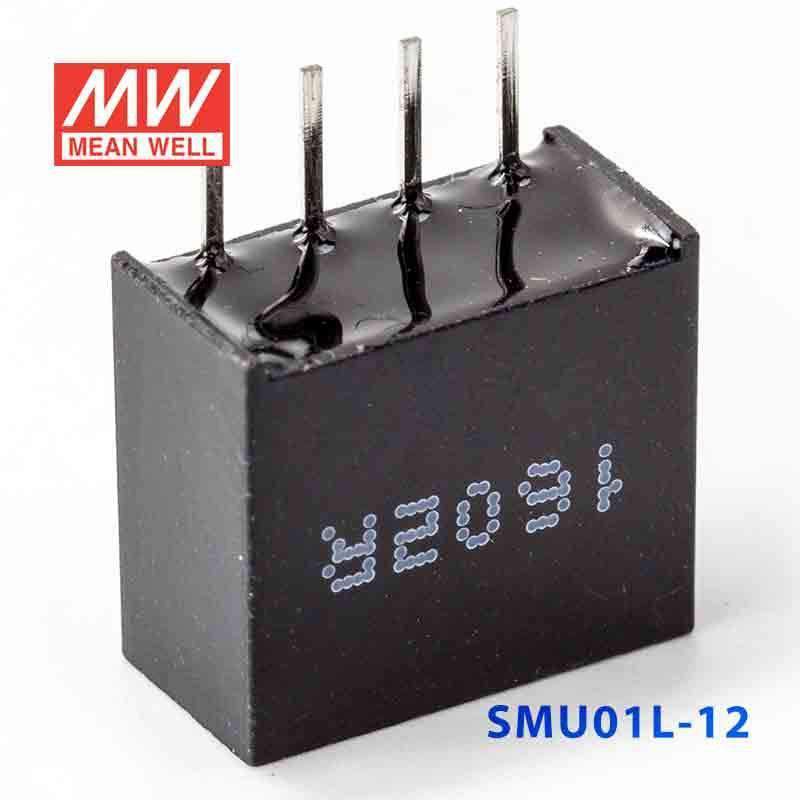

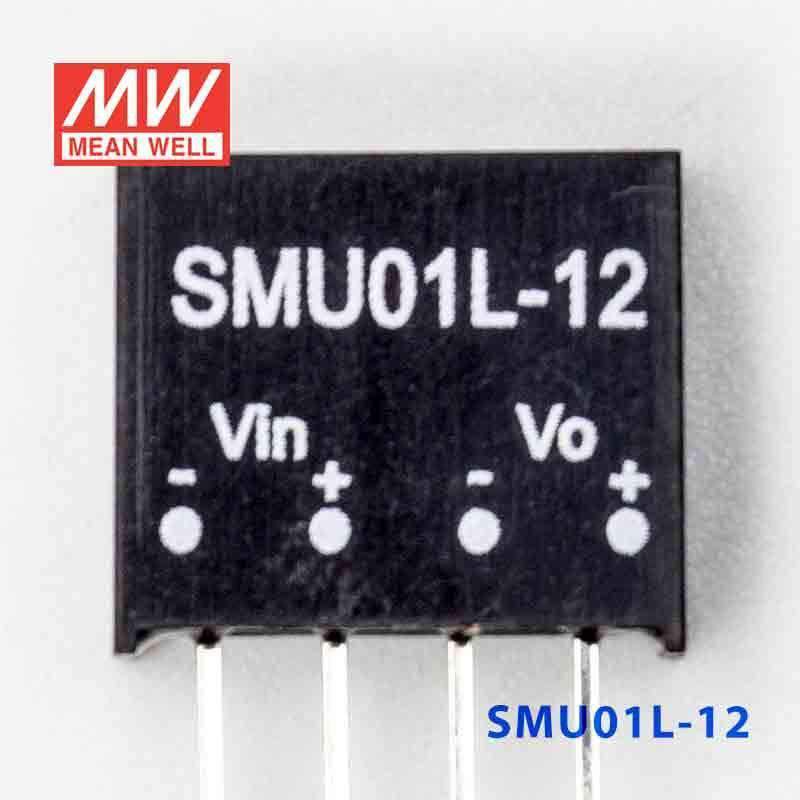

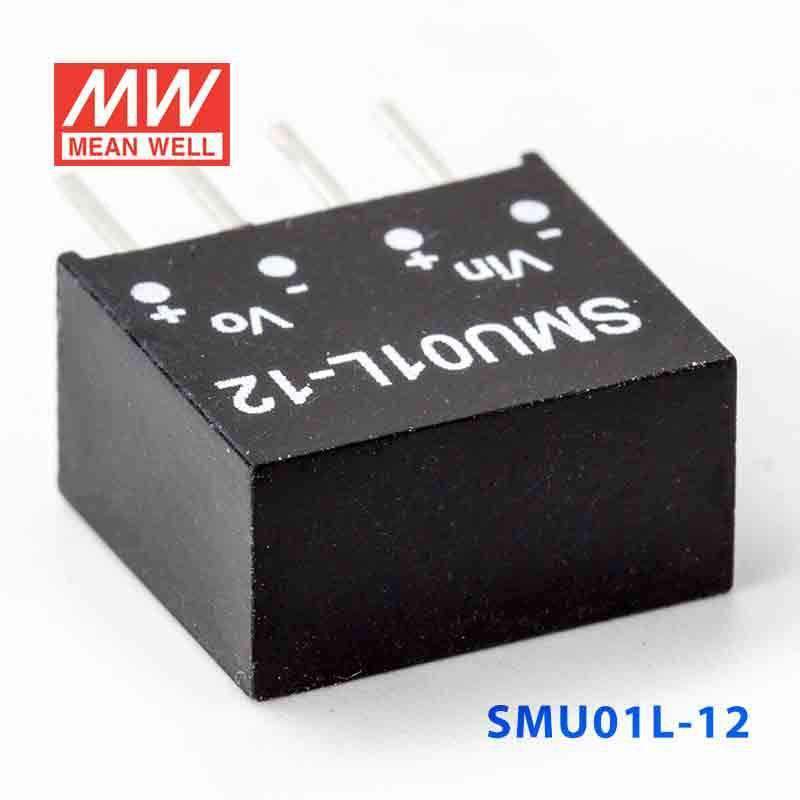

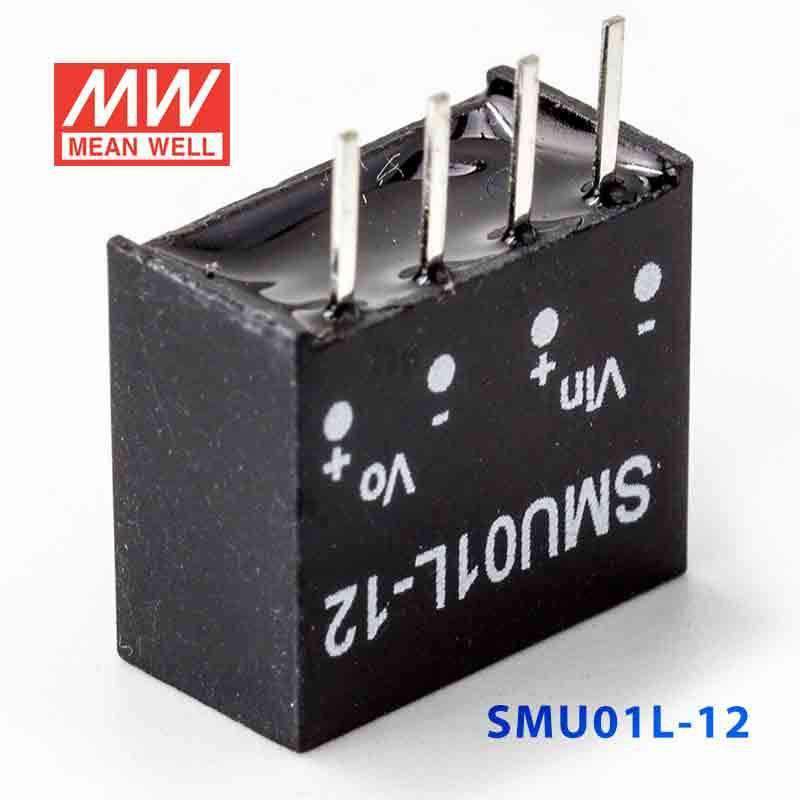

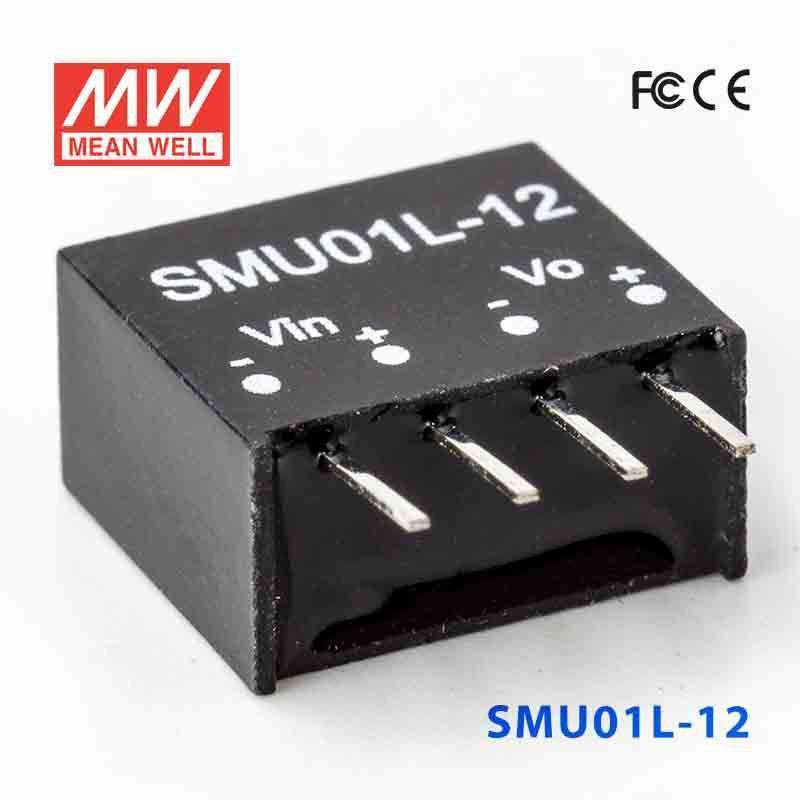

Mean Well SMU01L-12 DC-DC Converter - 1W - 4.5~5.5V in 12V out 84mA

SKU SMU01L-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SMU01L-12 is the model of this series: rated power 1W, typical efficiency 78%.

Features

  • 1500VDC I/O isolation
  • 3000VDC I/O isolation(optional)
  • Operating temperature range of -40 ~ +85℃ without derating
  • Internal SMD technology
  • Built-in EMI filter
  • Cooling by free air convection
  • Non-conductive plastic case
  • SIP packge
  • Industry standard pinout
  • 100% burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

SMU01L-12Specifications from the official datasheet (2024-08-02 edition)

SELECTION GUIDE

DC OUTPUT VOLTAGE
12V
OUTPUT CURRENT RANGE
0 ~ 84mA
EFFICIENCY(Typ.)
78%

OUTPUT

RATED POWER
1W
RIPPLE & NOISE (max.)Note.2
100mVp-p
LINE REGULATIONNote.3
±1.2% for 1% input variation
LOAD REGULATIONNote.4
±8.0%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY(Typ.)
100KHz

INPUT

VOLTAGE RANGE
4.5 ~ 5.5V
NORMAL VOLTAGE
5V
INPUT CURRENT Full load
265mA
INPUT CURRENT No load
32mA
PROTECTION (FUSE RECOMMENDED)
500mA
FILTER
Capacitor type

PROTECTION

OVERLOAD
Momentary Protection type : Broken
SHORT CIRCUIT
Momentary Protection type : Broken

ENVIRONMENT

WORKING TEMP.
-40 ~ +90℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +125℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
80pF max.
EMI RADIATION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMS IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
700khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H)
11.6*6.1*10.14mm or 0.46"*0.24"*0.40" inch for 5V,12V input ; 11.6*7.4*10.14mm or 0.46"*0.29"*0.40" inch for 24V input
PACKING
SMU01L/M: 1.3g ; 42 pcs/per tube, 6720 pcs/ 160 tube/per carton SMU01N : 1.4g ; 42 pcs/per tube, 6720 pcs/ 160 tube/per carton
Test conditions and notes4
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.

Technical drawings

SMU01L-12 Mechanical Specification Unit: mm
Mechanical Specification Unit: mm
SMU01L-12 Packing
Packing

Downloads

FAQ

Can I use the SMU01L-12 to power a small 12V control or sensing circuit from a near-5V source?

Yes, it is suited to low-power 12V control or sensing sections that need constant voltage output within the converter's 1W rating. The output is specified as 12V at 0.08A.

Is the SMU01L-12 appropriate for embedded electronics that need 12V from a 4.5~5.5V input range?

This model is intended for applications where the input is within 4.5~5.5V and the required output is 12V constant voltage. It is designed for low-power use, with a total power rating of 1W.

Can the SMU01L-12 fit compact industrial or IT hardware with limited PCB space?

It can be a good fit in compact hardware because the body measures 11.6 × 10.14 × 6.1 mm and weighs 0.0013 kg. Those dimensions support use in small embedded or control assemblies where only a light 12V rail is needed.

Is the SMU01L-12 suitable for outdoor or high-temperature environments?

The operating temperature range is -40°C to +90°C, so the temperature spec is broad enough for demanding equipment conditions. The product data provided does not list an IP rating, so direct outdoor, wet, or dust-exposed suitability is not specified.

How does the SMU01L-12 compare with the other SMU01L family members?

The listed SMU01L series options are all 1W converters. The siblings shown are SMU01L-05 at 5V and 200A, SMU01L-09 at 9V and 110A, SMU01L-12 at 12V and 0.08A, and SMU01L-15 at 15V and 0.07A.
