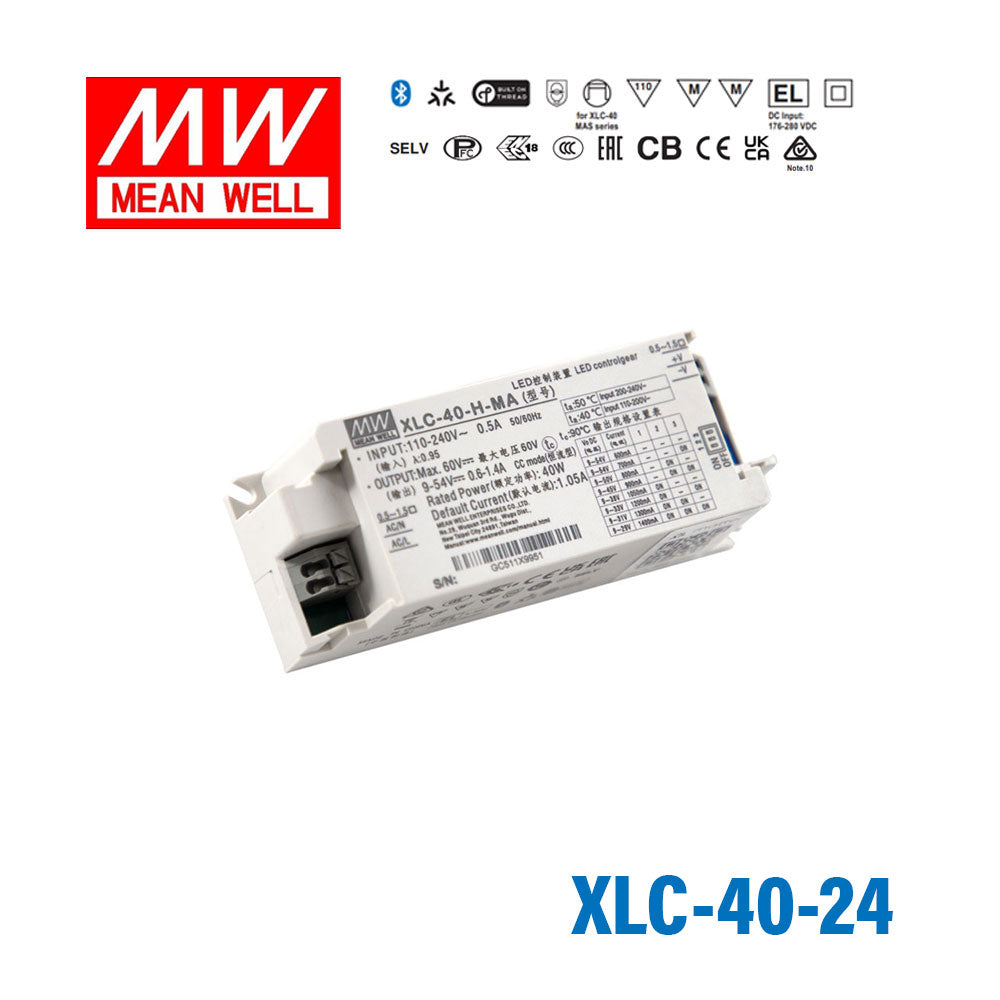

Mean Well XLC-40-24 LED Driver 40.8W 24V 1.7A
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating40.8 Watt
-
Output Voltage24 Volt
-
Rated Current1.7 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-40-24 to power 24V LED strips in a hotel corridor lighting installation?
Yes, the XLC-40-24 delivers 40.8W at 24V constant voltage, making it suitable for longer 24V LED strip runs in hotel corridor cove or wall-wash lighting. The flicker-free output is important in occupied spaces, and the operating range of -25°C to +90°C covers the temperatures found in ceiling voids above hospitality-grade corridors.
Is the XLC-40-24 suitable for powering 24V LED strips in a retail shop window display?
Yes, the XLC-40-24 is a 24V constant voltage driver that can supply up to 40.8W to 24V LED strip systems used in retail window displays. Its wide 100–305VAC input allows use across international mains standards, and the Class II rating means no protective earth is required — useful when the driver is concealed in a display structure.
Can the XLC-40-24 drive 24V LED tape in an architectural soffit or ceiling cove application?
Yes, the XLC-40-24 is designed for built-in use in luminaires or concealed spaces and its 40.8W at 24V output supports meaningful LED tape lengths for soffit or cove lighting. The compact 147.0 × 32.0 × 40.0 mm footprint fits inside standard junction boxes or ceiling void cable assemblies. The flicker-free output ensures high visual quality in architectural lighting schemes.
How much 24V LED strip can the XLC-40-24 power?
The XLC-40-24 provides 40.8W at 24V and 1.7A. Divide 40.8W by your strip's rated watts per meter — for a 14.4 W/m strip that is approximately 2.83 m (40.8 ÷ 14.4 ≈ 2.83 m), and for a 9.6 W/m strip about 4.25 m. Check your specific strip's rated power per meter and limit loading to around 80% of driver rating for reliable continuous use.
Is the XLC-40-24 suitable for installations where the driver is mounted in a high-temperature ceiling space?
The XLC-40-24 operates between -25°C and +90°C, giving it good thermal tolerance for above-ceiling environments. In practice, actual output derating at elevated temperatures should be verified against the full Mean Well datasheet. Ensure adequate ventilation or heat spreading around the driver when ambient ceiling temperatures are high.
What is the difference between the XLC-40-24 and the XLC-40-24-S?
The XLC-40-24 and XLC-40-24-S are electrically identical: 40.8W output, 24V, 1.7A, with the same 147.0 × 32.0 × 40.0 mm case. The XLC-40-24-S adds strain-relief on the output cable, providing mechanical protection at the cable exit. The XLC-40-24 also lists built-in use as a feature, while the -S model is oriented toward installations requiring cable strain protection.
