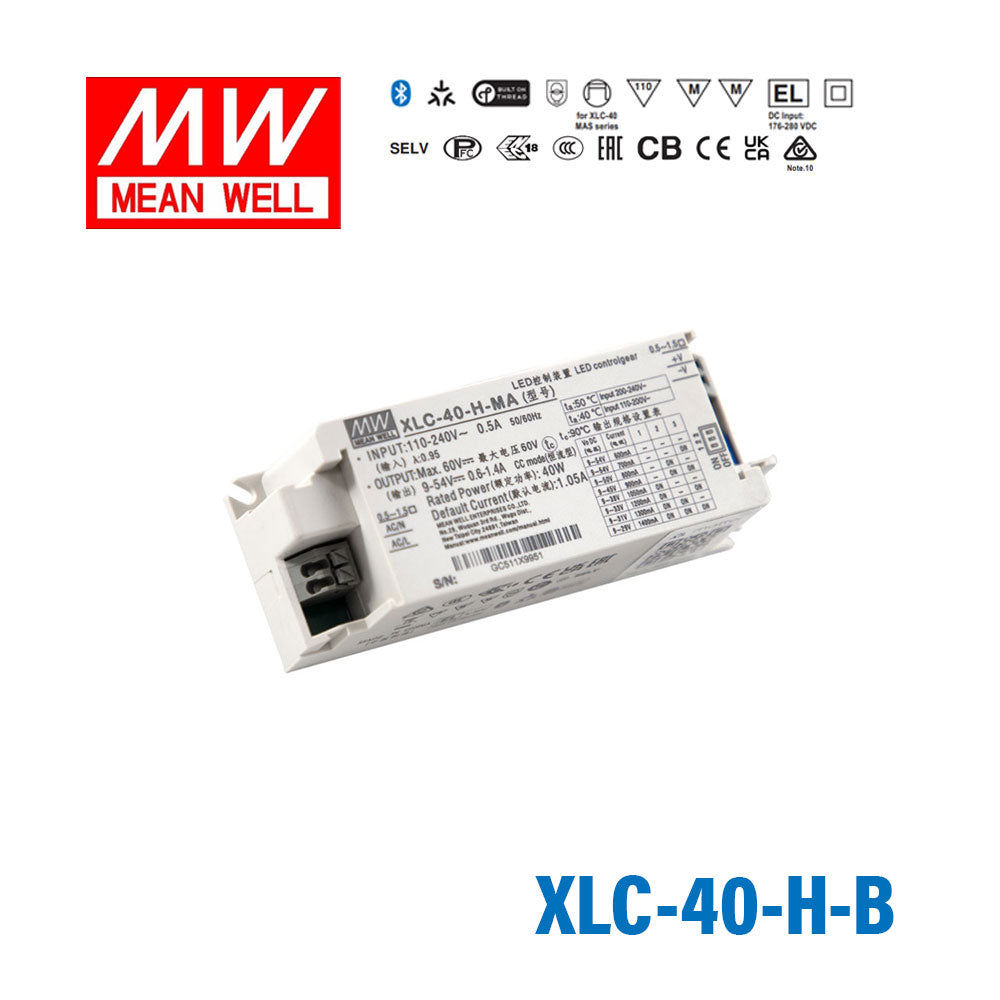

Mean Well XLC-40-H-B LED Driver 40W 1050mA 9~54V Constant Power, 3 ...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating40 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I dim LEDs in a retail display using the XLC-40-H-B?
Yes. The XLC-40-H-B supports 3-in-1 dimming, accepting 0–10V, PWM, and resistance dimming signals. This makes it compatible with most common dimming controllers used in retail and commercial display lighting.
Is the XLC-40-H-B suitable for a dimmable LED downlight in a hospitality space?
Yes. The driver delivers 40W at a constant 1050mA with flicker-free output and 3-in-1 analog dimming support. The built-in form factor fits inside most recessed downlight enclosures, and the wide input range of 100–305VAC covers international installations.
Can I use the XLC-40-H-B for small LED arrays in architectural facade lighting?
The XLC-40-H-B has no IP rating listed and is specified for built-in use only, so it requires placement inside an appropriately rated enclosure if used outdoors. For indoor architectural or facade applications behind a protective housing it can drive LED arrays with forward voltages within the 9–54V CC range at up to 40W.
How is the output current set on the XLC-40-H-B?
Output current is configured via the onboard dip switch, with an adjustment range of 0.6A to 1.4A around the nominal 1050mA. This allows the driver to be tuned for LED loads that operate at lower drive currents without external components.
What LED configurations are compatible with the XLC-40-H-B constant current output?
The CC output voltage range is 9–54V. LED strings whose combined forward voltage falls within this range at the selected drive current are compatible. Because forward voltage varies by LED type, the number of LEDs in the string must be sized based on each LED's specific Vf specification.
Does the XLC-40-H-B carry PFC and Class II classification?
Yes, it includes built-in power factor correction (PFC) and is Class II (double-insulated), eliminating the need for an earth ground connection in compatible fixtures. Certifications include CB, CCC, CE, EAC, and ENEC.
