Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

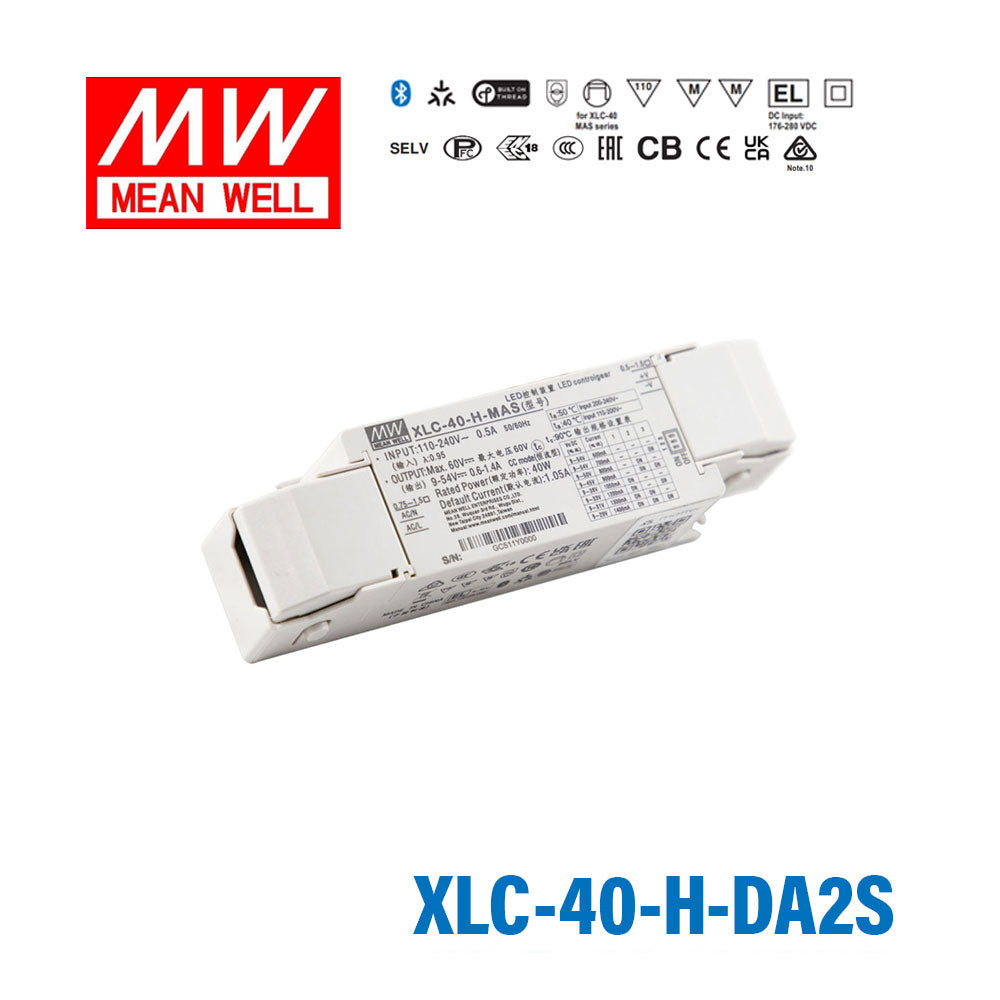

Mean Well XLC-40-H-DA2S LED Driver 40W 1050mA 9~54V Constant Power,...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating40 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED driver is the Mean Well XLC-40-H-DA2S?
The XLC-40-H-DA2S is a 40W AC/DC LED driver for constant power LED applications. This model is rated at 1050mA and is part of Mean Well's XLC series with DALI dimming support.
Does the XLC-40-H-DA2S support DALI dimming?
Yes. The XLC-40-H-DA2S supports DALI-2 DT6 dimming and also includes push dimming functionality. The listed minimum dimming level is 0.1%.
What makes the XLC-40-H-DA2S suitable for commercial lighting projects?
This model combines 40W output, DALI control, push dimming, flicker-free performance, and a Class II plastic housing. Those features make it a practical choice for B2B LED lighting projects where dimming control and efficiency matter.
Is the XLC-40-H-DA2S a flicker-free LED driver?
Yes. The product description states that the XLC-40-H-DA2S is flicker-free and complies with IEEE1789/ErP. This is useful for lighting applications where visual comfort and reduced flicker are important.
What operating temperature range is listed for the XLC-40-H-DA2S?
The listed operating temperature range for this model is -25°C to 90°C. Buyers should confirm the full application conditions against the product datasheet before specifying it for high-temperature environments.
Does the XLC-40-H-DA2S support emergency lighting applications?
Yes. The description states that this model meets emergency lighting function application requirements. That makes it relevant for projects where emergency lighting compatibility is part of the driver selection criteria.
What warranty is listed for the Mean Well XLC-40-H-DA2S?
The XLC-40-H-DA2S is listed with a 5-year warranty. This is a key specification for commercial procurement and long-term lighting maintenance planning.
