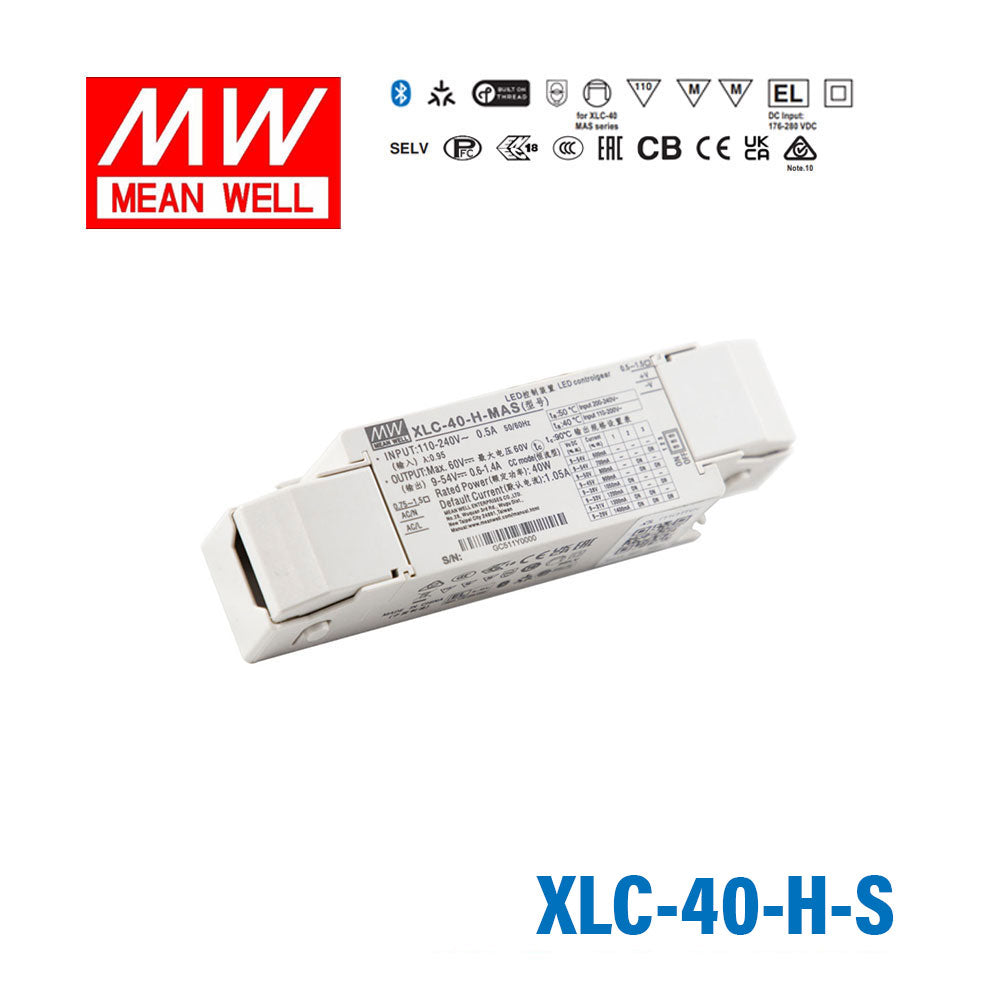

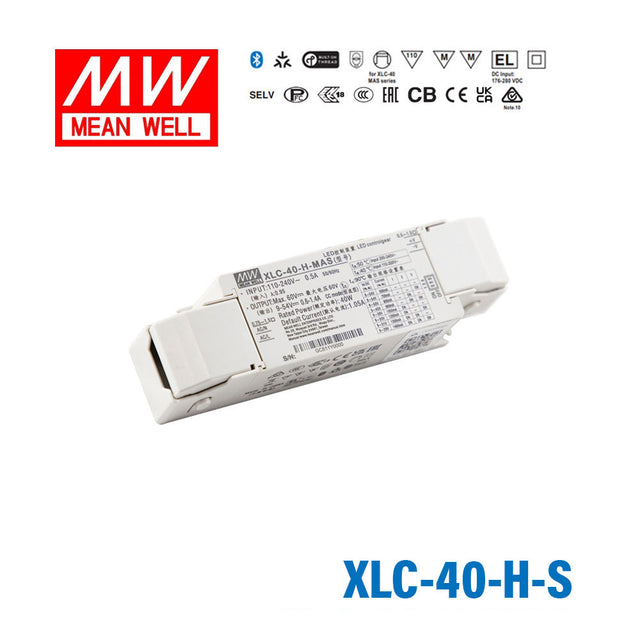

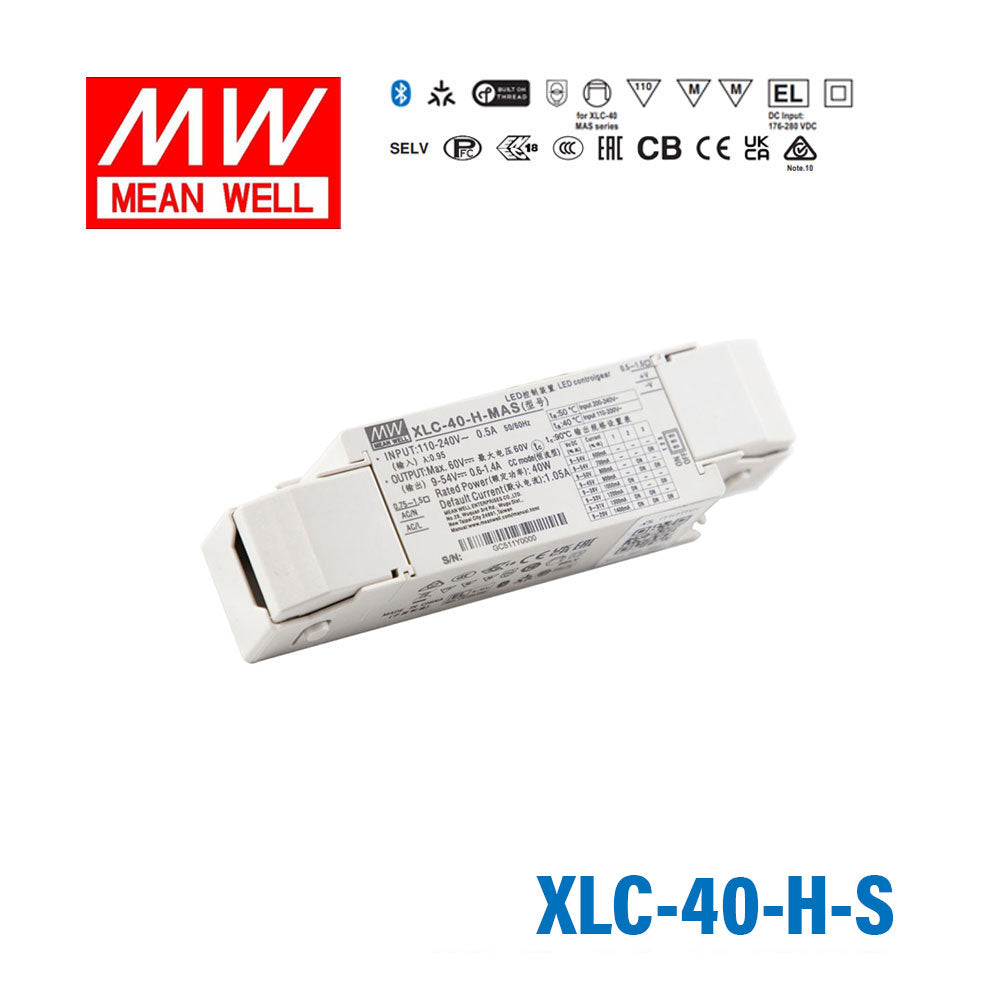

Mean Well XLC-40-H-S LED Driver 40W 1050mA 9~54V Constant Power with Strain-relief, Current Setting by Dip Switch

current adjustment range 0.6~1.4Aclass II and PFCflicker-free
SKU XLC-40-H-S
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

XLC-40-H-S is the model of this series: rated power 40W, typical efficiency 88%.

XLC-40 Series is a 40W with constant power and constant voltage output LED driver . It can operate from 100~305VAC and output current ranging between 600 mA to 1400 mA selectable by dip switch or NFC setting. Thanks to high efficiency up to 88%, it is able to operate for -25℃~90℃ case temperature under free air convection. XLC-40 is designed based on latest safety regulations with 3 in 1 and DALI-2 dimming. XLC-40 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED Lighting application.

Features

  • Constant power mode output with multiple stage selectable by dip switch or NFC setting (H-type)
  • Constant voltage mode output (12V/24V)
  • Plastic housing with class II and PFC design
  • Meet UL 8750 Class 2 / Class P power unit
  • Flicker free, complying with CE ErP directive
  • Standby power consumption <0.5W
  • Meet emergency lighting (EL) function application
  • Minimum dimming level 0.1% (DALI-2 DT6)
  • Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
  • 5 years warranty

Specifications

XLC-40-H-SSpecifications from the official datasheet (2025-01-20 edition)

OUTPUT

OPEN CIRCUIT VOLTAGENote.2 (H-type table)
60V
DEFAULT CURRENT
1050mA
CURRENT ADJ.RANGE (BY DIP SWITCH OR NFC)
0.6~1.4A
CONSTANT CURRENT REGIONNote.3 (H-type table)
9~54V
RATED POWERNote.2 (12V/24V table); Note.4 (H-type table)
40W
CURRENT RIPPLE
<4%(@full load)
CURRENT TOLERANCE
±5%
DIMMING RANGE
0~100%
SETUP, RISE TIMENote.5 (12V/24V table); Note.5,6 (H-type table)
500ms, 100ms/230VAC, 1000ms, 100ms/115VAC

INPUT

VOLTAGE RANGE
100 ~ 305VAC 141 ~ 400VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD<10%(@load≧50%/230VAC; @load≧75%/277VAC), THD<15%(@load≧50%/115VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)Note.7 (H-type table)
88%
AC CURRENT
0.5A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.)
COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
51 units (circuit breaker of type B) / 51 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
STANDBY POWER CONSUMPTIONNote.8 (H-type table)
Standby power consumption<0.5W(Dimming off)

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE
Blank & B type: De-rating to lowest output level. Recovers automatically after fault condition is removed. DA2 type: Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.
Tcase=-25 ~ 90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=90℃
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384, BIS IS15885(Part2/Sec13)(NOTE 14), GB/T19510.1, GB/T19510.213, EAC TP TC 004,UL8750(Class P); CSA C22.2 No. 250.13-12 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
DALI STANDARDS
Comply with IEC62386-101,102,207
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
ConductedBS EN/EN55015(CISPR15) ,GB/T 17743
RadiatedBS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic CurrentBS EN/EN61000-3-2 , GB17625.1Class C @load≥50%
Voltage FlickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN61547

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 3, 8KV air; Level 2, 4KV contact
RadiatedBS EN/EN61000-4-3Level 2
EFT/BurstBS EN/EN61000-4-4Level 2
SurgeBS EN/EN61000-4-5Level 3, 1KV/Line-Line
ConductedBS EN/EN61000-4-6Level 2
Magnetic FieldBS EN/EN61000-4-8Level 2
Voltage Dips and InterruptionsBS EN/EN61000-4-1170% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

FLICKERNote.6 (12V/24V table); Note.9 (H-type table)
PstLM ≤ 1, SVM ≤ 0.4
MTBF
3935.2 K hrs min. Telcordia SR-332 (Bellcore) ; 342.9 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
147*40*32mm,107*40*32mm (L*W*H)
PACKING
193g; 60pcs/12.58Kg/0.58CUFT(for blank type); 210g; 50pcs/11.5Kg/0.57CUFT(for S-type)
Test conditions and notes14
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. De-rating may be need under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
  4. 4. Tolerance: includes set up tolerance, line regulation and load regulation.
  5. 5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  6. 6. Flicker is measured at full load with the light source provided by MEAN WELL.
  7. 7. To fulfill requirement of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  8. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. The ambient temperature de-rating of 3.5℃/1000m with fanless models and 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  10. 10. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  11. 11. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
  12. 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
  13. 13. For more information, please contact with MEAN WELL sales.
  14. 14. Products sourced from the China regions and some models sourced from India may not have the BIS logo,please refer to BIS certificate for details and contact your MEAN WELL sales for more information.

Technical drawings

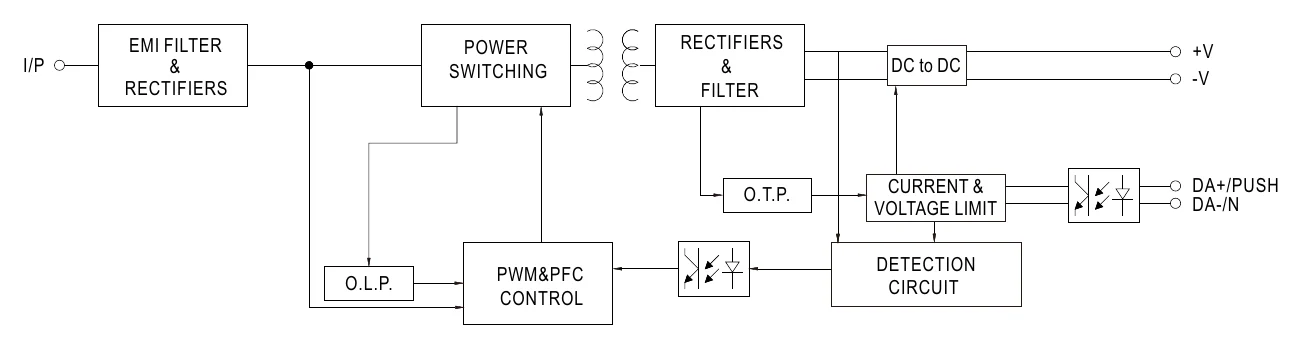

XLC-40-H-S BLOCK DIAGRAM
BLOCK DIAGRAM

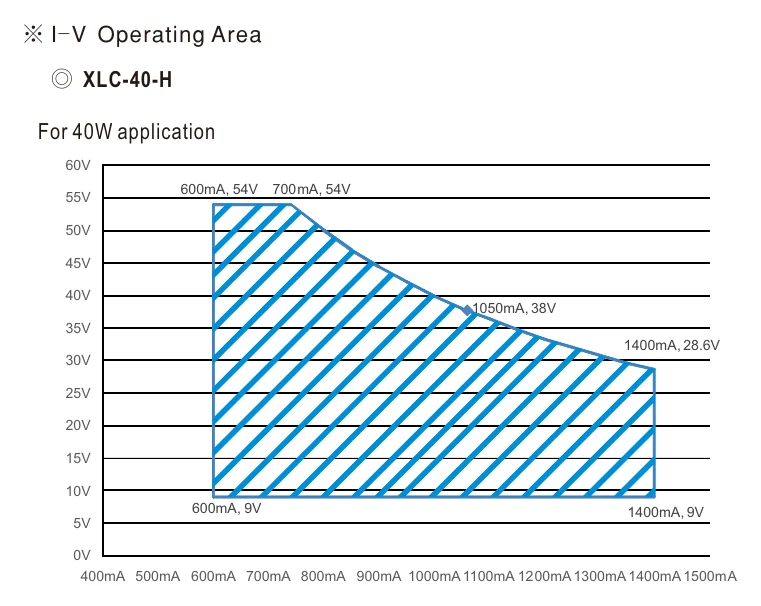

XLC-40-H-S DRIVING METHODS OF LED MODULE
DRIVING METHODS OF LED MODULE

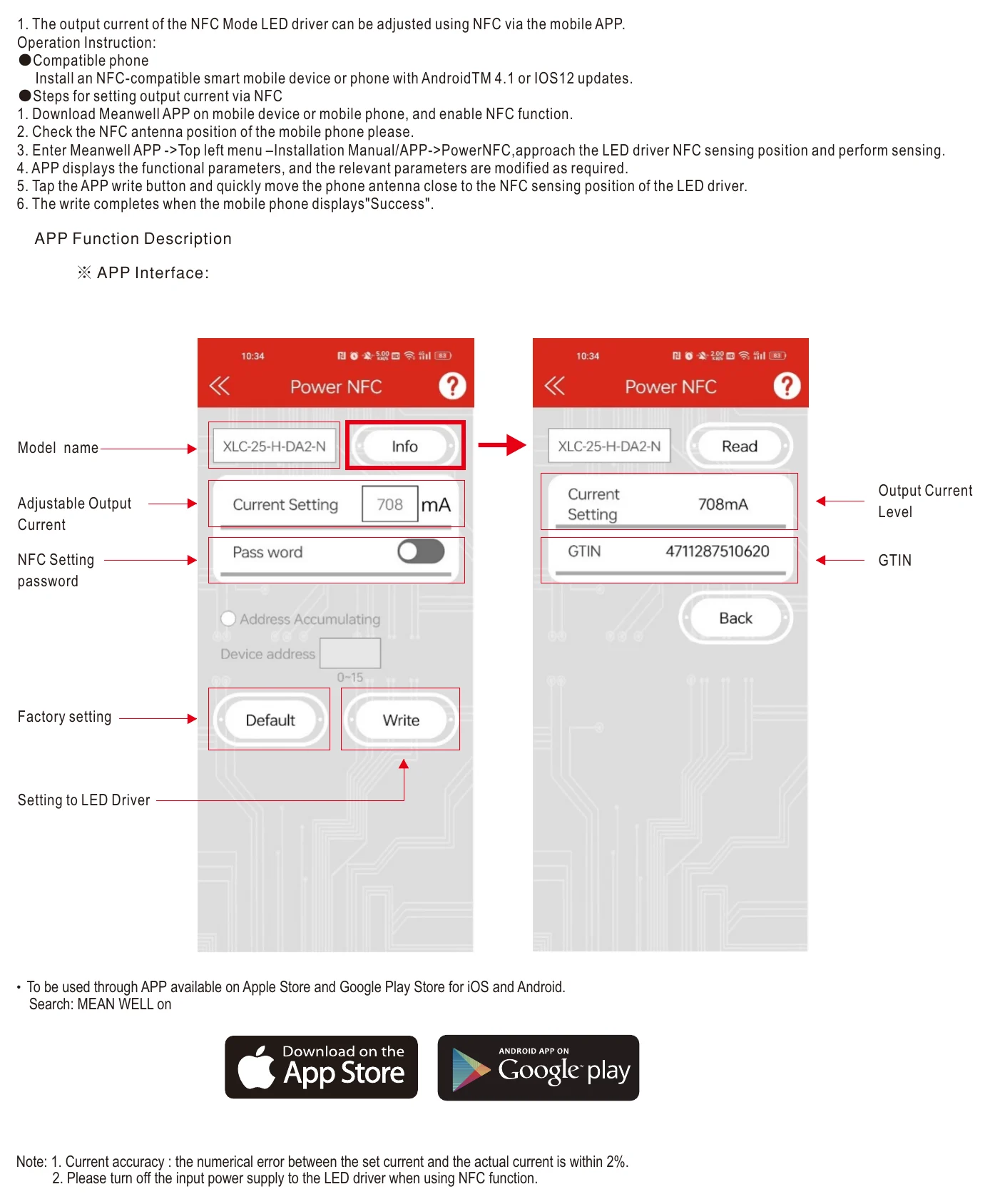

XLC-40-H-S NFC Function Description
NFC Function Description

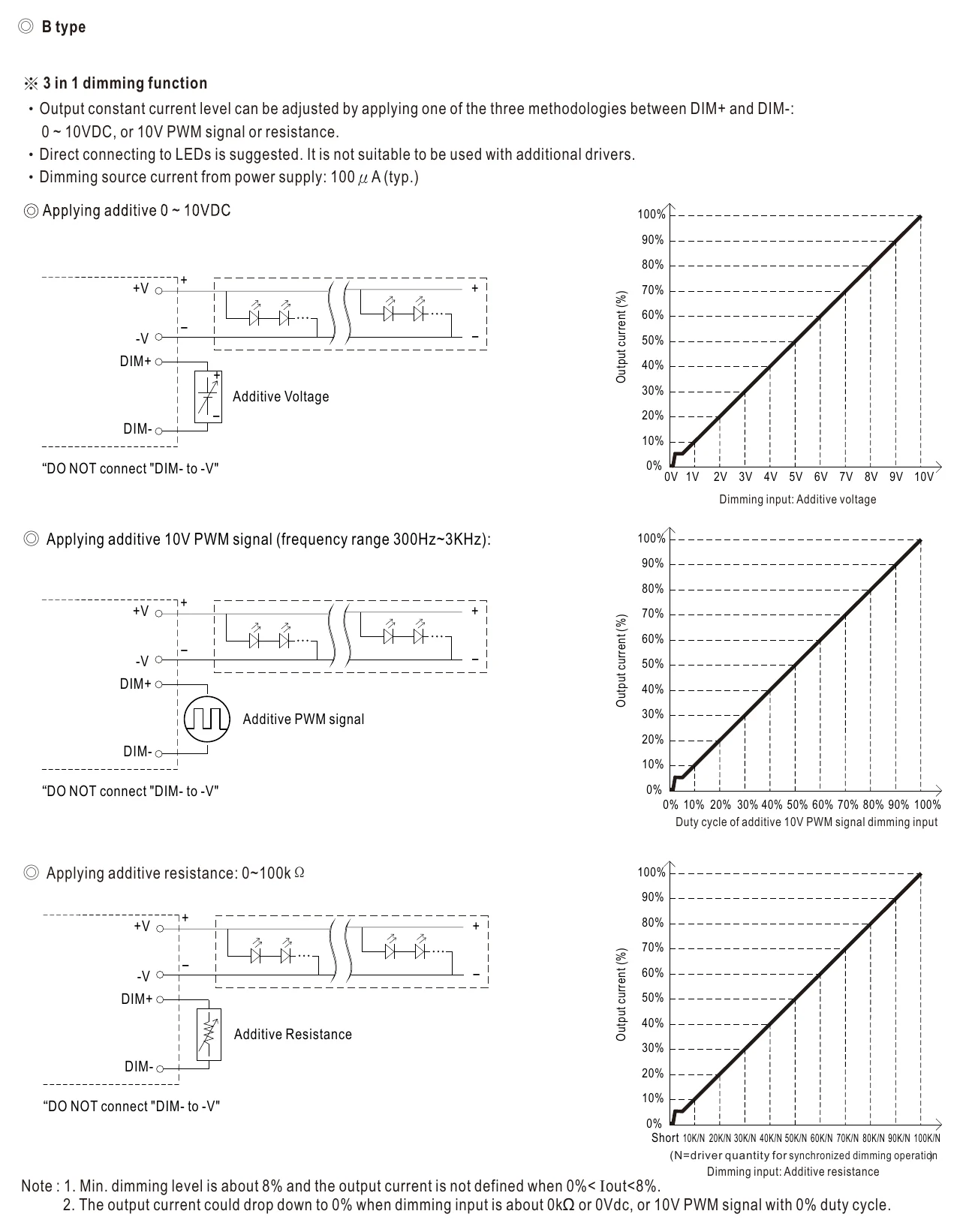

XLC-40-H-S DIMMING OPERATION
DIMMING OPERATION

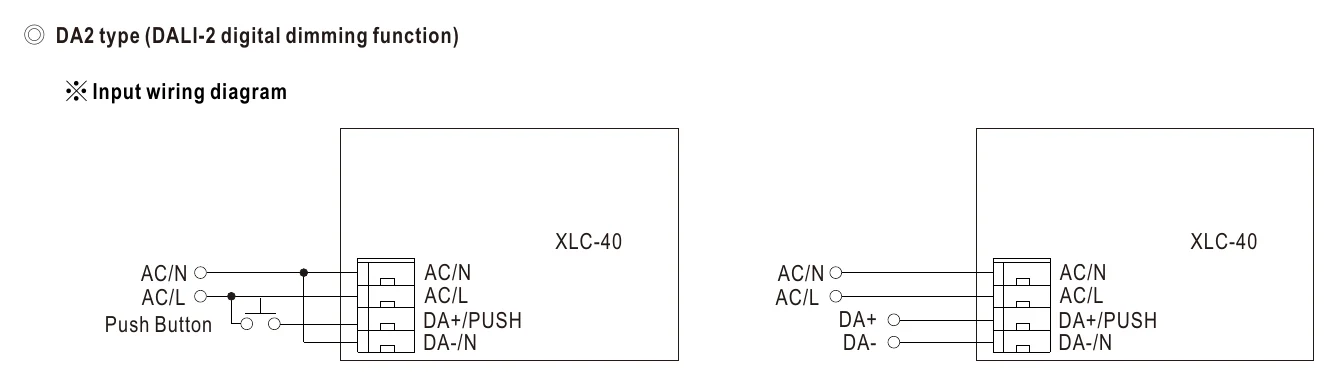

XLC-40-H-S ◎ DA2 type (DALI-2 digital dimming function)
◎ DA2 type (DALI-2 digital dimming function)

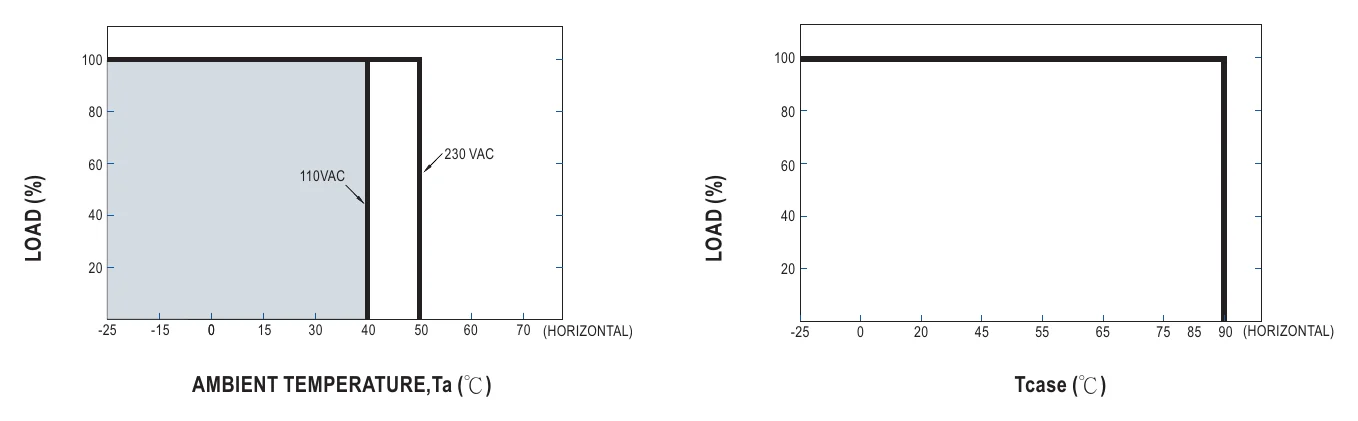

XLC-40-H-S OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE

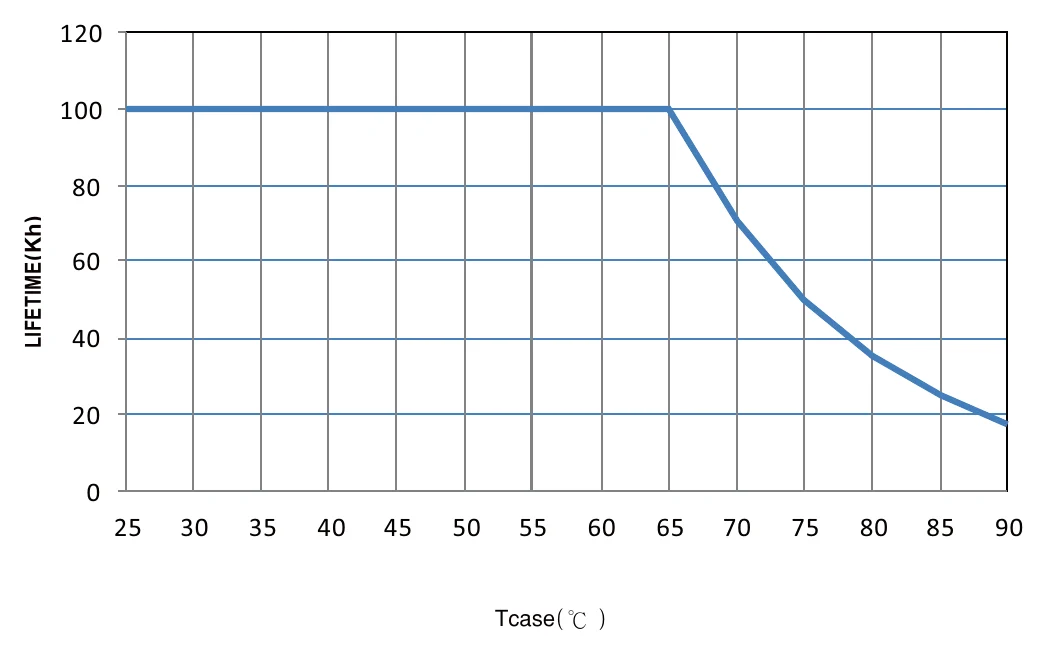

XLC-40-H-S LIFE TIME
LIFE TIME

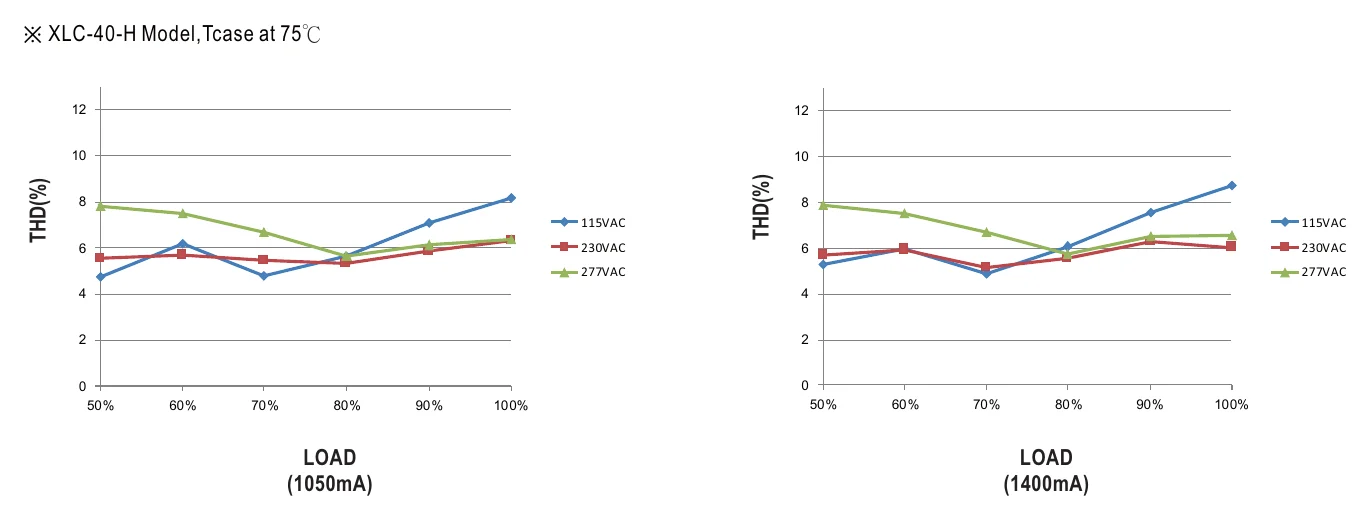

XLC-40-H-S TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

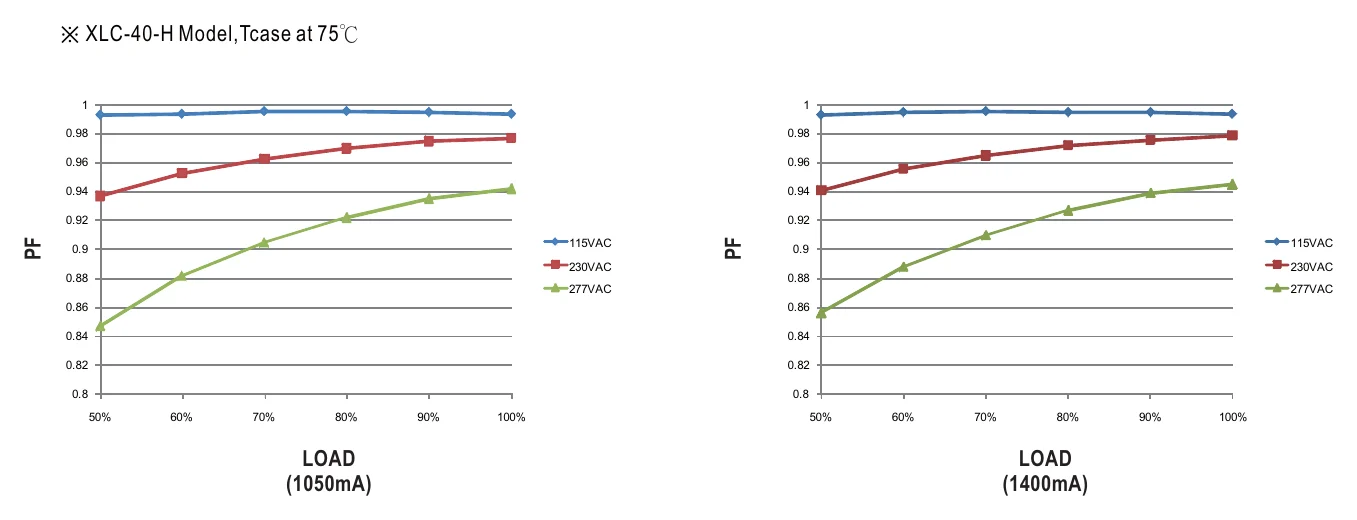

XLC-40-H-S POWER FACTOR (PF) CHARACTERISTIC
POWER FACTOR (PF) CHARACTERISTIC

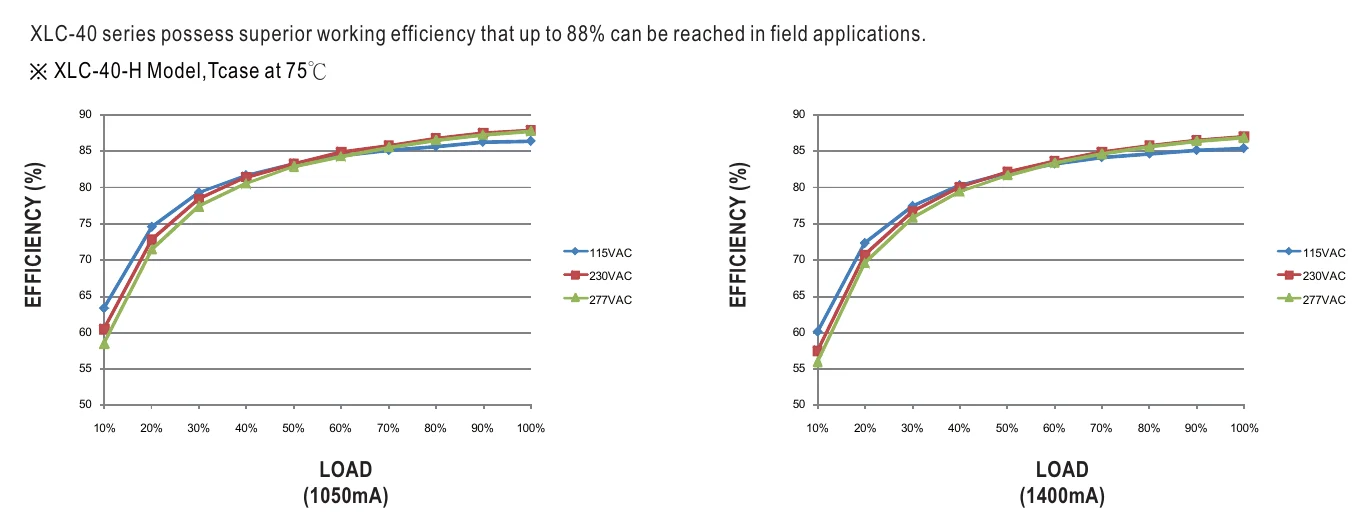

XLC-40-H-S EFFICIENCY vs LOAD
EFFICIENCY vs LOAD

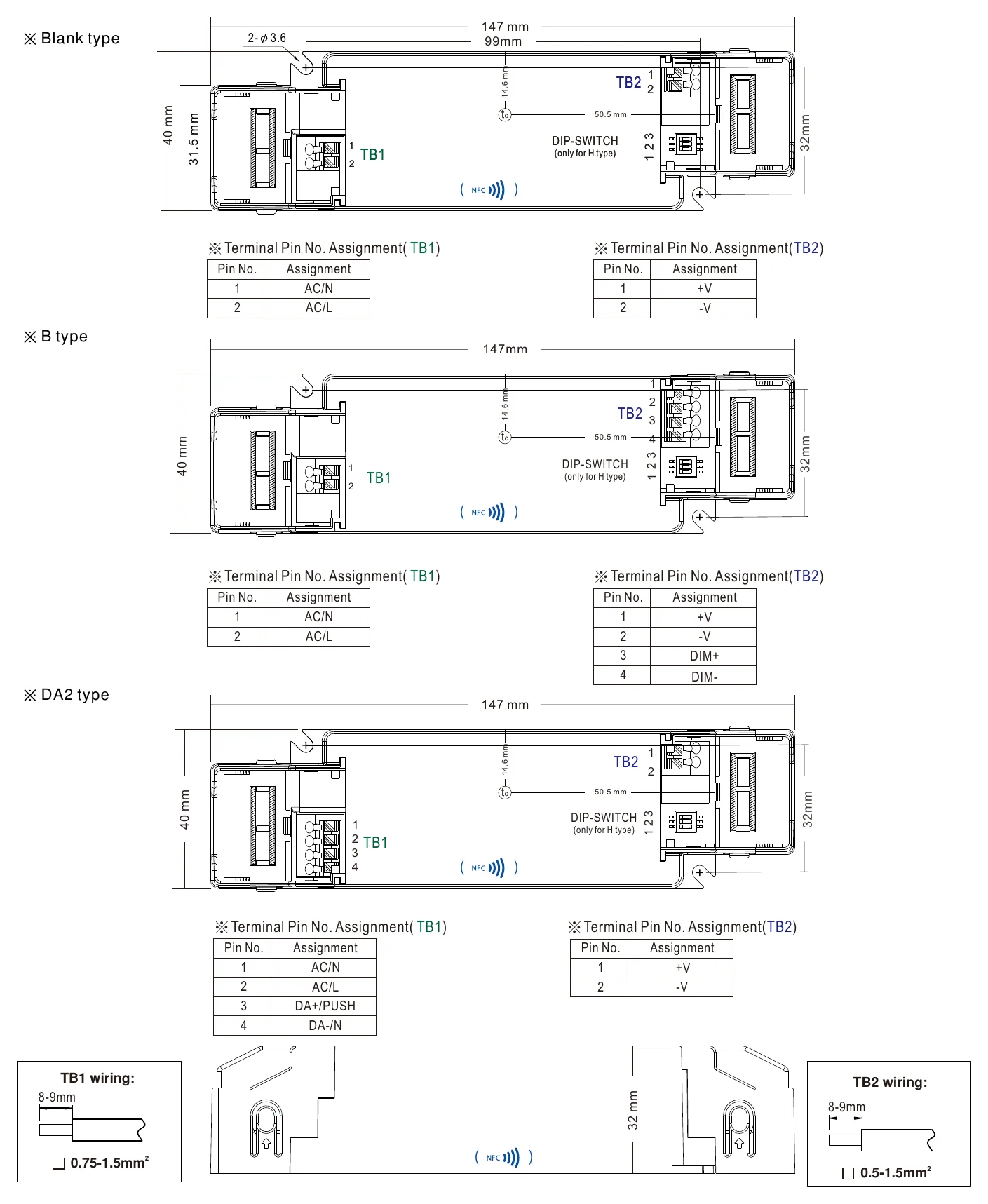

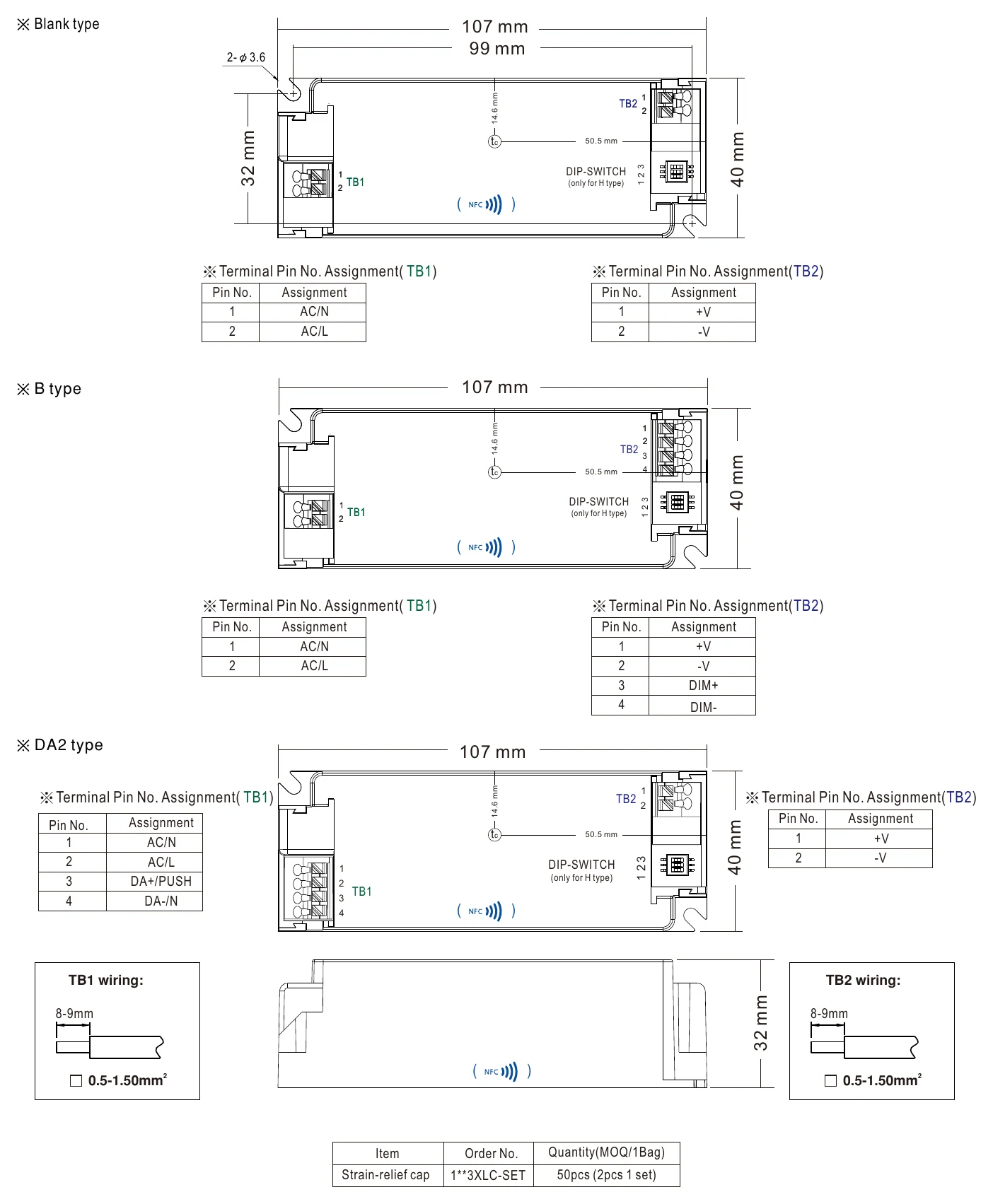

XLC-40-H-S MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
XLC-40-H-S MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION

Typical applications

  • Recessed Light
  • Down Light
  • Panel Light
  • Commercial Lighting
  • Decorative Lighting
  • LED strip lighting
  • DALI digital Lighting

Downloads

::specification::

FAQ

Can the XLC-40-H-S drive LED downlights with the output current configured by dip switch?

Yes, the XLC-40-H-S uses a dip switch to set the output current within the 0.6–1.4A adjustment range. This allows the drive current to be matched to different LED downlight loads at commissioning time. Once set, the constant current output maintains stable current to the LED load across the full 9–54V CC operating range.

Is the XLC-40-H-S appropriate for powering LED modules in retail signage or channel letter applications?

The XLC-40-H-S can drive LED signage modules whose cumulative forward voltage falls in the 9–54V CC range and total consumption stays within 40W. The dip switch current selection lets installers tune the output at installation to match the specific LED module's rated drive current. The number of LEDs per string depends on each LED's forward voltage.

Can the XLC-40-H-S be used for flicker-sensitive applications such as studio or broadcast lighting?

The XLC-40-H-S is specified as flicker-free, making it suitable where camera-visible flicker must be avoided. It delivers 40W at 1050mA constant current across a 9–54V CC range, and its Class II design with PFC meets the electrical quality requirements common in professional lighting environments.

What is the benefit of the strain-relief fitting on the XLC-40-H-S compared to the XLC-40-H model?

The XLC-40-H-S adds a factory-fitted strain-relief cable fitting to the base XLC-40-H specification, mechanically securing the output cable at the housing. This reduces stress on the cable connection from tension or movement during and after installation. Both models share the same 40W, 1050mA, 9–54V constant current electrical specifications.

What LED voltage range is the XLC-40-H-S compatible with?

The XLC-40-H-S has a CC output voltage range of 9–54V and operates as a constant current driver. LED arrays with series forward voltages summing between 9V and 54V are compatible at the selected drive current. The exact number of LEDs per string is not fixed — it depends on the forward voltage of the specific LEDs being used.

Is the XLC-40-H-S rated for installation inside an enclosed luminaire in a warm environment?

Yes, the XLC-40-H-S is designed for built-in installation inside a luminaire or protective enclosure. It operates from -25°C to +90°C, accommodating elevated temperatures inside enclosed downlight housings. It does not carry an IP rating, so it should not be directly exposed to moisture.
